Eay to mount

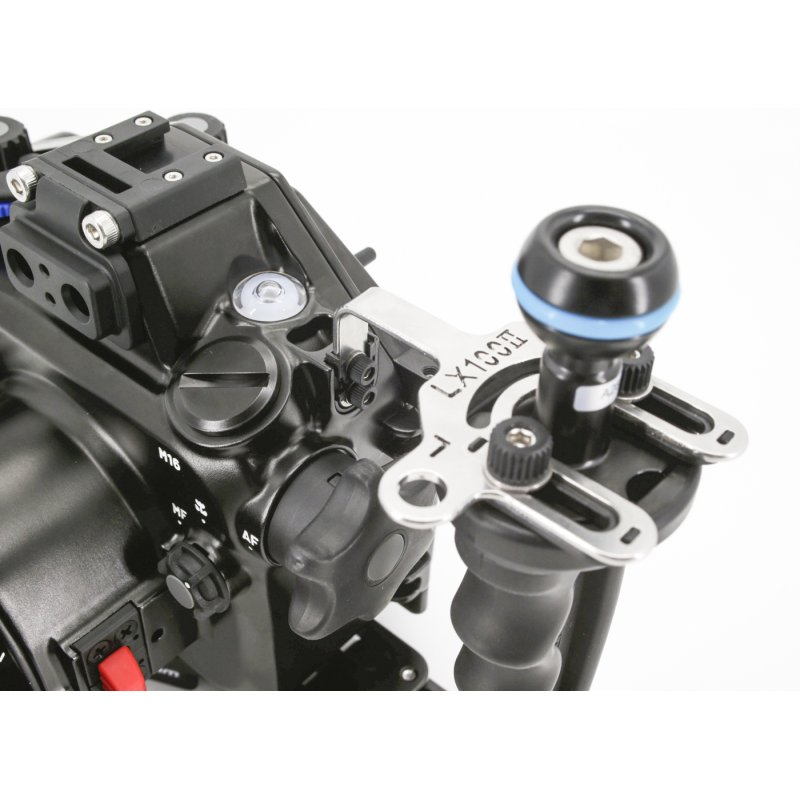

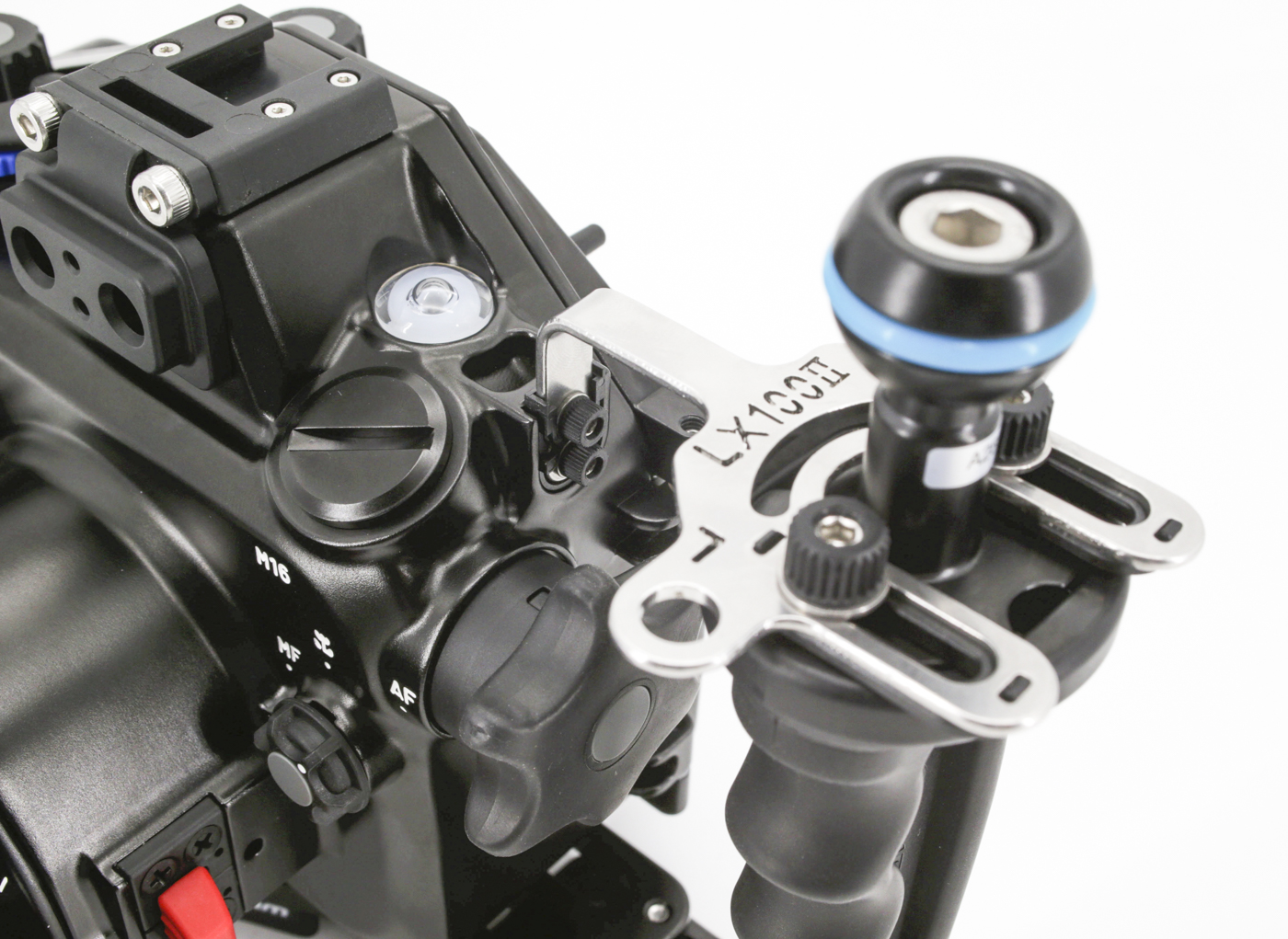

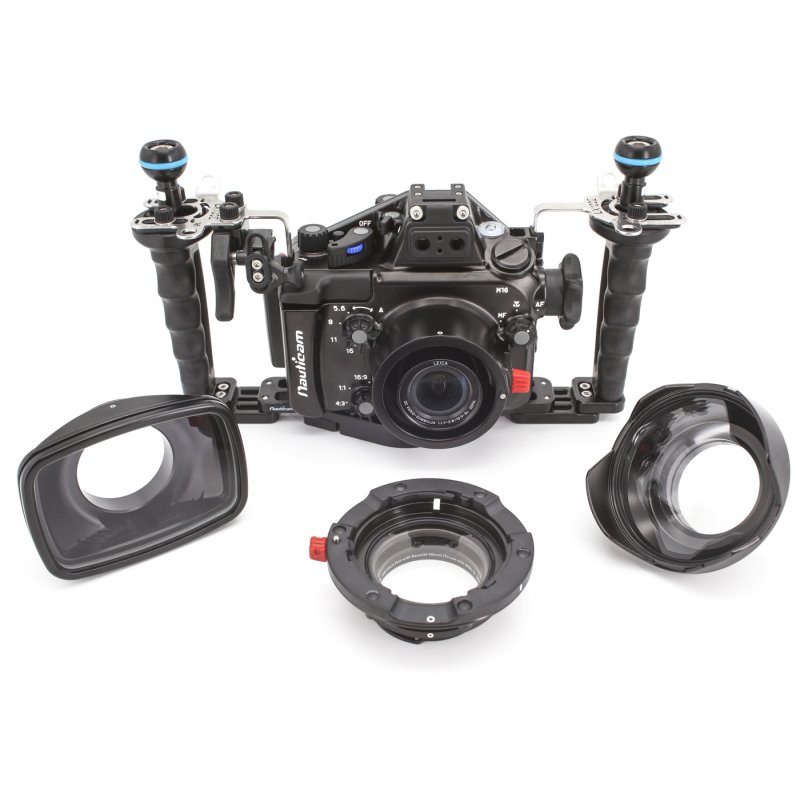

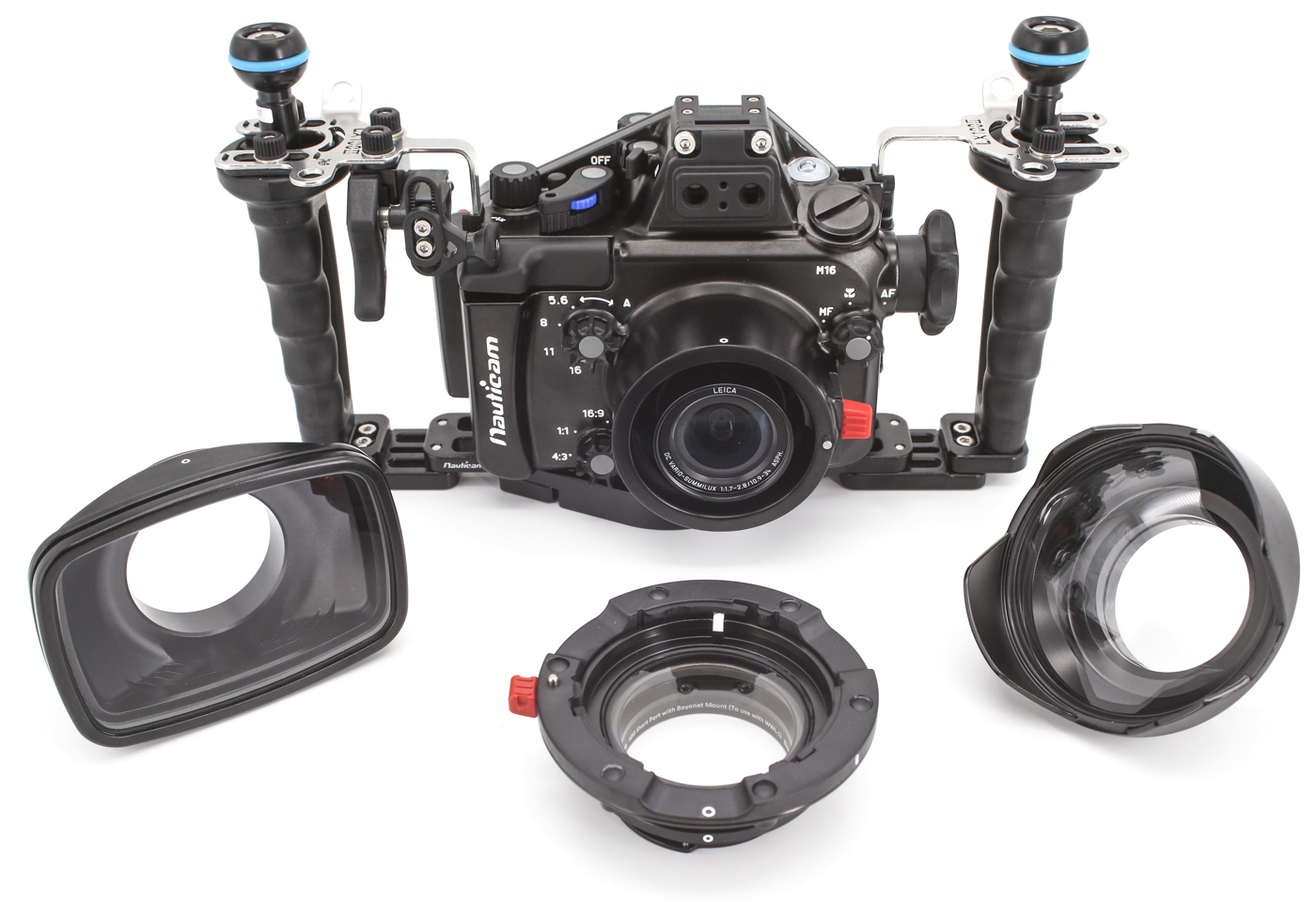

The LX100II fits perfectly on the Nauticam Flexitray system.

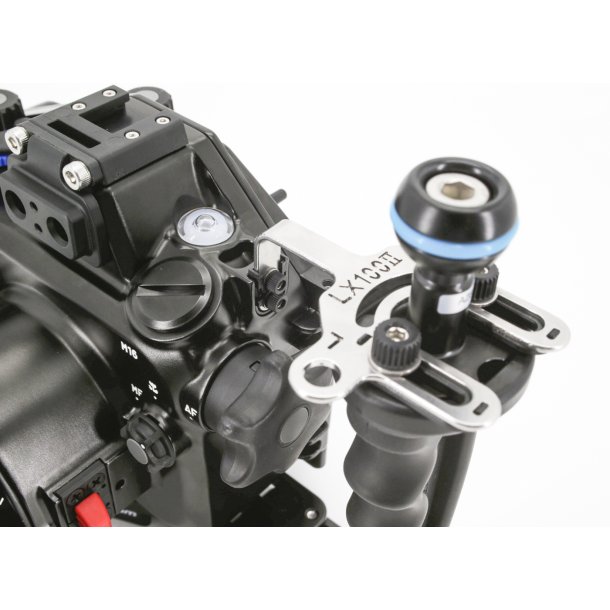

The included trigger system can be mounted on this tray and there is a possibility of using both 1" armballs and the T-mount.
4K VIDEO

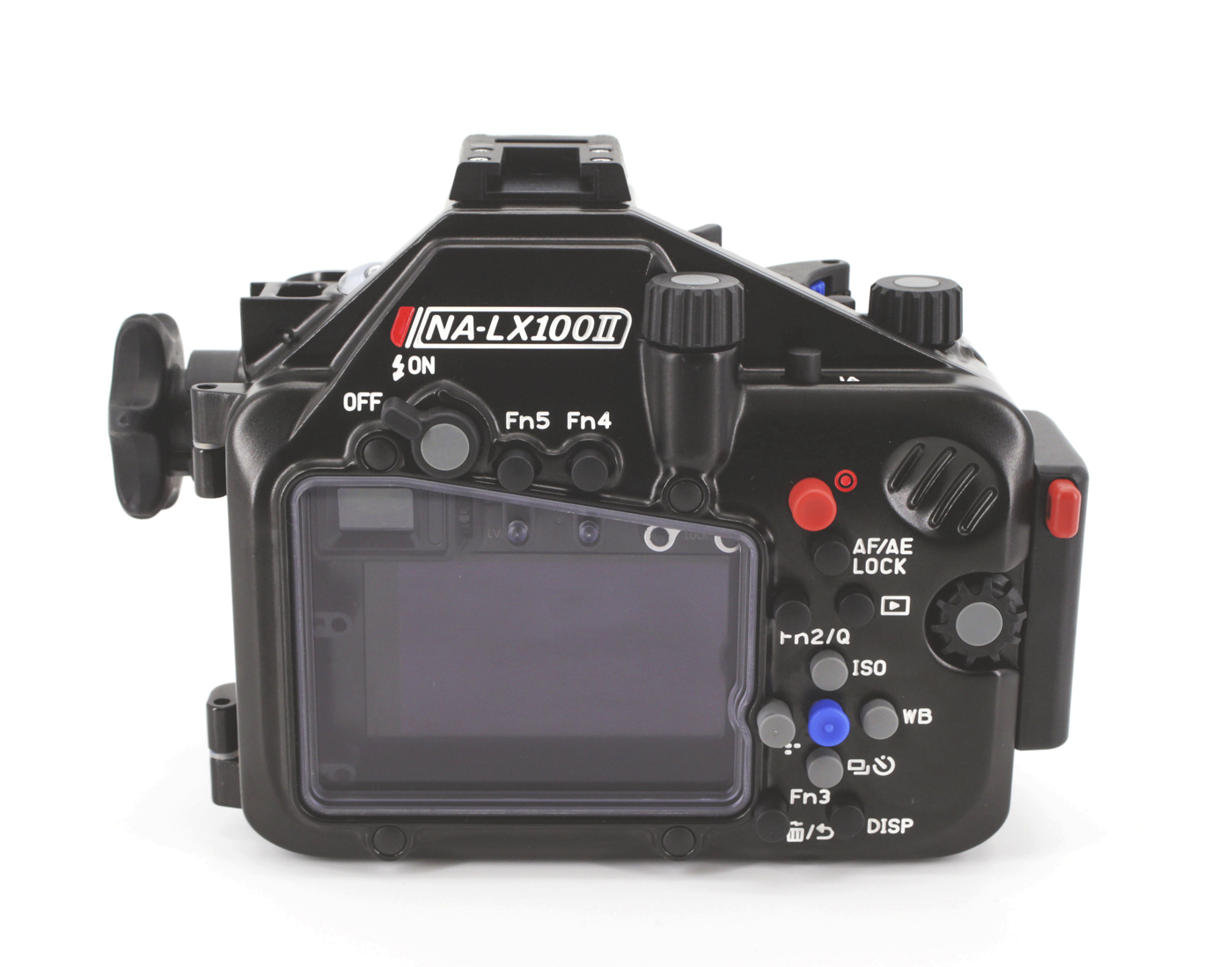

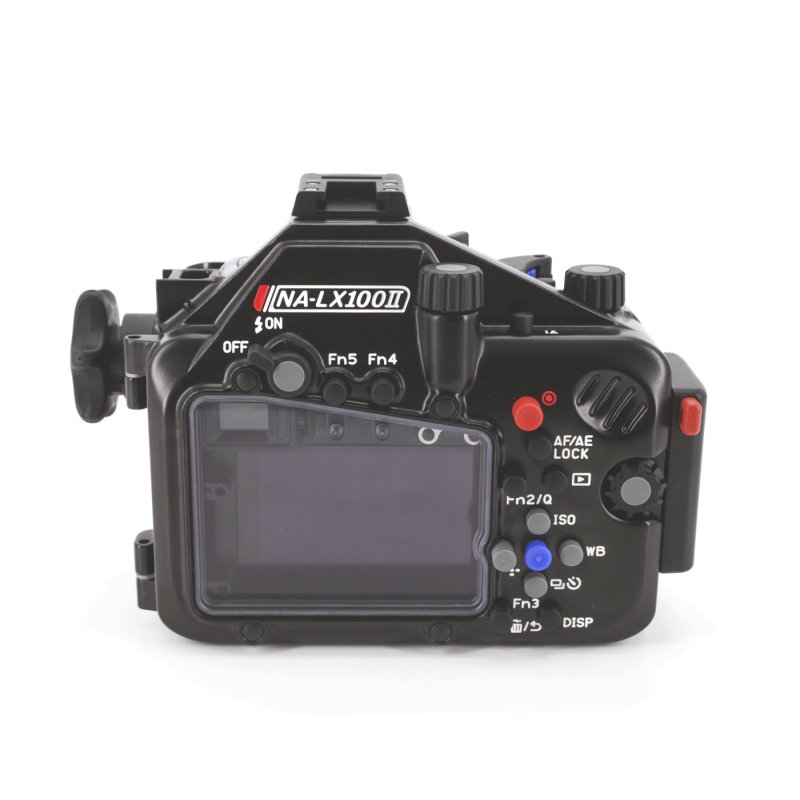

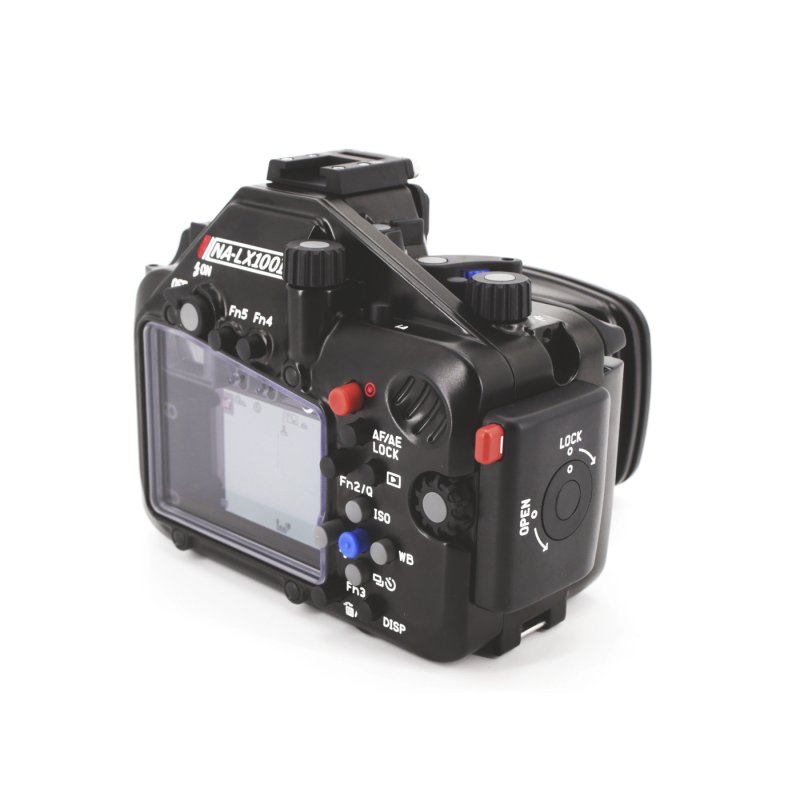

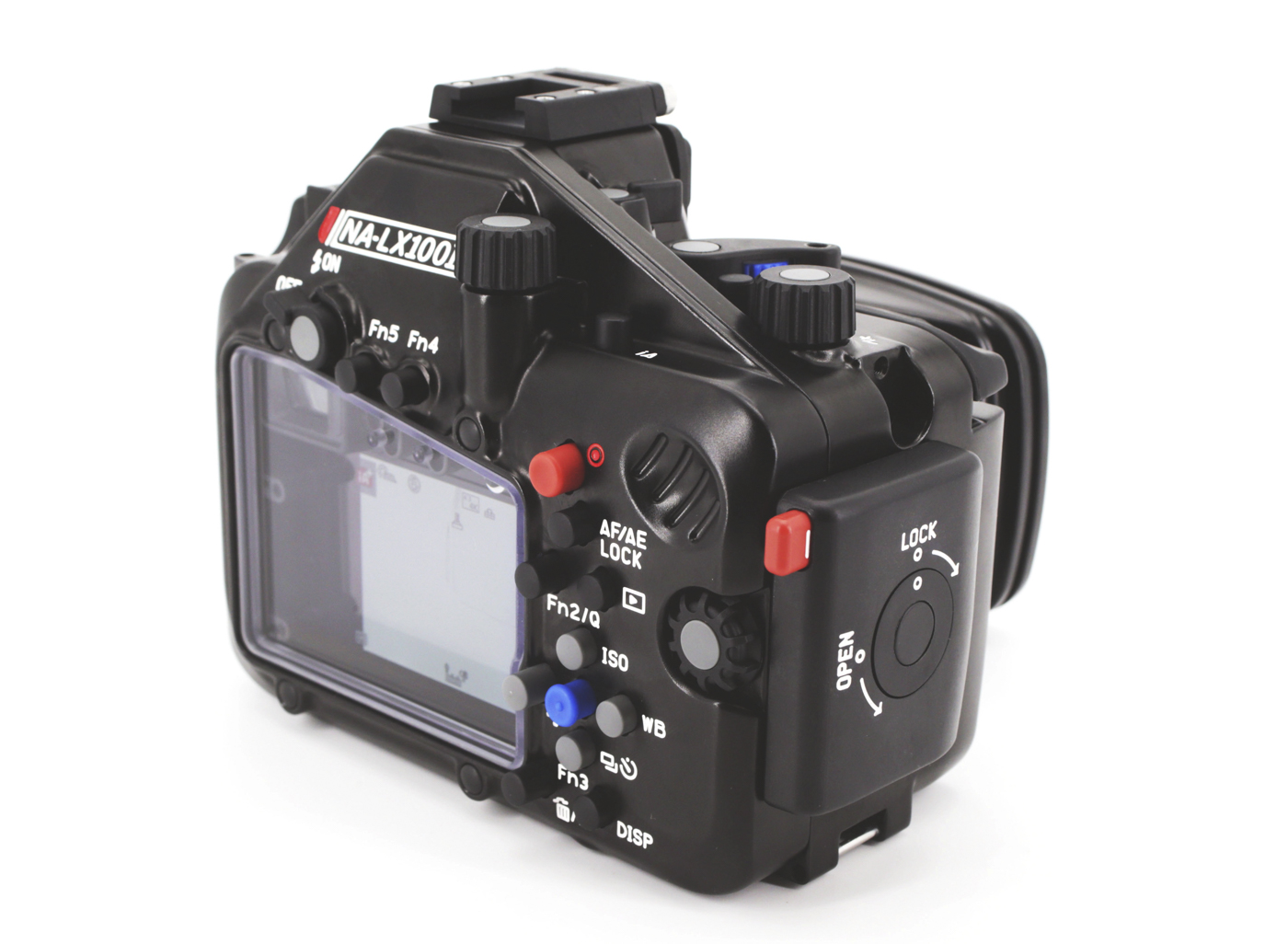

The housing provides direct access to the camera's record button with a conveniently located red button on the rear of the housing.
The LX-100-II can capture UHD 4K video at up to 30 / fps but does so with a 1.34x crop. When you are using the WWL-1 for still images, it is necessary to zoom in to a 28mm equivalent focal length from the camera's maximum of 24mm, however when shooting video the camera can be left at its widest 24mm setting to mitigate some of the lost field-of-view due to the inherent crop factor of the camera.

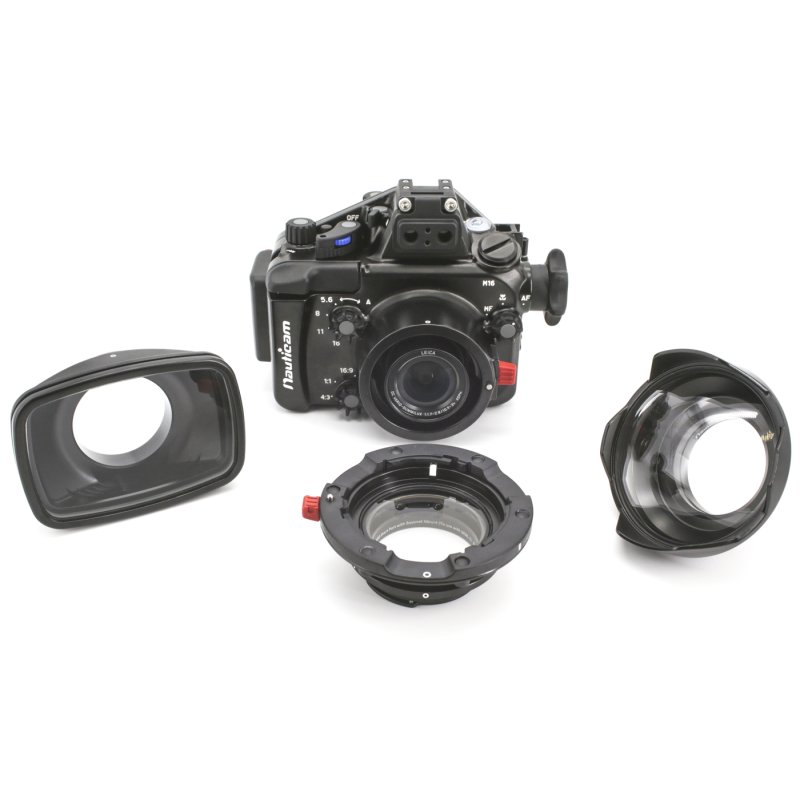

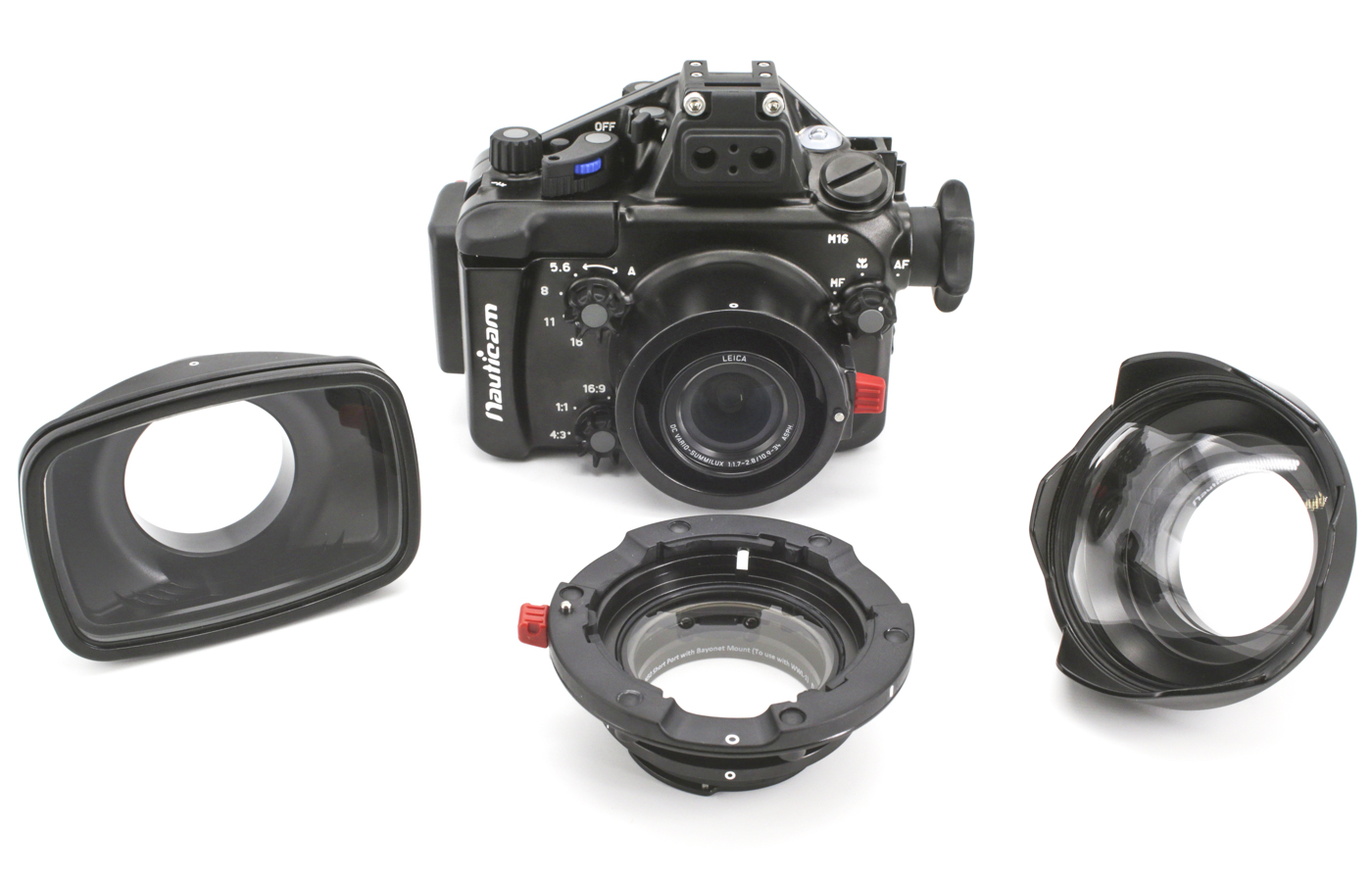

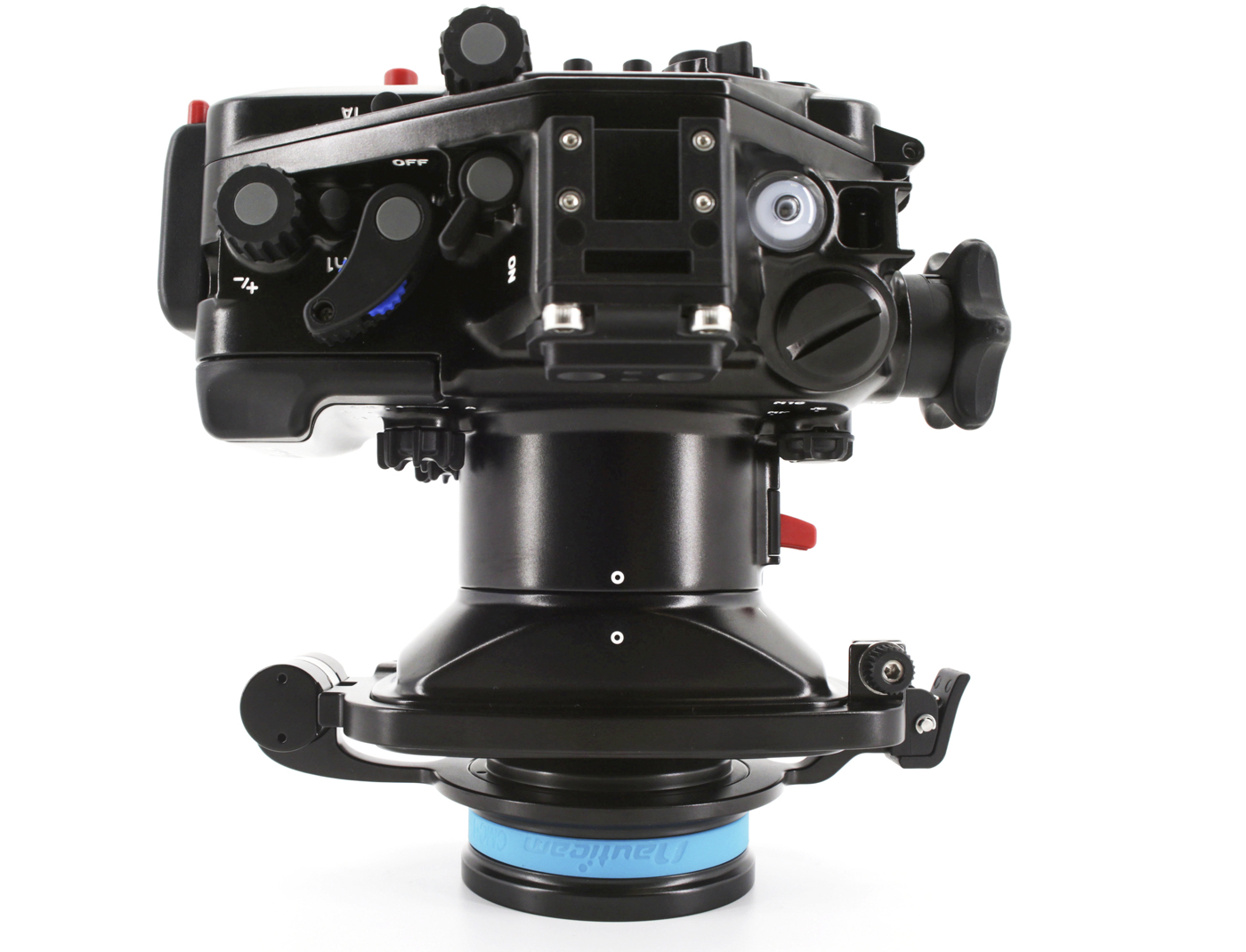

The Nauticam LX100 MKII features the N50 Port System.

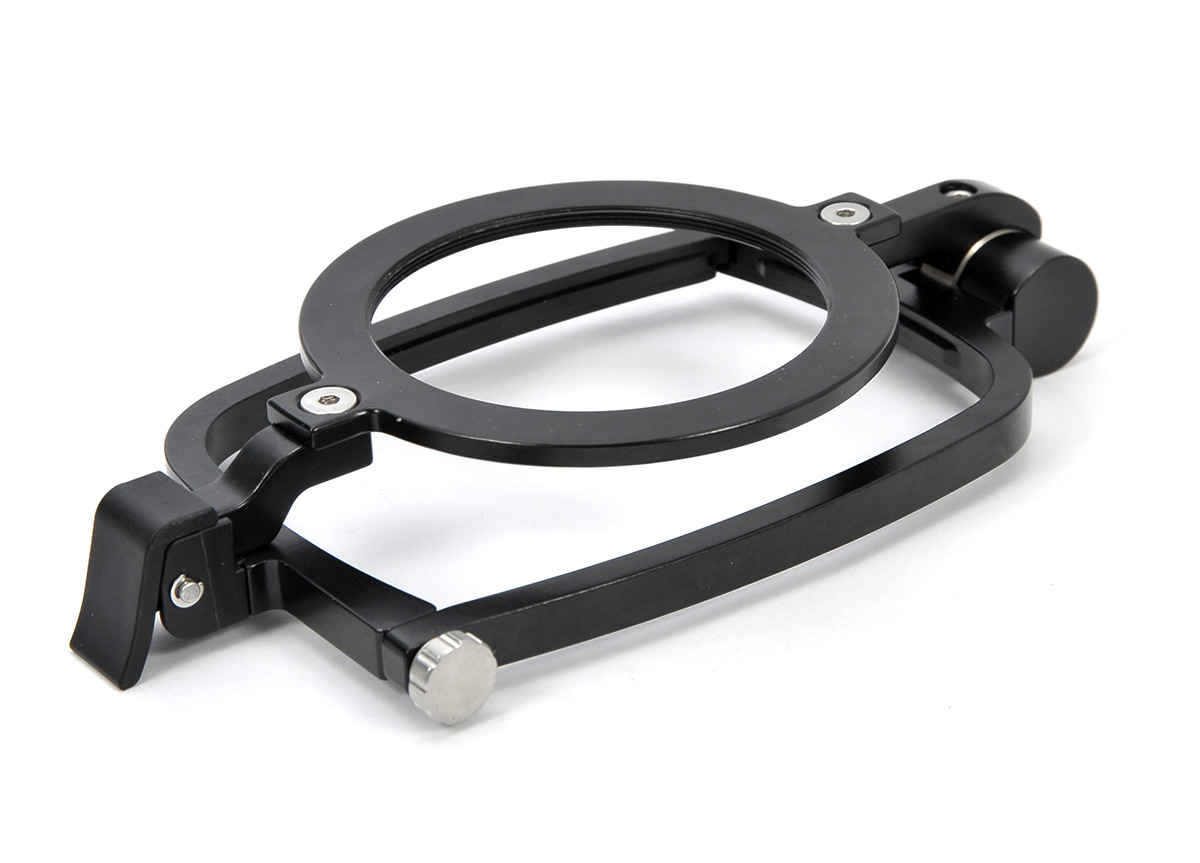

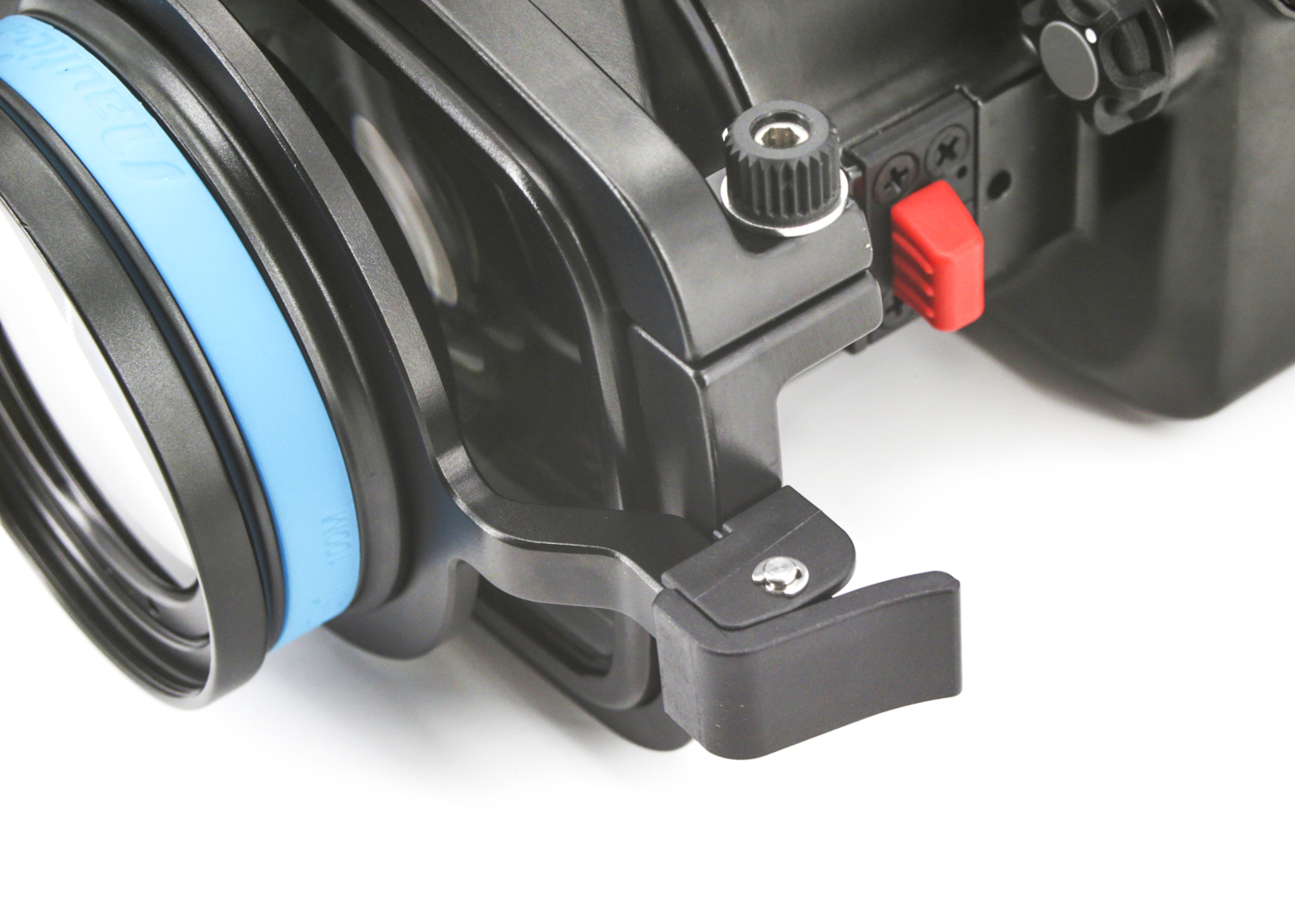

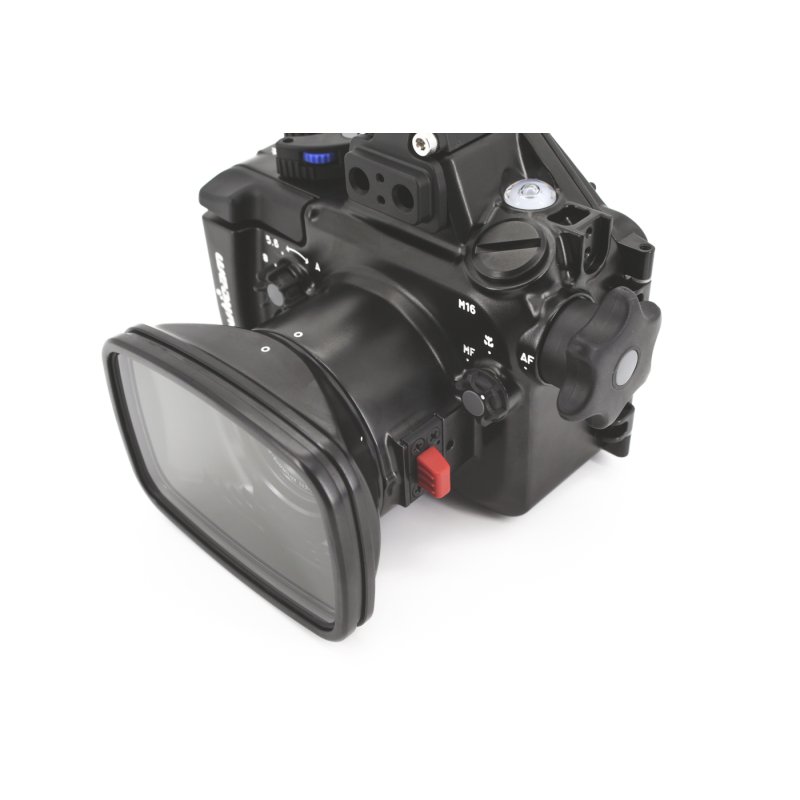

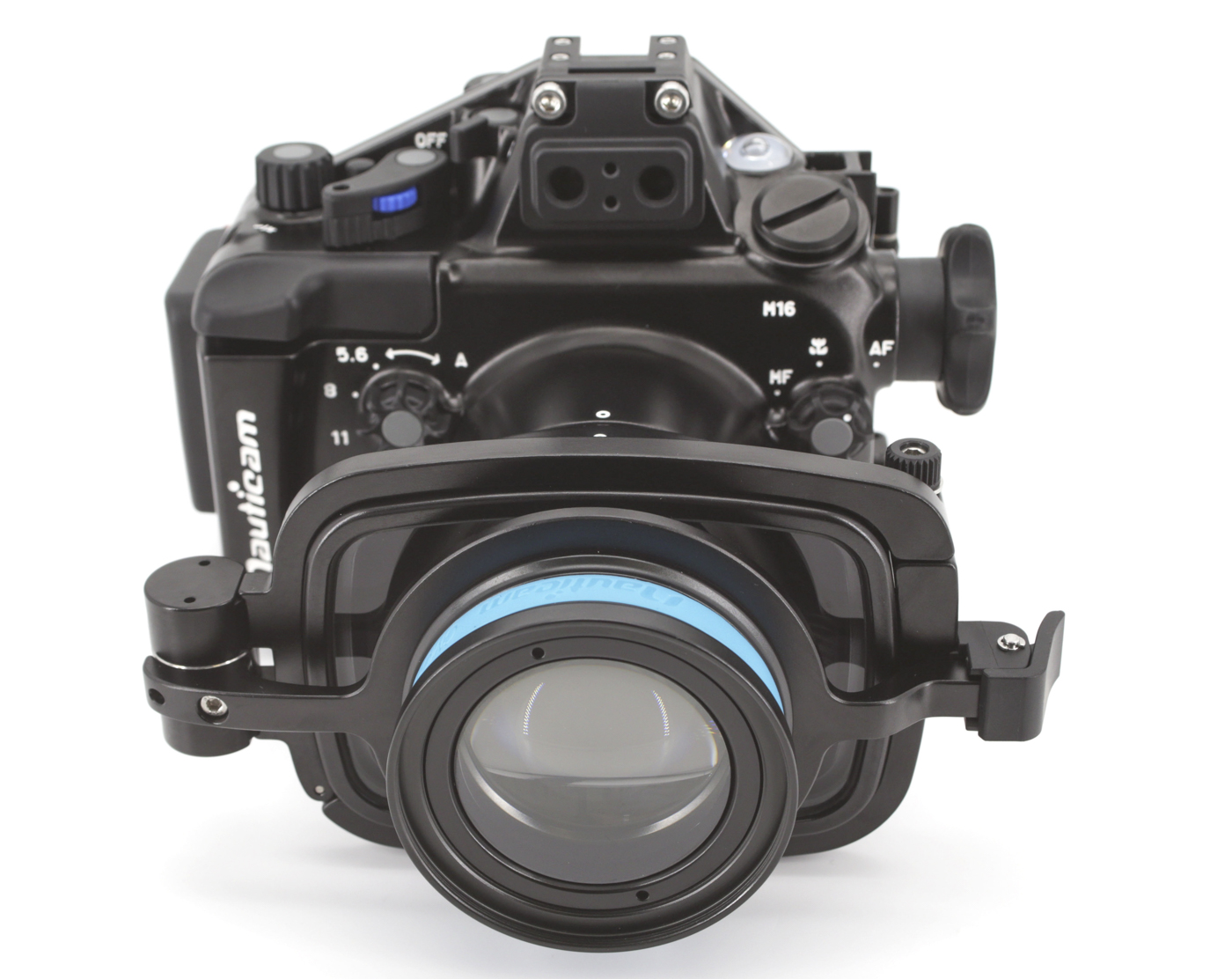

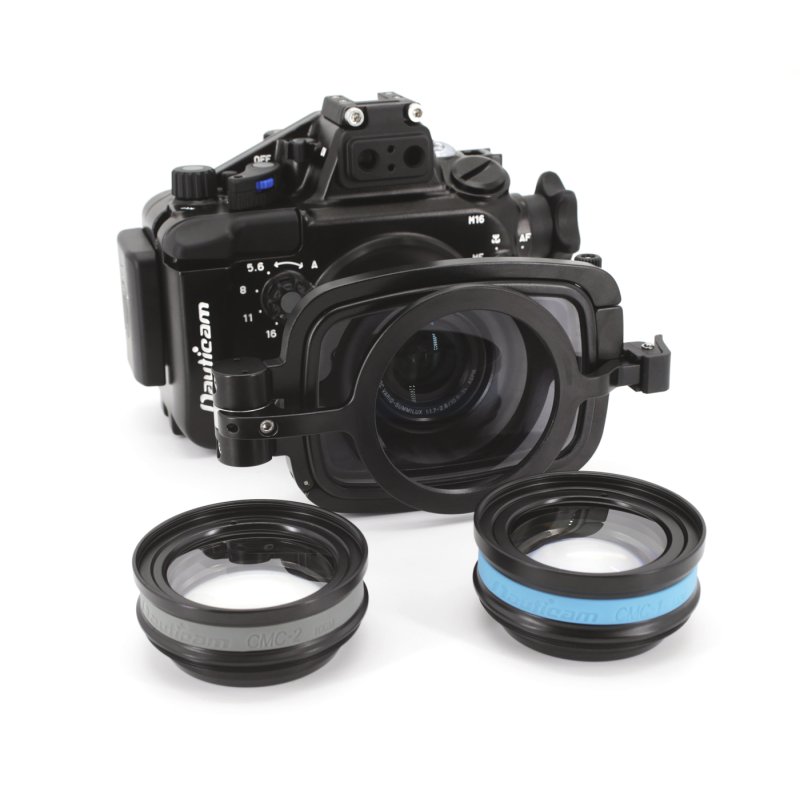

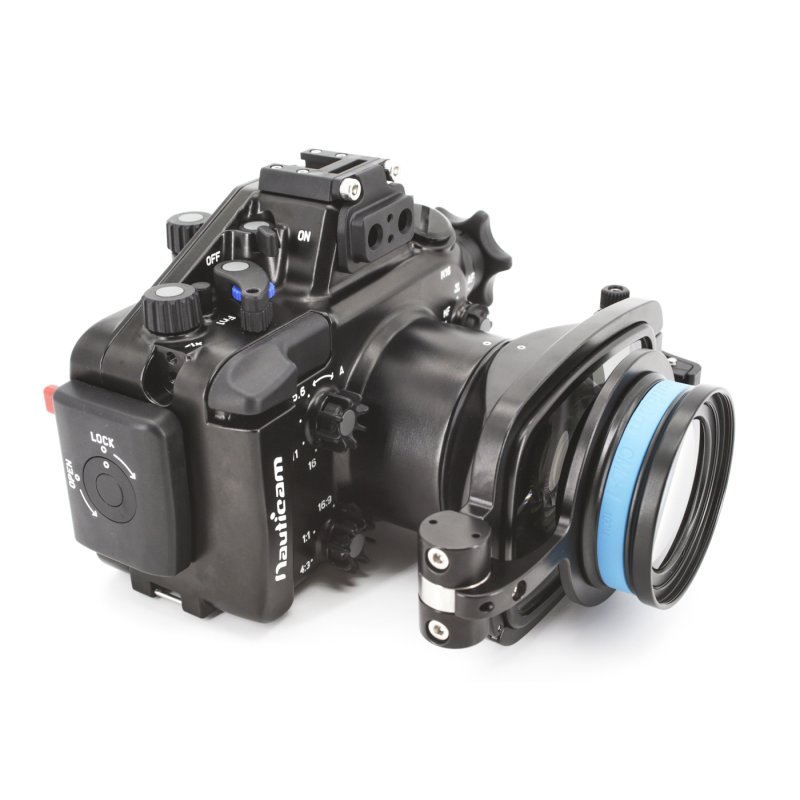

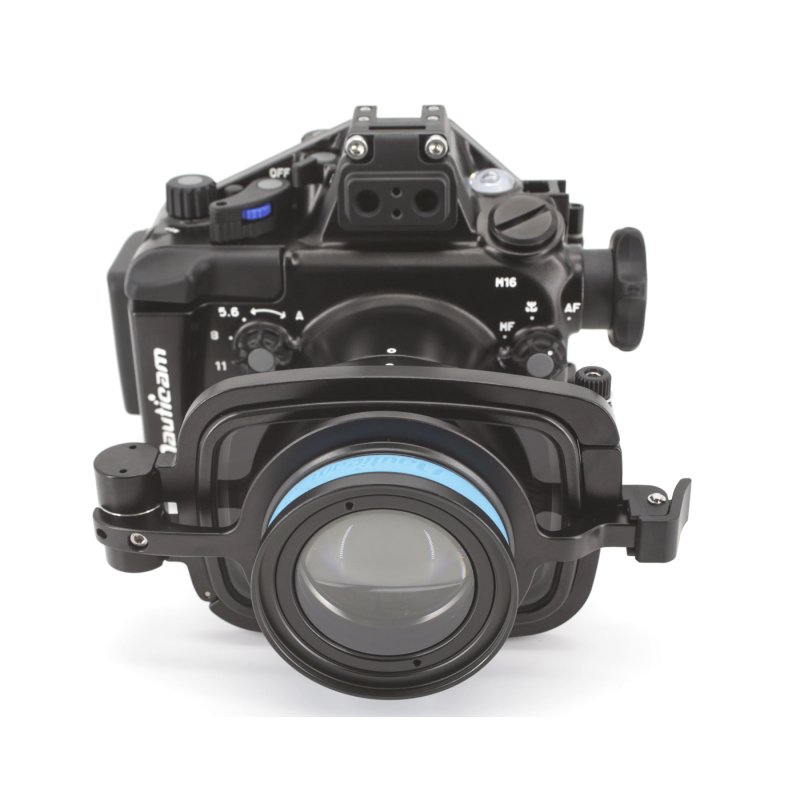

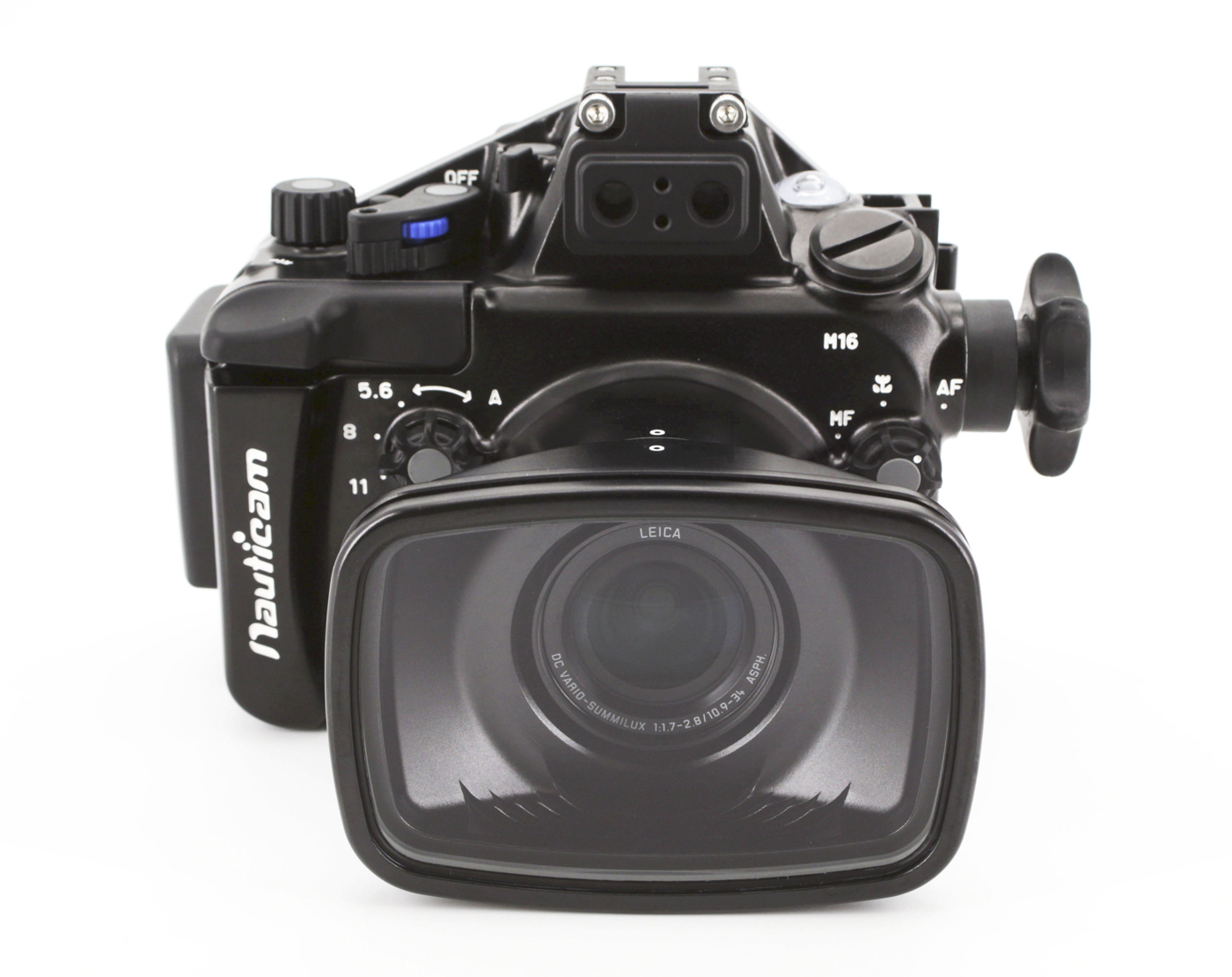

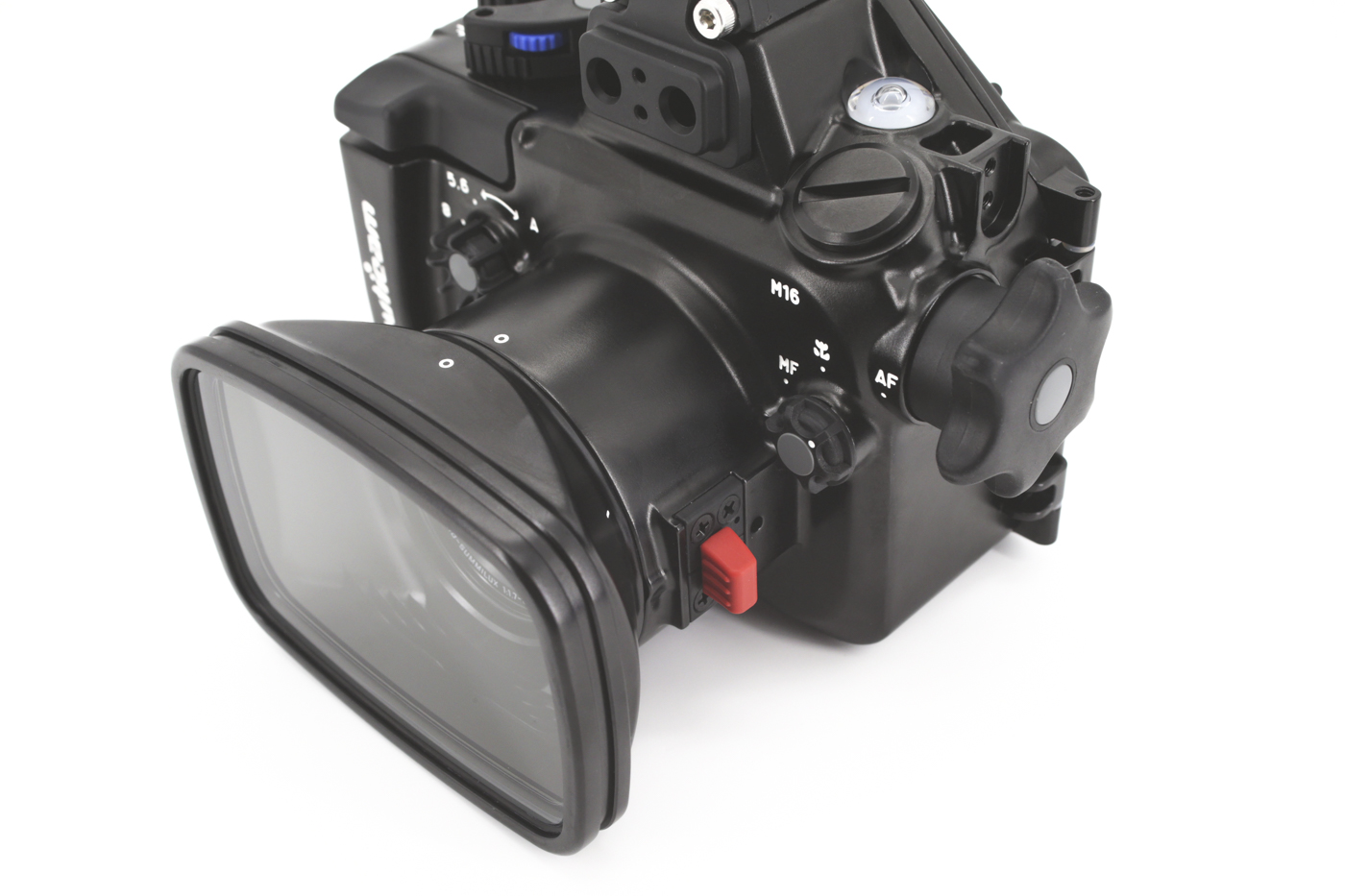

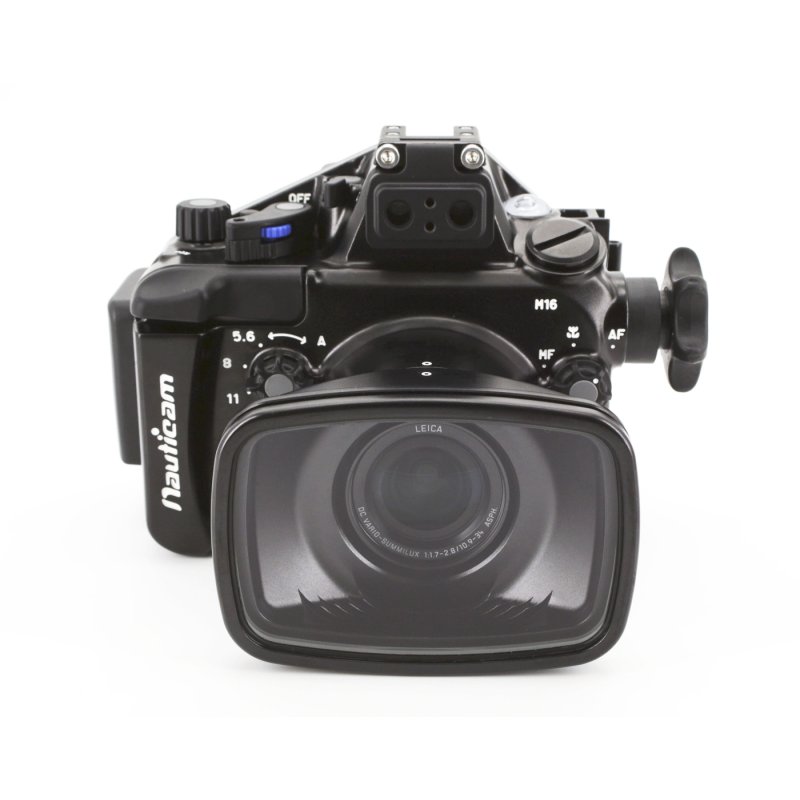

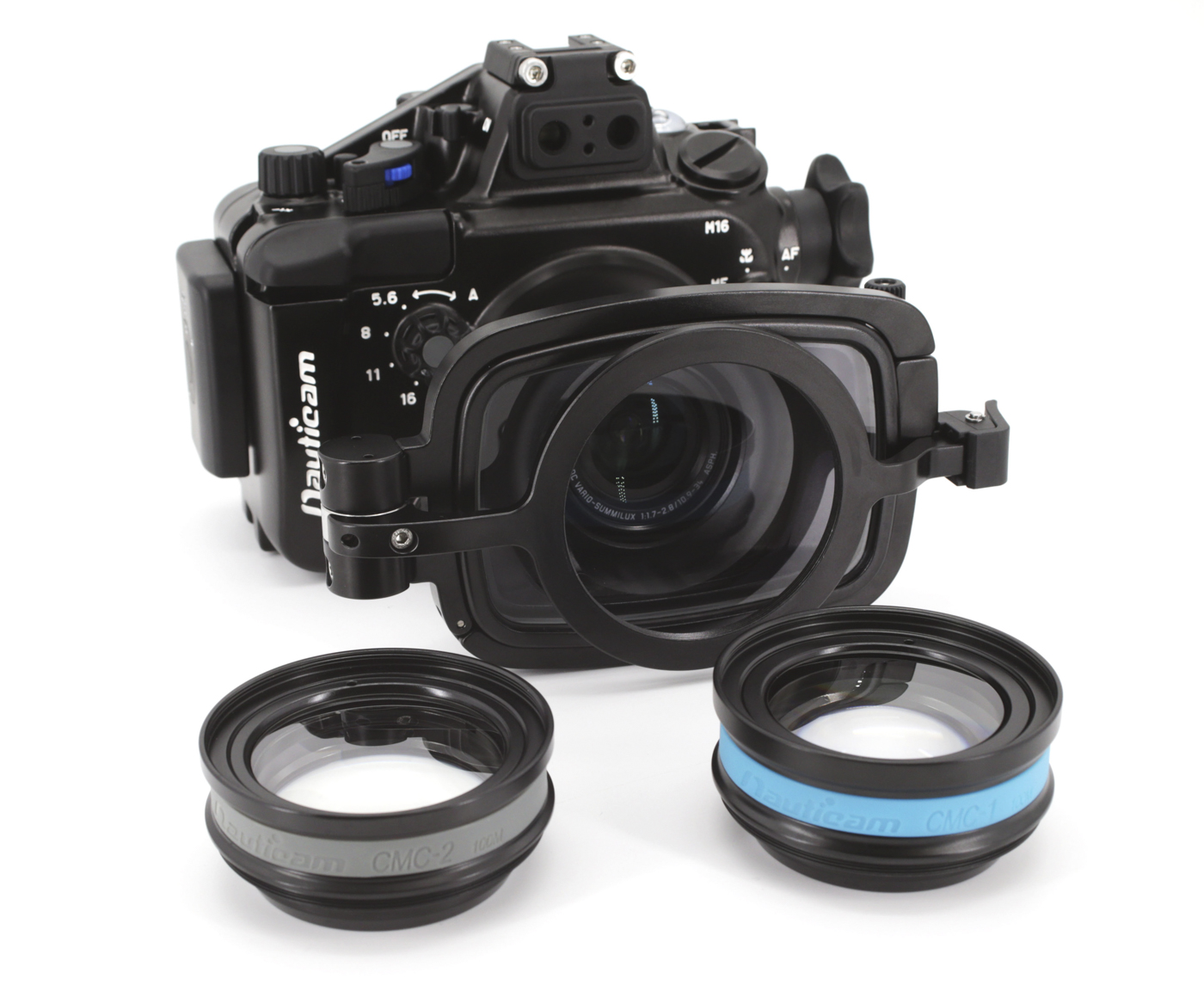

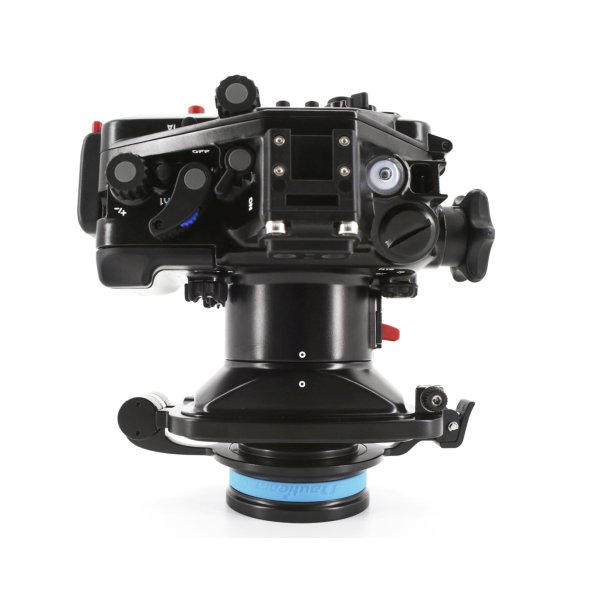

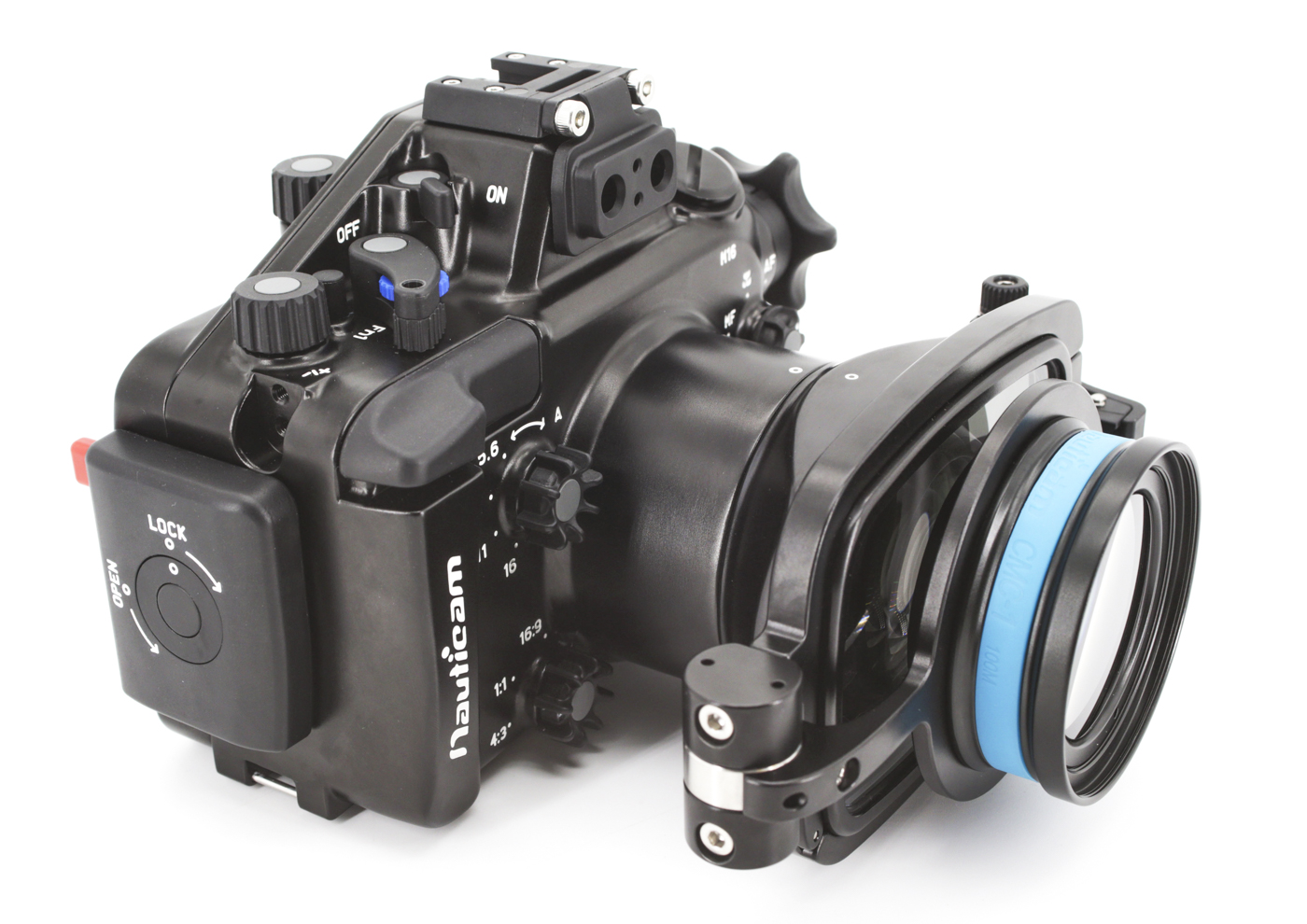

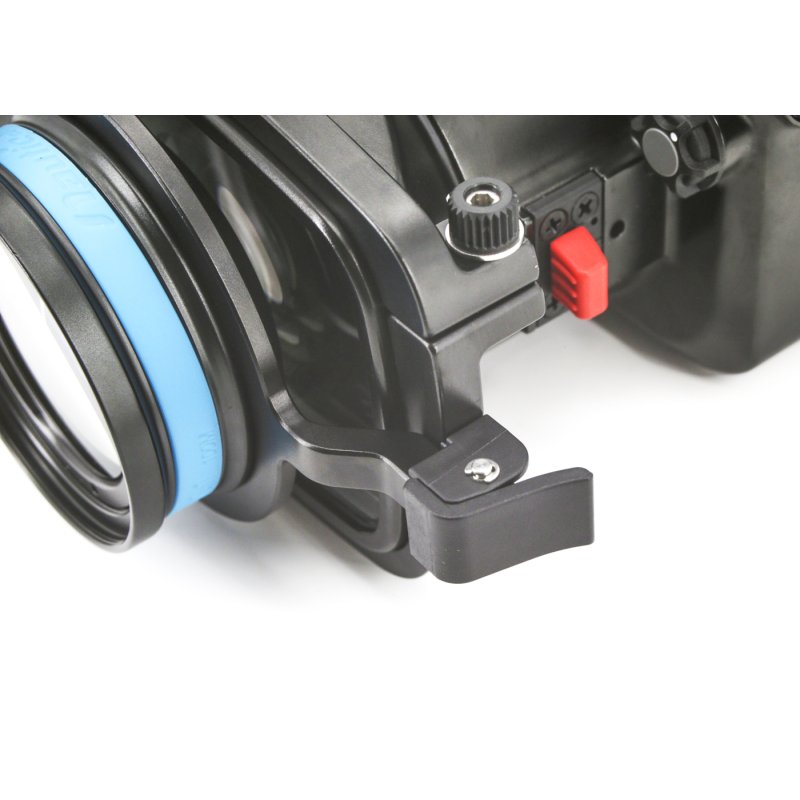

The housing ships with the N50 Standard Port that allows for full zoom-through capabilities as well as the possibility for attachment of the optional M67 Flip Mount which accepts either the CMC-1 or CMC-2 Compact Macro Converters. With the addition of these corrective optics the NA-LX100II gains the ability to capture true macro images with up to 4.5x magnification for the CMC-1 and 2.8x magnification for the CMC-2.

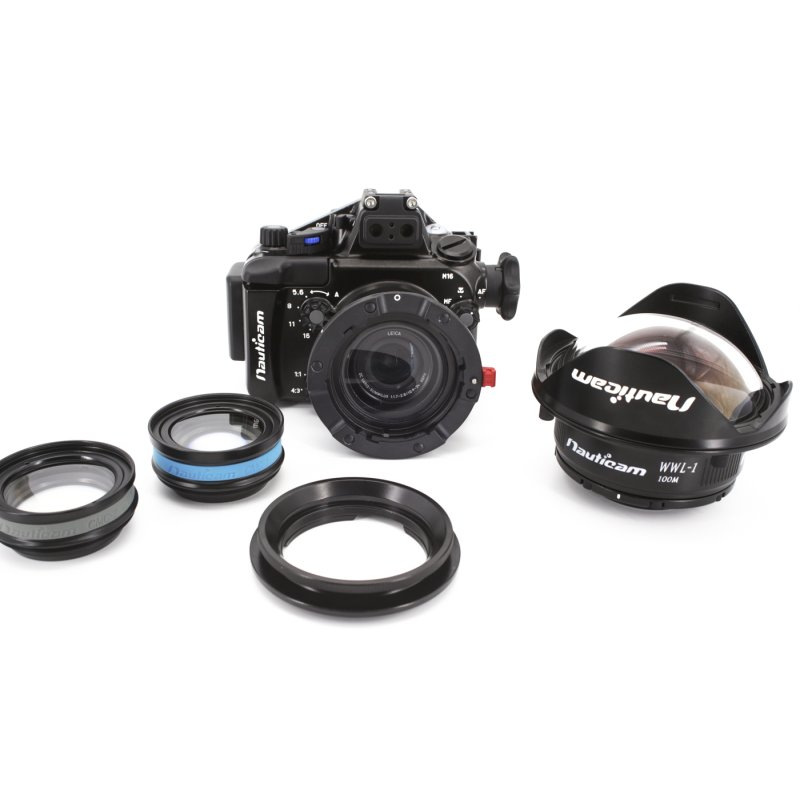

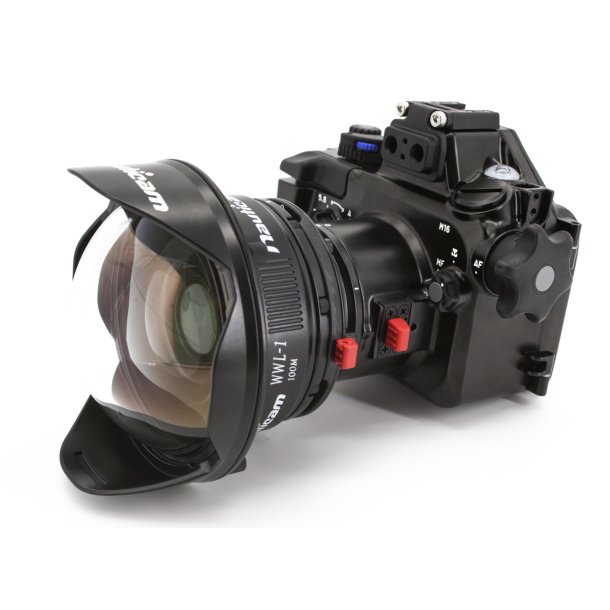

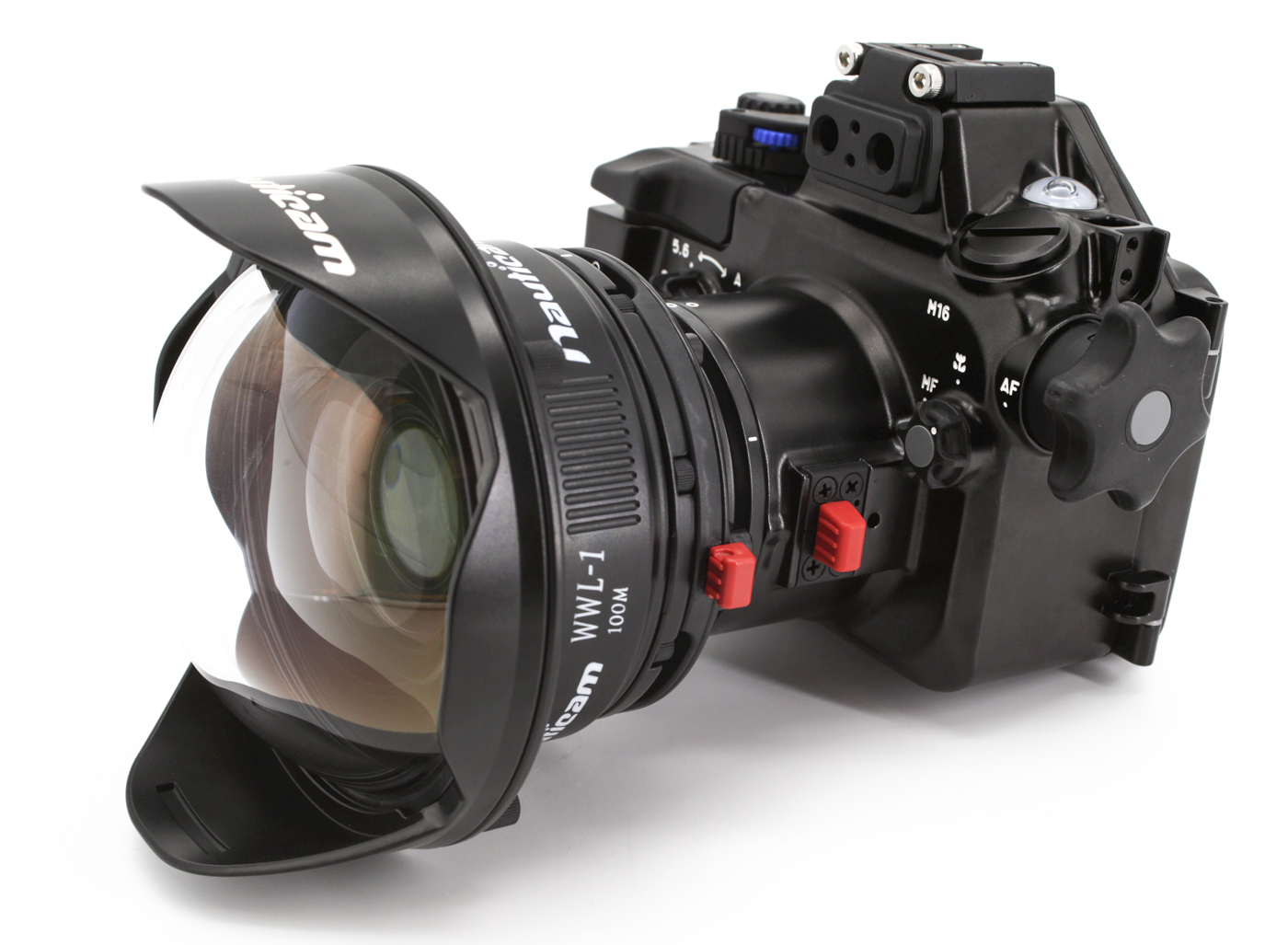

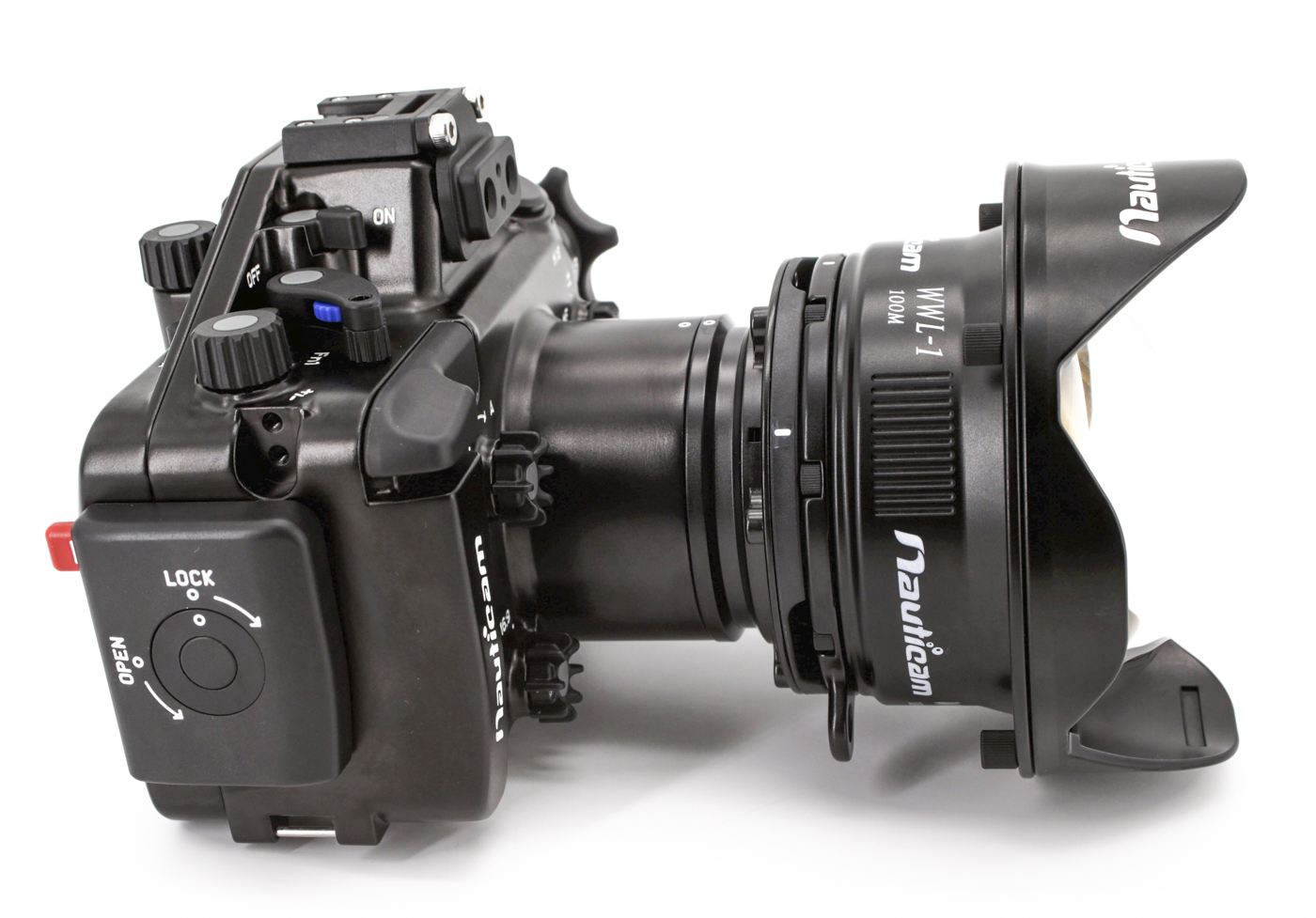

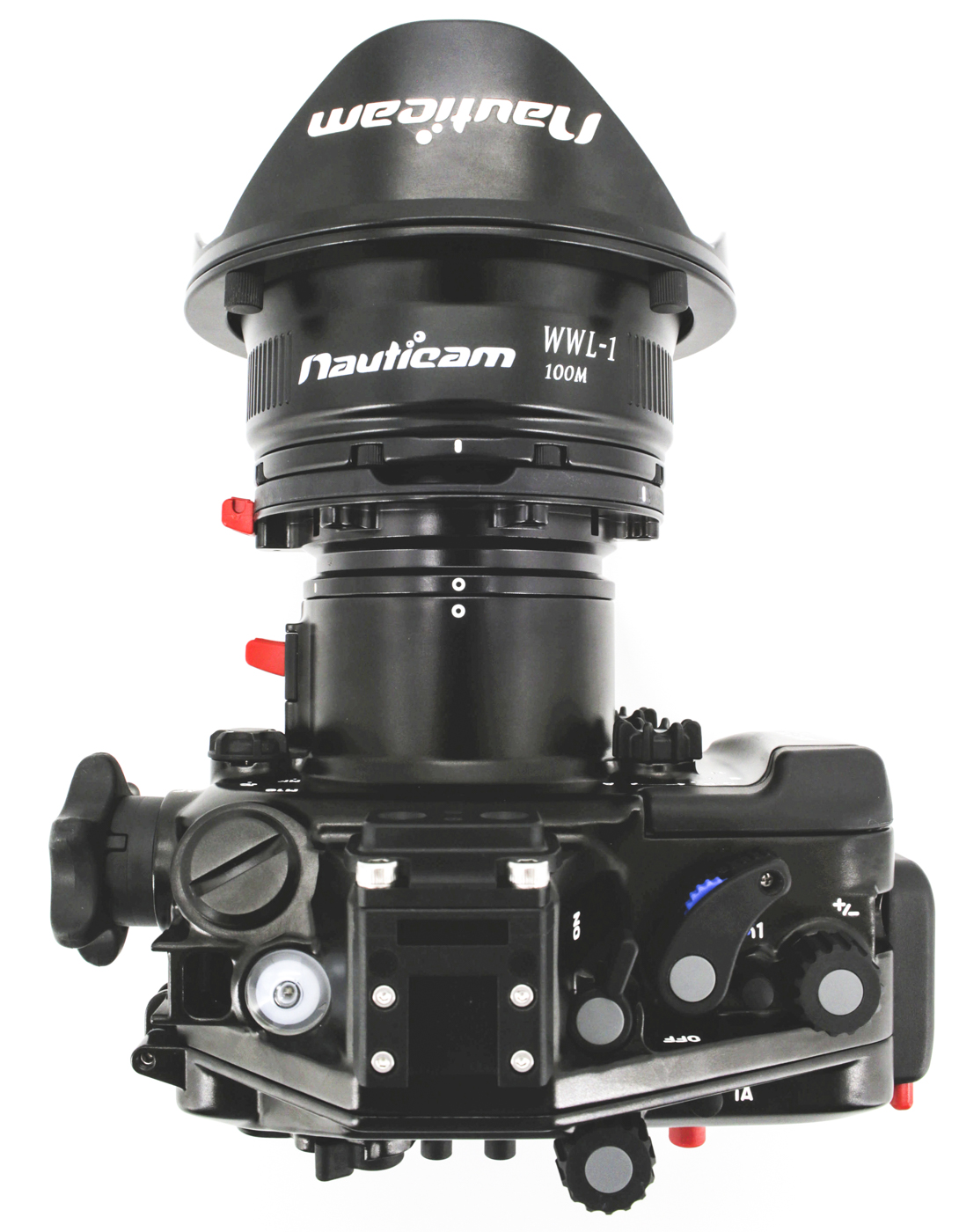

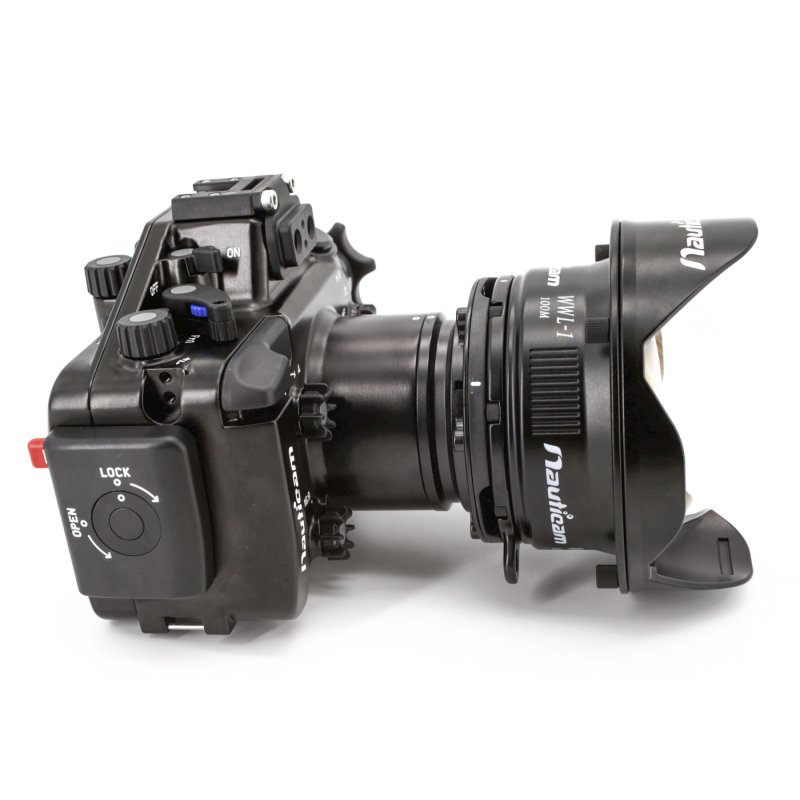

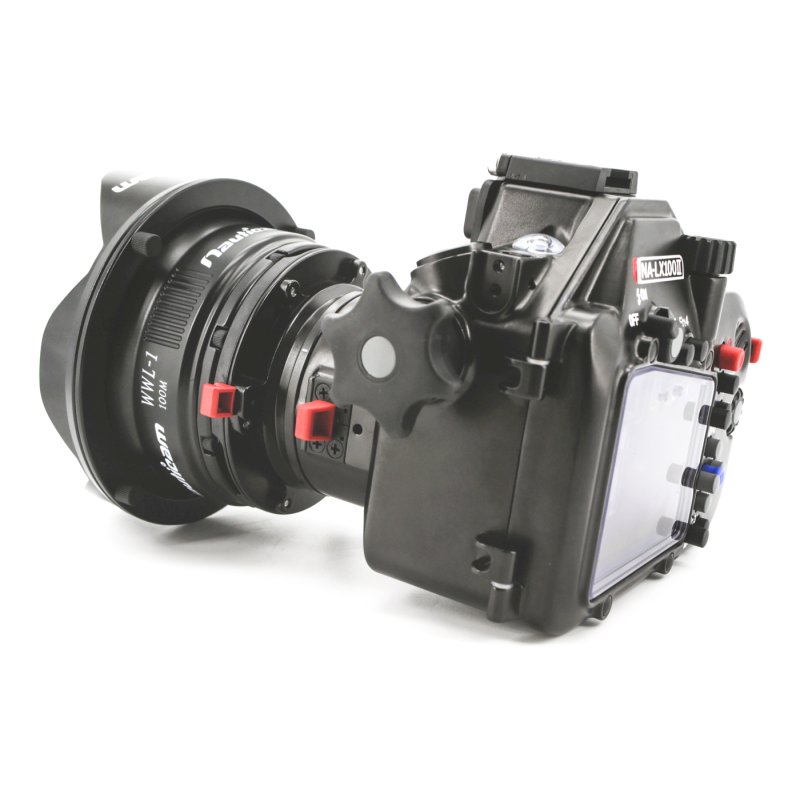

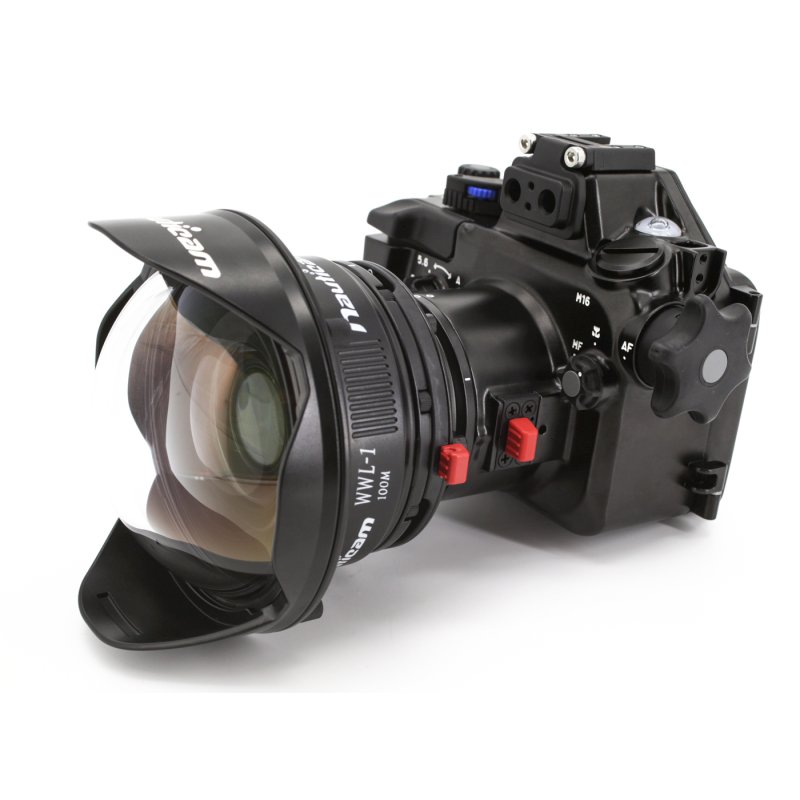

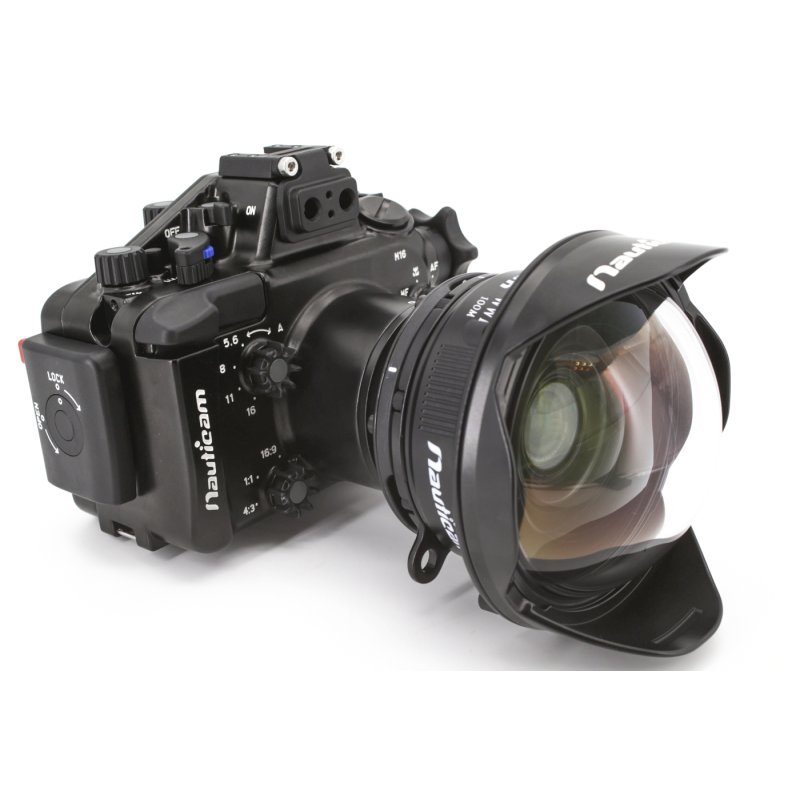

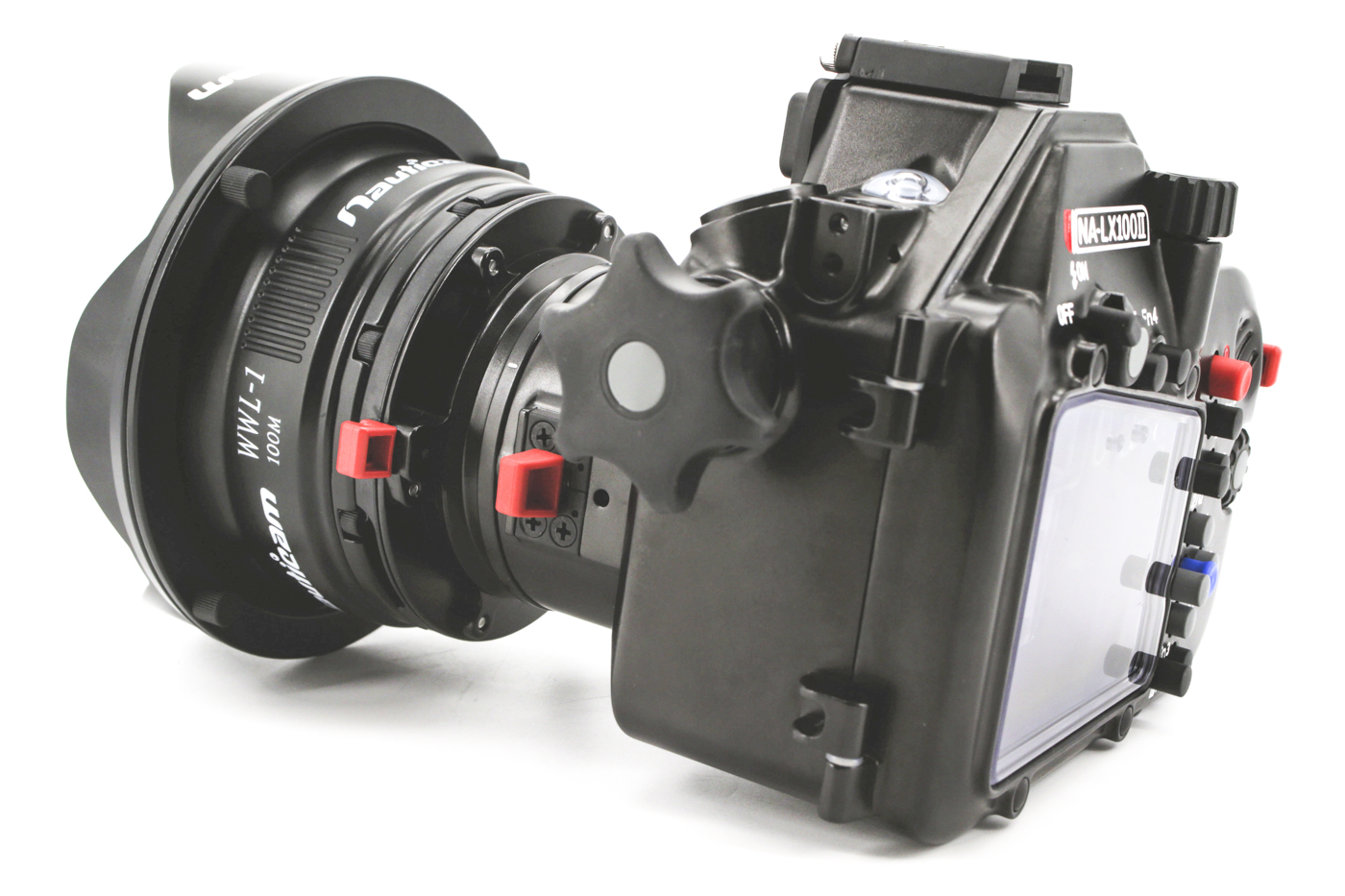

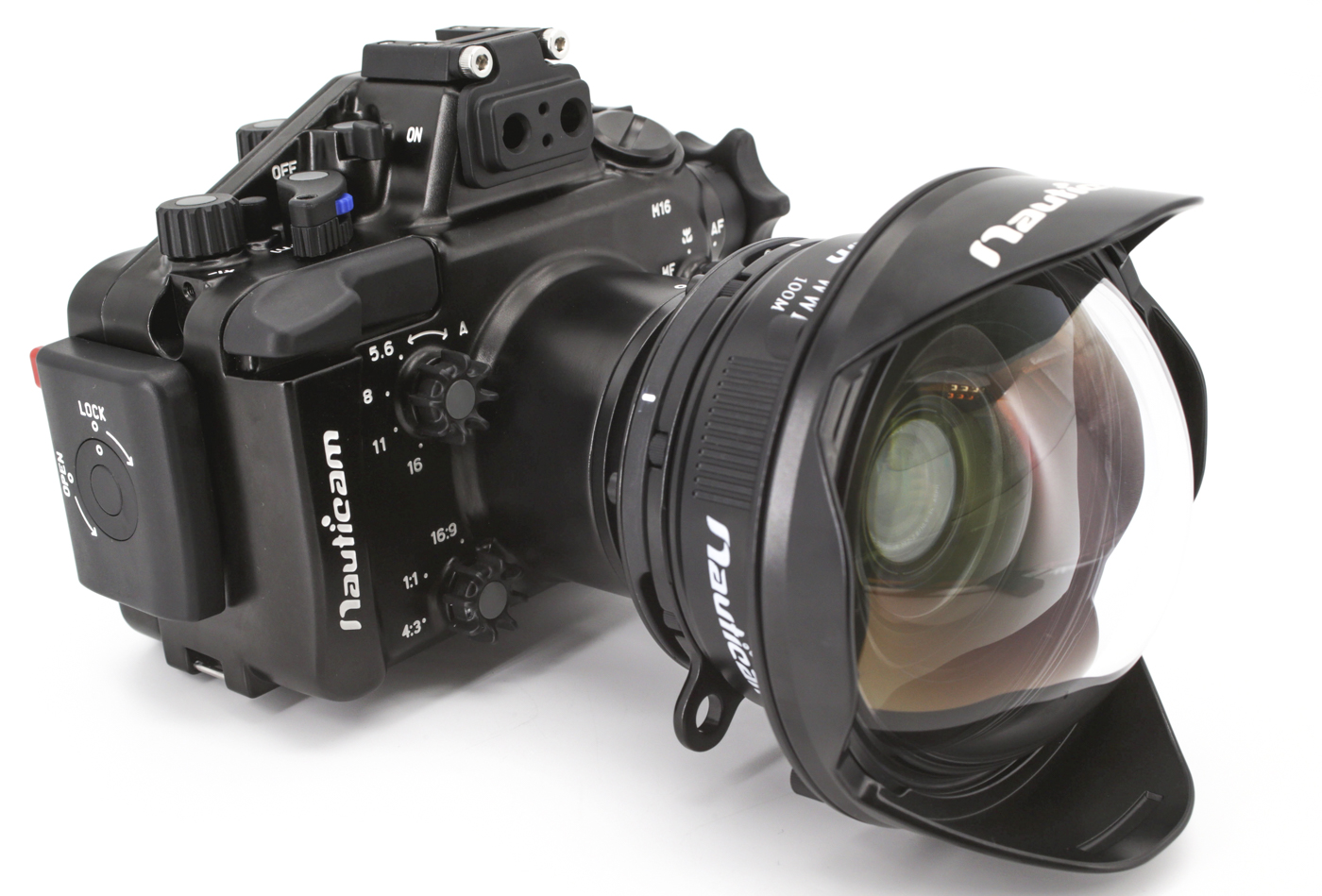

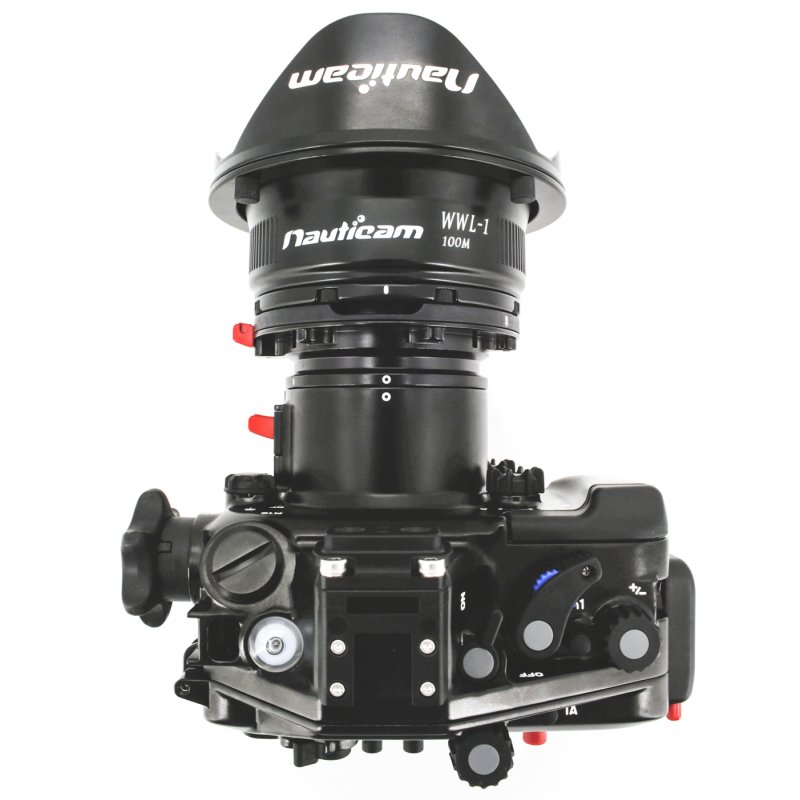

The Standard Port can be changed in seconds without tools with the optional N50 Short Port with Bayonet Mount that supports the use of either the CMC-1/2 mentioned above with their optional Bayonet Mounts or the WWL-1 Wet Wide Lens wide angle corrective optic with Bayonet Mount. At a 28mm equivalent focal length, the WWL-1 provides an ultra-wide and ultra-sharp 130º field-of-view.

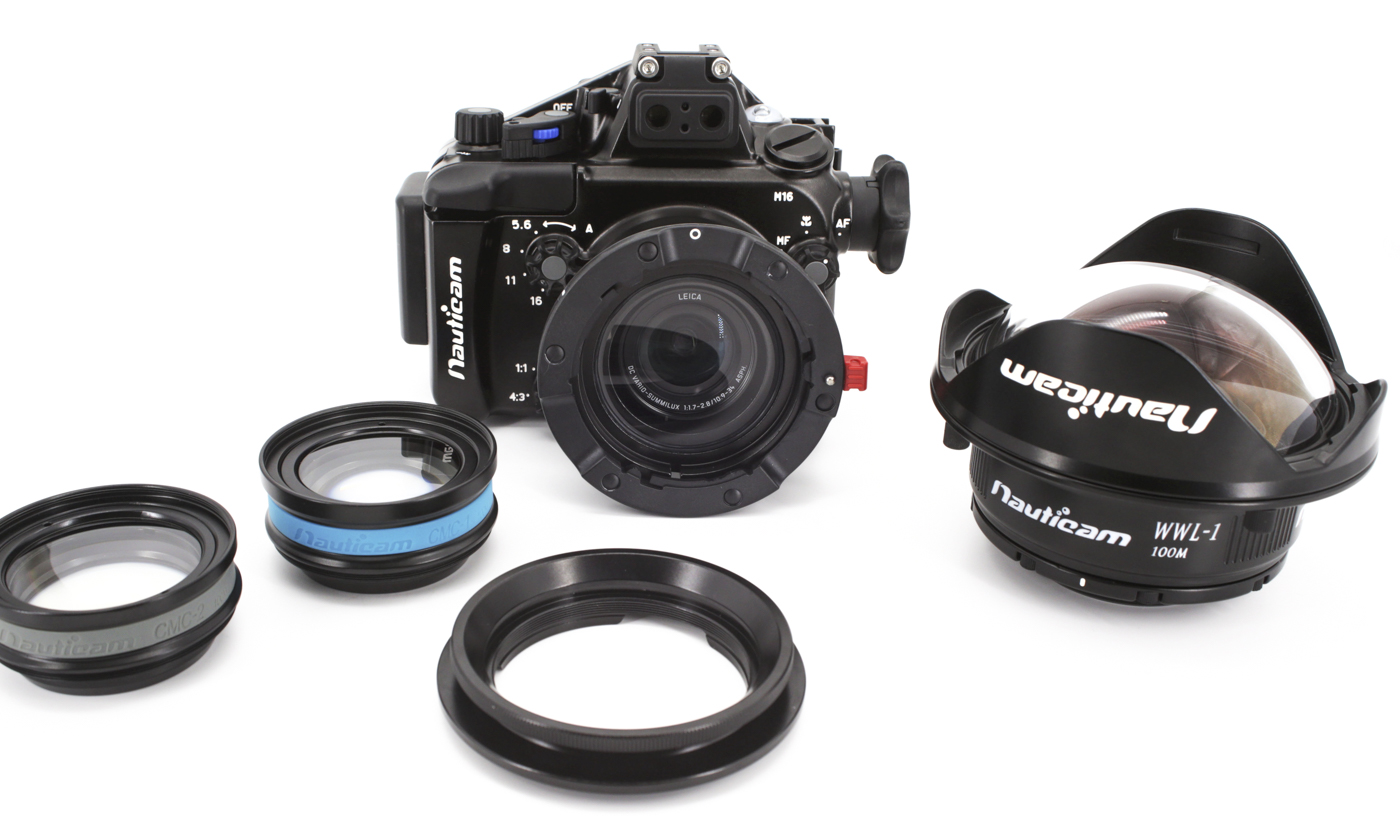

Suggested accessories for the LX-100II housing:
• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 25132 LCD Magnifier Attachment Rails for NA-LX100/LX100II
• 25106 LCD Magnifier with Dioptric Adjustment
• 38703 N50 Short Port with Bayonet Mount (To use with WWL-1)
• 83201 Wet Wide Lens 1 (WWL-1) 130 deg. FOV with compatible 28mm Lenses
• 83214 Bayonet Mount Adaptor for SMC/CMC
• 81301 Compact Macro Converter 1 (CMC-1, 4.5x Magnification)
• 81302 Compact Macro Converter 2 (CMC-2, 2.8X Magnification)
• 71206 Easitray II with left handle (with 2pcs 1/4'' screws)
• 71207 Flexitray II with left handle (with 2pcs 1/4'' screws)
• 71208 Adjustable right handle II (for Easitray II &Flexitray II)
What is included:
LX100II Housing with N50 Standard Port
Spare O-ring (PN 90131), lubricant and removal tool
A set of Allen Keys
Handle Brackets and Shutter Release Extension
CR 2032 Battery (for leak detector)
