NIKON D7100 D7200 HOUSING 200DL

Features

• Engage lenses with a simply and effective gearing system
• Vacuum system
• Upgraded shutter and AF-ON levers
• Lighter than a typical FL counterpart
• Hard anodized aluminum base, and streamlined quick release handle.
• New and strong white ABSPC blend front for improved contrast and visibility while keeping the camera cooler in the sun.
• Compatible with Nikon D7100 and D7200 DSLRs.

Lens Ports

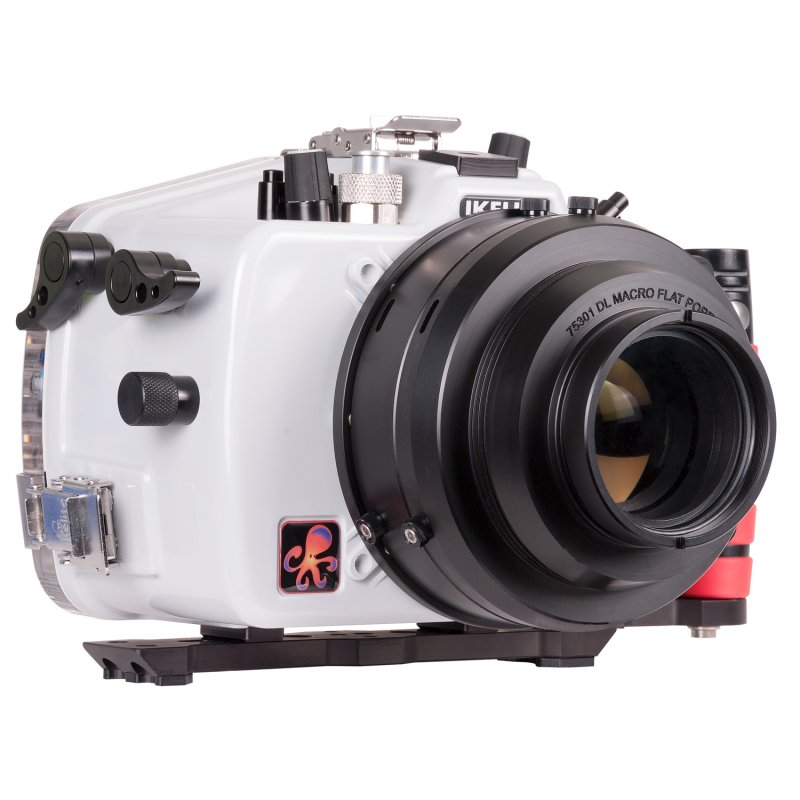

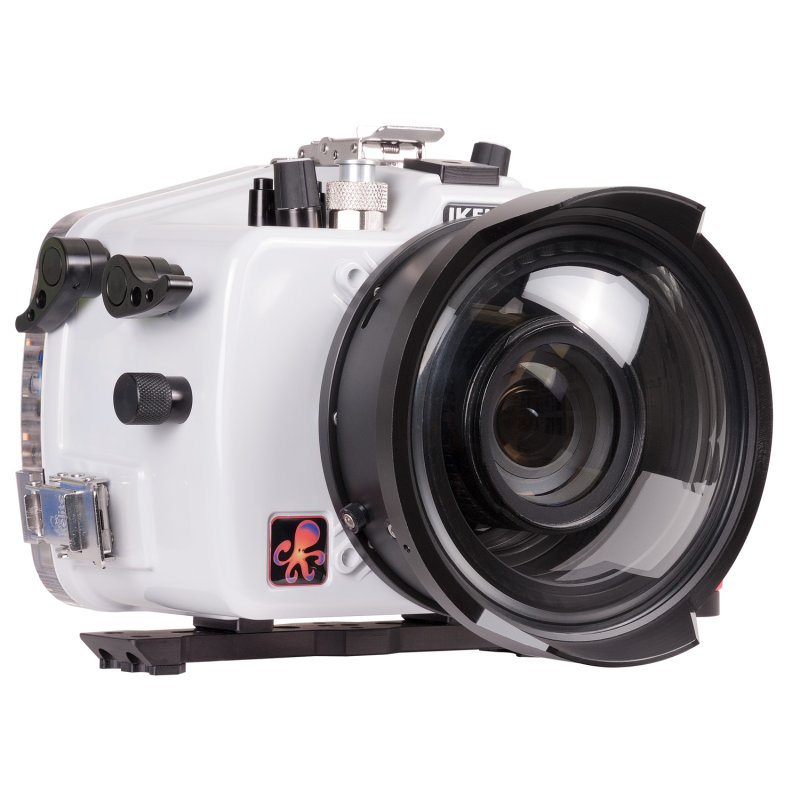

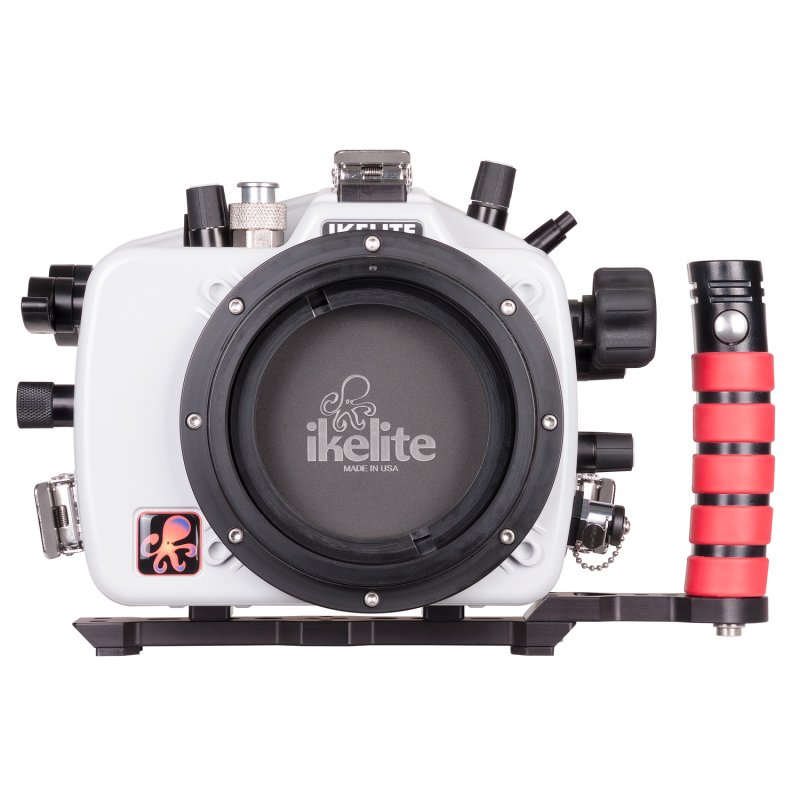

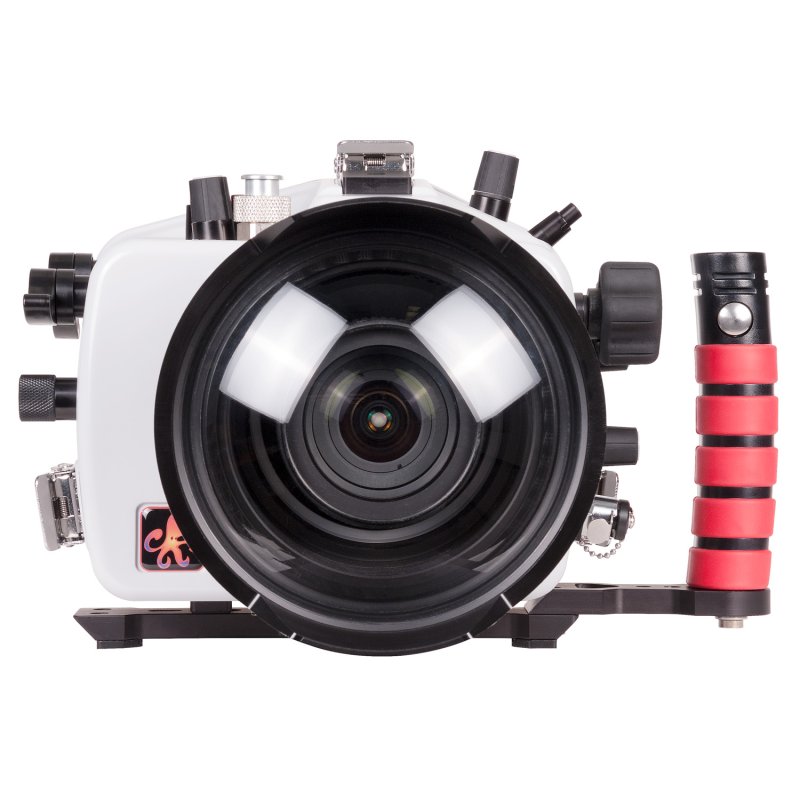

It incorporates the new Dry Lock (DL) port, which is more robust and easier to assemble. They are also lighter, more adaptable, while able to accommodate with ease extremely large diameter lenses.

With easy adjustments that engage lenses with a simply and effective gearing system putting the adjustments at a comfortable reach.

The DL and FL system ports cannot be used interchangeably because of the differences in mount diameter and zoom engagement. DL port can be removed and replaced with the old style Port Locks for FL Port System (set of 4) #5509.04 (this will prevent the use of newer DL ports, and the housing cannot be converted back and forth repeatedly).

Controls and Set-Up

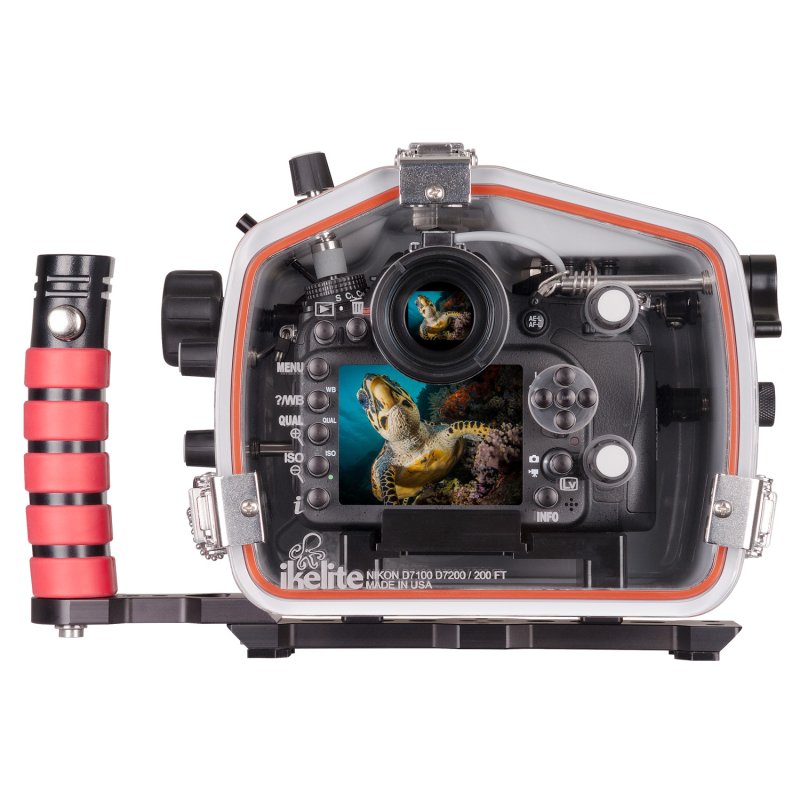

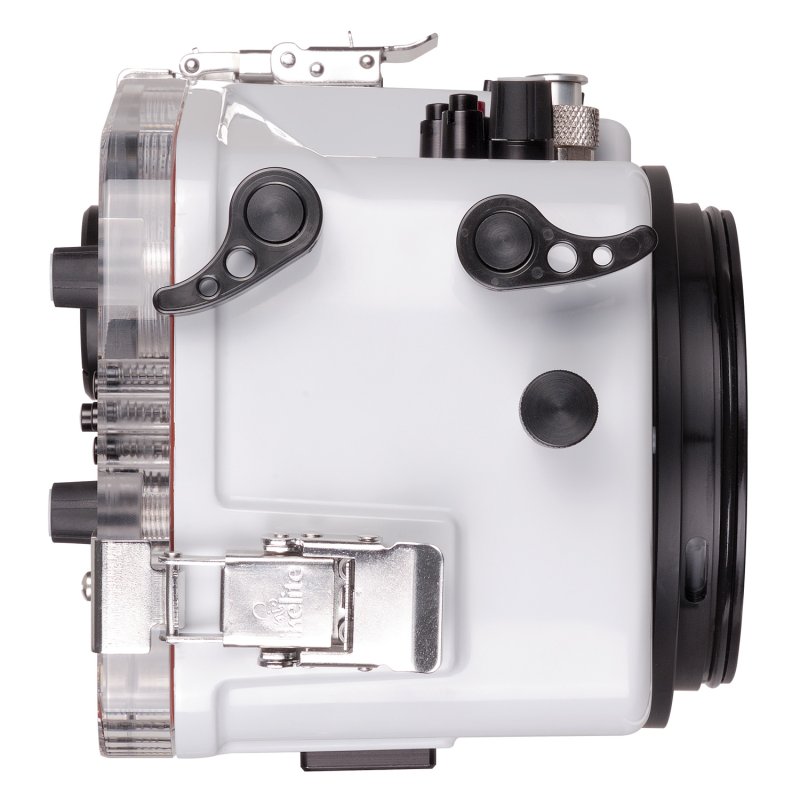

Upgraded shutter and AF-ON levers with a more natural feeling and curved design. Optionally, both controls can be extended with Shutter Trigger Extension #4077.95 (more comfortable for a right-hand quick release). Push buttons are redesigned in order to reduce salt build-up and weight.

Front-loading camera mount, which makes it easier for installation and removal. No need to remove the camera mounting plate when changing the memory carts or the battery. Plus, the mounting plate has a 1/4-20 threaded mount on the bottom for tripod attachment on the surface.

Fiber Optic

An external strobe needs to be connected by electrical sync cord. Fiber optic only strobes are not compatible.

Compatibility

This housing cannot accommodate add-on grips, battery grips, eyepieces, LCD covers or other accessories.

Specifications

60m depth rating

Compatible with DL system lens ports

Controls are provided for all important camera controls; Controls are not provided for Release mode dial, Release mode dial lock release, AF-mode button, Focus-mode selector, Pv button, Fn button, Diopter adjustment control, Focus selector lock

1/4-20 thread base mounts with 3.5" spacing

Near neutral buoyancy in fresh water

Actual buoyancy varies depending on choice of lens and port

2.2 kg

239 x 178 x 165 mm

Vacuum valve included (pump sold separately)

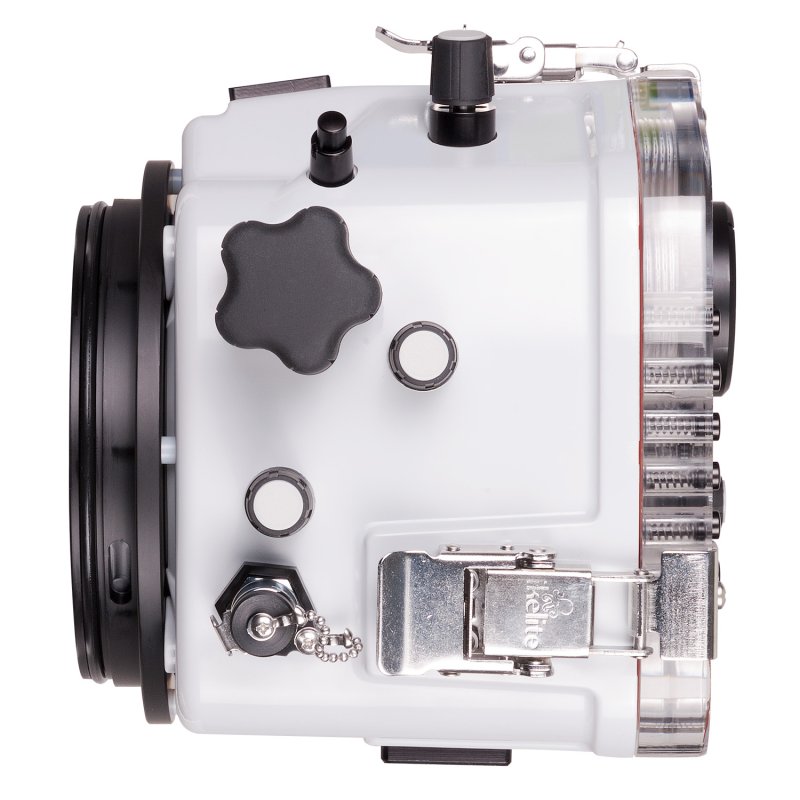

Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes

ABS-PC construction is fundamentally corrosion-resistant

Made in the USA; Individually inspected for fit and water pressure tested to depth

2 year limited warranty

In the Box

Housing

Rear o-ring # 0132.61 (installed)

Front o-ring # 0132.45 (installed)

Zoom Gear Retainer # 75900 (installed)

Port Hole Cover # 0200.92 (installed)

Waterproof Bulkhead Cap # 9104.7

Base with Left-Hand Quick Release Handle # 4077.67 (installed)

Tool for Zoom Gear Retainer # 0945.06

.050" Hex Key # 0945.11

1/16" Hex Key # 0945.16

Silicone Lubricant 1cc tube

Optional Accessories

Spare Rear O-Ring # 0132.61  Carry a back-up in case original seal becomes damaged.

Spare Front O-Ring # 0132.45  Carry a back-up in case original seal becomes damaged.

Vacuum Pump with Gauge # 47011  Pressurize the housing to check for leaks prior to entering the water.

Right-Hand Quick Release Handle # 4077.02  Makes a double tray for easier handling and a second attachment point for strobes or lights.

Trigger Extension # 4077.95  Recommended if using the Right-Hand Quick Release Handle. Brings shutter and/or AF-ON lever out to handle for more comfortable use.

DL1 DS Link TTL Converter # 46054  Fast, accurate, automatic TTL strobe exposure when used together with compatible Ikelite DS strobes.

45º Magnified Viewfinder (Type 2) # 6891.2  Brighter, larger, and more ergonomic positioning when shooting underwater. Rotates for landscape or portrait shots.
