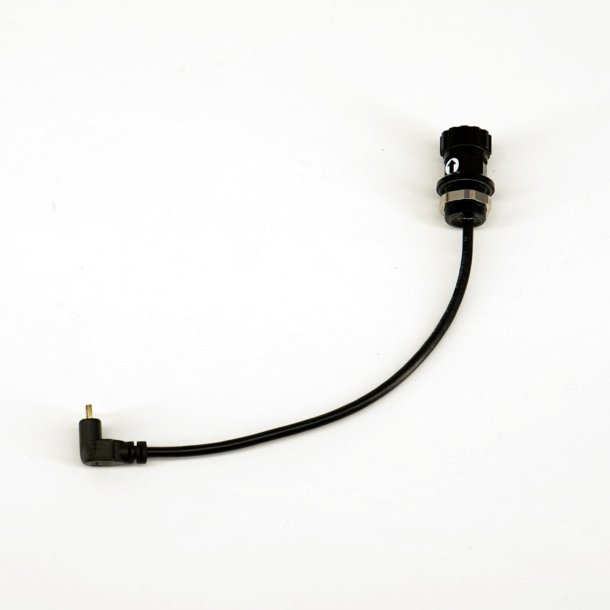

The Dive and See Micro HDMI (Type D) Connector M16 is a compact, low-profile bulkhead connector designed to provide reliable HDMI signal transmission from cameras equipped with a Micro HDMI (Type D) output to compatible underwater HDMI monitors and live view cables. Its right-angle design maximizes space inside the housing, while the integrated Water Block helps maintain the housing vacuum and provides added protection against water ingress in the event of an external cable failure.
Key Features
- Right-angle Micro HDMI (Type D) bulkhead connector
- M16 × 1 threaded design
- Transmits 1080p60 HDMI video signals
- Compatible with Dive and See HDMI monitors and Live View HDMI cables
- Low-profile design for installations where space is limited
- Built-in Water Block helps maintain the housing vacuum when used with an AirLock Vacuum System
- Provides additional protection against water ingress if the external cable or connection is compromised
- Gold-plated brass contacts for reliable signal transmission and corrosion resistance
- Protective cap and security nut included
- Passes through a 16 mm opening for installation
- Custom cable lengths and alternative HDMI connector types available
- Pressure rated to 240 PSI (160 m)
Specifications
- HDMI Interface: Micro HDMI (Type D)
- Video Support: 1080p60
- Thread: M16 × 1
- Connector Style: Right-angle, low-profile
- Contact Material: Gold-plated brass
- Installation Opening: 16 mm
- Protection: Integrated Water Block for vacuum retention and water ingress protection
- Included Accessories: Protective cap and security nut
- Depth Rating: 240 PSI (160 m)
- Options: Custom cable lengths and other HDMI connector types available
