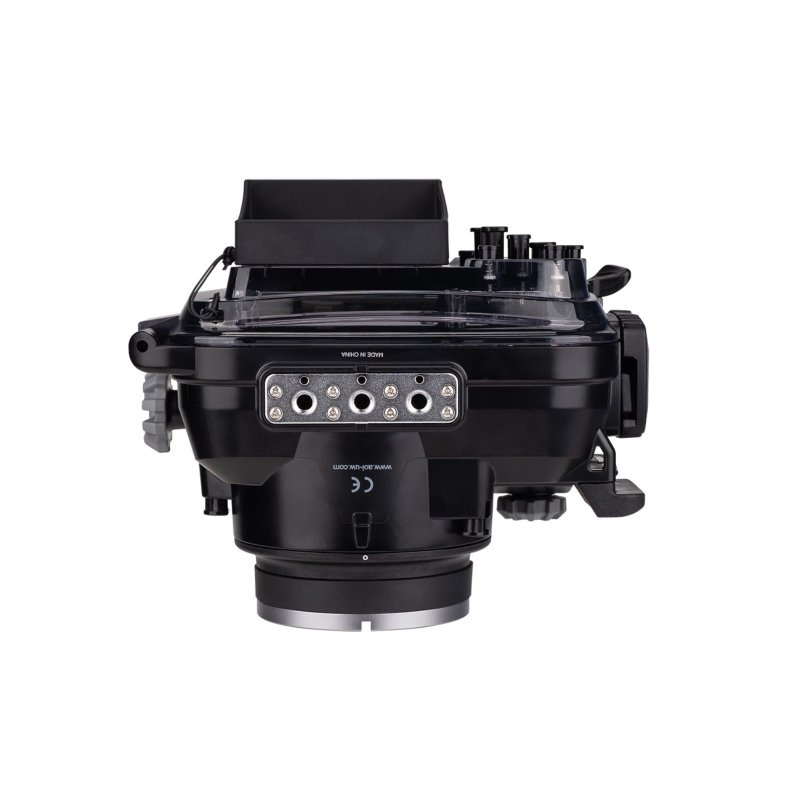

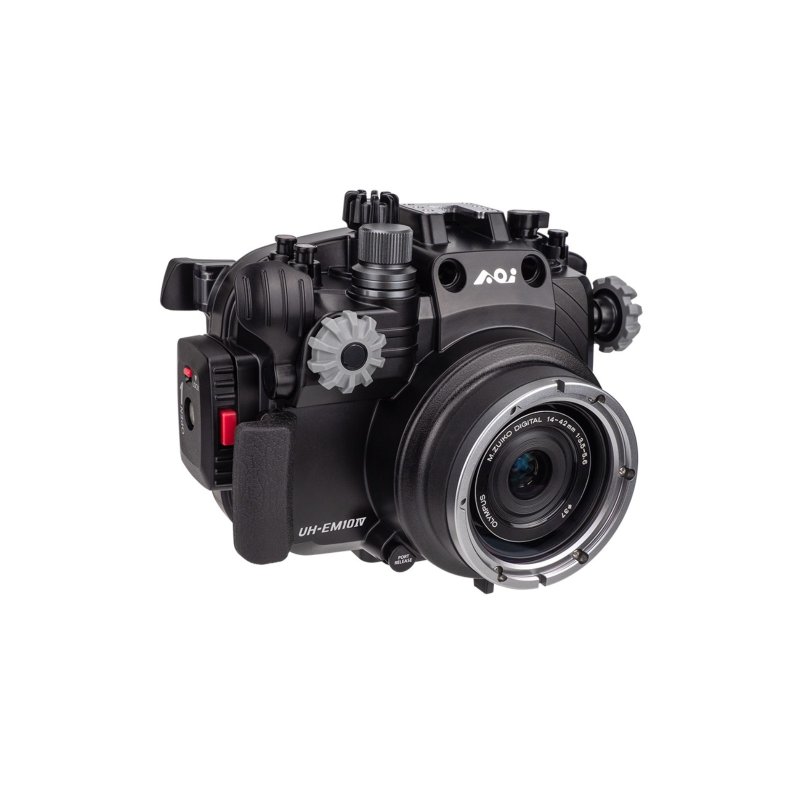

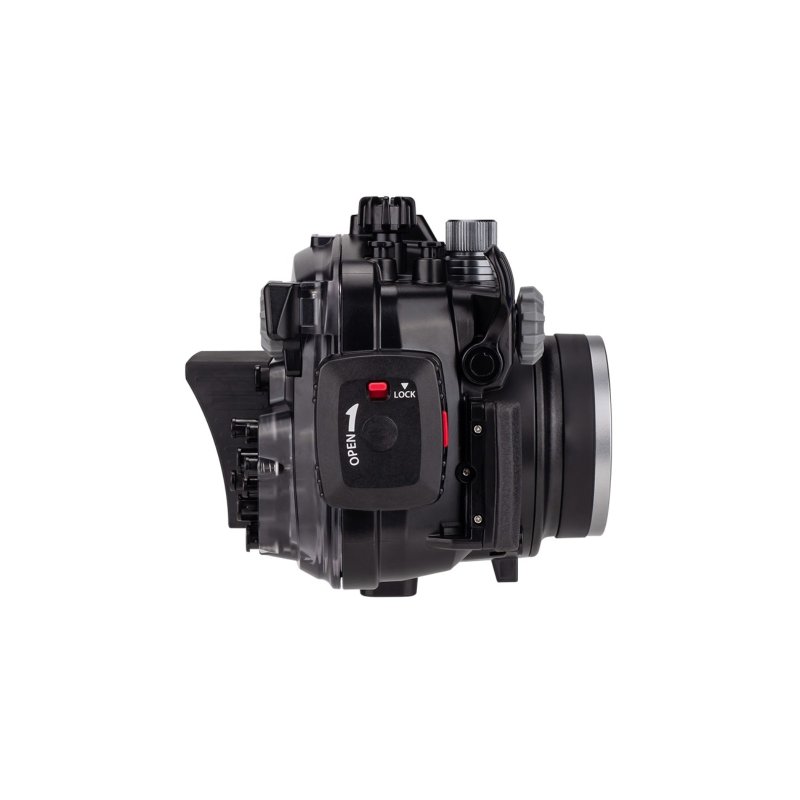

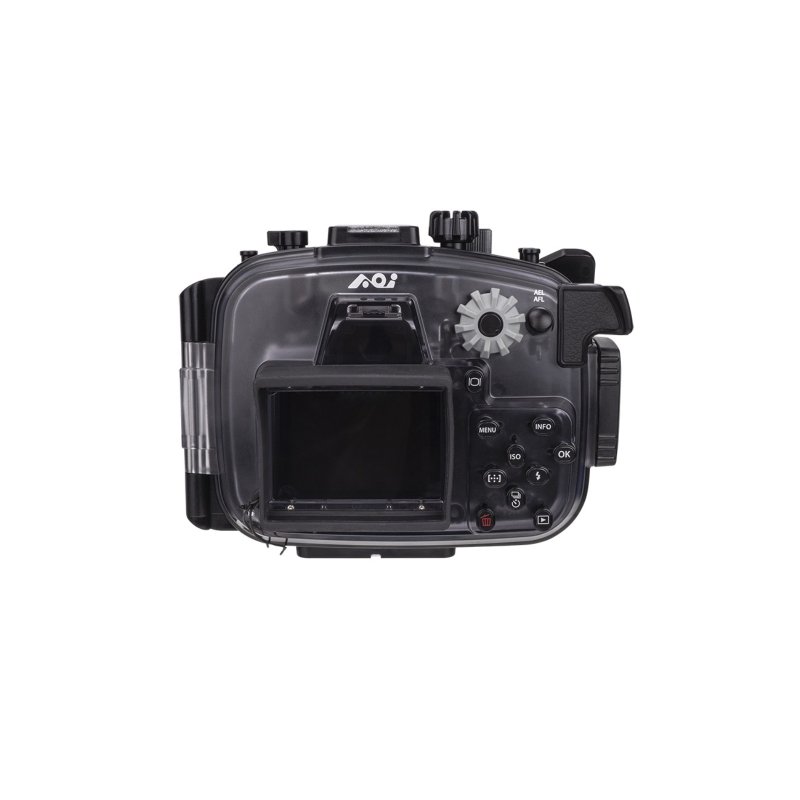

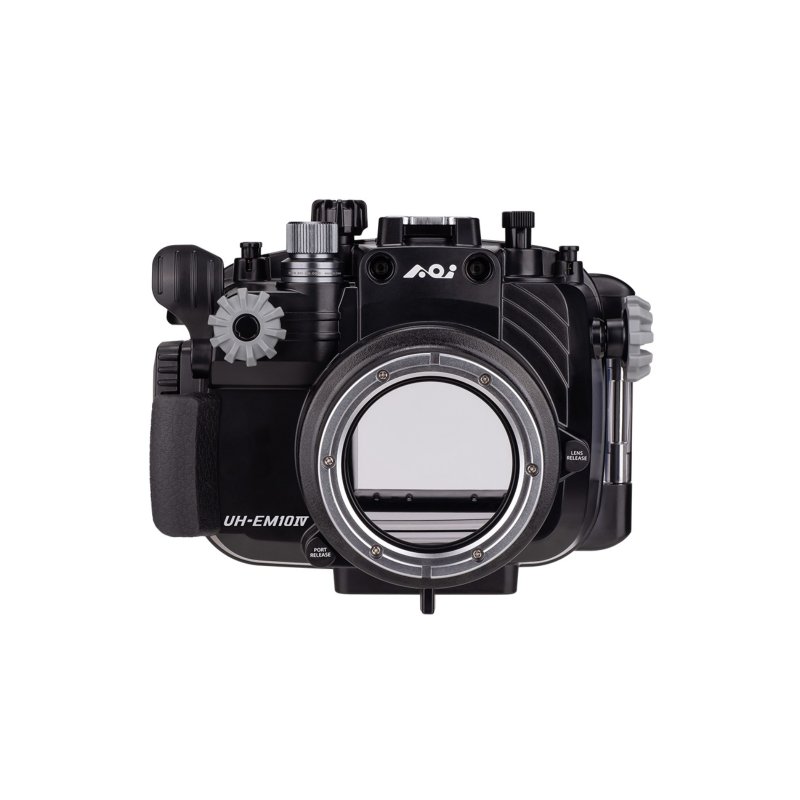

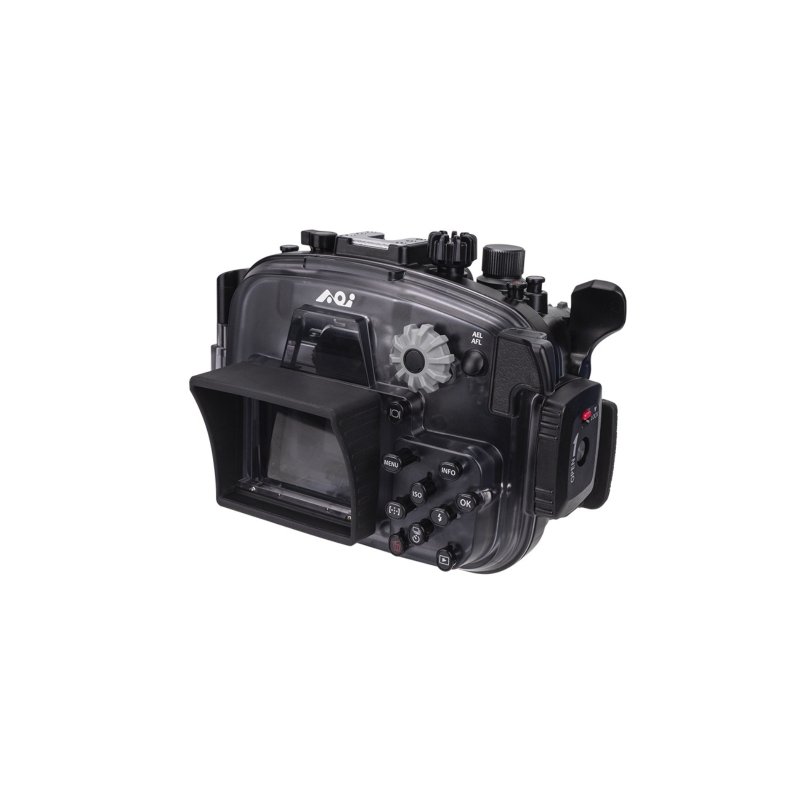

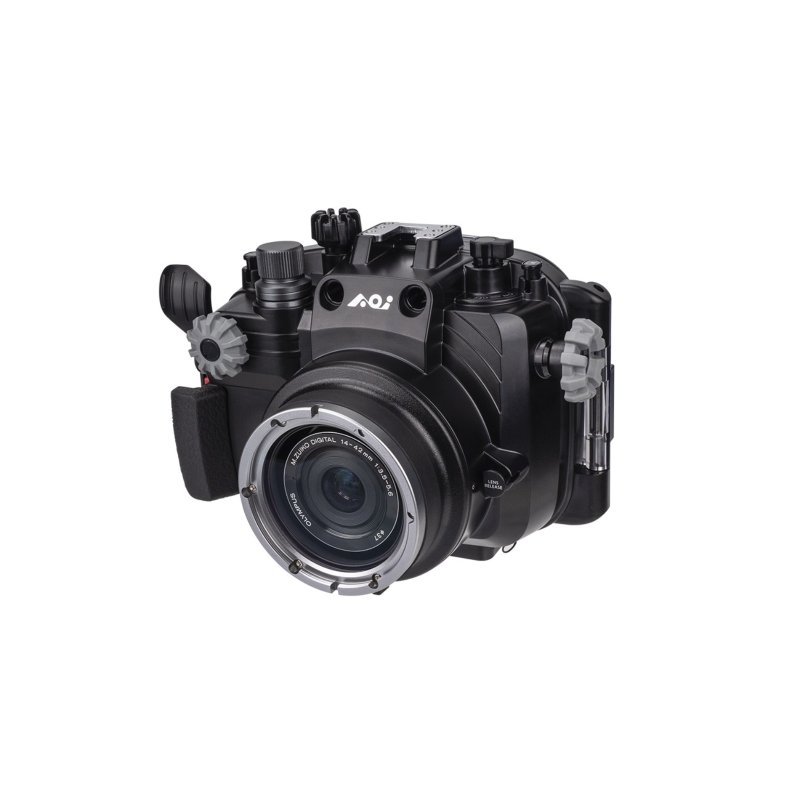

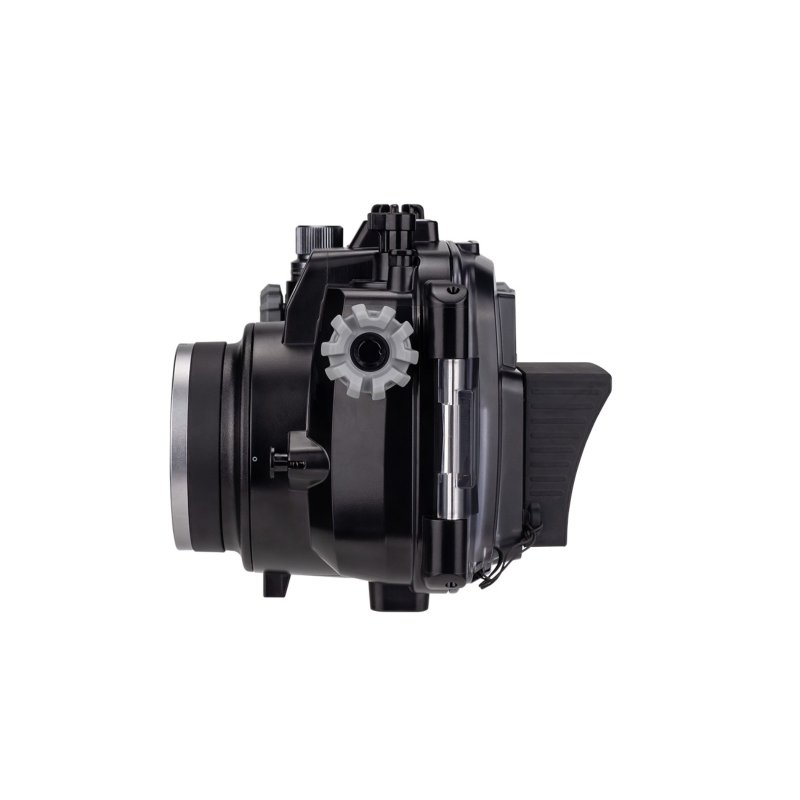

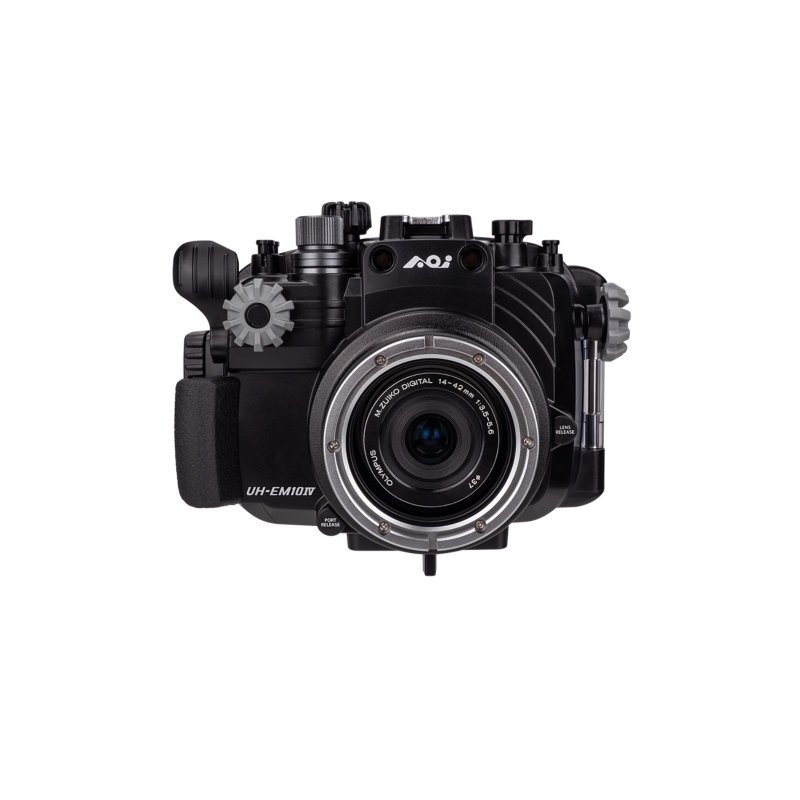

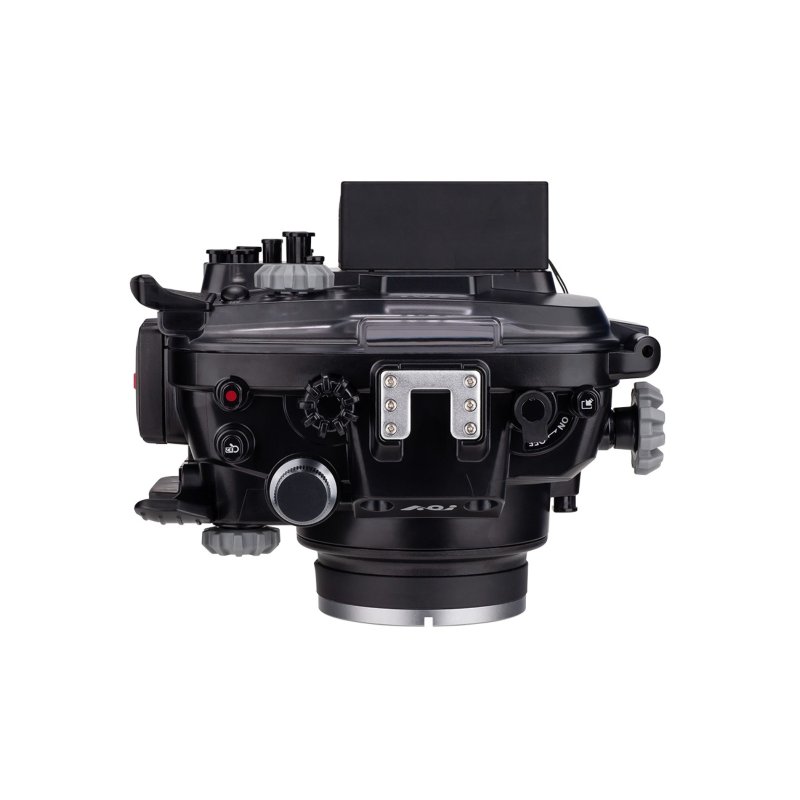

AOI UH-EM10 IV-BLK Underwater Housing for Olympus OM-D E-M10 Mark IV

The AOI UH-EM10 IV-BLK is a lightweight polycarbonate underwater housing designed specifically for the Olympus OM-D E-M10 Mark IV. Rated to 45 meters, it combines intuitive camera control with advanced safety features, including a built-in Vacuum Analyzation and Wet Detection System (VWS) and an integrated LED flash trigger supporting both manual flash and Olympus RC mode. Compatible with the AOI / Olympus PEN Port System, it provides a versatile platform for underwater photography and videography while including a comprehensive accessory kit for immediate use.


Key Features

• Designed specifically for the Olympus OM-D E-M10 Mark IV
• Durable polycarbonate housing with a 45 m depth rating
• Compatible with the AOI / Olympus PEN Port System
• Built-in LED flash trigger supporting:
• Manual flash (with or without pre-flash)
• Olympus RC Mode (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL)
• Integrated Vacuum Analyzation and Wet Detection System (VWS) for enhanced leak protection
• Rechargeable 3.7V 110mAh lithium-polymer battery
• USB Type-C charging (charger not included)
• Approx. 1.5-hour charging time
• Battery life of approximately 2 days (based on 3 dives/day, 1 hour per dive)
• Lightweight design for travel and underwater handling


Specifications

• Compatible Camera: Olympus OM-D E-M10 Mark IV
• Housing Material: Polycarbonate
• Depth Rating: 45 m
• Lens Port System: AOI / Olympus PEN Port System
• Flash Trigger: Built-in LED
• Leak Protection: Vacuum Analyzation & Wet Detection System (VWS)
• Battery: Rechargeable Lithium Polymer 3.7V 110mAh
• Charging: USB Type-C, DC 5V / 0.5A
• Charging Time: Approx. 1.5 hours
• Battery Runtime: Approx. 2 days
• Dimensions: 177.9 × 139.8 × 151.2 mm
• Weight: Approx. 835 g (housing body with flat port)


In the Box

• Spare Main Seal O-ring x 1pc. (AOI HOR-01)
• Silica Gel (AOI SIGE-3) x 1pc
• Silicone Grease (AOI SIGR-5)
• Lanyard (AOI LYD-01)
• Port Front Cap for M67 Thread (AOI LFC-01)
• Port Rear Cap for PEN Mount (AOI PRC-02)
• O-ring Remover (AOI ORR-02)
• Micro-Fiber Cleaning Cloth (AOI MC-01)
• AOI Logo Sticker
