Nauticam NA-VEO4K Housing for Phantom VEO4K PL/ 990S /590S High Speed Camera

Nauticam NA-VEO4K Housing for Phantom VEO4K PL/ 990S /590S High Speed Camera
Vision Research's Phantom VEO4K lineup of cameras brings the option of capturing up to 938fps in 4K resolution underwater. A camera this capable deserves a housing equally powerful and customizable. The Nauticam NA-VEO4K housing supports a wide variety of options to take full advantage of the Phantom VEO4K PL/990S/590S.

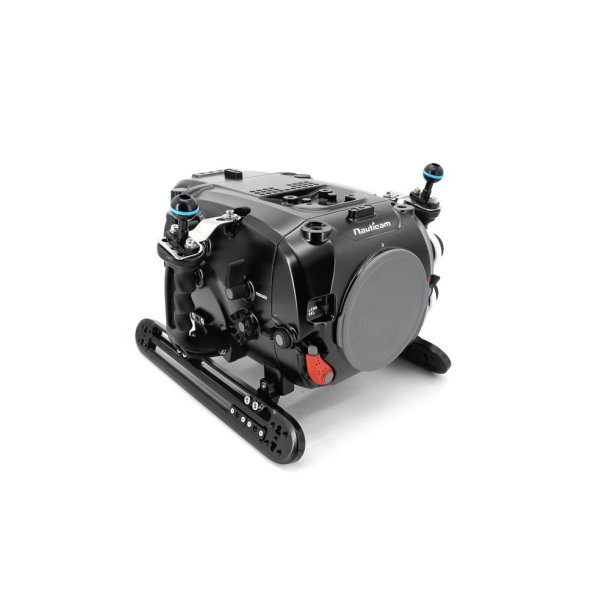

THE NAUTICAM NA-VEO4K UNDERWATER HOUSING
The Nauticam NA-VEO4K housing offers full access to all functions on the camera while remaining the most ergonomic brand of underwater housing on the market. The housing features an electronic start/stop record lever with a mechanical backup.  On location, the usability of this system is unmatched. Set up and tear down in minutes, easily swap batteries and recording media while the camera is mounted in the housing, and lens changes in seconds.

BATTERY MOUNT
To power the camera within the housing, you will need the Wooden Camera D-Box for VEO4K cameras (V-Mount).  (Sold separately). The Wooden Camera D-Box also creates a unique on/off switch accessible from the housing. Our recommended battery of choice is the PAGLink PL96 or PL150. The PAGLink batteries are preferred for their small form factor and the ability to stack two together within the Nauticam housing for increased run time.

PORT MOUNT AND LENS MOUNT
The Nauticam NA-VEO4K housing supports the Canon EF mount and uses the N120 port system which allows for the use of even the largest diameter DSLR lenses such as the Canon Ultra-Wide Zoom EF 11-24mm f/4 USM.  A detailed port chart can be found here.

EXTERNAL MONITOR SUPPORT

The NA-VEO4K housing supports the use of optional bulkheads to support a variety of external monitors with SDI connectivity from SmallHD, Atomos, and TVLogic. For a detailed list of compatible monitors, click here.

INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM
The Nauticam vacuum check and leak detection system is shipped with NA-VEO4K as standard equipment. This monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

VEO4K 990S KEY SPECIFICATIONS:

• CMOS - 9.4-megapixel Super 35 Sensor
• 12-bit
• SDI and HDMI video outputs
• Nikon F-mount standard, supports F & G style lenses
  Canon EOS mount optional (compatible with Flex4K-style EOS mount).
  PL-mount optional (compatible with v-Series PL mount)
  C-mount optional (VEO-4K specific)
• Cine RAW

HOUSING TECHNICAL SPECIFICATIONS

• Depth Rating    80m
• Weight              6kg (without skids)
• Dimensions      361mm (L) x 260mm (W) x 200mm (H) (without handles)
• Port Opening    N120

What's In The Box:

• (1) 16115 NA-VEO4K Housing
• (1) 16227 Nauticam Housing Skids
• (1) Nauticam Trim Weights - (2) 1.0kg, (2) 0.5kg
• (1) 28111 Nauticam N120 Housing Body Cap
• (1) Nauticam Left and Right Handles
• (1) 25625 Nauticam M16 Vacuum Valve II (Pushbutton Release)
• (1) 90171 Nauticam Allen Key Set
• (2) 90121 Nauticam Housing O-Ring
• (1) 25016 Nauticam Lubricant
• (1) Pelican 1620 Wheeled Case with Custom fit foam insert
