Nauticam Wet Wide Lens for Compact Cameras (WWL-C)

WET WIDE LENS FOR COMPACT CAMERAS (WWL-C)

130 deg. FOV with compatible 24mm lenses

The WWL-C is the next step in the evolution from the tried and true WWl-1. This new wide-angle lens is designed and tailored for compact camera users.
As with all Nauticam lenses, there is no compromise when it comes to quality. The WWL-C is designed to match the compact camera's form factor but without

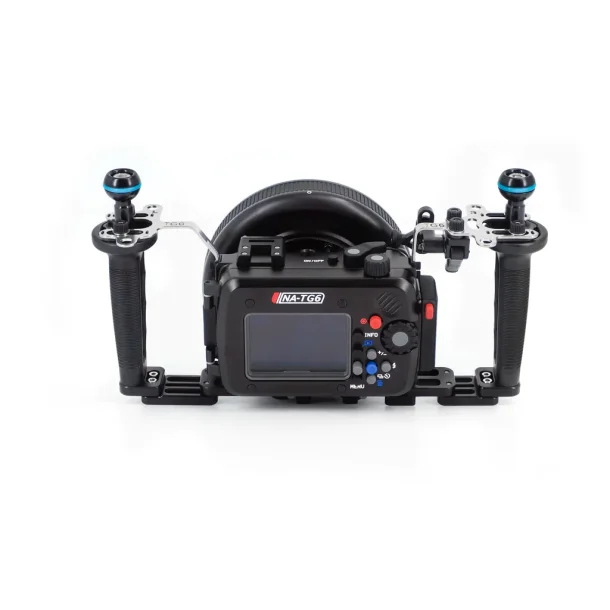

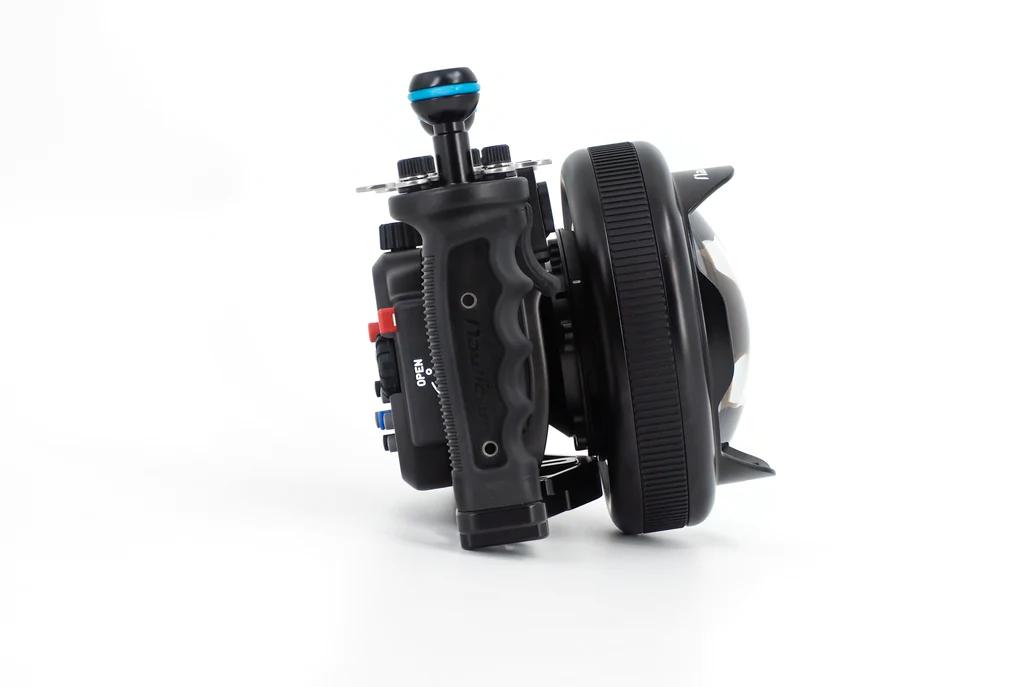

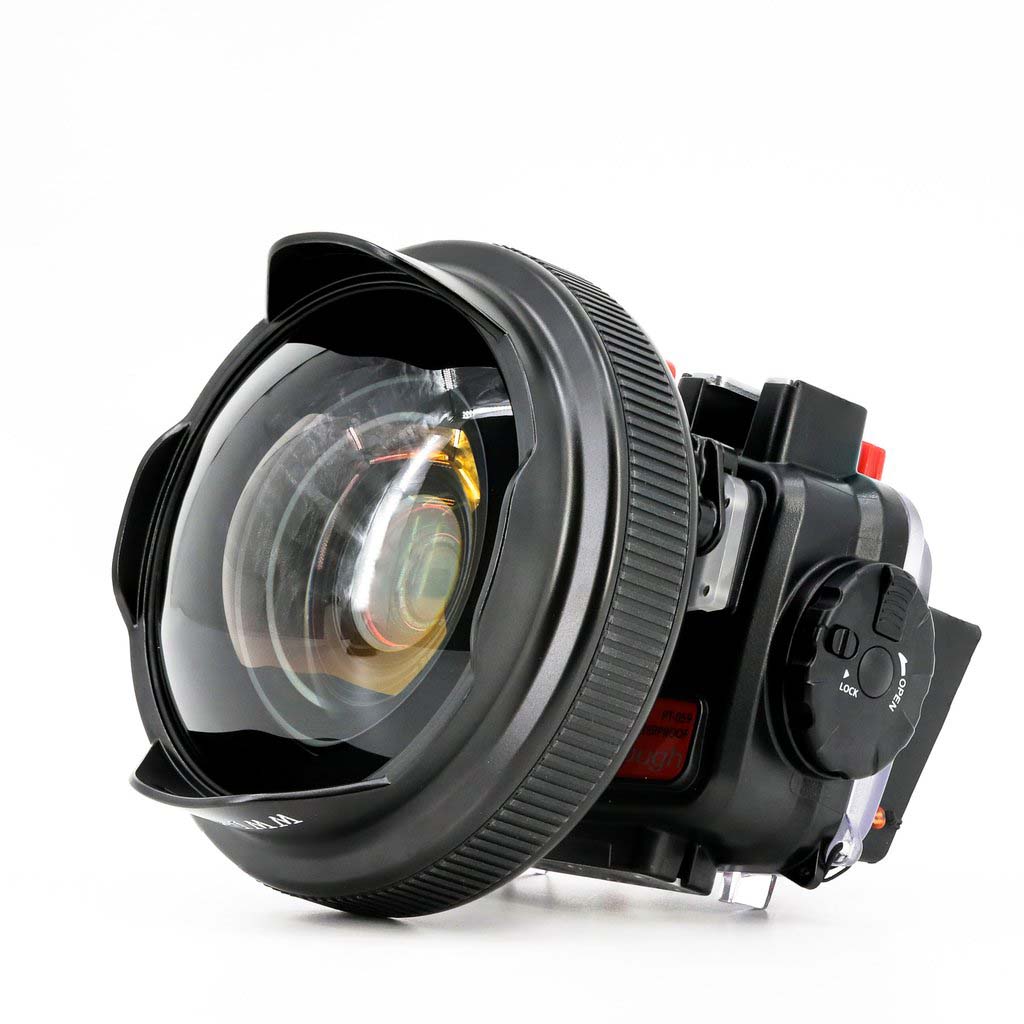

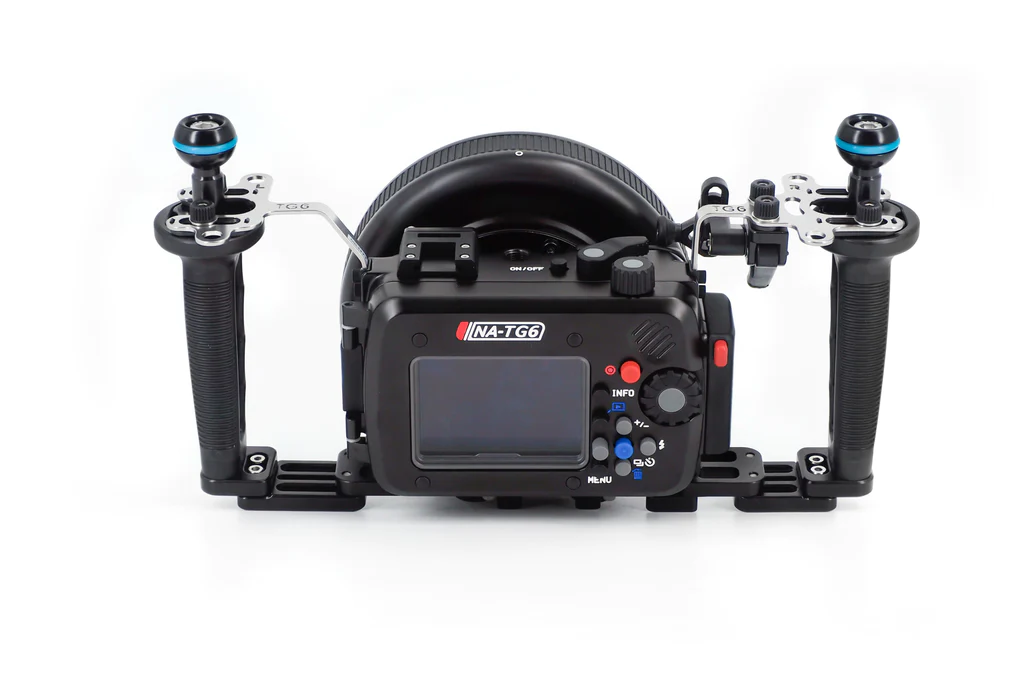

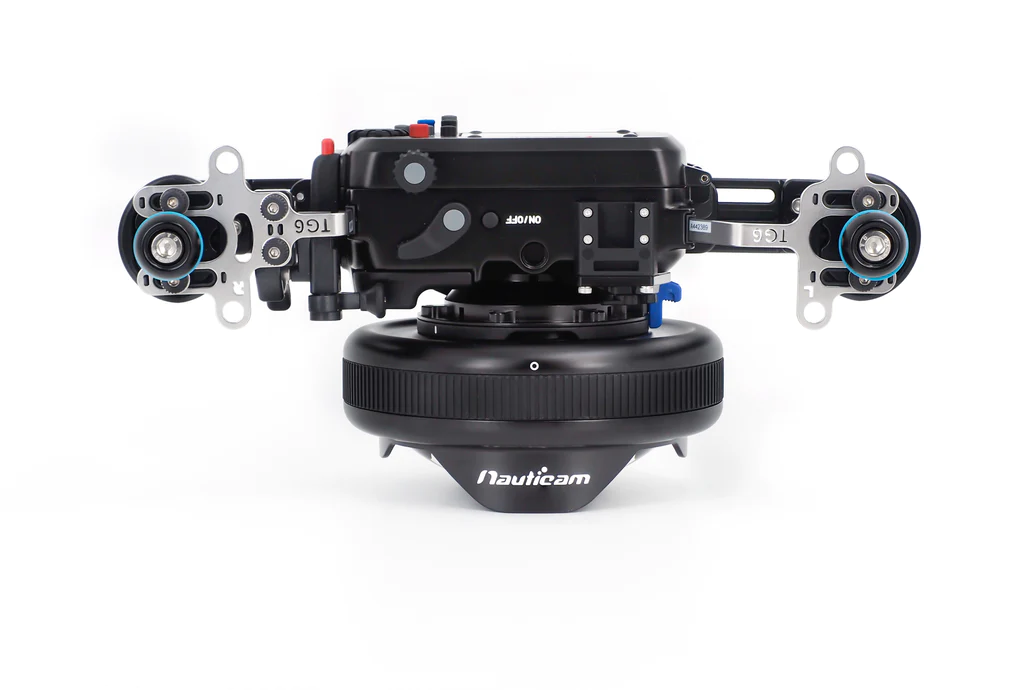

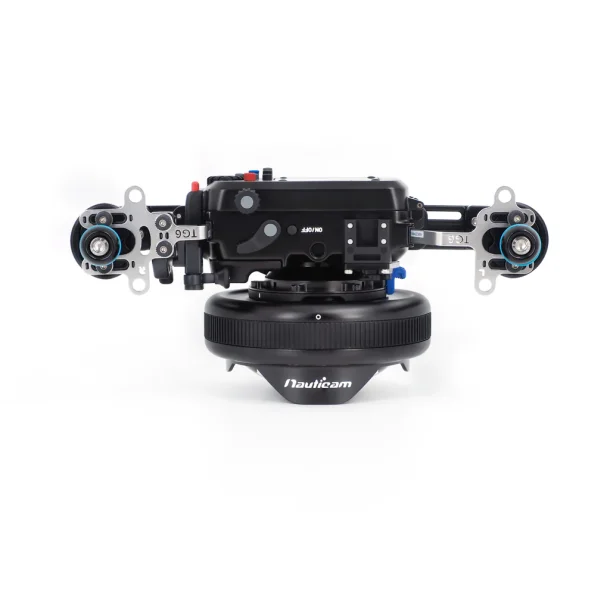

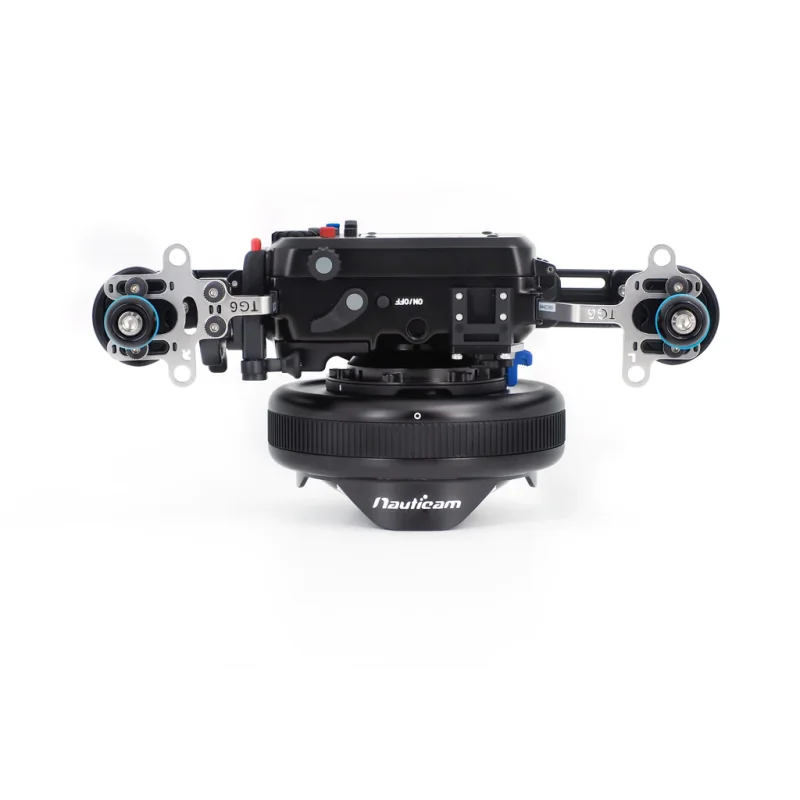

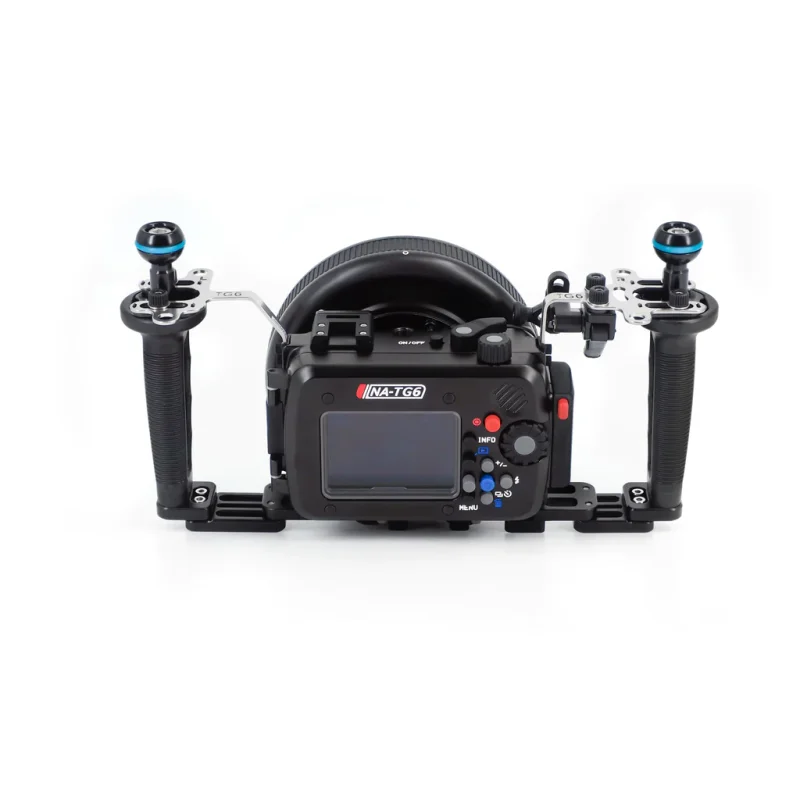

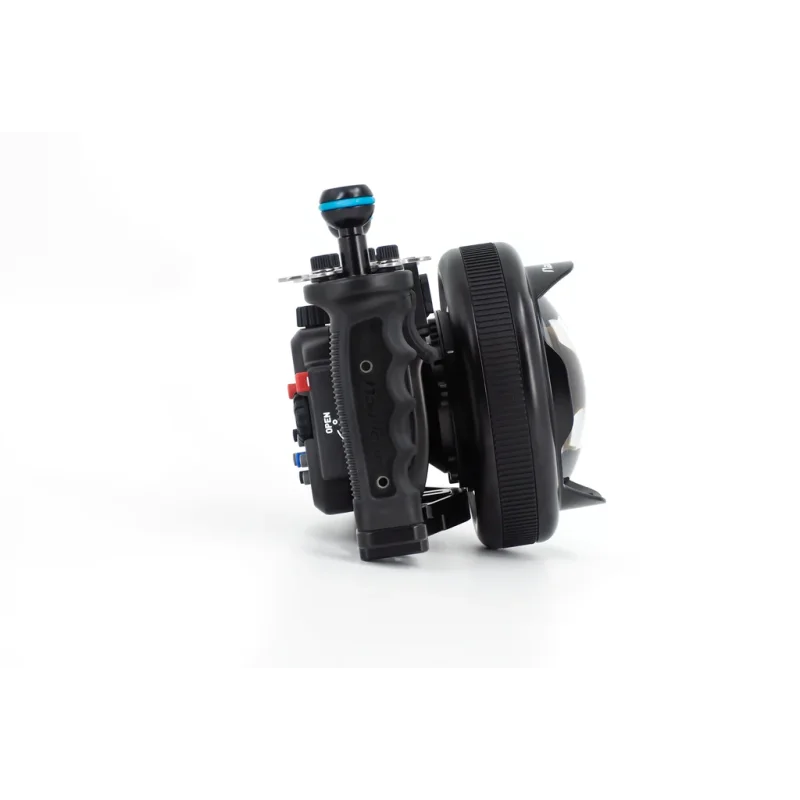

sacrificing optical quality and a perfect addition to not only Nauticam Housings but also (via adaptor) to other housings like the Seafrogs TG-6 Housing.

INTRODUCING WET WIDE LENS FOR COMPACT CAMERAS (WWL-C)
With the original Wet Wide Lens, the WWL-1, Nauticam used computer-aided lens design software to create an underwater-specific corrective lens that allowed for an unprecedented 130º field-of-view with full zoom-through optics and extreme

close-focus capabilities.  The WWL-1 wasn't just for higher-end cameras that already benefitted from interchangeable lenses to attain better image quality, the WWL-1 was designed to work with a variety of cameras that featured a 28mm equivalent lens including compacts and micro-four-thirds.

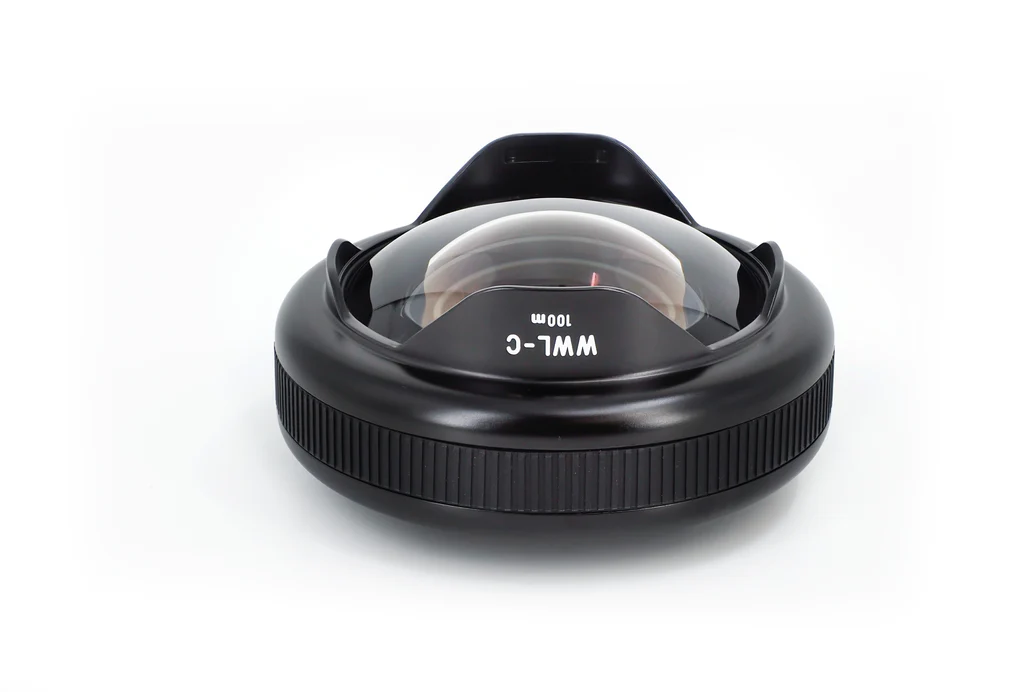

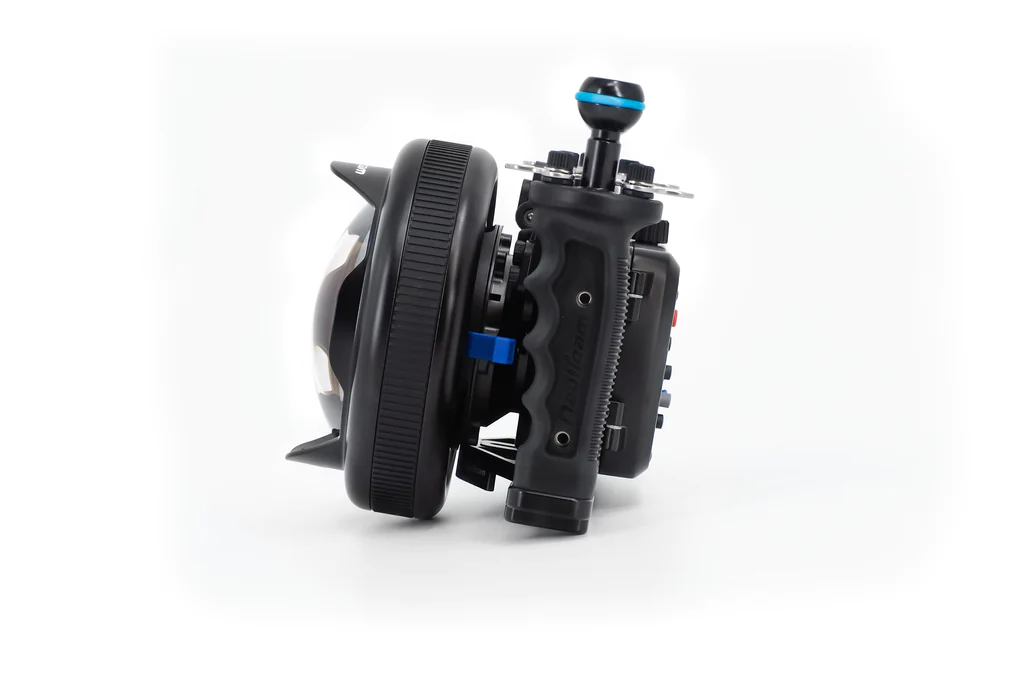

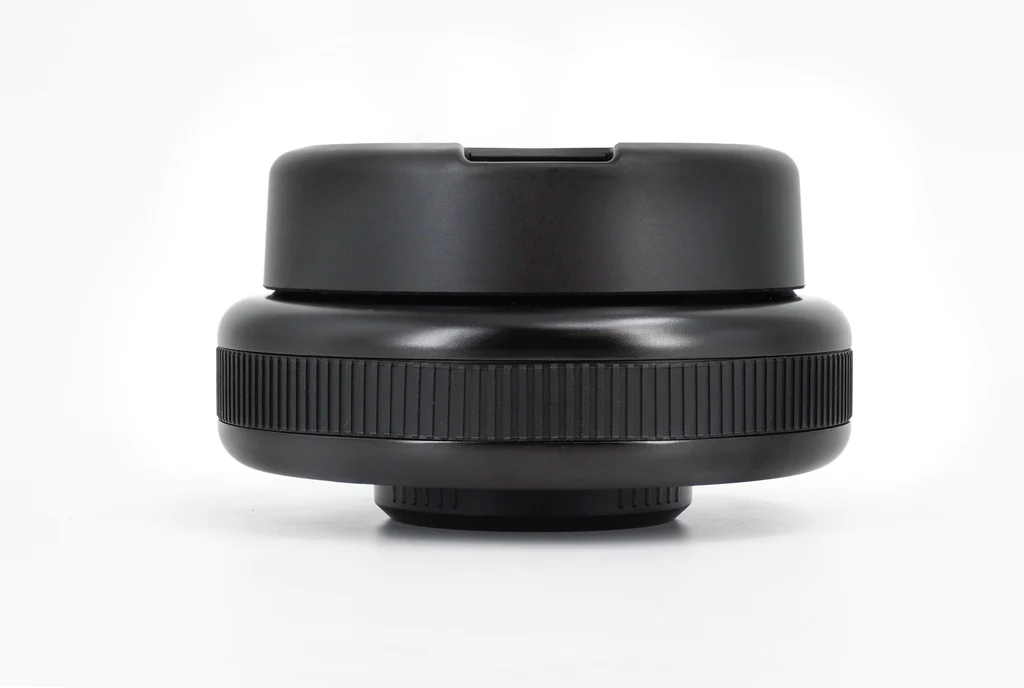

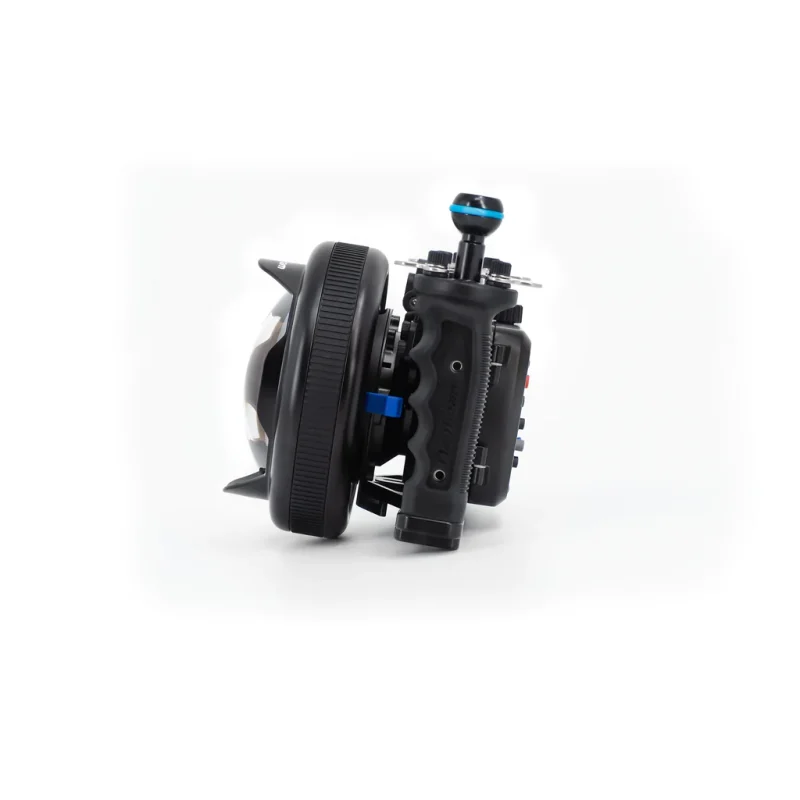

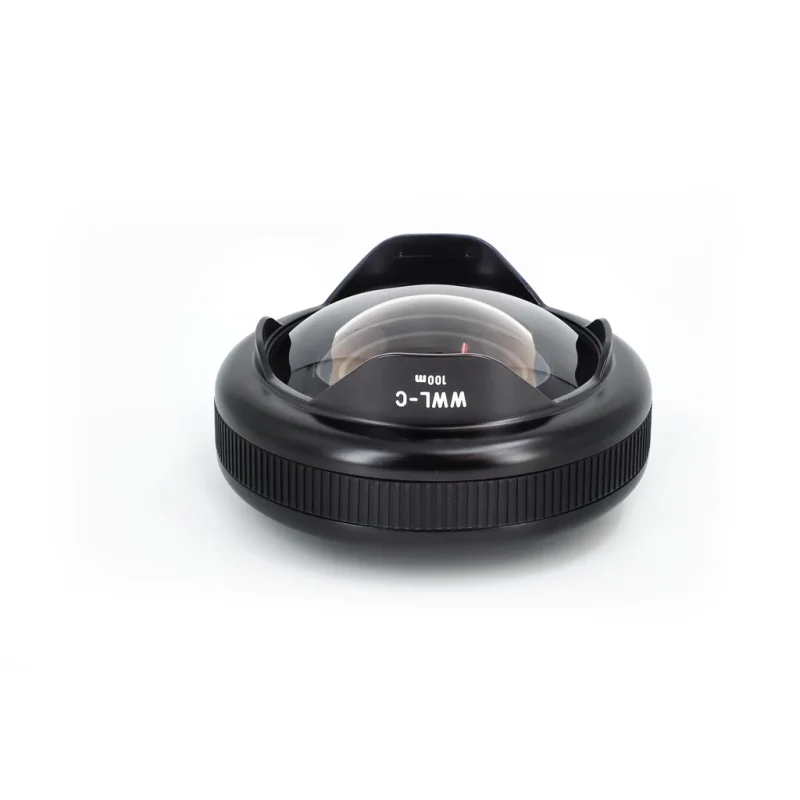

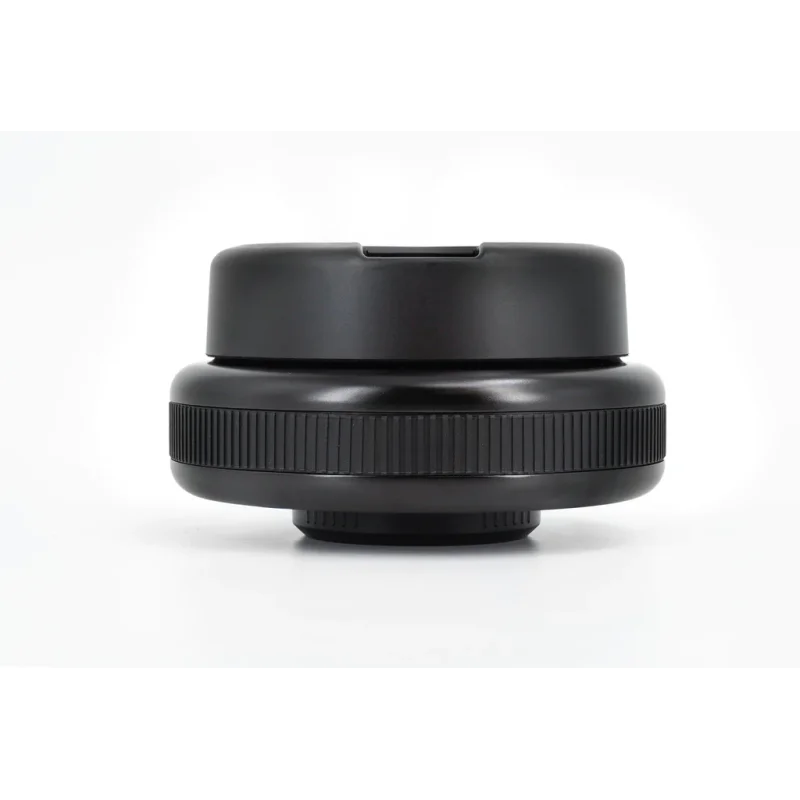

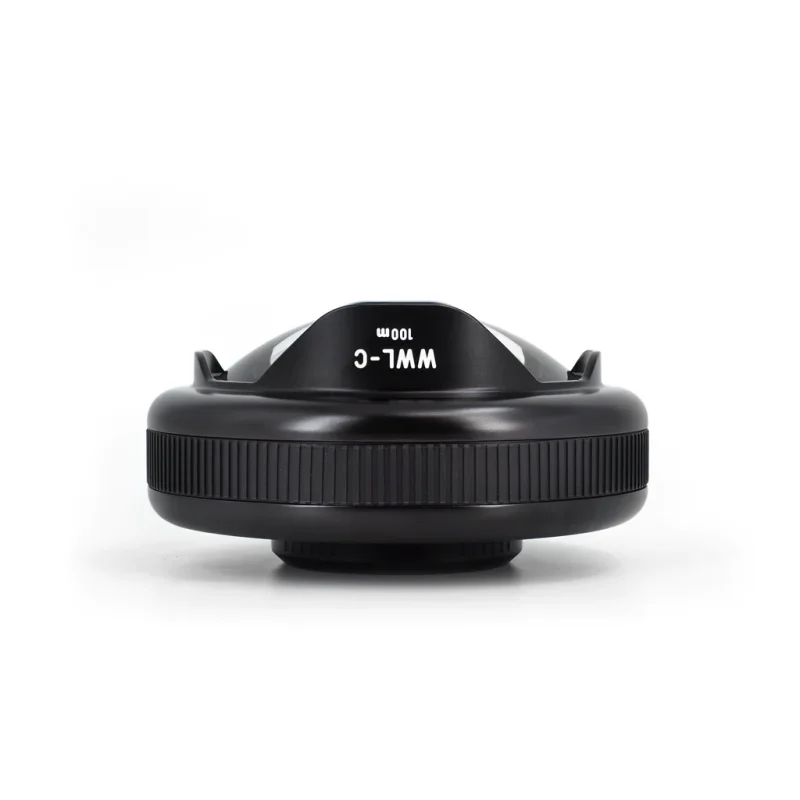

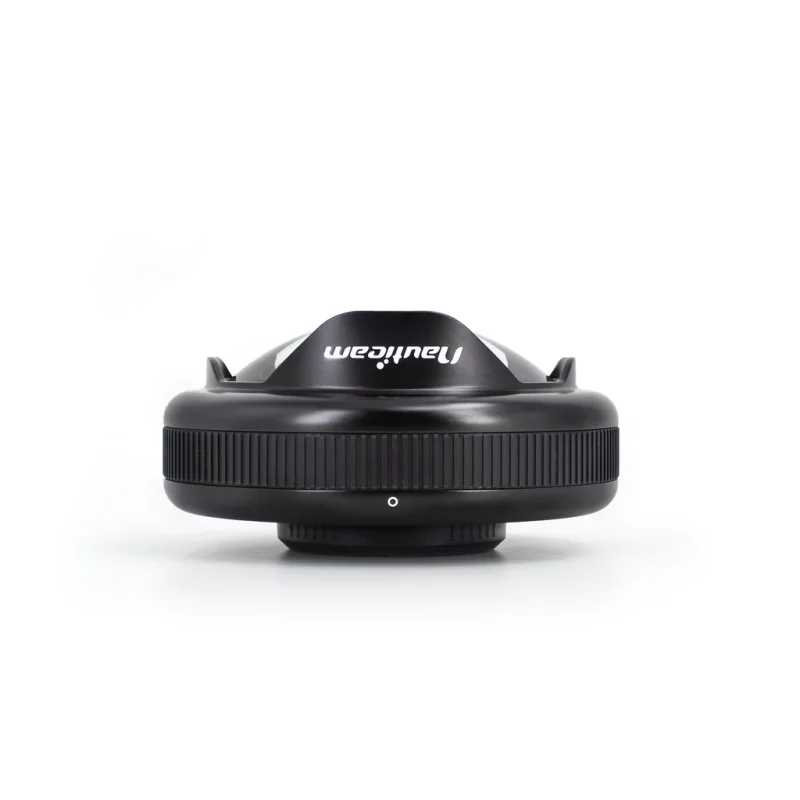

Delivering a stunningly sharp 130º field-of-view with 24mm equivalent lenses, the WWL-C also features zoom-through capable optics.** The WWL-C features a pre-installed metal buoyancy collar and a non-removable metal dome shade.

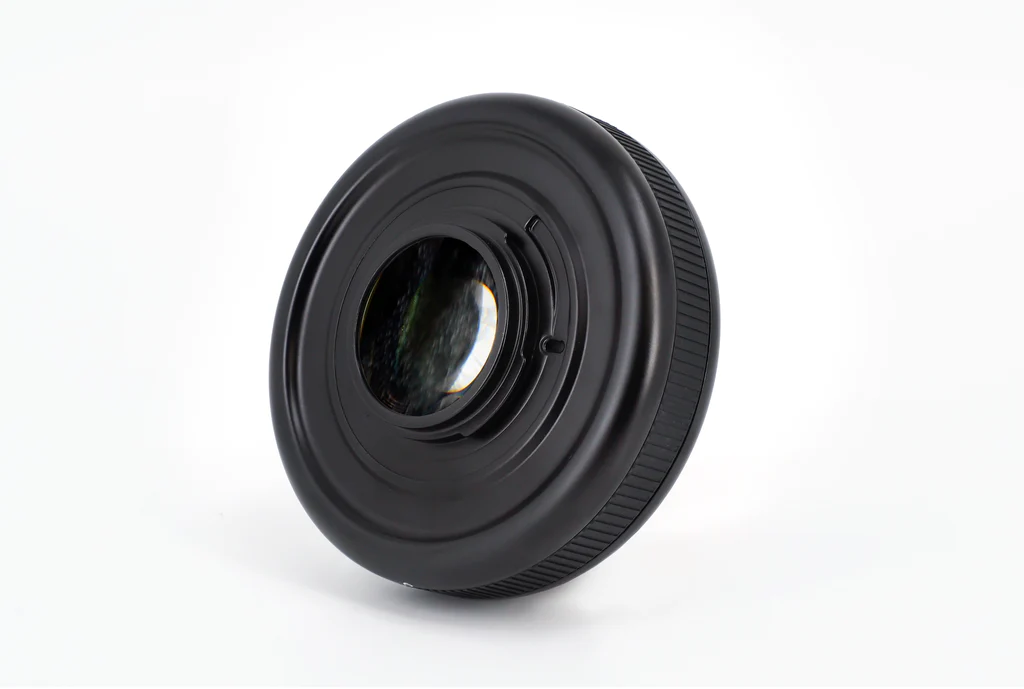

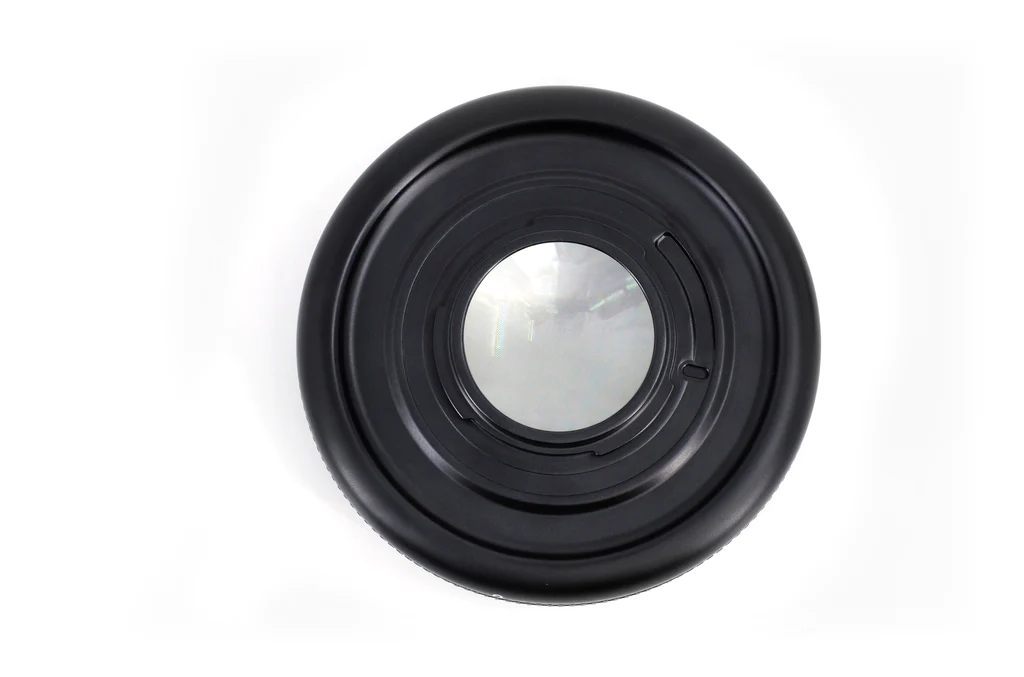

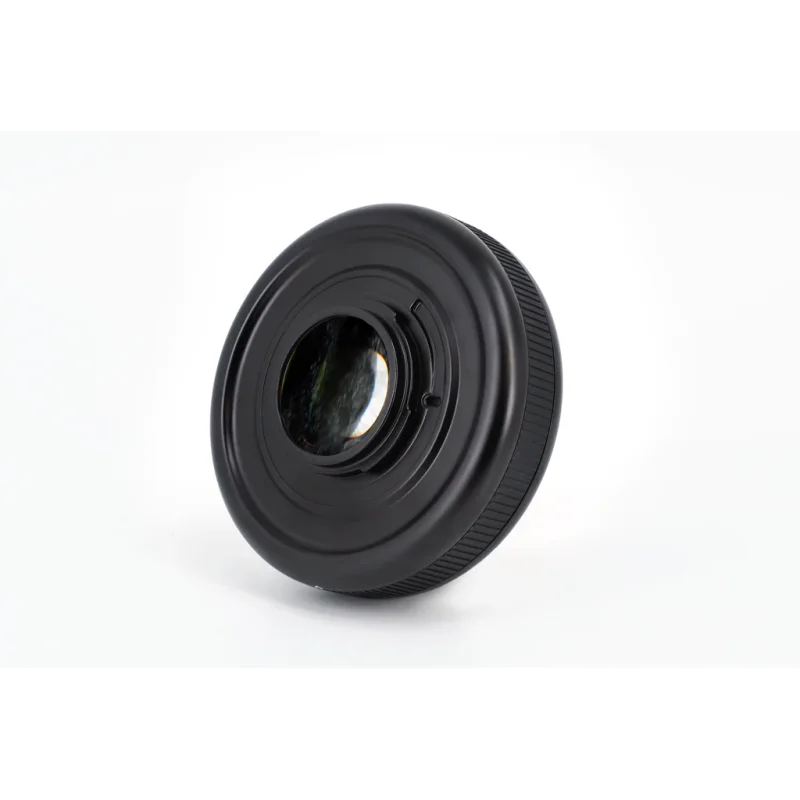

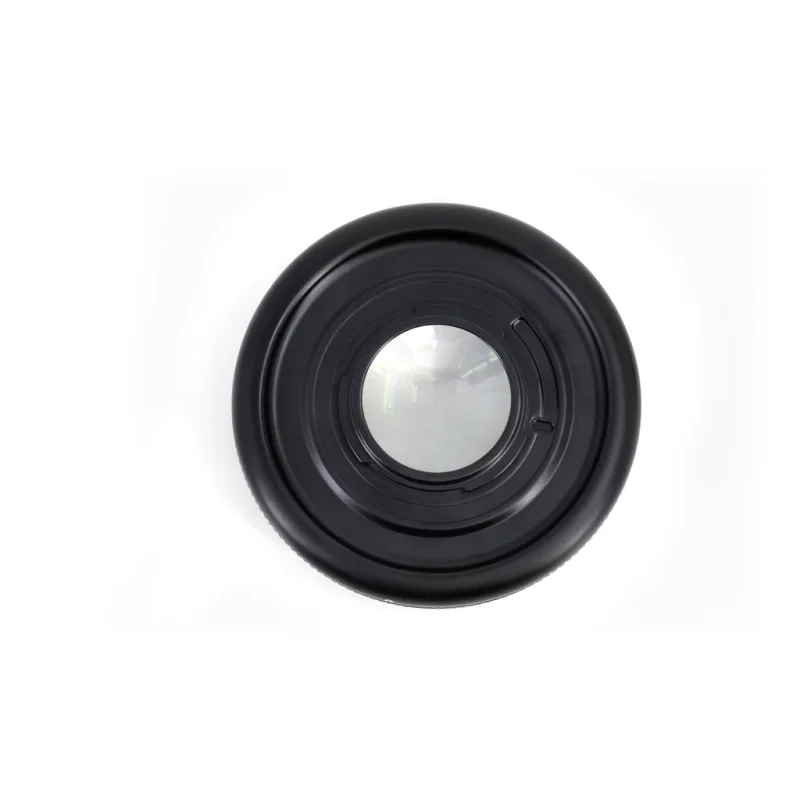

The WWL-C will also feature an updated quick-release Bayonet Mount. Lenses that feature the new Bayonet Mount II will not be compatible with previous Bayonet Mount adapters but all Bayonet Mount lenses will be able to be used with the new Bayonet Mount II Bayonet Mount Adapters without modification.

In the sidebar, you will find a list of anticipated housing compatibility along with the supported focal-length range as well as the necessary port configuration for the Bayonet Mount II standard.

 * = Deposit terms: you will be charged a refundable 500 euro deposit.  Once the WWL-C becomes available you will be contacted to continue with your purchase. Should you decide to cancel your order you will be refunded your initial deposit. Should you decide you wish to have your deposit refunded before production begins, email innovation@nauticam.com with your order details to process your refund. Deposits are not transferable.

All product specifications are subject to change. Images and specifications are of a pre-production version and may not represent the final product.

**= not all camera configurations support full zoom-through.

RESOURCES

Expected Camera Compatibility Table

HOUSING    ADAPTER OR PORT    USABLE FOCAL LENGTH
NA-RX100VII    38705 N50 Short Port 19 with bayonet mount....................................TBD
NA-RX100VI    38704 N50 Short Port 22 with bayonet mount.....................................24-50mm
NA-RX100V    823250 M67 to Bayonet Mount II Converter.........................................24-70mm
NA-RX100IV 823250 M67 to Bayonet Mount II Converter...........................................24-70mm
NA-RX100III 823250 M67 to Bayonet Mount II Converter...........................................24-70mm
NA-G7XIII 38704 N50 Short Port 22 with bayonet mount............................................24-50mm
NA-G7XII/G7X    38703 N50 Short Port 25 with bayonet mount..................................24-50mm
NA-LX100II 38704 N50 Short Port 22 with bayonet mount..........................................24-30mm
NA-LX100 38703 N50 Short Port 25 with bayonet mount............................................24-30mm
NA-TG5    83255 Bayonet Converter for NA-TG5 to use WWL-1 and WWL-C............25-100mm

Seafrogs TG-6 (SO-3) 83256 Bayonet Mount Convert to use WWL-1/WWL-C...........25-100mm

Olympus PT-058/59 83256 Bayonet Mount Converter to use with WWL-1/WWL-C....25-100mm

TECHNICAL SPECIFICATIONS

Dimensions                                            Dia. 146mm x 79mm
Weight in Air                                           1.05kg
Weight in Water                                      0.25kg
Lens Construction                                  4 elements
Lens Coatings                                        Anti-reflective on both sides
Dome Coating                                        Multi-layer Broadband Antireflective Coating
Focal Range                                           Front Element to Infinity
Maximum Field of View (underwater)    130º for 24mm equivalent lens
Mounting System                                   Bayonet Mount
Depth Rating                                          100m
