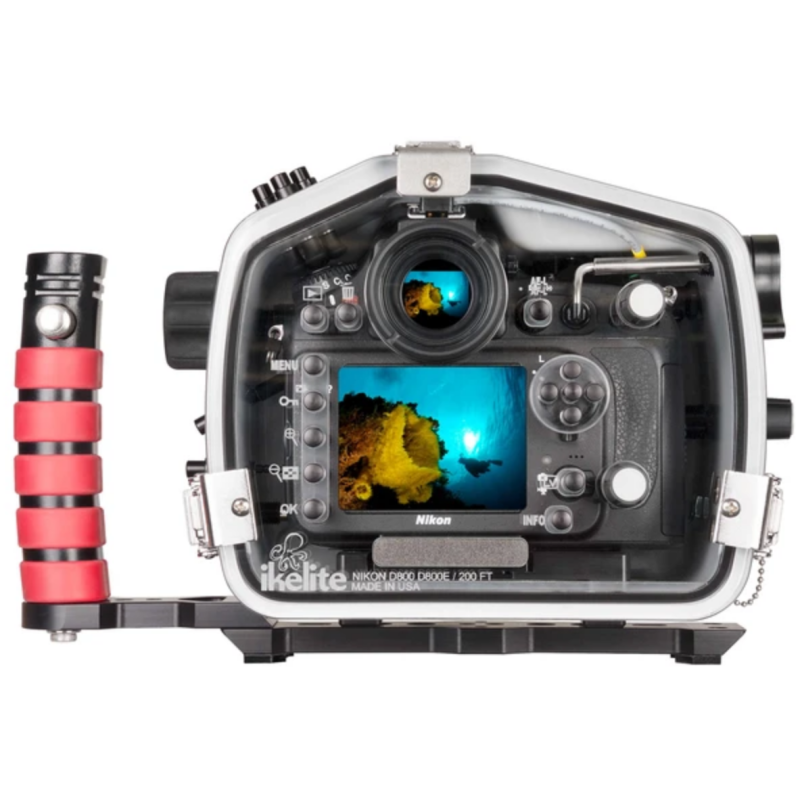

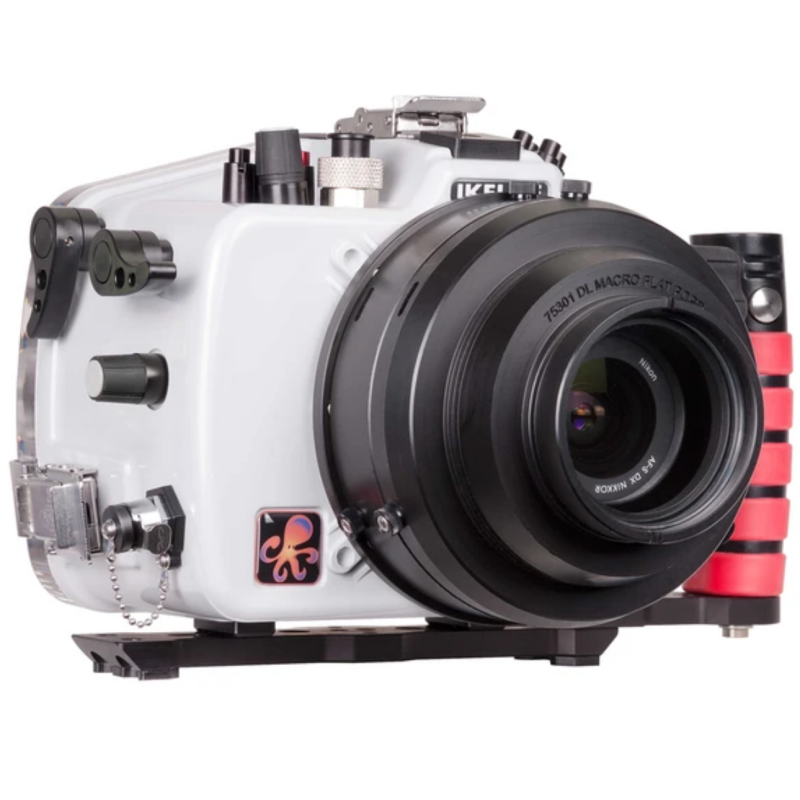

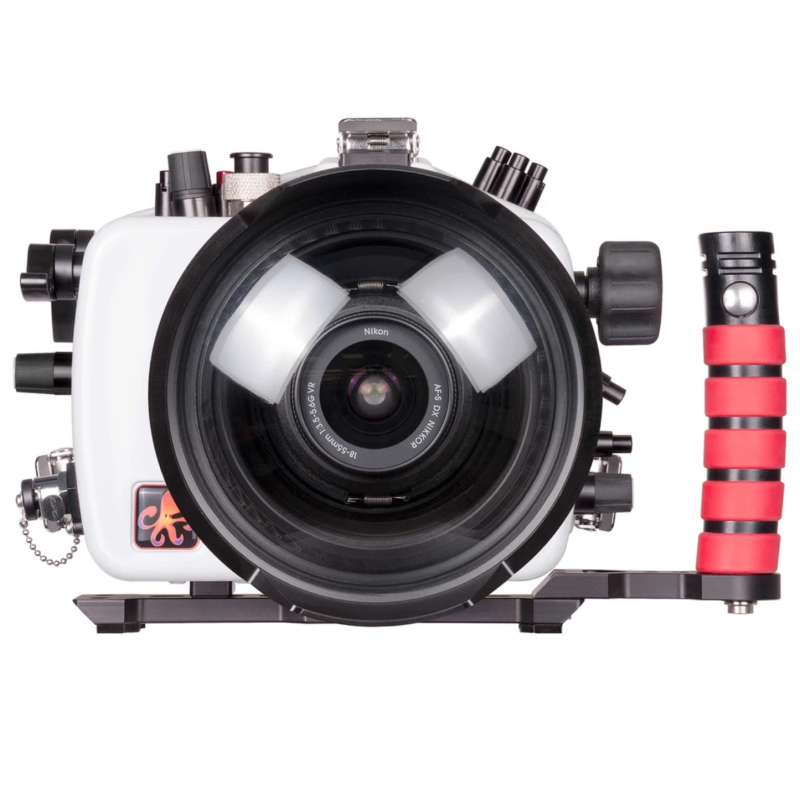

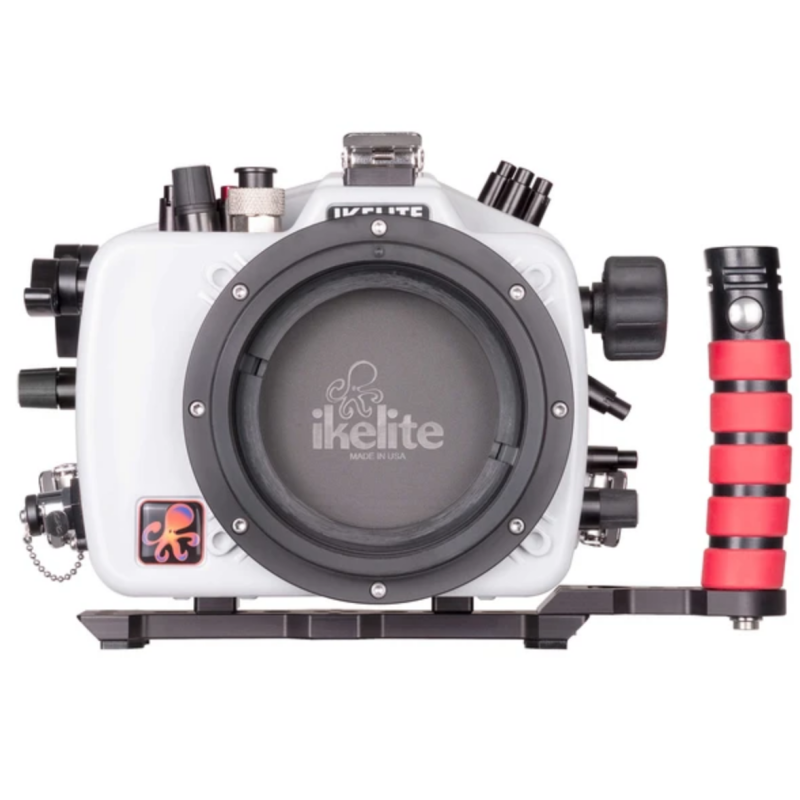

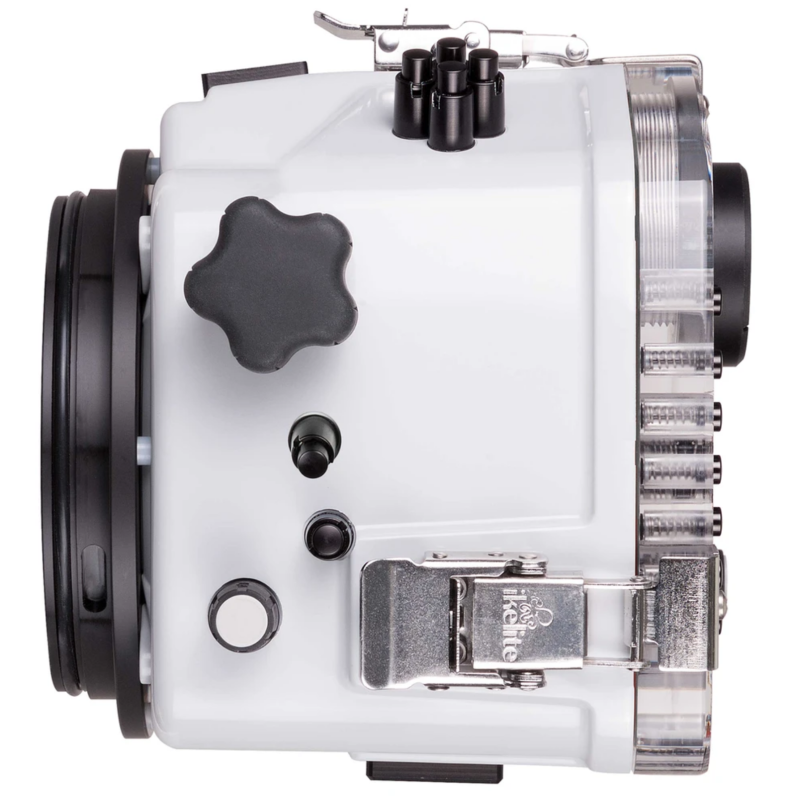

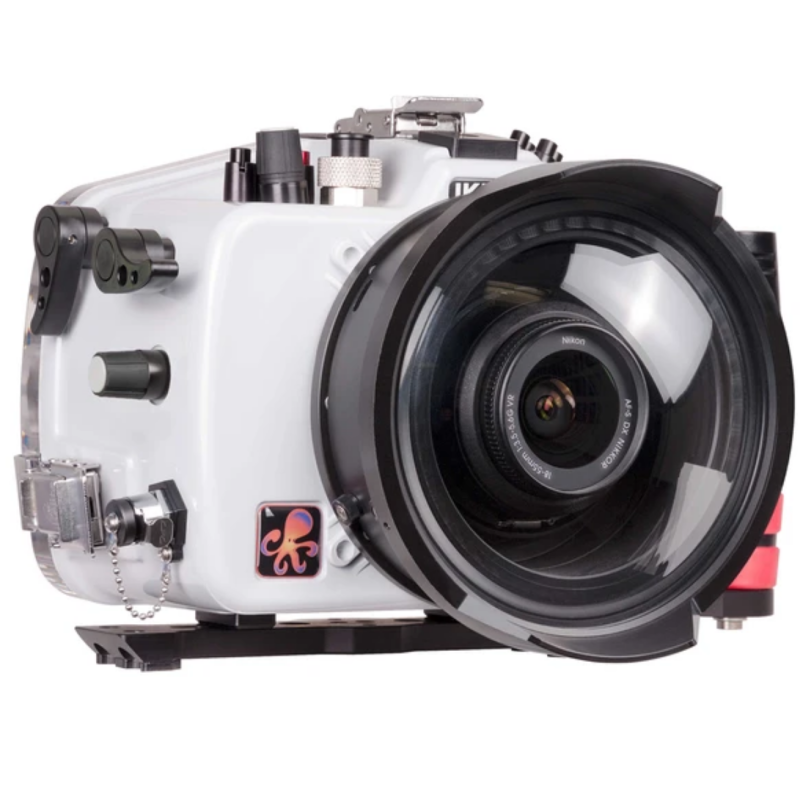

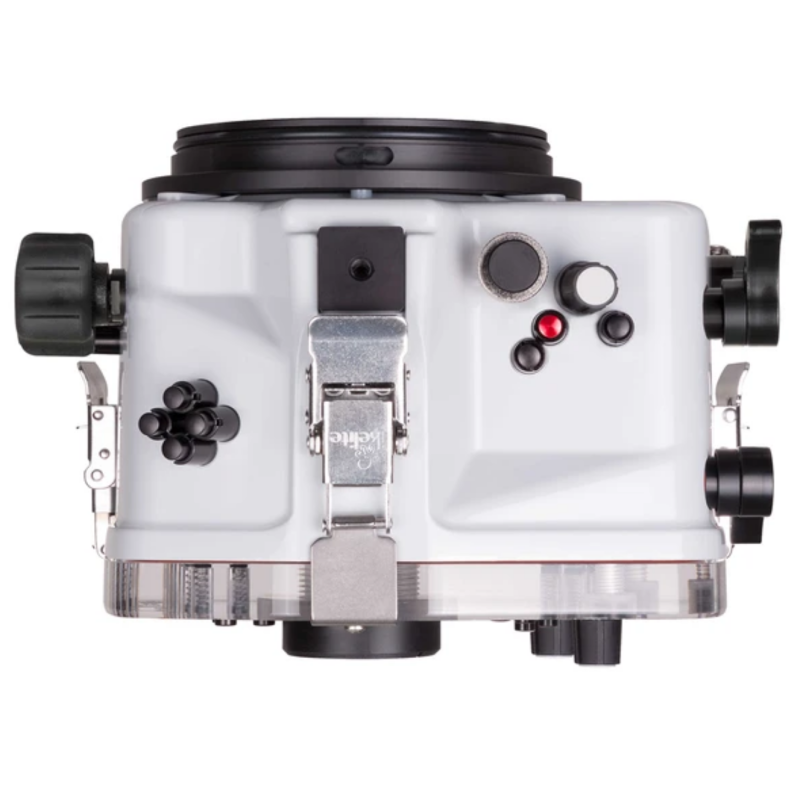

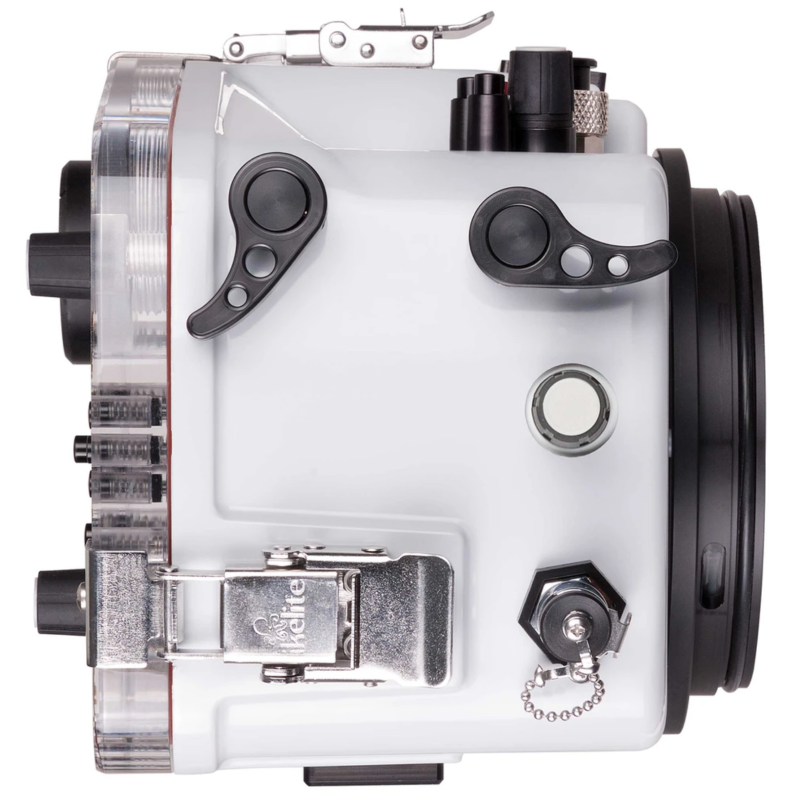

NIKON D800/D800E HOUSING

Features

• New Dry Lock (DL) port system
• An extension system can be used to incorporate a large variety of lenses
• Engage the zoom lenses and select lens focus rings simple and effective with the new gearing system.
• Vacuum system
• Upgraded shutter and AE-L/AF-L levers
• Precision machined aluminum base, and streamlined quick release handle
• Push button controls are machined and hard anodized aluminum to reduce weight and resist salt buildup
• New and strong white ABS-PC blend front for improved contrast and visibility while keeping the camera cooler in the sun.
• 1/4-20 threaded mounting can be used to attach lightweight accessories like a focus light or a GoPro Camera

Fiber Optic

An external strobe needs to be connected by electrical sync cord. Fiber optic only strobes are not compatible.

Compatibility

This housing cannot accommodate add-on grips, battery grips, eyepieces, LCD covers or other accessories.

Specifications

60m depth rating

Compatible with DL system lens ports

Controls are provided for all important camera controls;

Controls are not provided for Focus selector lock, Metering selector, Diopter adjustment control, Eyepiece shutter lever, Release mode dial, Release mode dial lock release, Flash pop-up button, Depth-of-field preview button, Fn Function button

1/4-20 thread base mounts with 3.5" spacing

Near neutral buoyancy in fresh water

Actual buoyancy varies depending on choice of lens and port

(2.2 kg)

(239 x 173 x 170 mm)

Vacuum valve included (pump sold separately)

Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes

ABS-PC construction is fundamentally corrosion-resistant

Made in the USA; Individually inspected for fit and water pressure tested to depth

2 year limited warranty

In the Box

Housing

Rear O-ring # 0132.61 (installed)

Front O-ring # 0132.45 (installed)

Zoom Gear Retainer # 75900 (installed)

Port Hole Cover # 0200.92 (installed)

Waterproof Bulkhead Cap # 9104.7 (installed)

Base with Left-Hand Quick Release Handle # 4077.67 (installed)

Tool for Zoom Gear Retainer # 0945.06

.050" Hex Key # 0945.11

1/16" Hex Key # 0945.16

Silicone Lubricant  1cc tube

Optional Accessories

Spare Rear O-Ring # 0132.61  Carry a back-up in case original seal becomes damaged.

Spare Front O-Ring # 0132.45  Carry a back-up in case original seal becomes damaged.

Vacuum Pump with Gauge # 47011  Pressurize the housing to check for leaks prior to entering the water.

Right-Hand Quick Release Handle # 4077.02  Makes a double tray for easier handling and a second attachment point for strobes or lights.

Trigger Extension # 4077.95  Recommended if using the Right-Hand Quick Release Handle. Brings shutter and/or AF-ON lever out to handle for more comfortable use.

DL1 DS Link TTL Converter # 46054  Fast, accurate, automatic TTL strobe exposure when used together with compatible Ikelite DS strobes.

45º Magnified Viewfinder (Type 1) # 6891.1  Brighter, larger, and more ergonomic positioning when shooting under water. Rotates for landscape or portrait shots.
