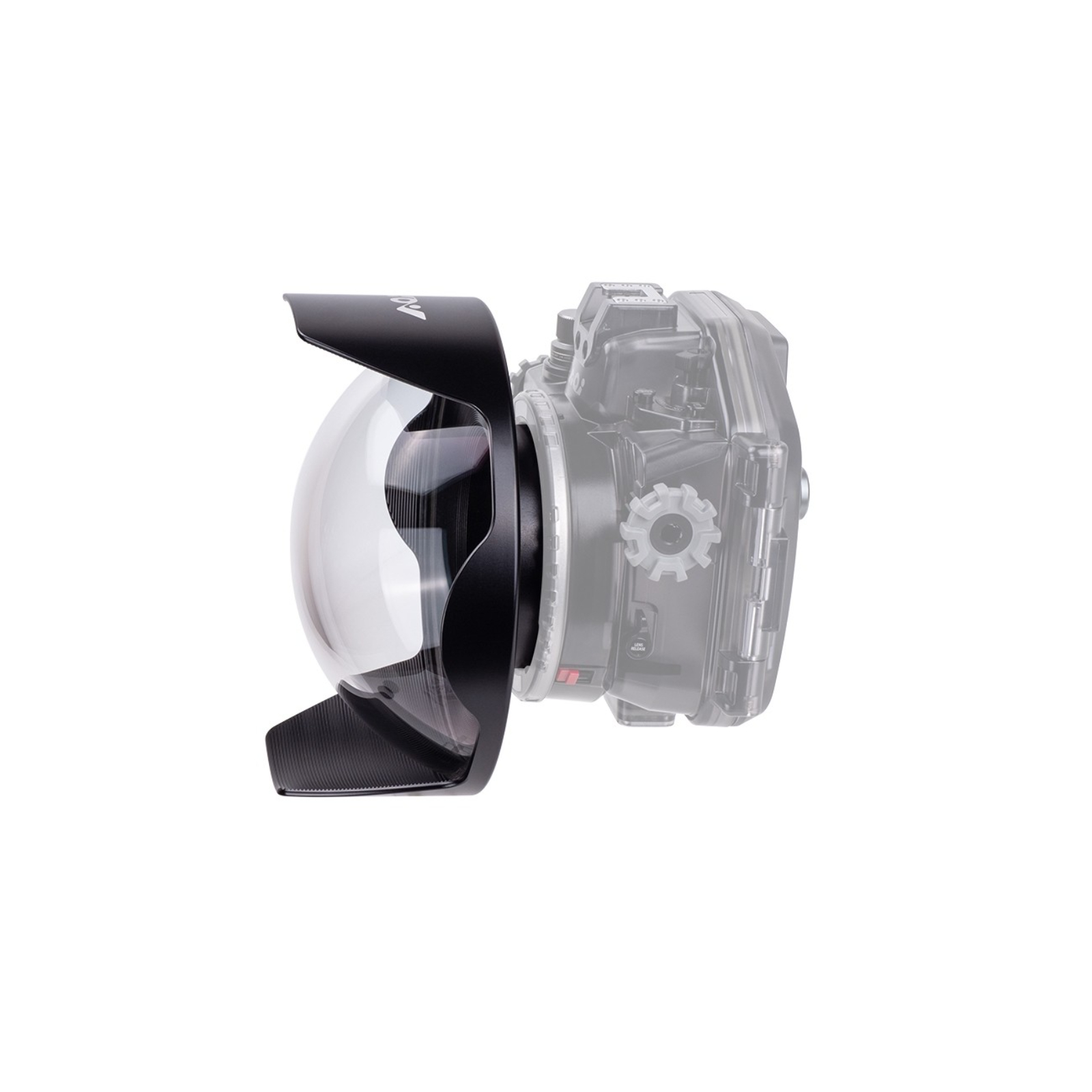

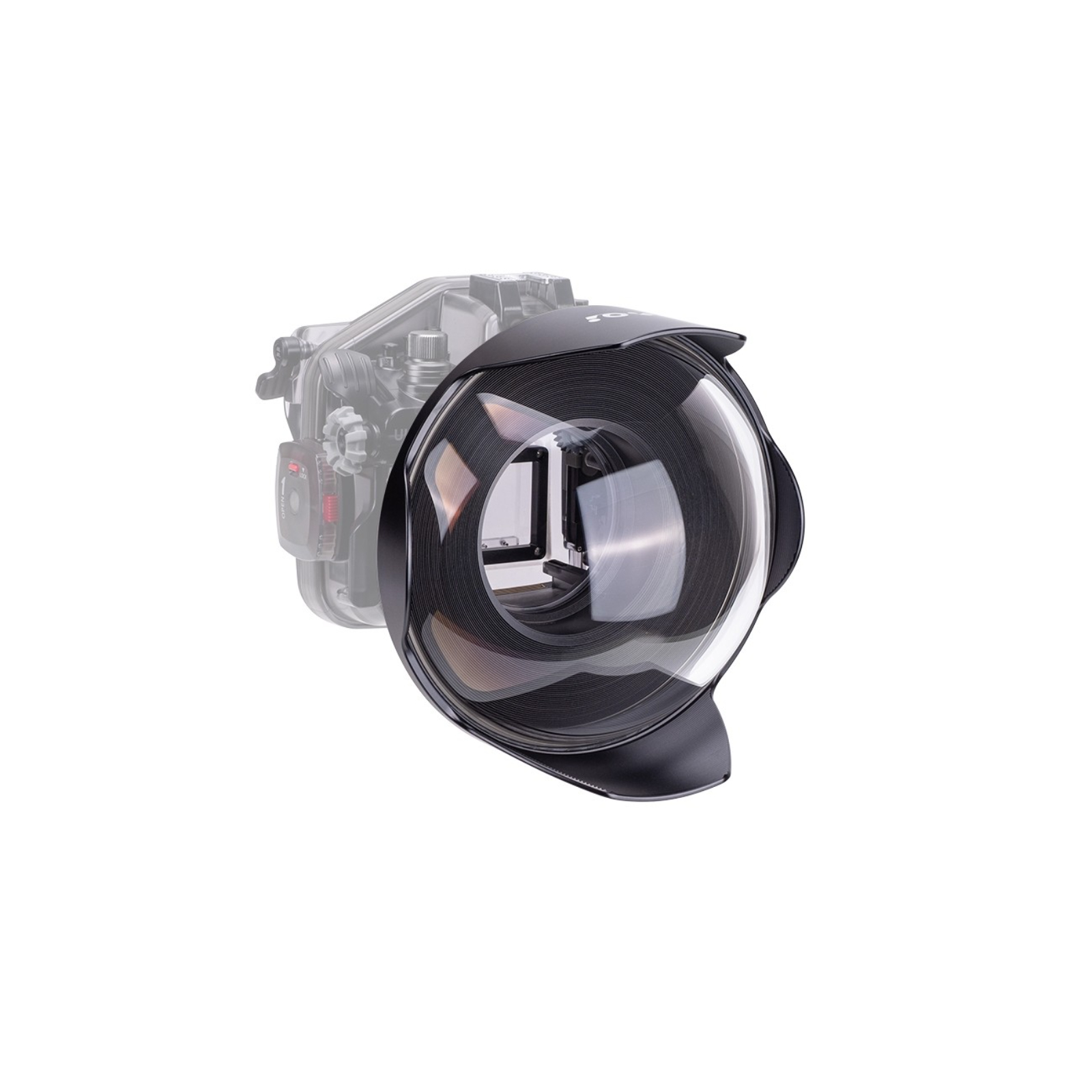

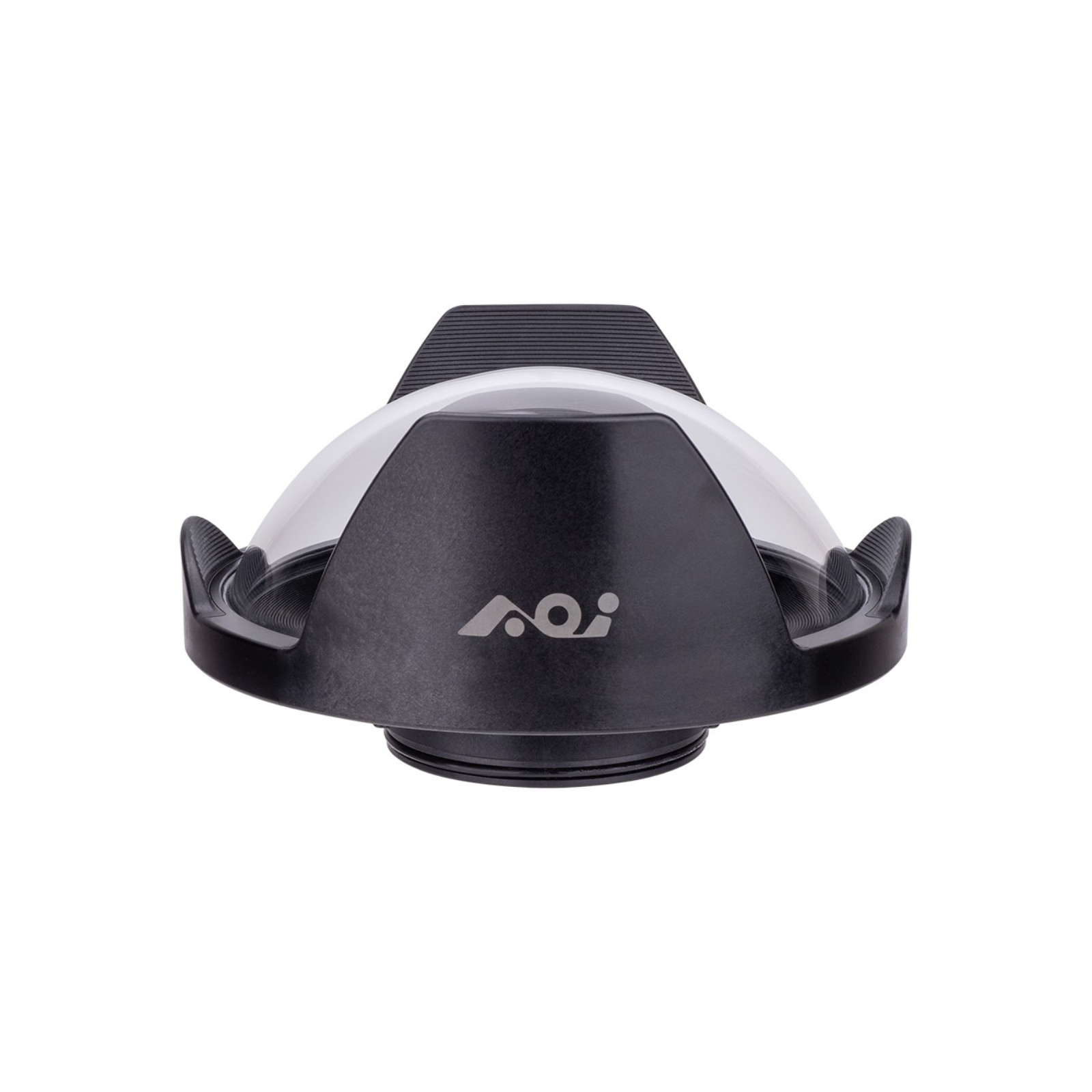

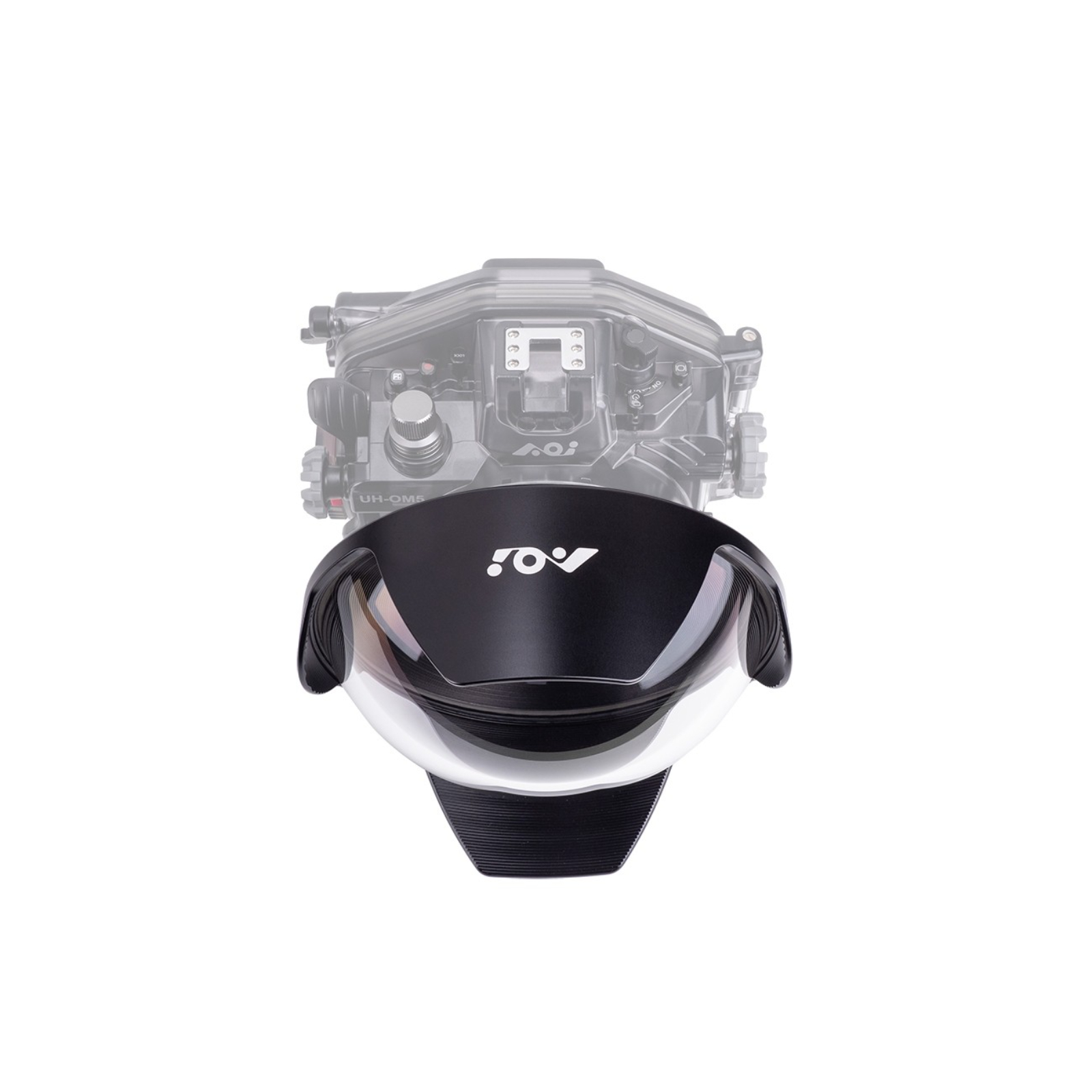

AOI DLP-12-OD 8" Acrylic Dome Port for OM-D Mount Housings

The AOI DLP-12-OD is a professional 8-inch acrylic dome port designed for Olympus OM-D mount underwater housing systems. It is optimized for ultra-wide, wide-angle, and split-level (over-under) underwater photography, delivering reduced distortion, improved corner sharpness, and excellent close-focus performance. The lightweight optical-grade acrylic dome and durable hard-anodized aluminum construction provide an ideal balance of portability and underwater imaging performance.


Key Features

• 8" optical-grade acrylic dome for ultra-wide and fisheye underwater photography
• Designed for Olympus OM-D mount underwater housing systems
• Optimized for split-level (over-under) and close-focus wide-angle imaging
• Lightweight optical acrylic dome for improved portability and travel convenience
• Hard anodized aluminum alloy port body with PC+GF light shade for durability
• Reduces underwater distortion and improves image sharpness
• Waterproof depth rating up to 60 m
• Suitable for professional underwater photo and video applications


Specifications

• Type: 8" Acrylic Dome Port for OM-D Mount Housings
• Material: Hard anodized aluminum alloy port body + PC+GF light shade + optical grade acrylic dome lens
• Waterproof rating: 60 m
• Dimensions: 226 mm (D) × 125 mm (H)
• Weight (land): 1182 g (without dome front cover and rear port cap)
• Weight (underwater): -984 g (without dome front cover and rear port cap)
• Mount system: Olympus OM-D port system


In the Box

• AOI DLP-12-OD 8" Acrylic Dome Port
• Neoprene dome front cover (DNC-03)
• PP rear port cap (PRC-01)
• Silicone grease (AOI SIGR-2)
