Product no.: DLP-11-OD

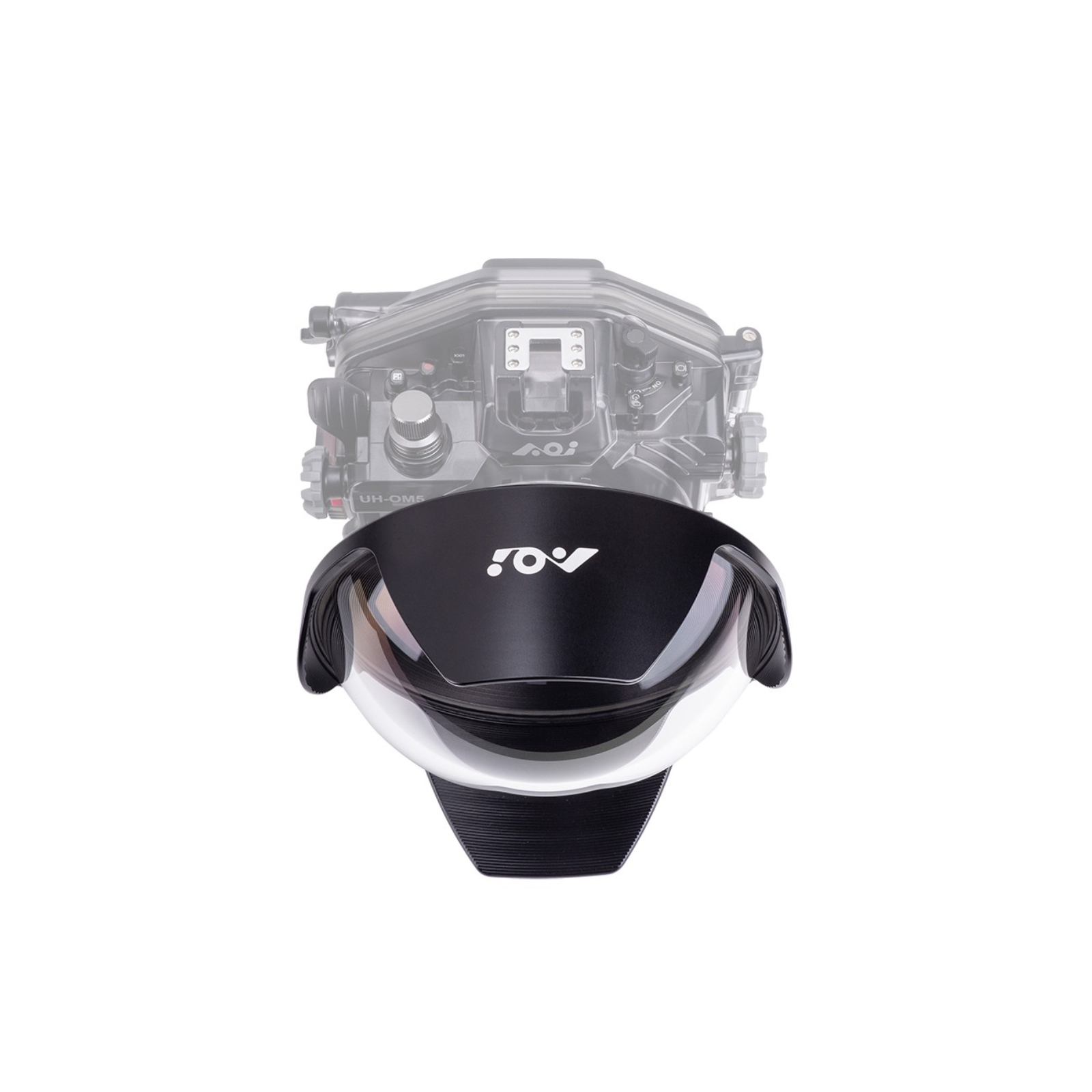

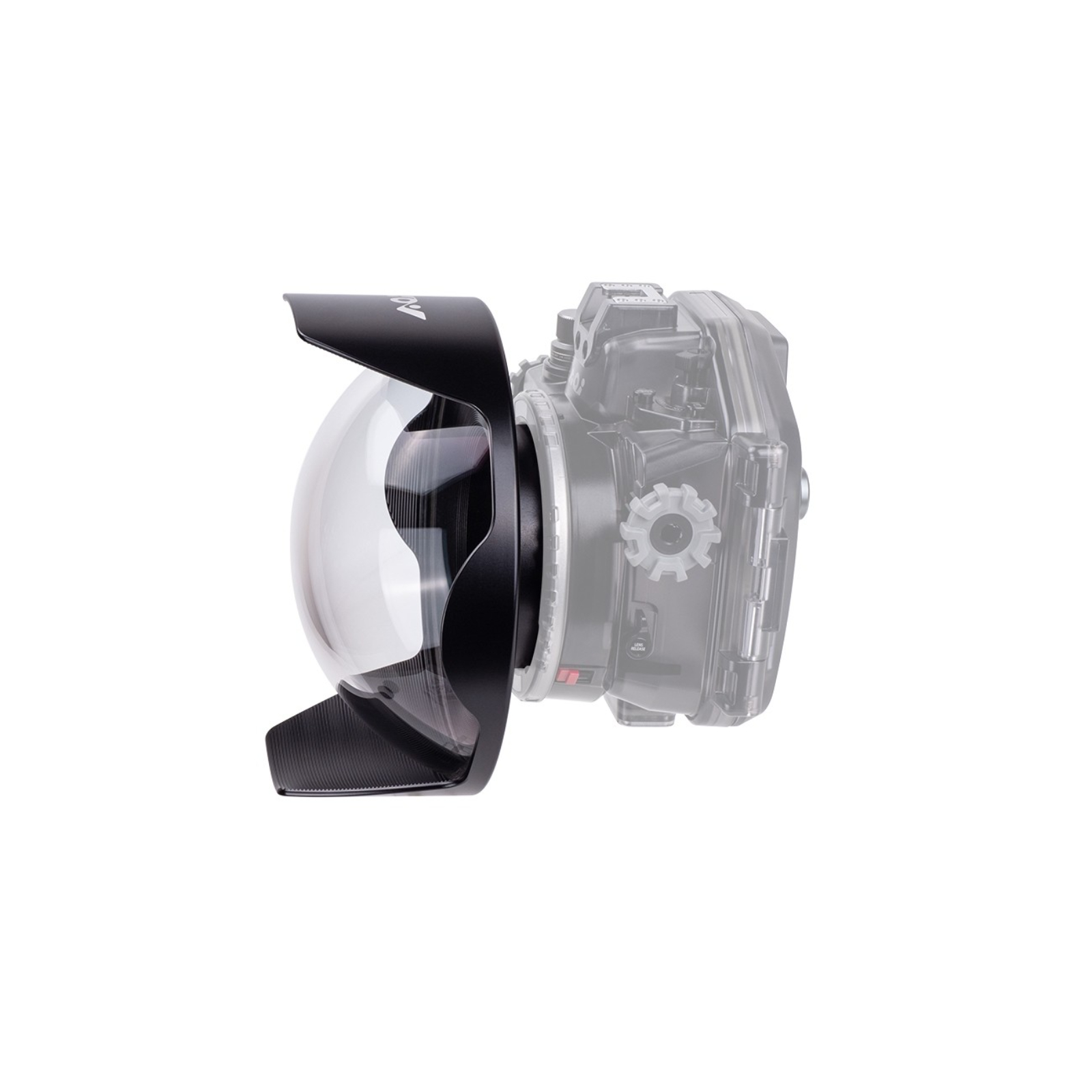

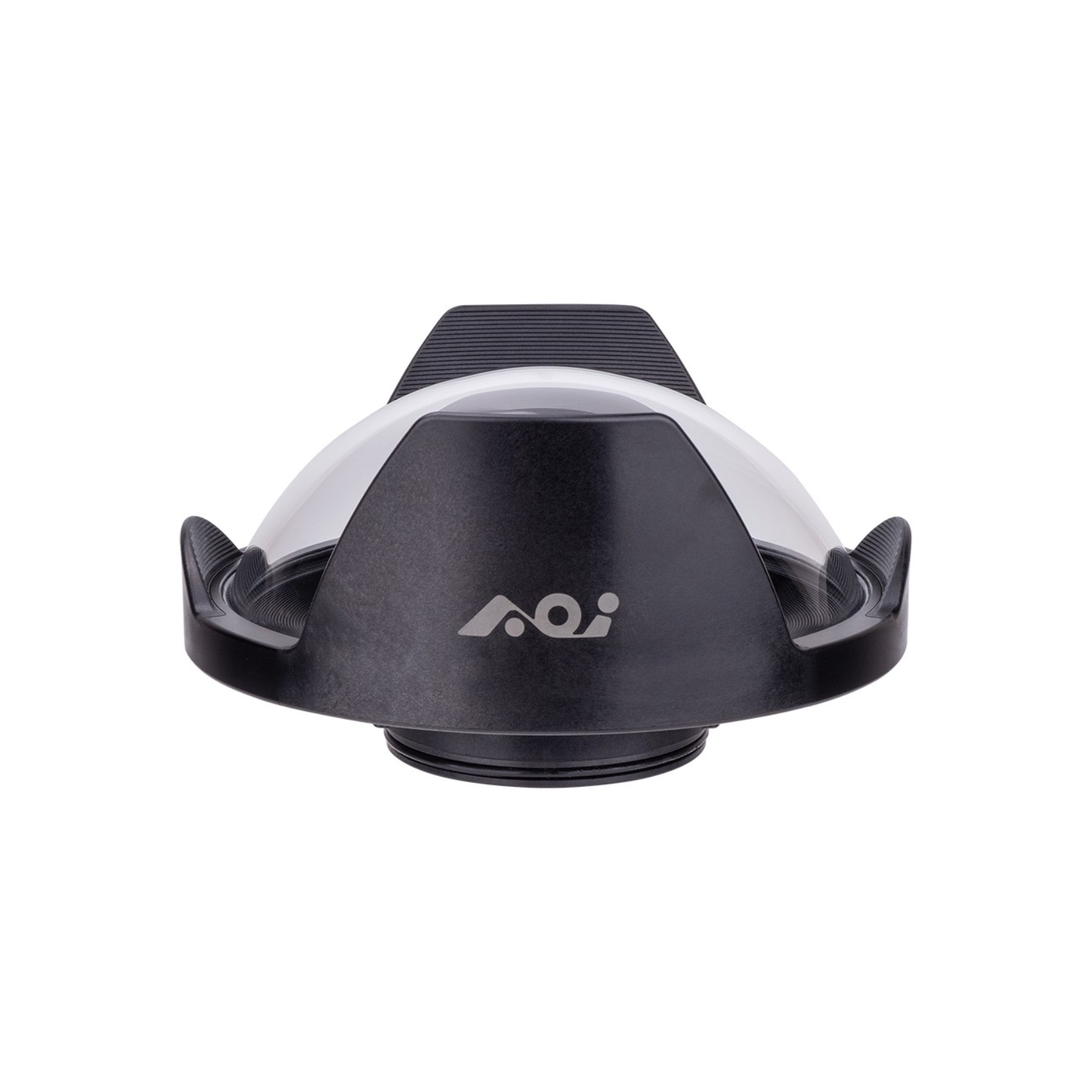

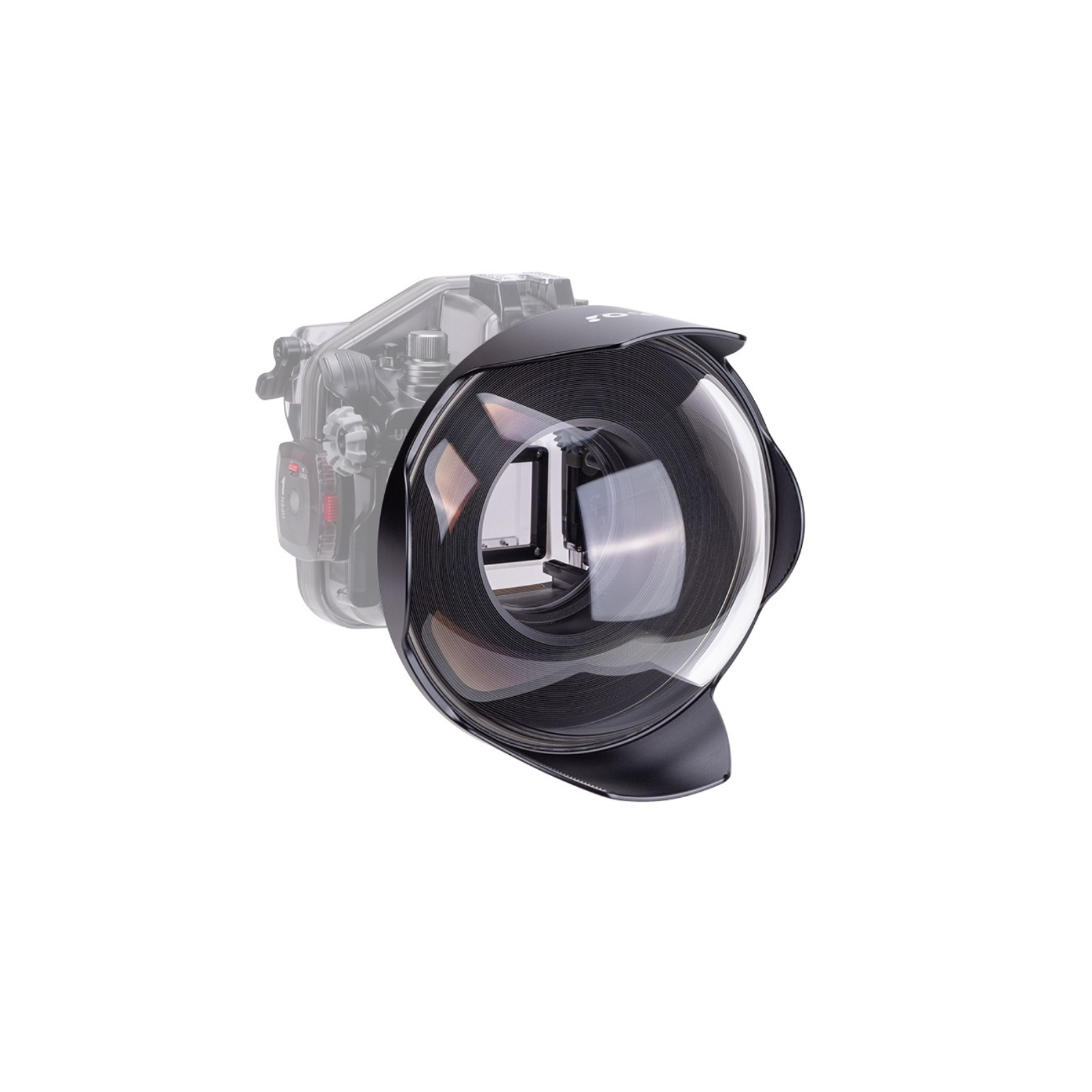

AOI DLP-11-OD 8" Glass Dome Port for OM-D Mount Housings

1.312,50 EUR

(incl. VAT)

psc.

Stock status: Assembled on order and shipped.

Competitive international shipping

European product warranty

The AOI DLP-11-OD 8" Glass Dome Port is designed for OM-D mount underwater housings, delivering exceptional optical performance for wide-angle, ultra-wide, and split-level underwater photography. Its large optical glass dome reduces distortion, enhances corner sharpness, and enables stunning over-under and close-focus compositions for professional underwater imaging.

Description

The AOI DLP-11-OD is a professional 8-inch optical glass dome port designed for OM-D mount underwater housing systems. It is engineered for ultra-wide, wide-angle, and split-level (over-under) underwater photography, delivering exceptional corner sharpness, minimal distortion, and high optical clarity. The large optical glass dome with inner multi-layer anti-reflective coating ensures excellent light transmission and image quality for demanding underwater shooting conditions.

Key Features

8" optical glass dome for ultra-wide, wide-angle, and fisheye underwater photography
Designed for Olympus OM-D mount underwater housing systems
Optimized for split-level (over-under) and close-focus wide-angle imaging
Optical glass dome with inner multi-layer anti-reflective (AR) coating for improved clarity
Hard anodized aluminum alloy port body with PC+GF light shade for durability
High optical performance for edge-to-edge sharpness underwater
Depth rating up to 60 m
Enables close subject distance for wide-angle compositions

Specifications

Type: 8" Glass Dome Port for OM-D Mount Housings
Material: Hard anodized aluminum alloy port body + PC+GF light shade + optical glass dome with AR coating
Waterproof rating: 60 m
Dimensions: 226 mm (D) × 125 mm (H)
Weight (land): 1818 g (without dome front cover and rear port cap)
Weight (underwater): -348 g (without covers)
Mount system: Olympus OM-D port system

In the Box

AOI DLP-11-OD 8" Glass Dome Port
Neoprene dome front cover (DNC-03)
PP rear port cap (PRC-01)
