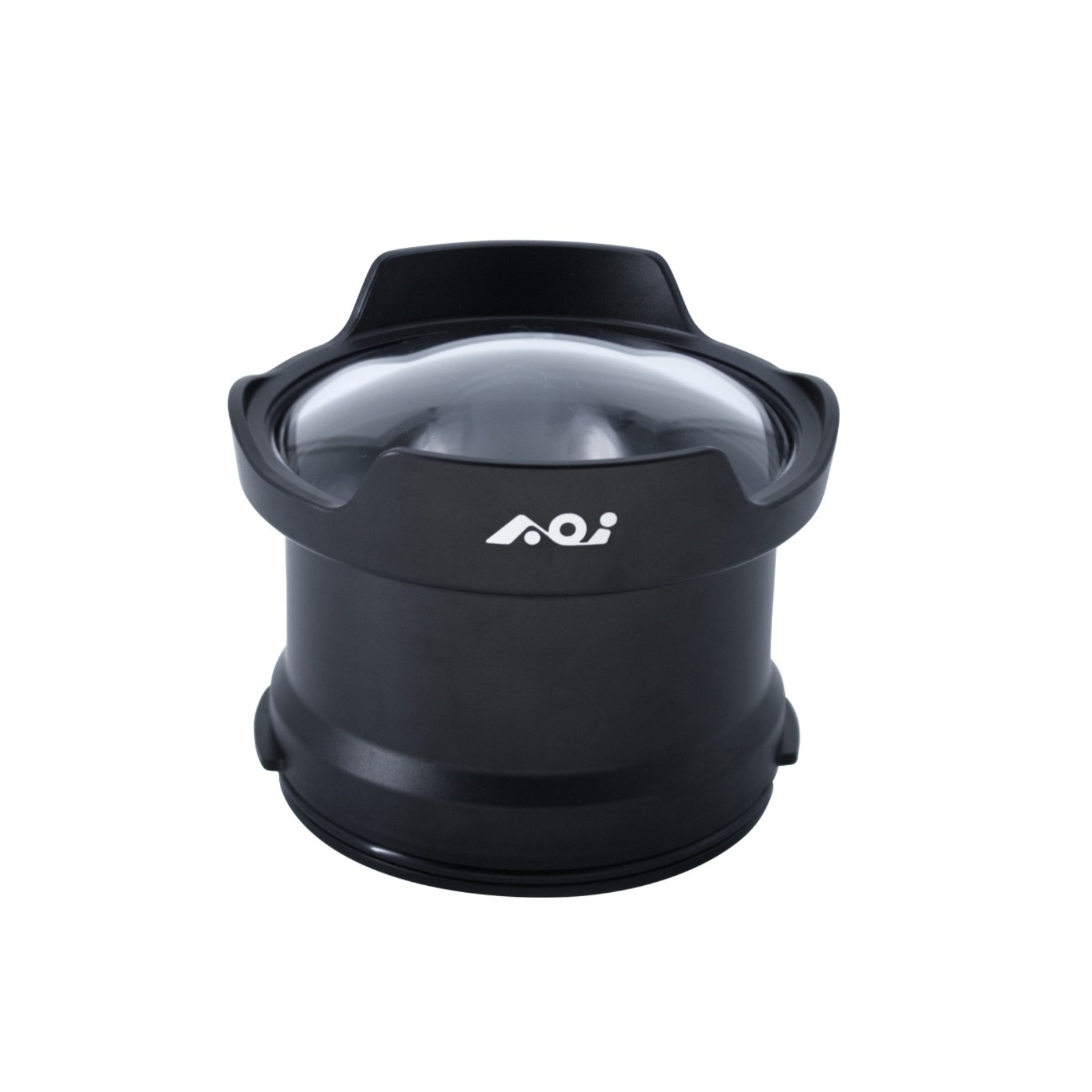

AOI DLP-10 4" Acrylic Semi-Dome Port for Olympus OM-D Mount Housing

The AOI DLP-10 is a compact 4-inch acrylic semi-dome port designed for Olympus OM-D mount underwater housings. It is optimized for wide-angle underwater photography and video, helping reduce distortion while improving image sharpness and close-focus performance. Its lightweight optical-grade acrylic dome and durable hard-anodized aluminum construction make it an ideal solution for travel and underwater imaging applications.


Key Features

• 4" optical-grade acrylic semi-dome for wide-angle underwater photography

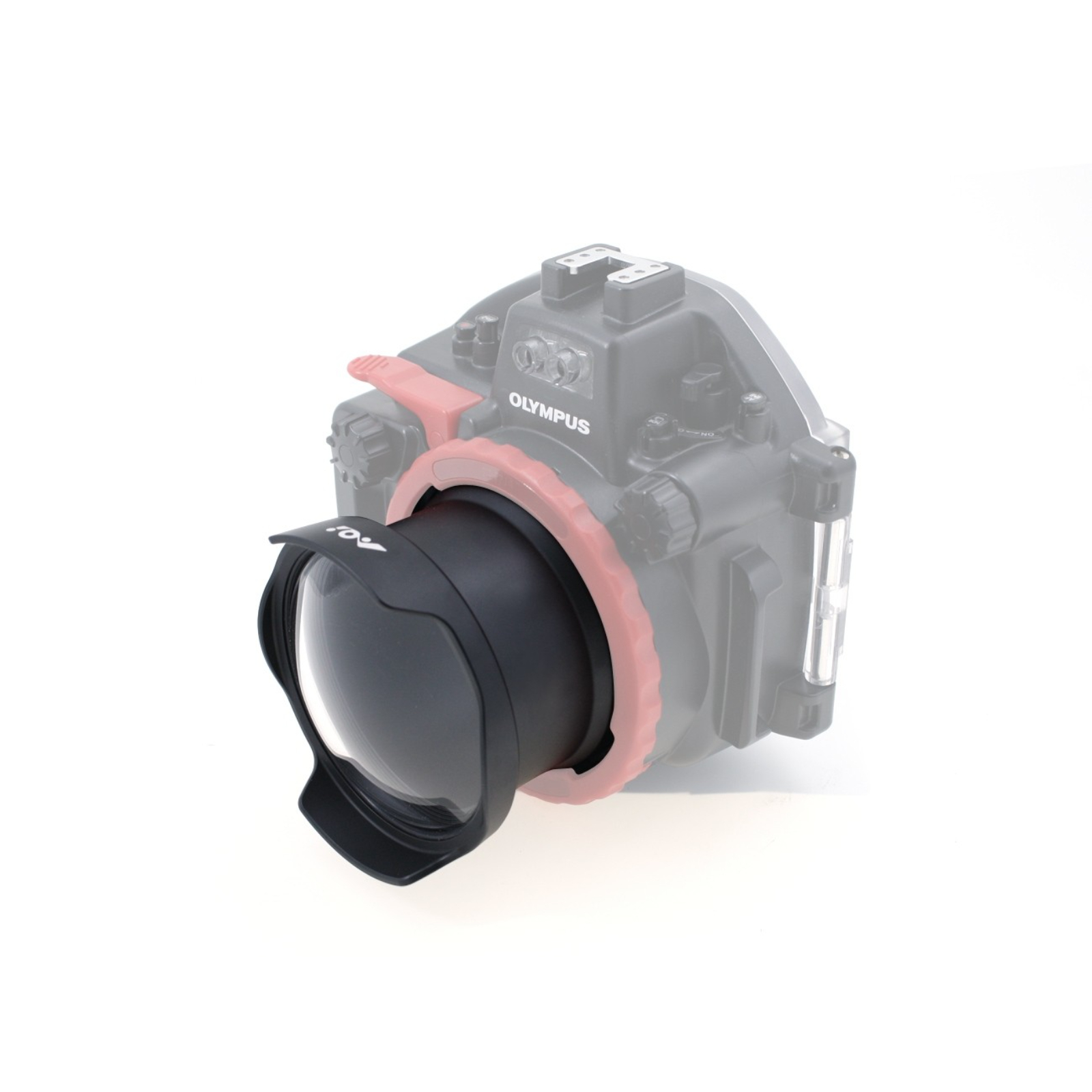

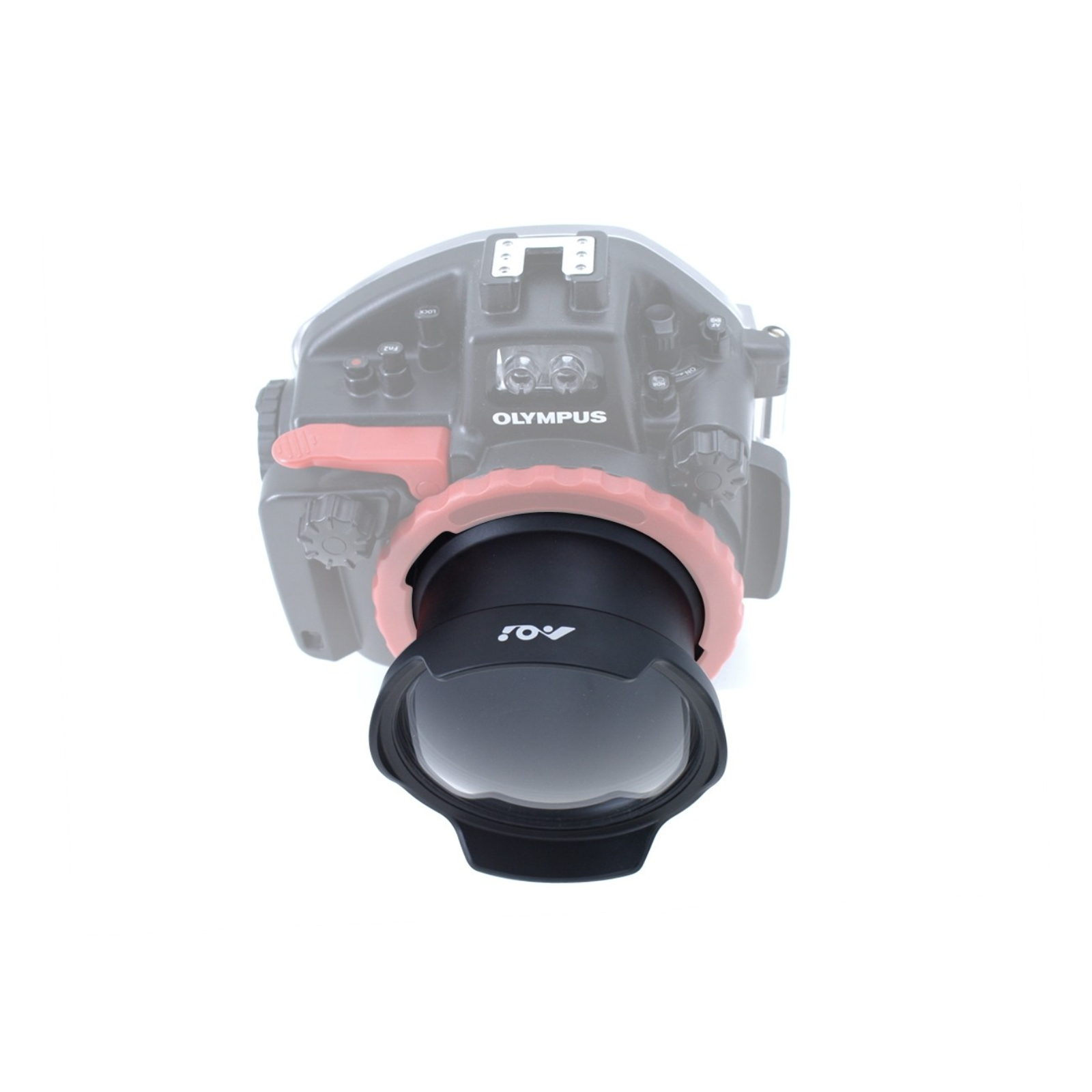

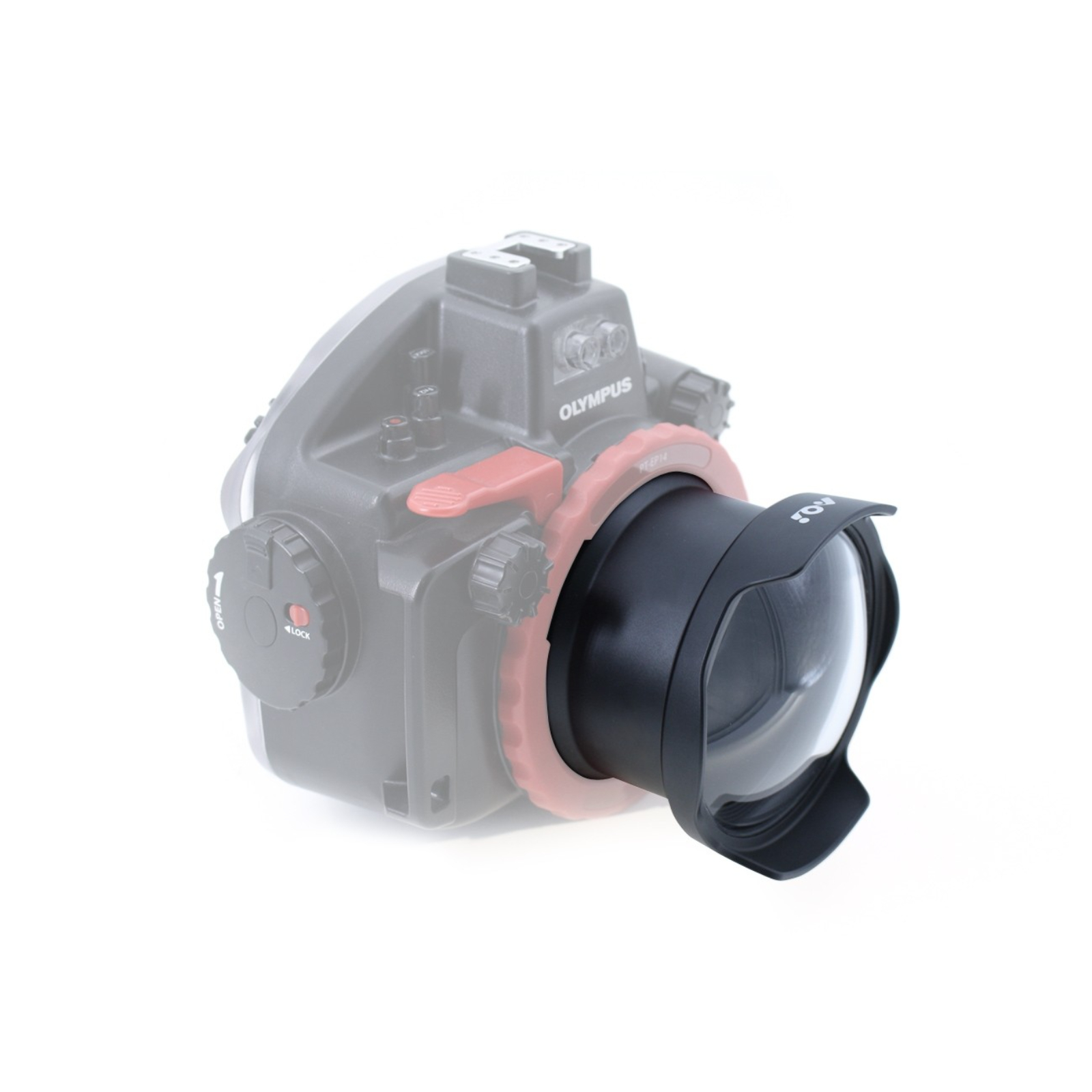

• Designed for Olympus OM-D mount underwater housing systems
• Compact and lightweight design ideal for travel and diving
• Improves image sharpness and reduces underwater distortion
• Hard-anodized aluminum alloy barrel for durability and corrosion resistance
• Compatible with multiple Olympus M.Zuiko lenses
• Waterproof depth rating up to 60 m
• Compatible with:
  • M.Zuiko Digital ED 9-18mm F4.0-5.6
  • ED 14-42mm F3.5-5.6
  • ED 14-42mm F3.5-5.6 II
  • ED 14-42mm F3.5-5.6 IIR
  • ED 12-40mm F2.8 PRO*
  • ED 60mm F2.8 Macro
  • ED 12-50mm F3.5-6.3 EZ
  • ED 25mm F1.8
  • * Requires Extension Ring ER-OD_OD-22.


Specifications

• Type: 4" Acrylic Semi-Dome Port for Olympus OM-D Mount Housing
• Recommended Housings: Olympus PT-EP08 / PT-EP11 / PT-EP14
• Material: Hard Anodized Aluminum Alloy Barrel + Optical Grade Acrylic Dome Lens
• Waterproof Rating: 60 m
• Dimensions: 121 mm (L) × 94 mm (H)
• Weight: 405 g (without front cover and rear port cap)


In the Box

• AOI DLP-10 4" Acrylic Semi-Dome Port
• Neoprene Dome Front Cover (DNC-02)
• PP Rear Port Cap (PRC-01)
• Silicone Grease (AOI SIGR-2)
• User Manual
