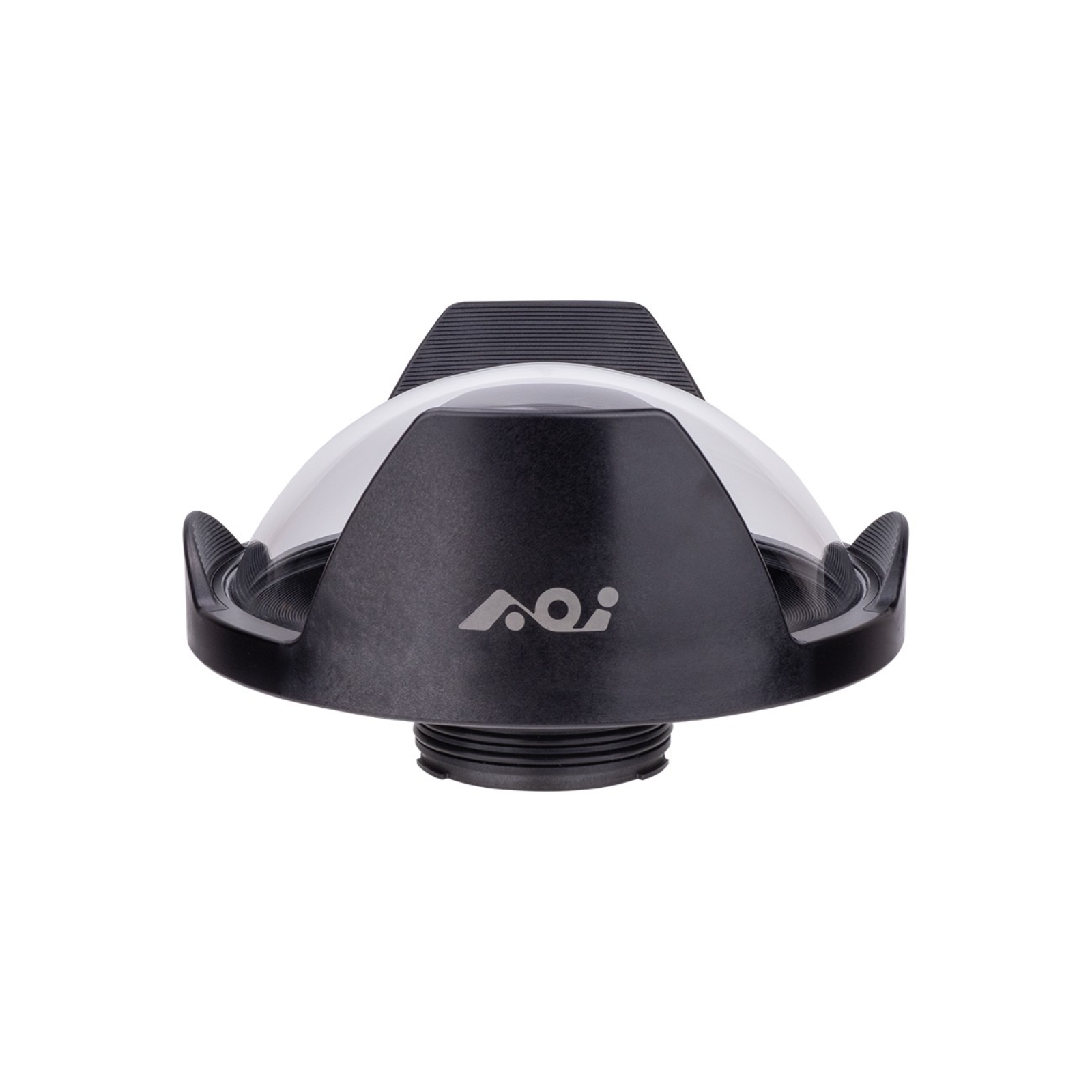

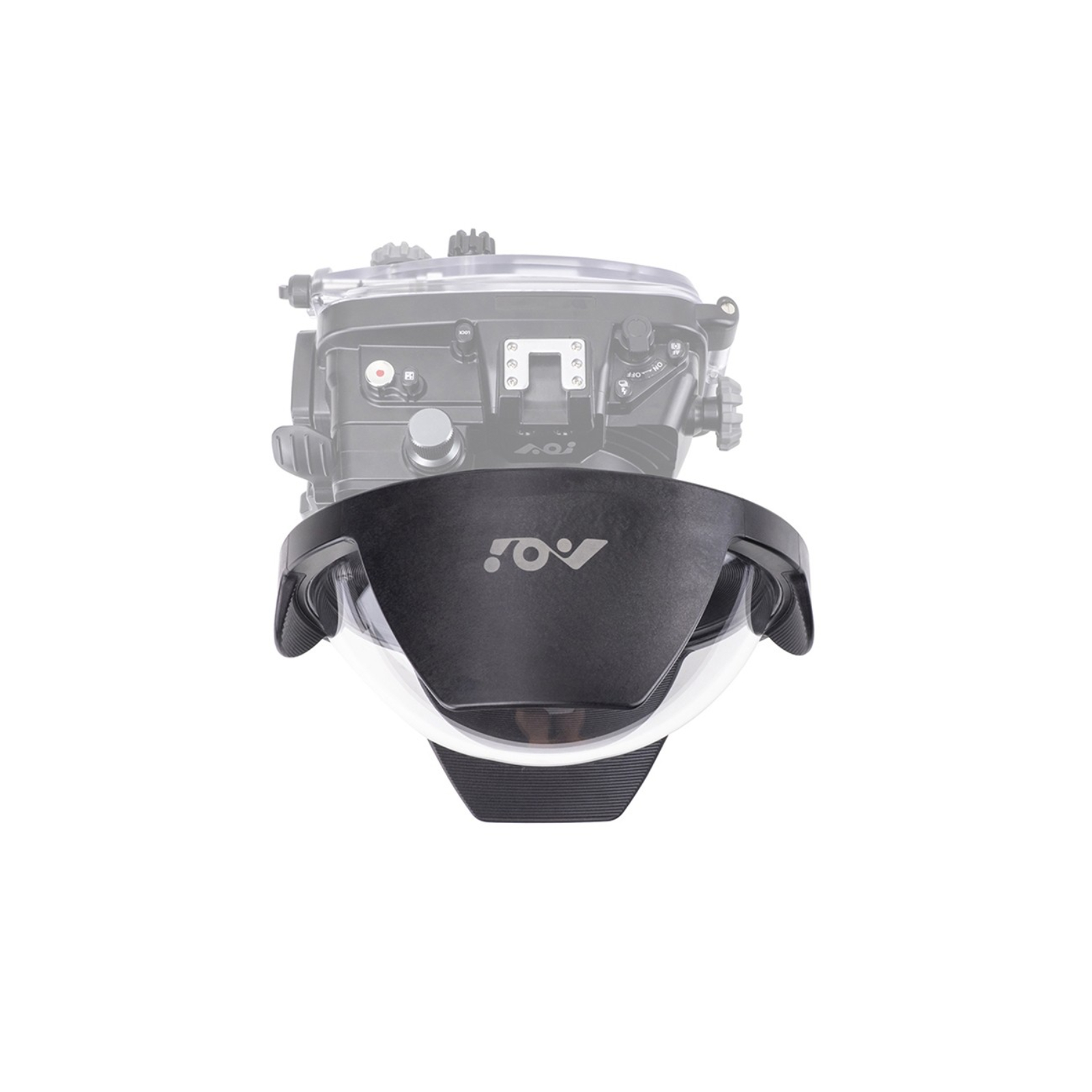

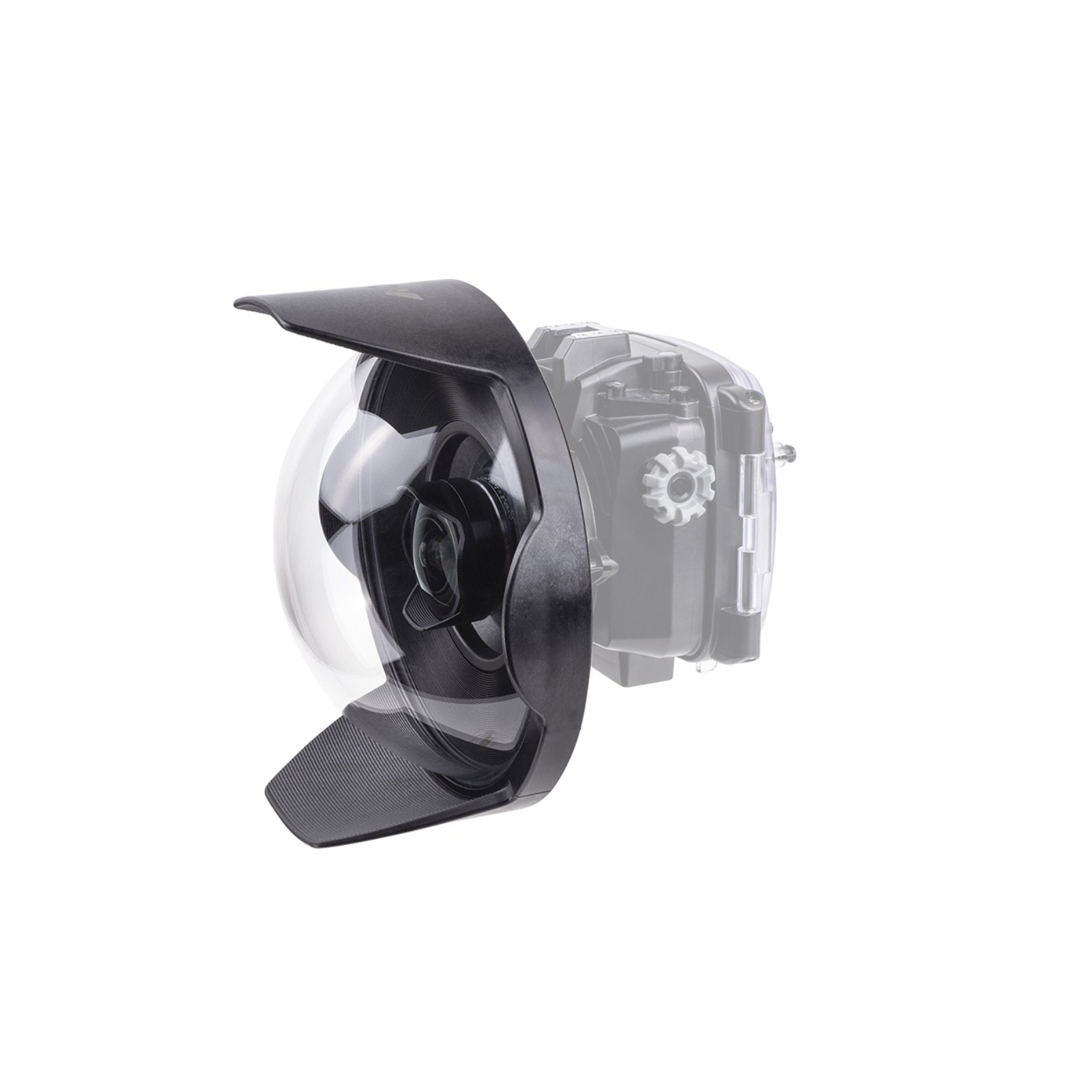

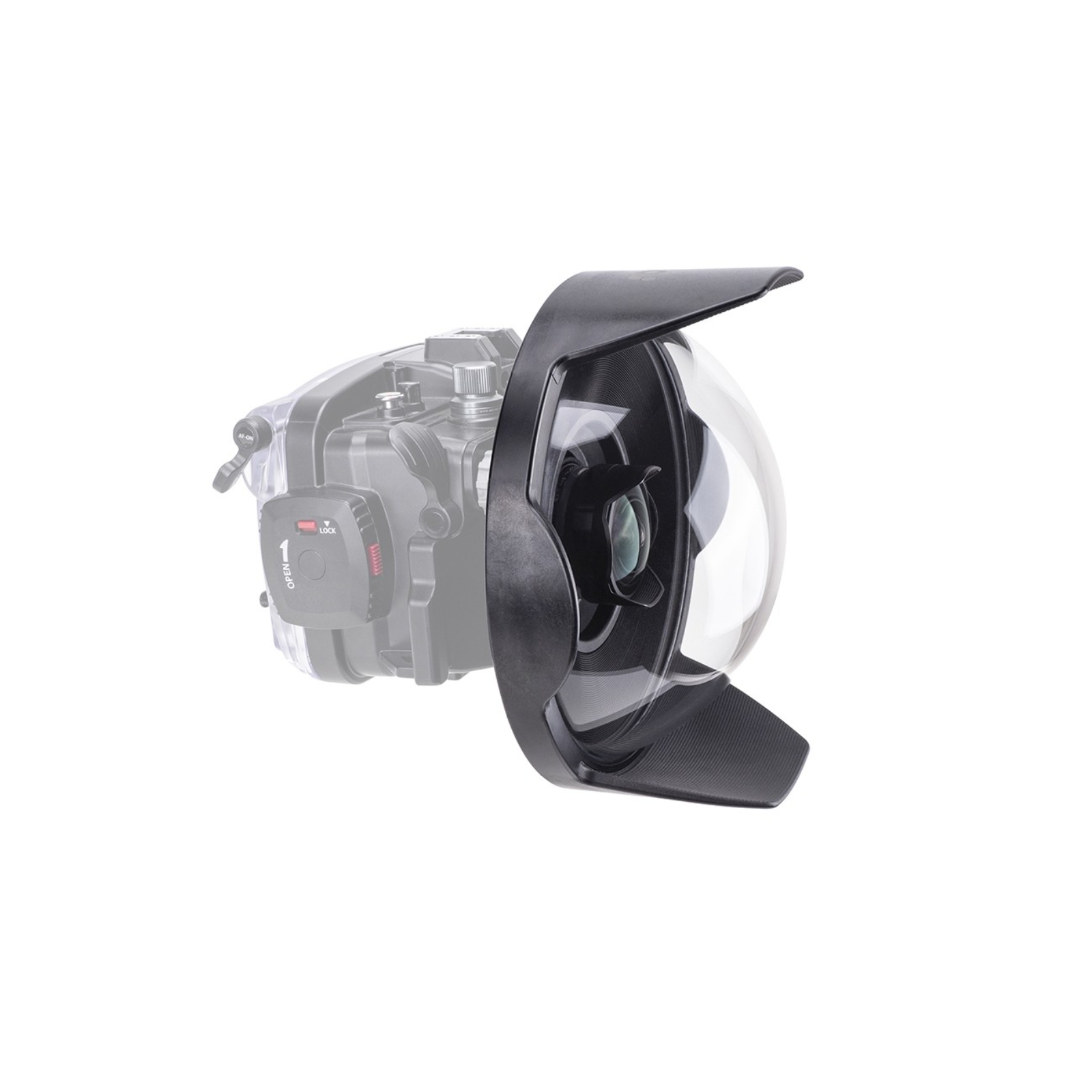

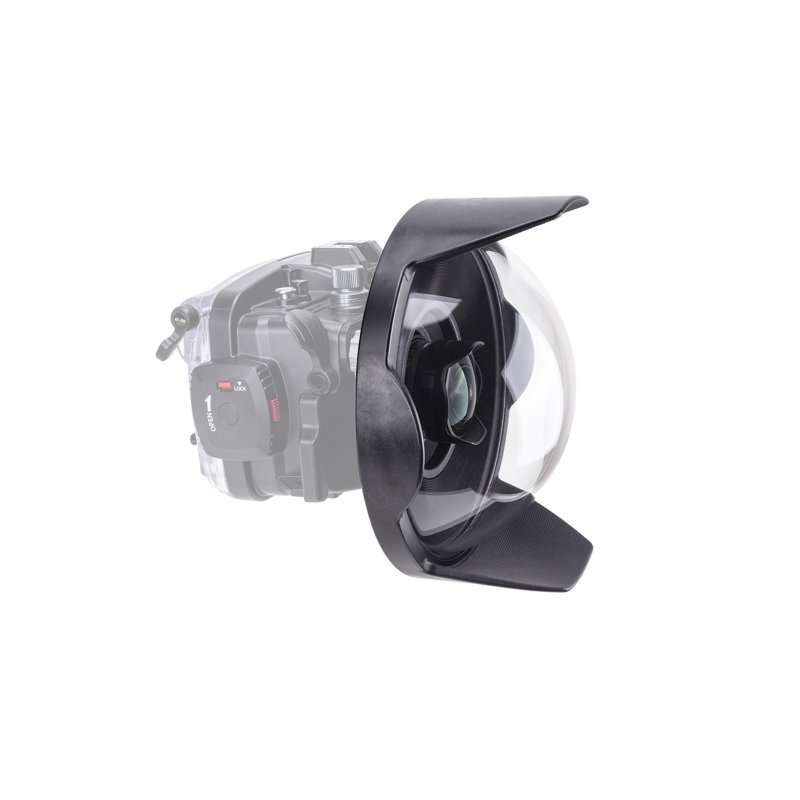

The AOI DLP-12-PN is a professional 8-inch acrylic dome port designed for Olympus PEN mount underwater housing systems. It is built for wide-angle, ultra-wide, and split-level (over-under) underwater photography, delivering strong optical performance with reduced distortion and improved corner sharpness. The optical-grade acrylic dome provides a lightweight alternative while maintaining excellent imaging quality for underwater use.
Key Features
- 8" optical-grade acrylic dome for wide-angle and fisheye underwater photography
- Designed for Olympus PEN mount underwater housing systems
- Optimized for split-shot (over-under) and close-focus wide-angle imaging
- Hard anodized aluminum alloy body with optical acrylic dome lens
- Inner optical design for improved sharpness and reduced distortion underwater
- Depth rating: 60 m
- Enables closer subject distance for wide-angle compositions
Specifications
- Type: 8" Acrylic Dome Port (PEN Mount)
- Material: Hard anodized aluminum alloy body + optical grade acrylic dome lens
- Waterproof rating: 60 m
- Dimensions: 226 mm (D) × 130 mm (H)
- Weight (land): 1205 g (without covers)
- Weight (underwater): -961 g (without covers)
- Mount system: Olympus PEN port system
- Compatibility: Olympus PEN underwater housings (PT-EP series, select models with adapter)
In the Box
- AOI DLP-12-PN 8" Acrylic Dome Port
- Neoprene dome front cover (DNC-03)
- Rear port cap (PRC-02)
- Silicone grease (AOI SIGR-2)
- User manual
