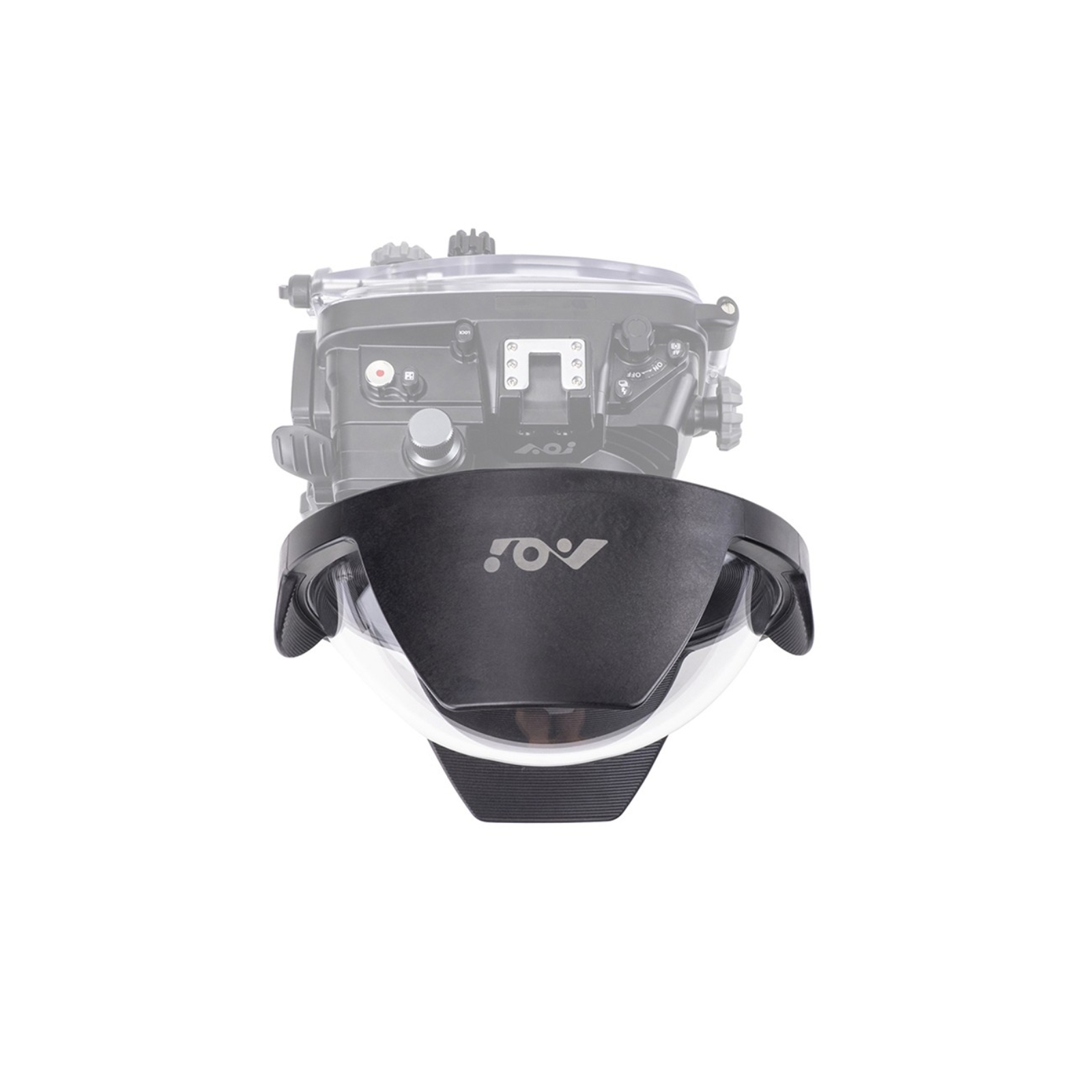

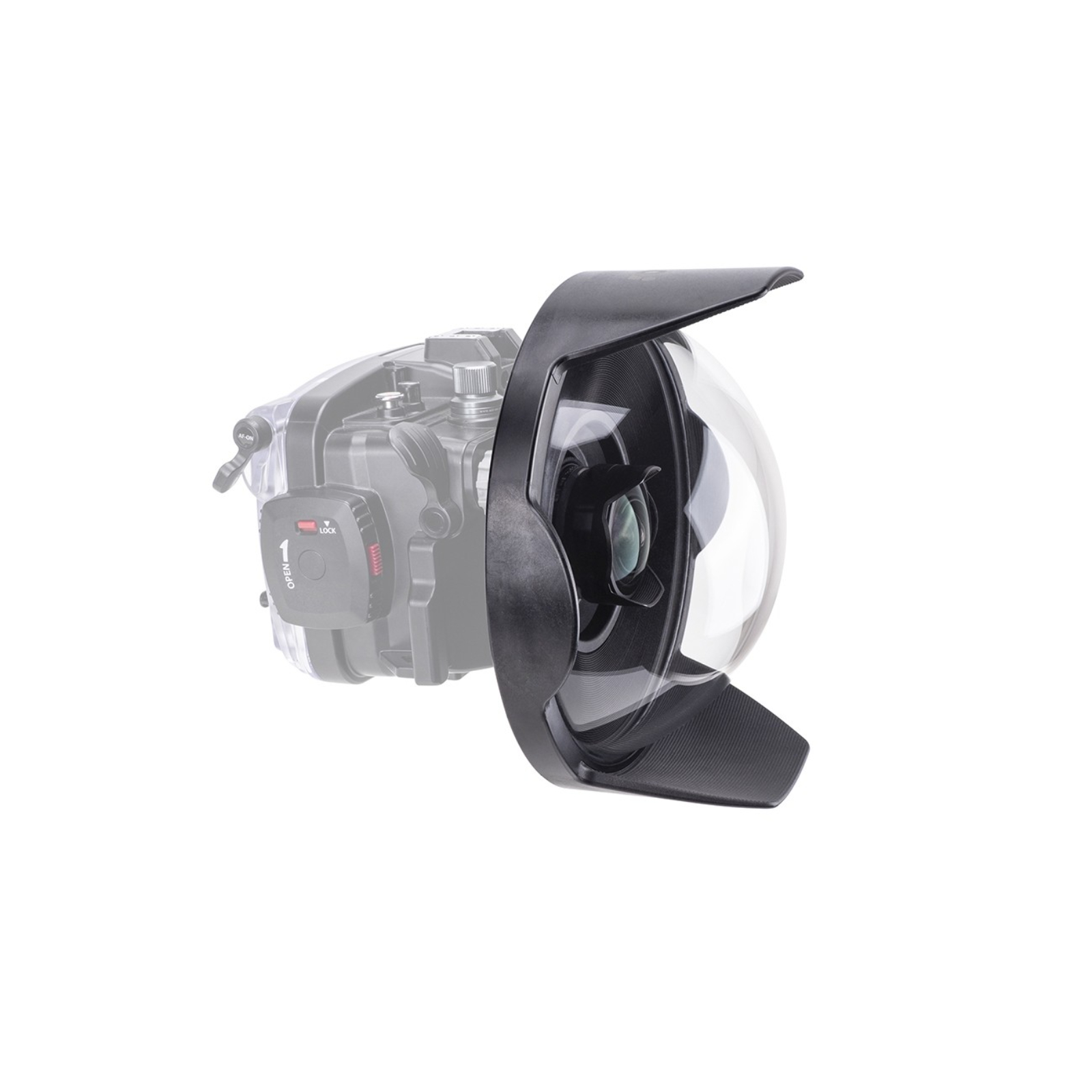

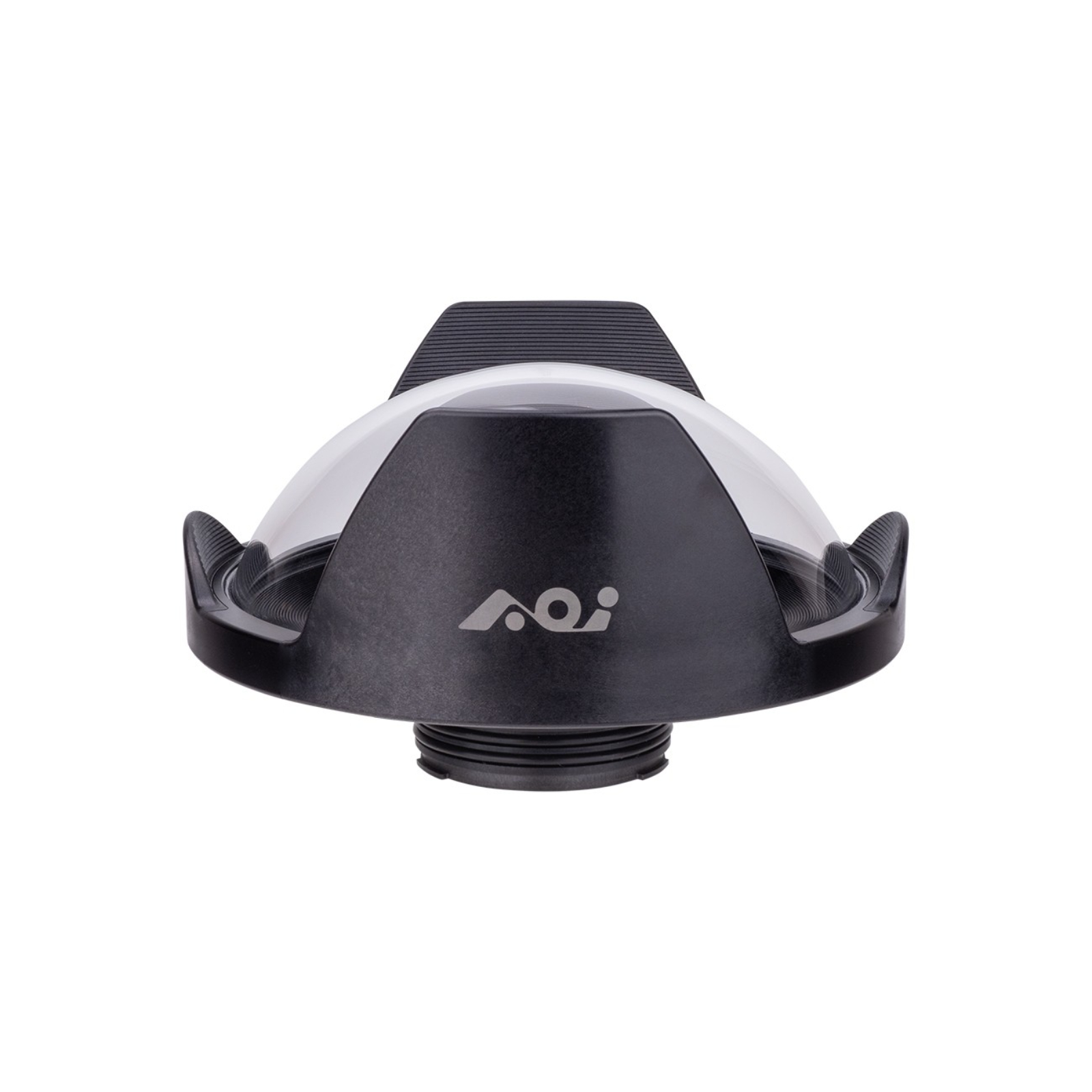

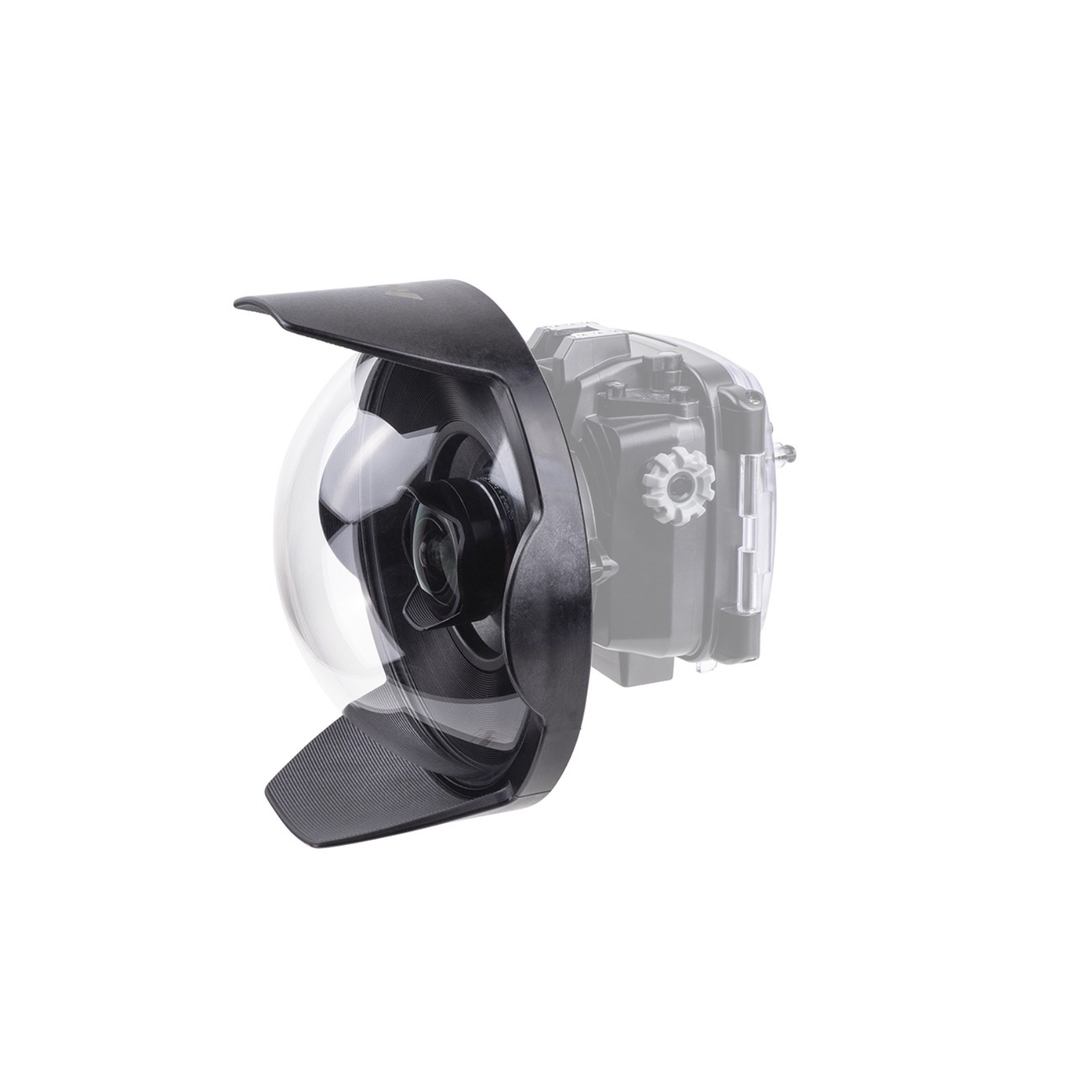

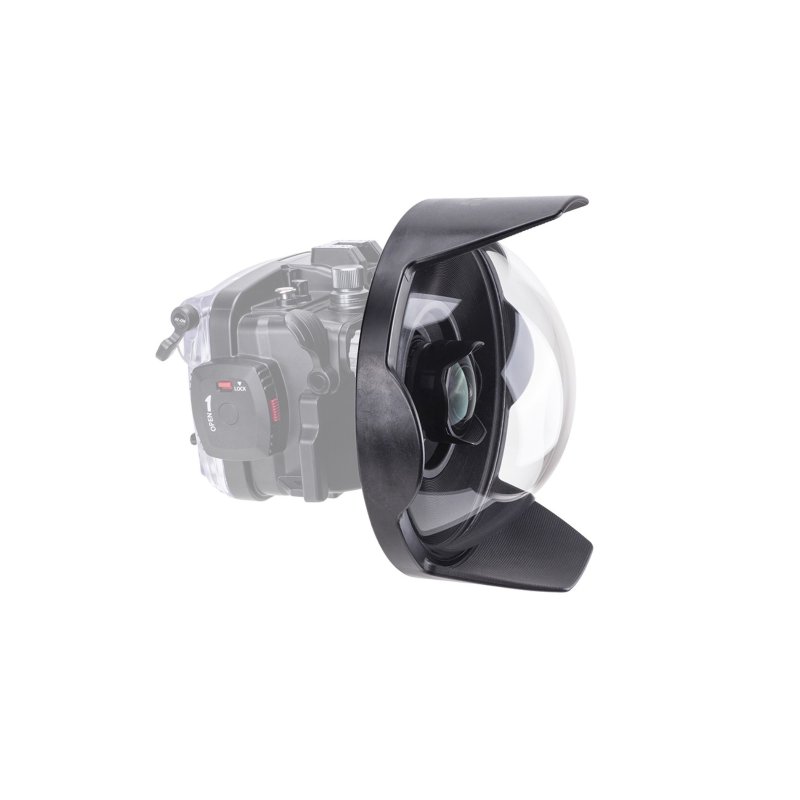

AOI DLP-11-PN 8" Glass Dome Port for PEN Mount Housings

The AOI DLP-11-PN is a premium 8-inch optical glass dome port designed for Olympus PEN series underwater housings. It is engineered for professional wide-angle, ultra-wide, and split-level (over-under) photography, delivering exceptional edge-to-edge sharpness while minimizing underwater distortion. Its large optical dome and multi-layer anti-reflective coating provide superior clarity, contrast, and light transmission for demanding underwater imaging environments.


Key Features

• 8" (200mm class) optical glass dome for ultra-wide and fisheye underwater photography
• Designed for Olympus PEN mount underwater housing systems
• Optimized for close-focus wide-angle and over-under (split-shot) imaging
• Optical glass with inner multi-layer anti-reflective (AR) coating for improved clarity
• Hard-anodized aluminum alloy body for durability and corrosion resistance
• Professional depth rating up to 60 m
• Enables closer subject approach for wide-angle compositions


Specifications

• Type: 8" Dome Lens Port (PEN Mount)
• Material: Hard-anodized aluminum alloy body + optical glass dome
• Coating: Inner multi-layer anti-reflective coating
• Waterproof rating: 60 m
• Dimensions: 226 mm (D) × 130 mm (H)
• Weight (land): 1843 g (without covers)
• Underwater buoyancy: approx. -323 g
• Mount system: Olympus PEN port system
• Compatibility: Olympus PEN underwater housings (PT-EP series, select models with adapter)


In the Box

• AOI DLP-11-PN 8" Glass Dome Port
• Neoprene dome front cover (DNC-03)
• Rear port cap (PRC-02)
• Silicone grease (AOI SIGR-2)
• User manual
