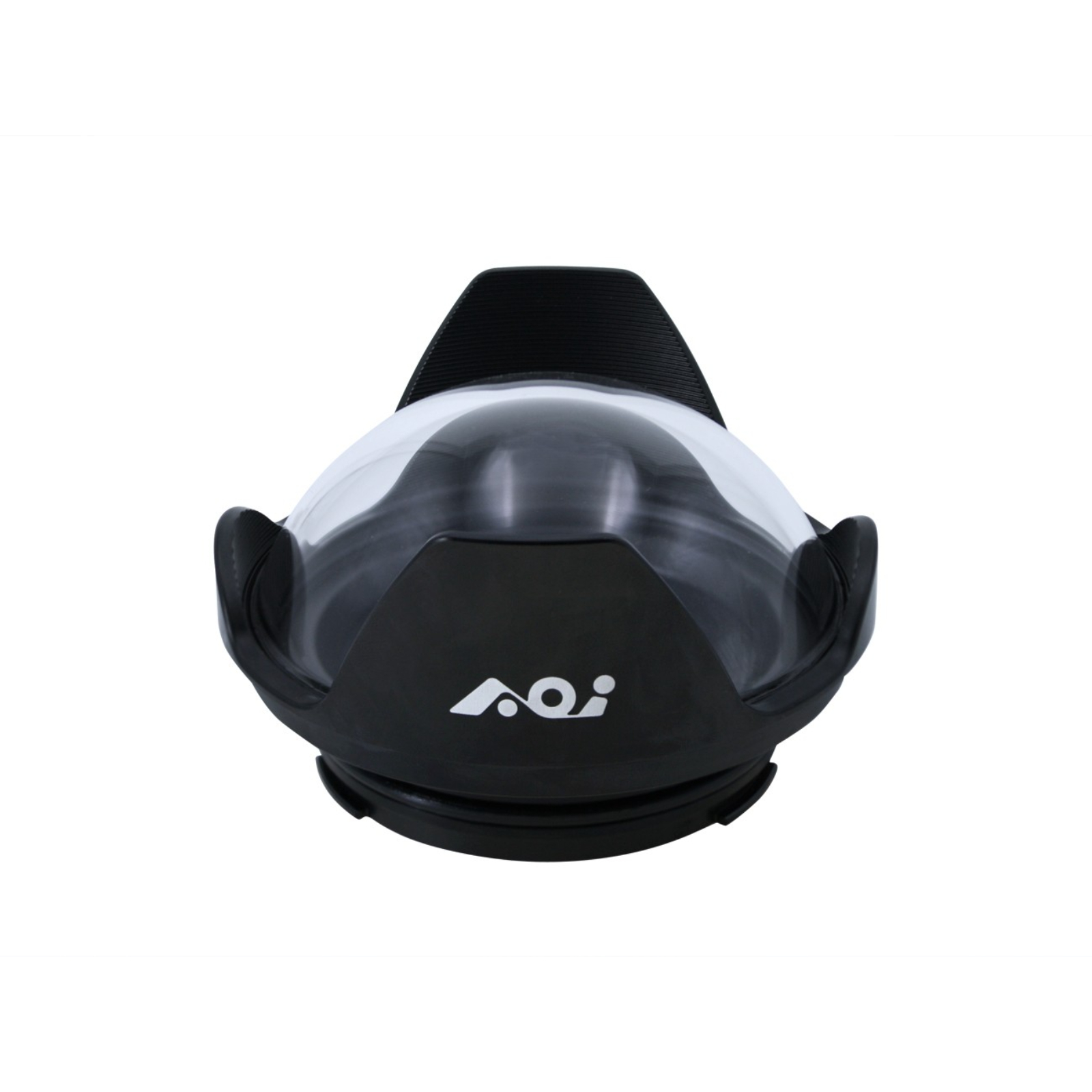

AOI DLP-05 4" Glass Dome Port for Olympus PEN Mount Housing

The AOI DLP-05 is a high-quality 4-inch optical glass dome port designed for Olympus PEN series underwater housings. It enables superior wide-angle and fisheye imaging by reducing underwater distortion and allowing closer subject distance. The dome’s optical glass construction with multi-layer anti-reflective coating ensures maximum sharpness, contrast, and clarity in demanding underwater environments. It is engineered for professional underwater photographers using compatible Olympus PEN systems.


Key Features

• 4" optical glass dome optimized for wide-angle and fisheye lenses
• Designed for Olympus PEN underwater housings
• Compatible with Panasonic 8mm Fisheye and Olympus M.Zuiko 8mm Fisheye lenses (with extension ring where required)
• Optical-grade glass with inner multi-layer anti-reflective coating
• Reduces underwater distortion and improves edge-to-edge sharpness
• Allows closer working distance for wide-angle underwater photography
• Durable hard-anodized aluminum housing for corrosion resistance


Specifications

• Model: AOI DLP-05
• Type: 4" Dome Lens Port
• Material: Hard-anodized aluminum alloy body + optical glass dome
• Coating: Inner surface multi-layer anti-reflective coating
• Waterproof rating: 60 m
• Dimensions: 113 mm (L) × 68.7 mm (H)
• Weight: 293 g (without front and rear covers)
• Mount System: Olympus PEN port system
• Compatibility: Olympus PEN housings (PT-EP05/06/08*/10/11*/12/13/14*)* (*some require AD-LP-01 adapter)
• Compatible Lenses:
  • Panasonic Lumix G 8mm F3.5 Fisheye
  • Olympus M.Zuiko Digital ED 8mm F1.8 Fisheye PRO (must add extension ring ER-PN_PN-24 or ER-OD_OD-22)


In the Box

• AOI DLP-05 4" Glass Dome Port
• Neoprene dome front cover

Silicone rear port cap

User manual
