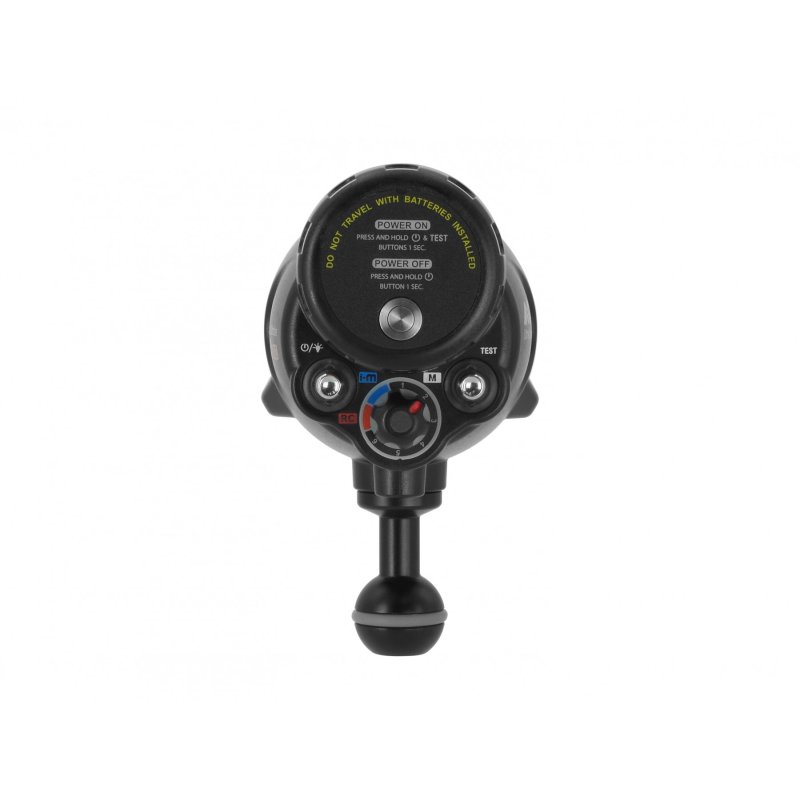

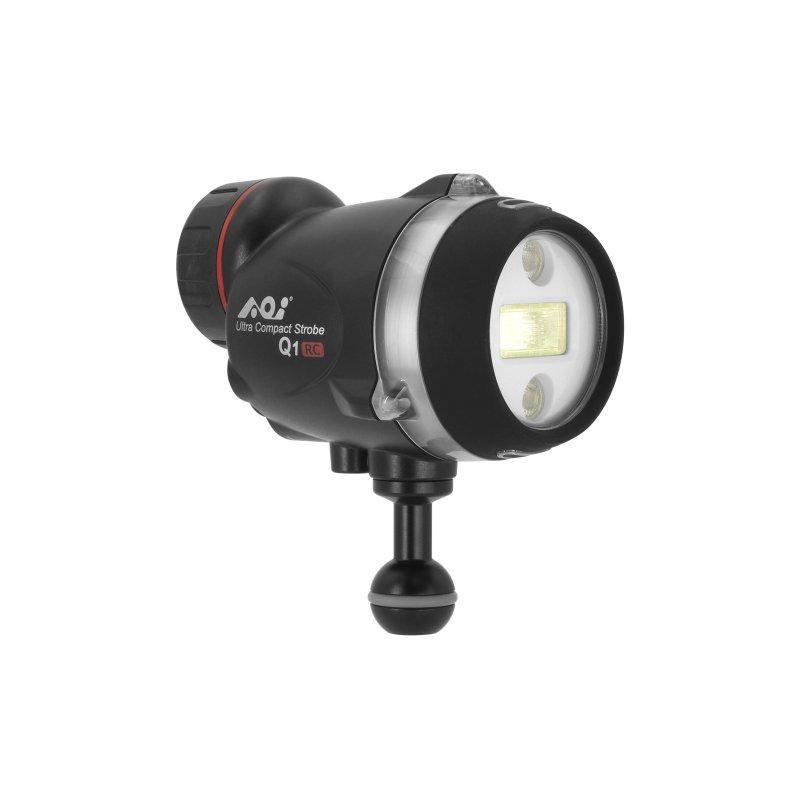

AOI Q1 RC Ultra Compact Underwater Strobe

The AOI UCS-Q1RC is a compact, high-performance underwater strobe designed for advanced underwater photographers who require reliable lighting with Olympus RC (Remote Control) compatibility. Working similarly to TTL, the RC system allows the camera to automatically control strobe output, enabling accurate exposure without manual flash adjustment—especially useful for Olympus OM-D and TOUGH camera systems.

Built from durable polycarbonate and glass fiber, the Q1RC delivers dependable performance at depths of up to 60 meters. It combines powerful illumination, fast recycle time, and flexible exposure control in a lightweight, travel-ready housing designed for demanding underwater environments.

With a guide number of 22, wide 85° beam coverage (with diffuser), and fast 0.85-second recycle time, the Q1RC ensures consistent lighting for both macro and wide-angle underwater photography. It supports RC flash, TTL auto, manual, and FP (high-speed sync) modes depending on compatible camera systems.

Key Features

• Olympus RC (Remote Control) compatible – TTL-like automatic flash control
• Ultra-compact and lightweight underwater strobe design
• Depth rated to 60 meters for professional diving conditions
• Guide Number 22 for strong and consistent illumination
• Fast recycle time of 0.85 seconds at full power
• Wide 85° beam angle with diffuser for even light distribution
• Supports TTL Auto, Manual, and FP (high-speed sync) modes
• Fiber optic cable synchronization for reliable flash triggering
• Pre-flash auto learning for accurate exposure control
• Manual power control in 6 steps from 1/64 to full output
• Integrated modeling flash function (2 seconds)
• Built-in 700-lumen LED light for focus or video use

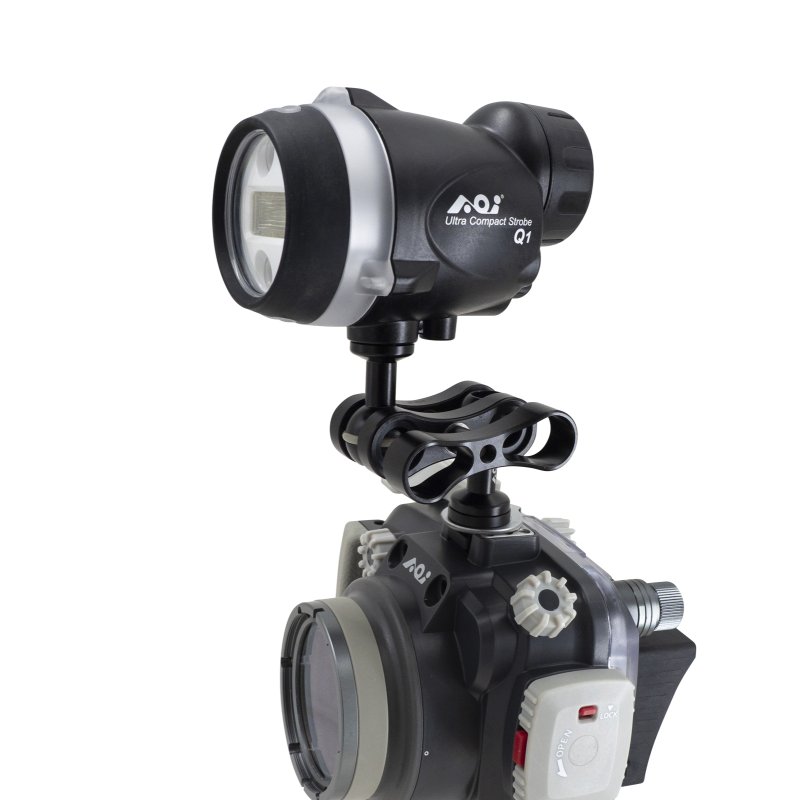

• 1” ball mount system for standard underwater rig setups


Specifications

• Material: Polycarbonate + Glass Fiber
• Depth Rating: 60 meters
• Strobe Performance
  • Guide Number: 22
  • Color Temperature: 5600K (5000K with diffuser)
  • Beam Angle: 85° horizontal & vertical (with diffuser)
  • Recycle Time: 0.85 seconds (full power)
  • Number of Flashes: approx. 1,500 (full power, 3100mAh batteries)
  • Sync: Fiber optic cable (multi-core recommended)
  • Pre-flash: Auto learning
• Flash Modes
  • RC Mode (OM System / Olympus RC Flash)
  • TTL Auto
  • Manual
  • FP TTL Auto
  • FP Manual
  • i-Macro Mode
  • Manual (6-step power control: 1/64 to full)
• Additional Functions
  • Modeling flash: 2 seconds
  • Flash test button: Yes
• LED Light
  • Output: 700 lumens
  • Beam angle: 45°
  • Power levels: 25%, 50%, 100%, OFF
  • Burn time: approx. 130 minutes (full power LED, 3100mAh batteries)

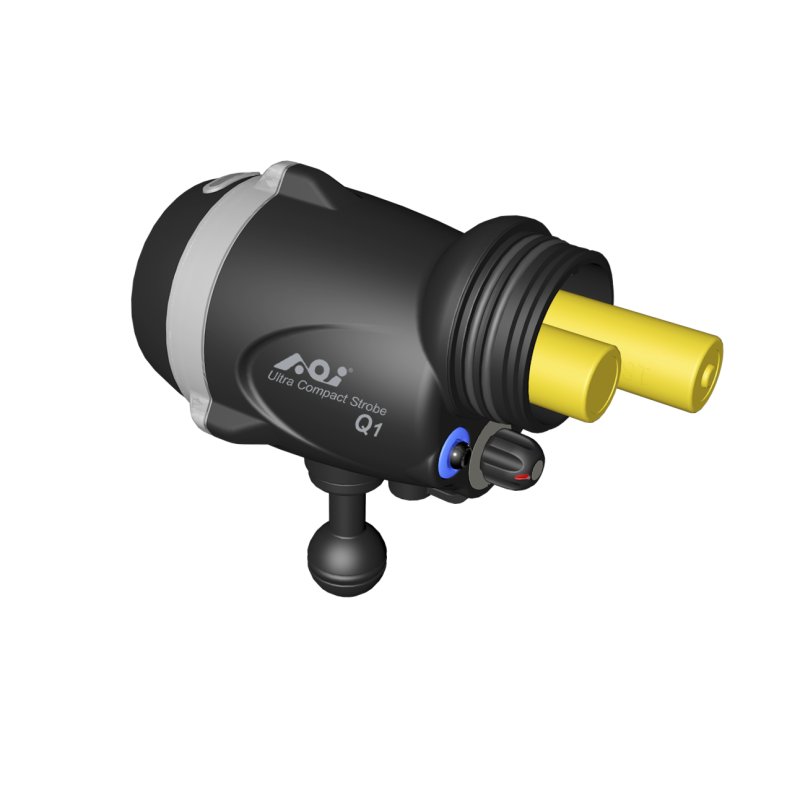

• Battery
  • 2 × 18650 Li-ion rechargeable batteries (not included)
  • Minimum output current: 5A
  • Minimum length: 68.5–69 mm
• Dimensions & Weight
  • Size: 125 × 77 × 131 mm
  • Weight (land): approx. 550 g (with batteries)
  • Weight (underwater): approx. 90 g (with batteries)
• Mounting
  • 1” ball mount (non-replaceable)


In the Box

• Strobe Diffuser (SD-01)
• Control Knob Extension (CKE-01)
• Spare O-ring Set (SOR-01)
• O-ring Remover (ORR-02)
• Silicone Grease (1.5g)
• Battery Storage Case (BSC-18650-2), batteries not included
• Instruction Manual / General Guide
