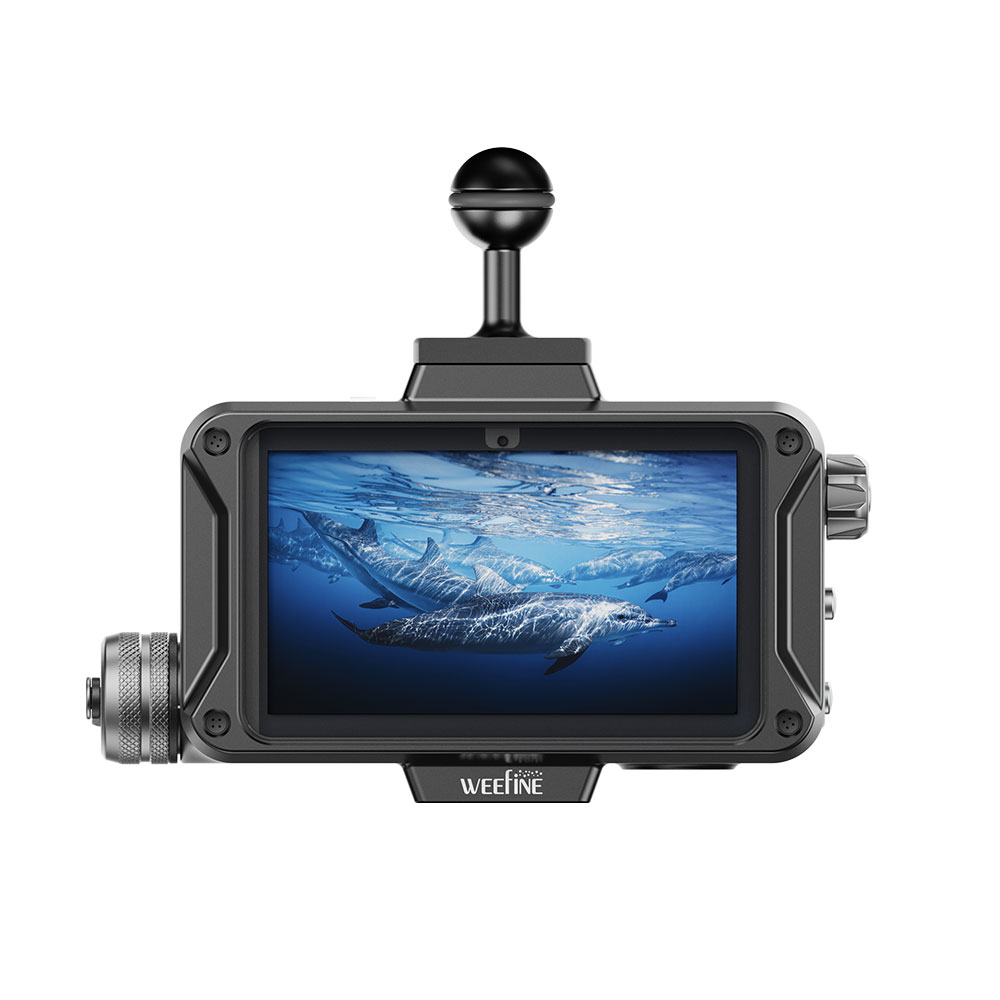

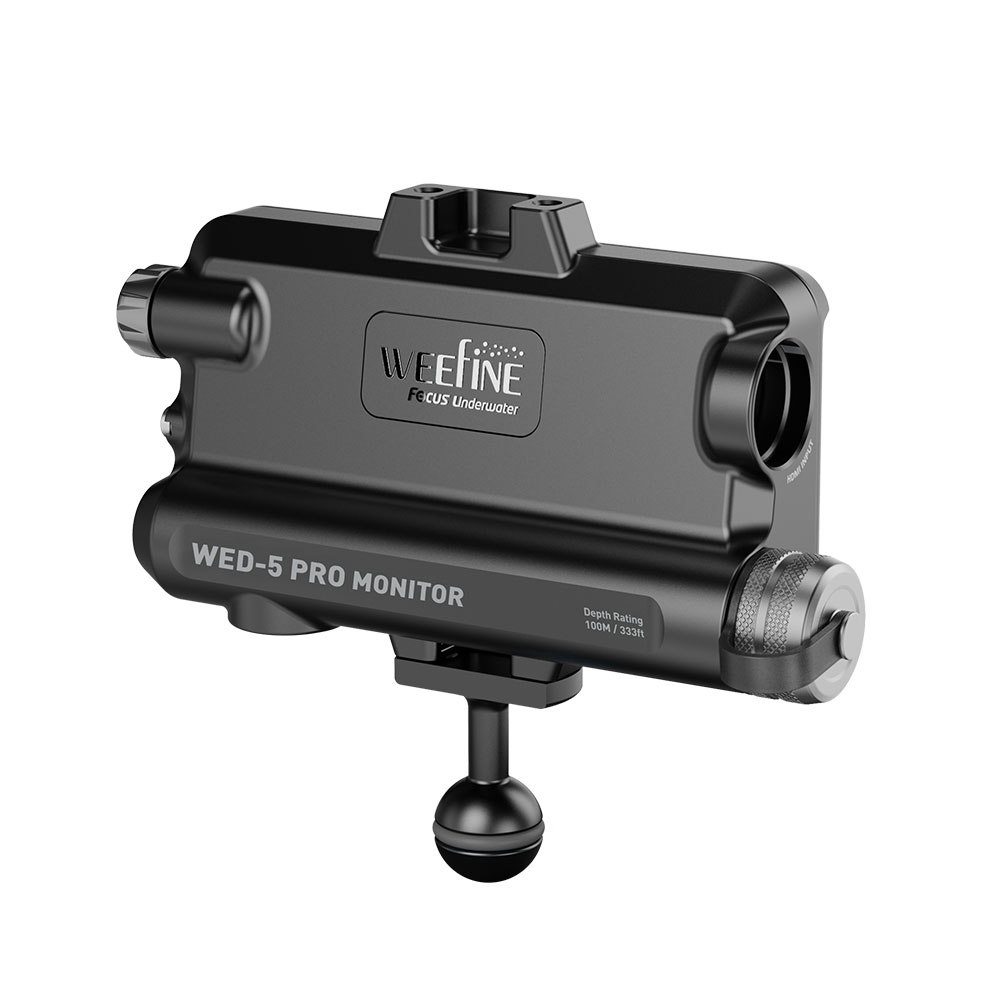

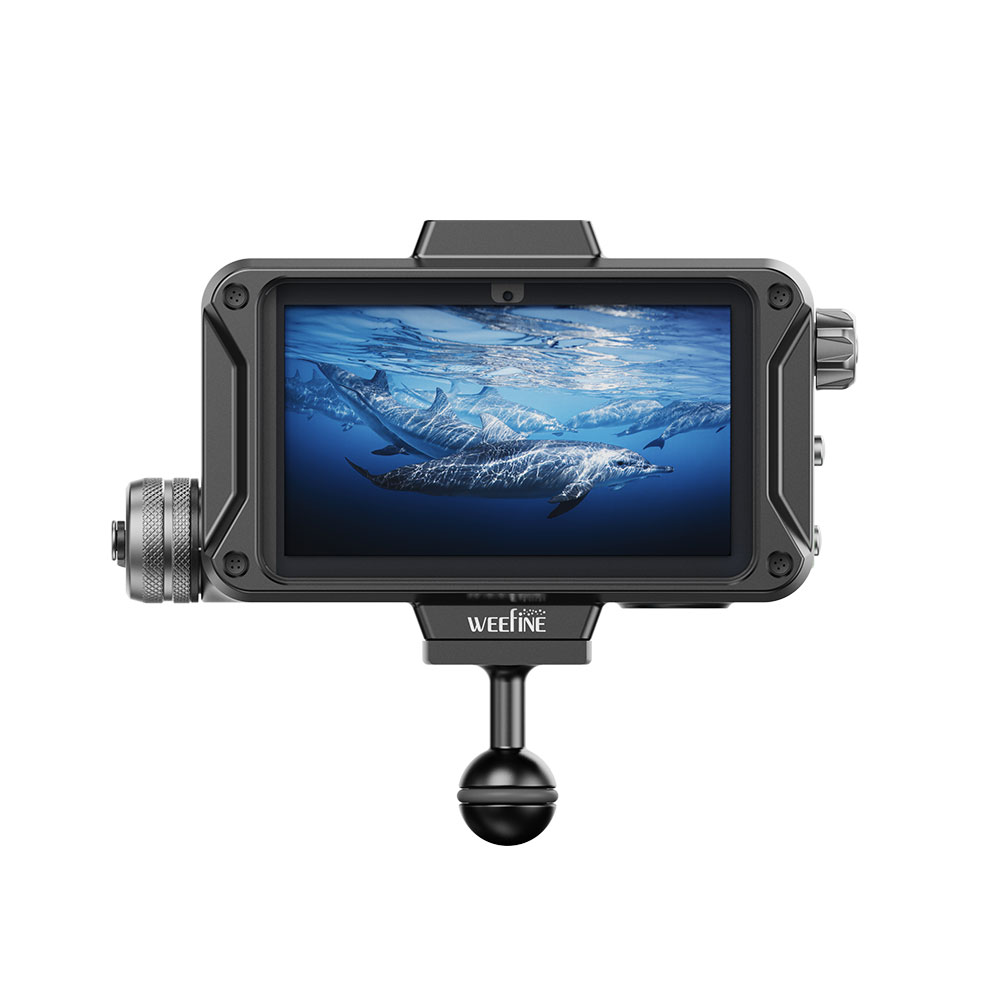

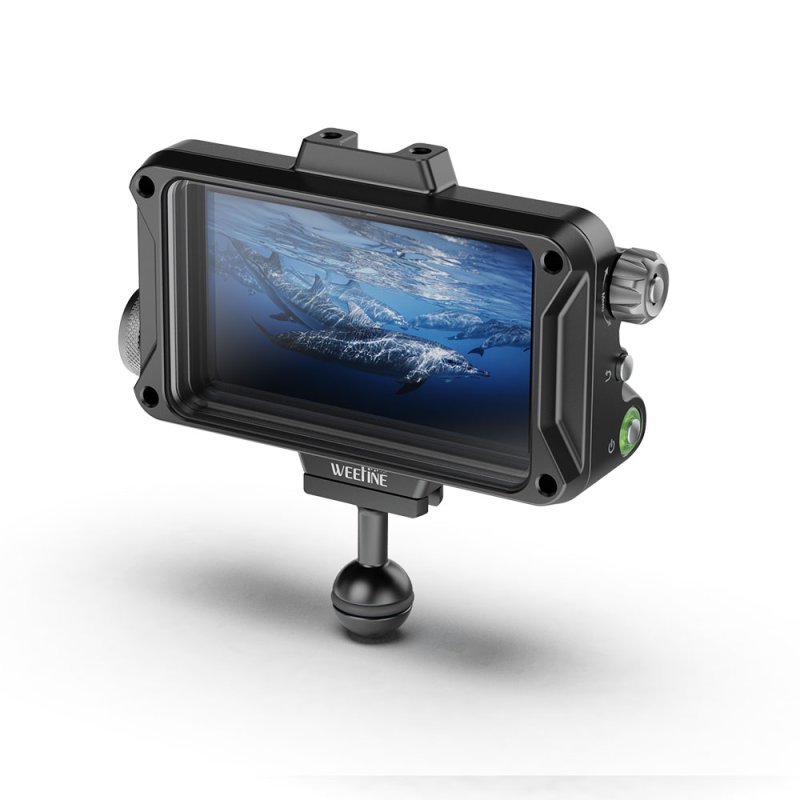

Weefine WED-5 PRO Underwater Monitor

The Weefine WED-5 PRO is a high-performance 5-inch LCD monitor specifically designed for professional underwater photographers. Despite its ultra-thin and lightweight design, it integrates a suite of essential monitoring features and delivers stunning visual clarity even under intense ambient light or underwater conditions. Its intuitive interface, enhanced brightness, and underwater-specific controls make it an ideal companion for dive shooting.

Whether you're filming underwater documentaries or capturing vibrant marine life, the WED-5 PRO ensures precision, durability, and flexibility with every dive.

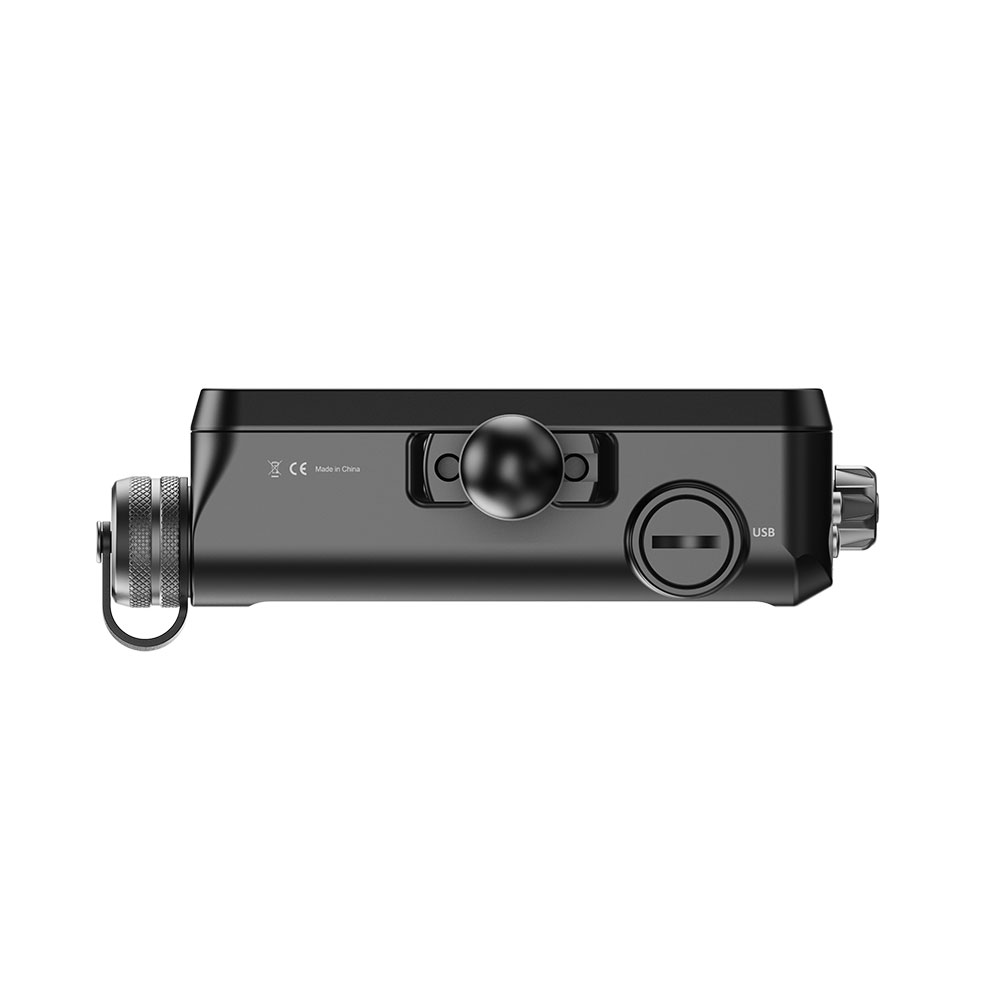

Note, the mount armball has a thick base, and Ultralight cut-out clamps will not fit.
The alternative is to exchange the armball to a new mount: BH-2.

Key Features:

• Ultra-Bright Display: 3200-nit brightness ensures clear viewing even underwater or in bright sunlight.

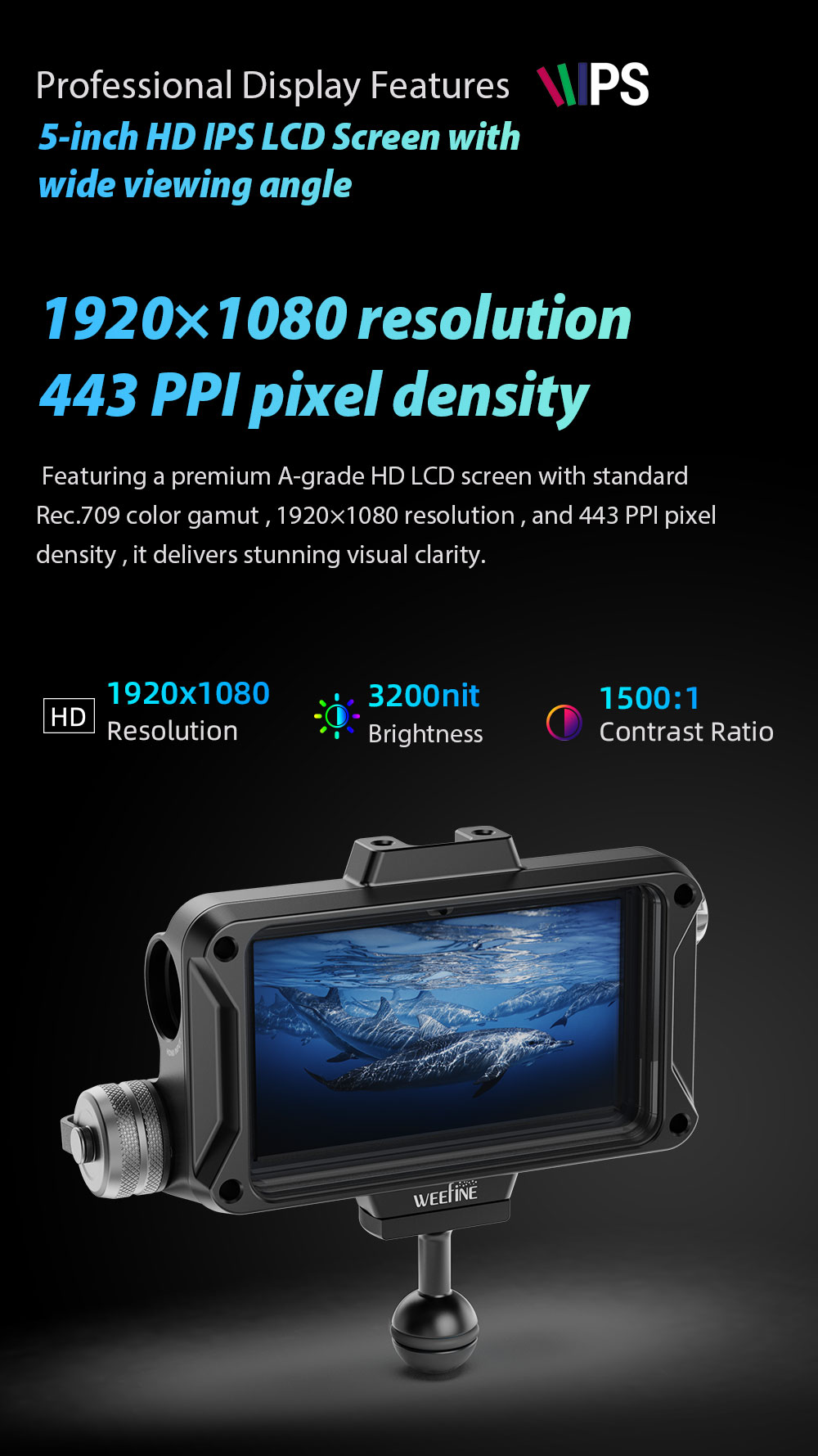

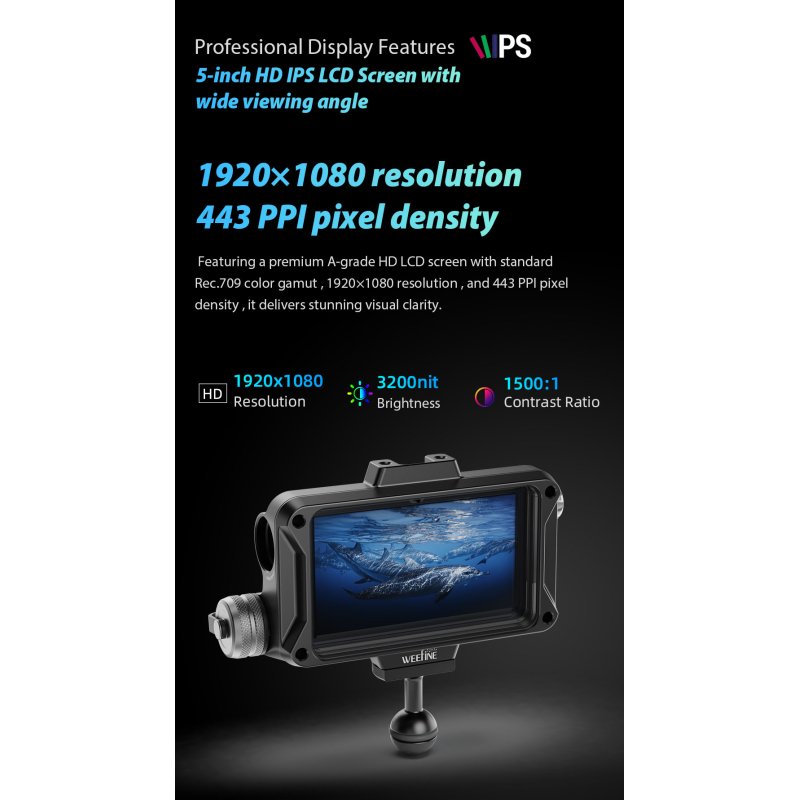

• High-Resolution Screen: 5-inch LCD with 1920×1080 pixels and 443 ppi for sharp, vivid images.

• Wide Color Gamut: Supports Rec.709 color for accurate, vibrant colors.

• Smart Auto-Backlight: Automatically adjusts brightness to suit lighting conditions, saving power.

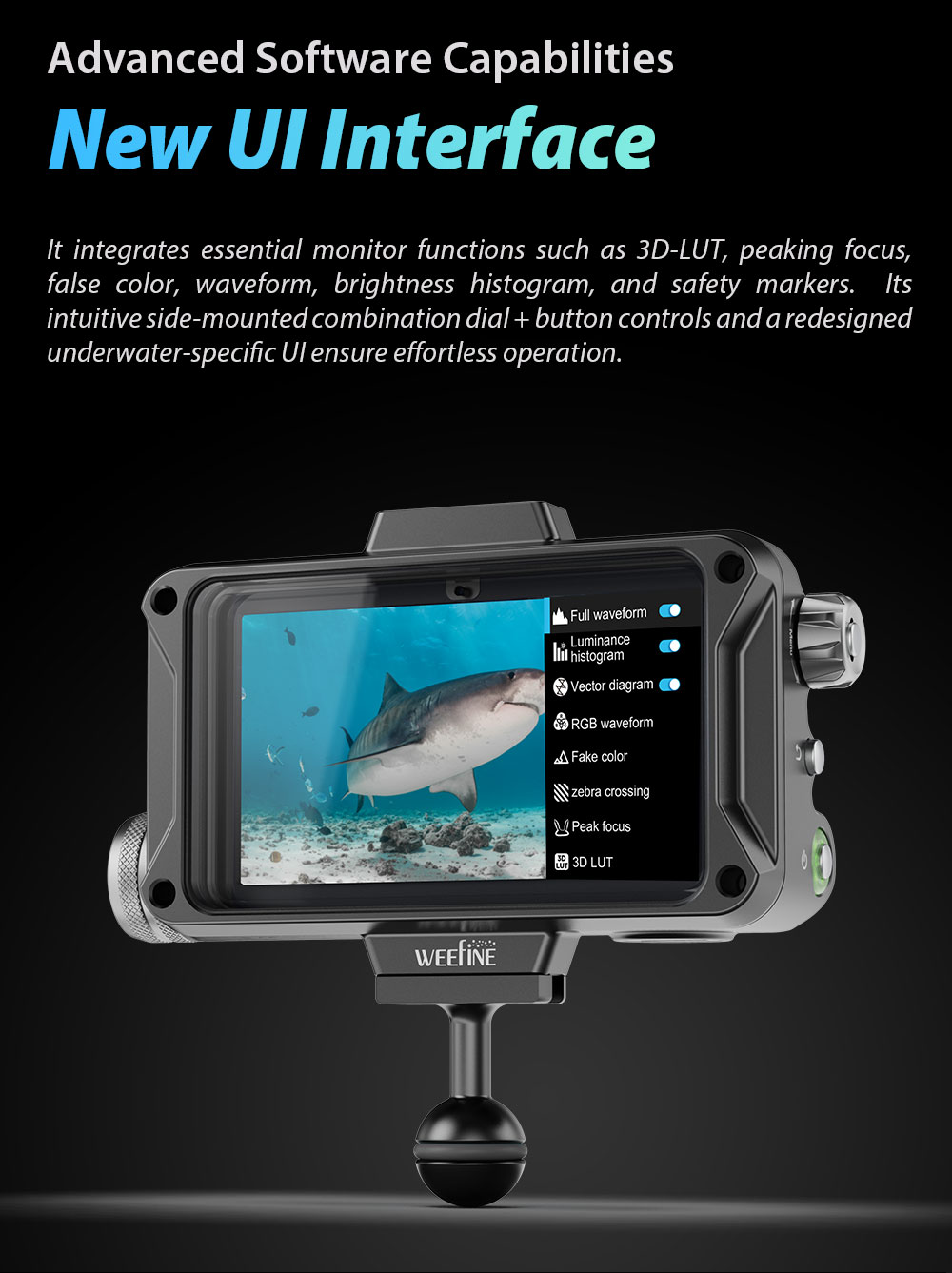

• Advanced Monitoring Tools: Includes waveform, luminance histogram, vector scope, RGB waveform, fake color, zebra crossing, peak focus, and 3D LUT support for precise video monitoring.

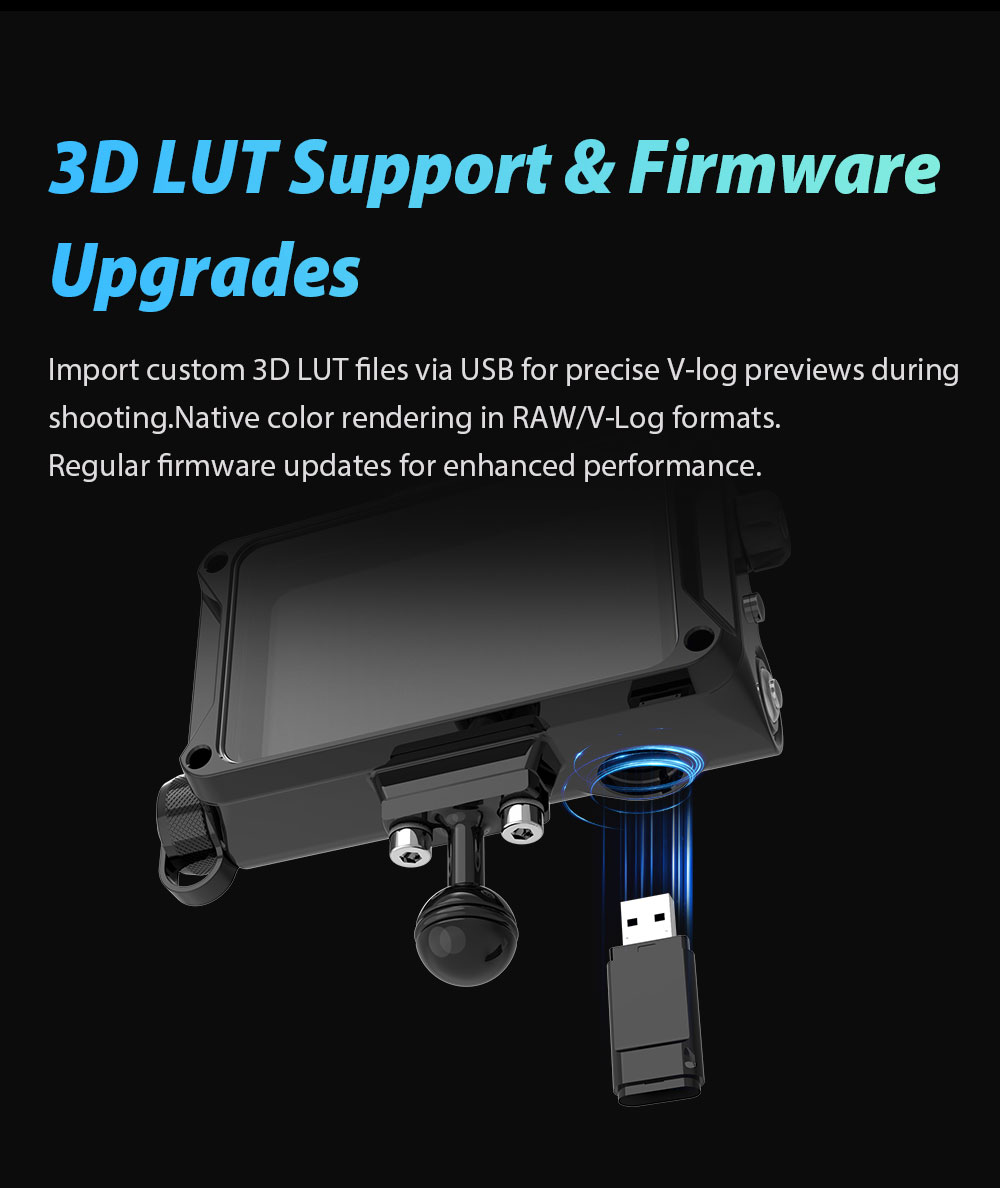

• 3D LUT Support & Firmware Updates: Import custom 3D-LUT files and update firmware easily via USB.

• Underwater-Ready Design: Waterproof to 100 meters with a durable aluminum alloy body and corrosion-resistant anodized finish.

• User-Friendly Controls: Intuitive buttons and dial are designed specifically for underwater operation.

• Versatile Mounting: Comes with top and bottom ball mounts plus standard rail mounting options.

• Includes Sunshade: Detachable sunshade helps reduce glare for better visibility.

• Battery-Powered: Equipped with a rechargeable WBL-12C battery lasting about 90 minutes per charge.

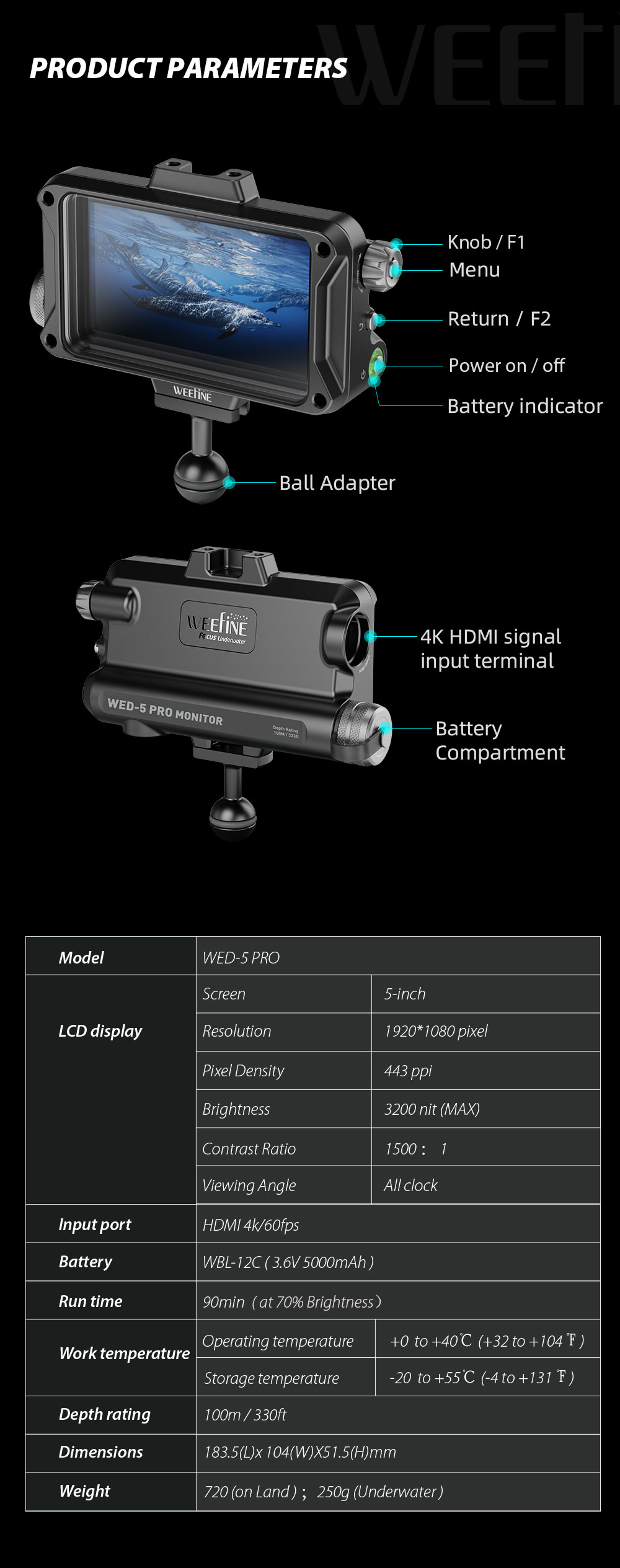

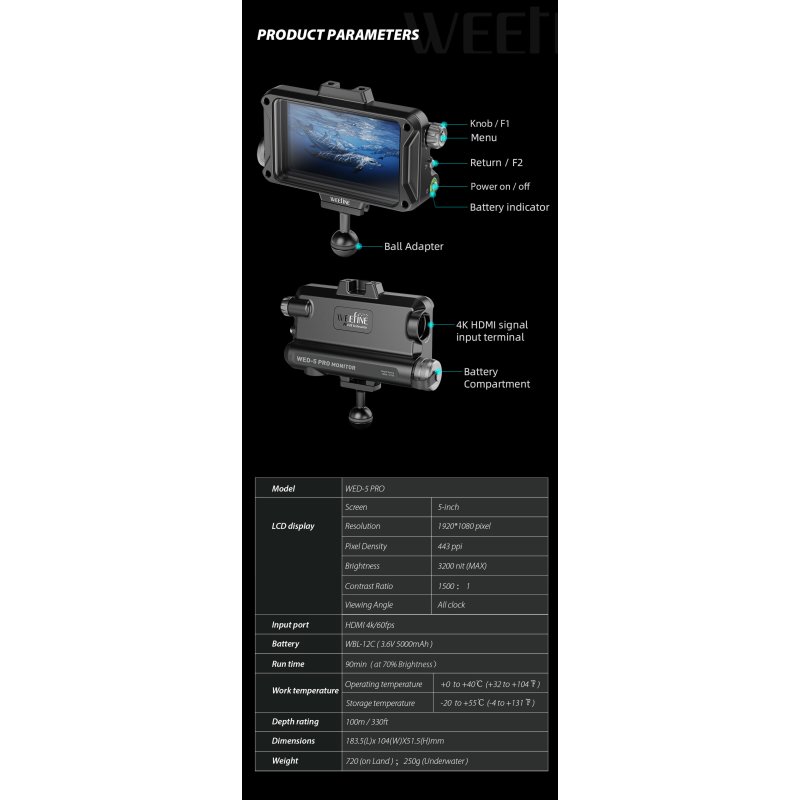

Specifications:

• Screen Size - 5 inches
• Resolution - 1920 × 1080 pixels
• Pixel Density - 443 ppi
• Brightness - 3200 nit (max)
• Contrast Ratio - 1500:1
• Viewing Angle - All clock (wide angle)
• Input Port - HDMI 4K/60fps
• Battery - WBL-12C (3.6V 5000mAh)
• Battery Life - Approx. 90 minutes
• Operating Temperature - 0°C to +40°C
• Storage Temperature - -20°C to +55°C
• Waterproof Depth Rating - 100 meters
• Dimensions (L×W×H) - 183.5 × 104 × 51.5 mm
• Weight (On Land) - 720 g
• Weight (Underwater) - 250 g

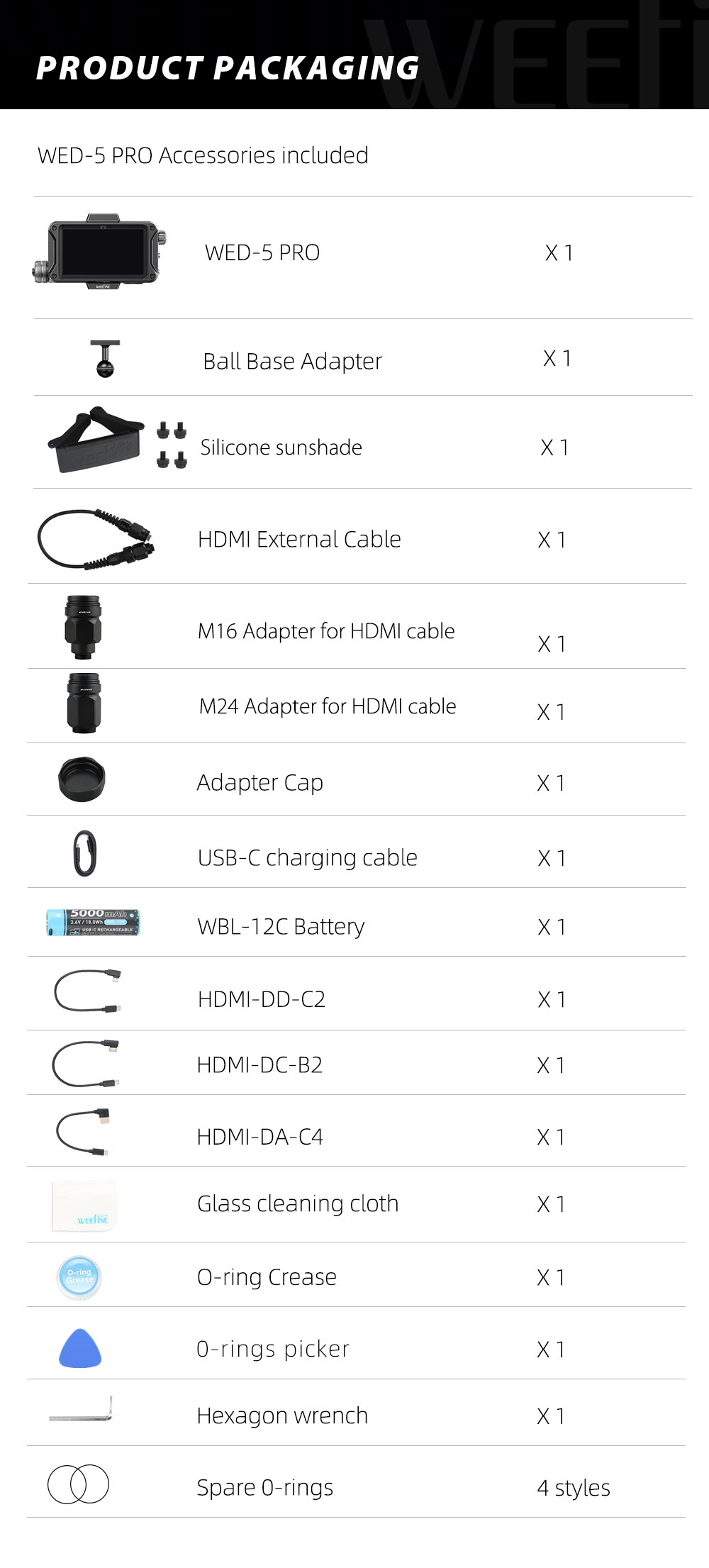

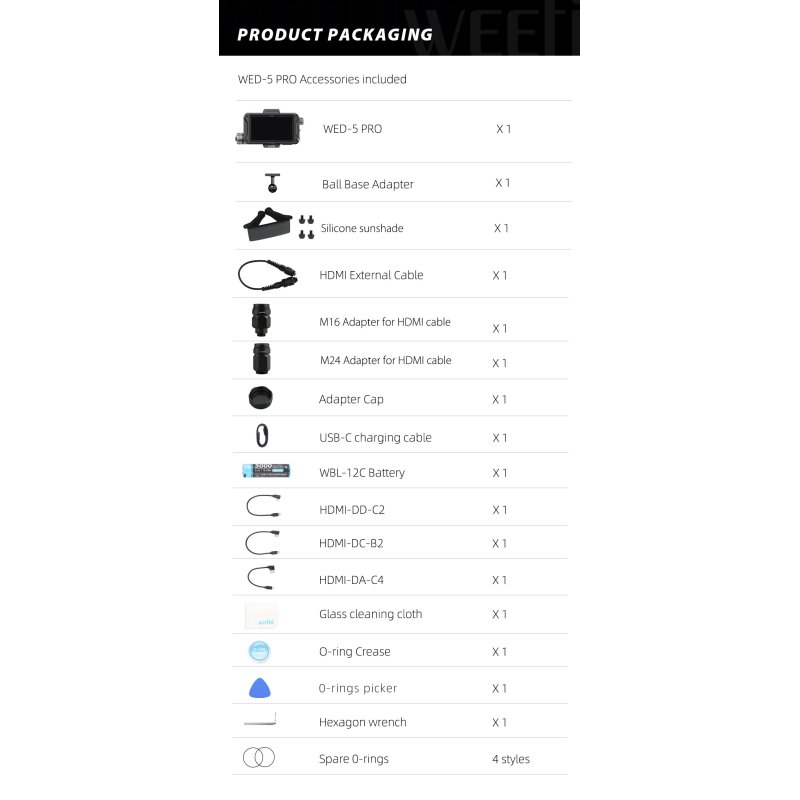

In the box:

WED-5 PRO – 1 pc
Ball Base Adapter – 1 pc
Silicone Sunshade – 1 pc

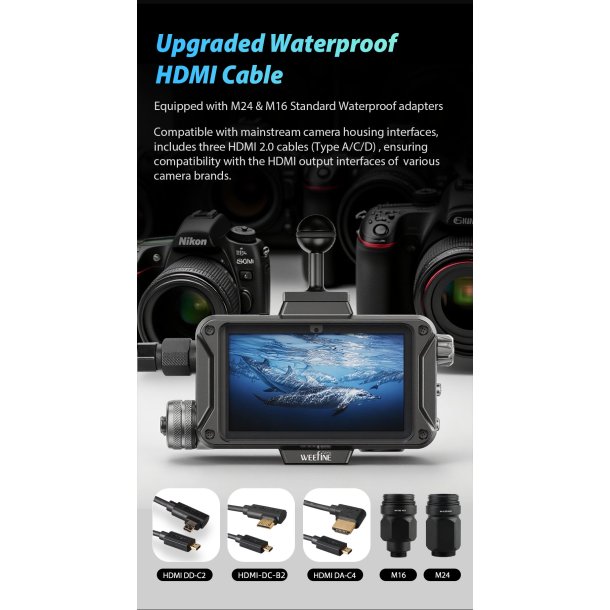

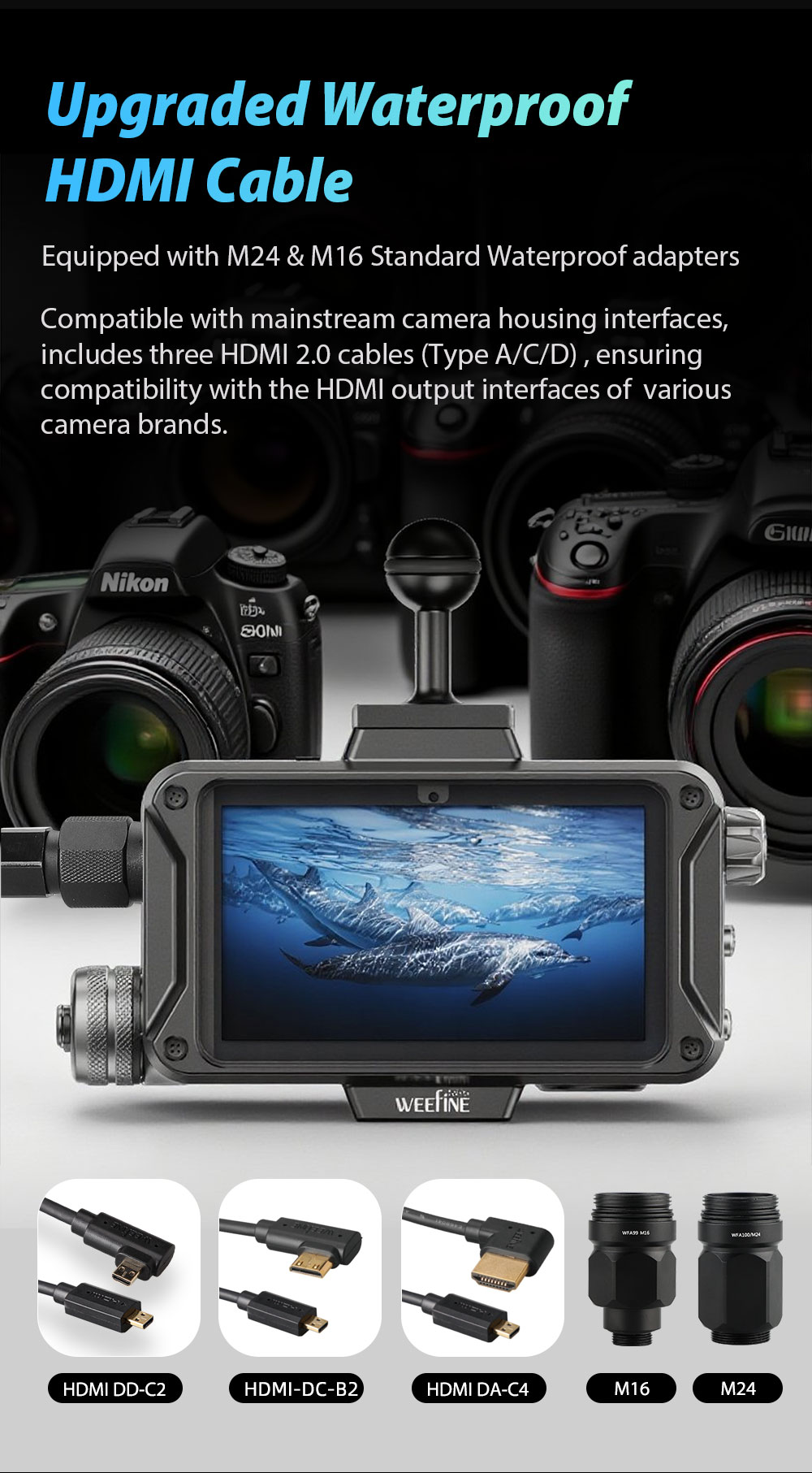

HDMI External Cable – 1 pc

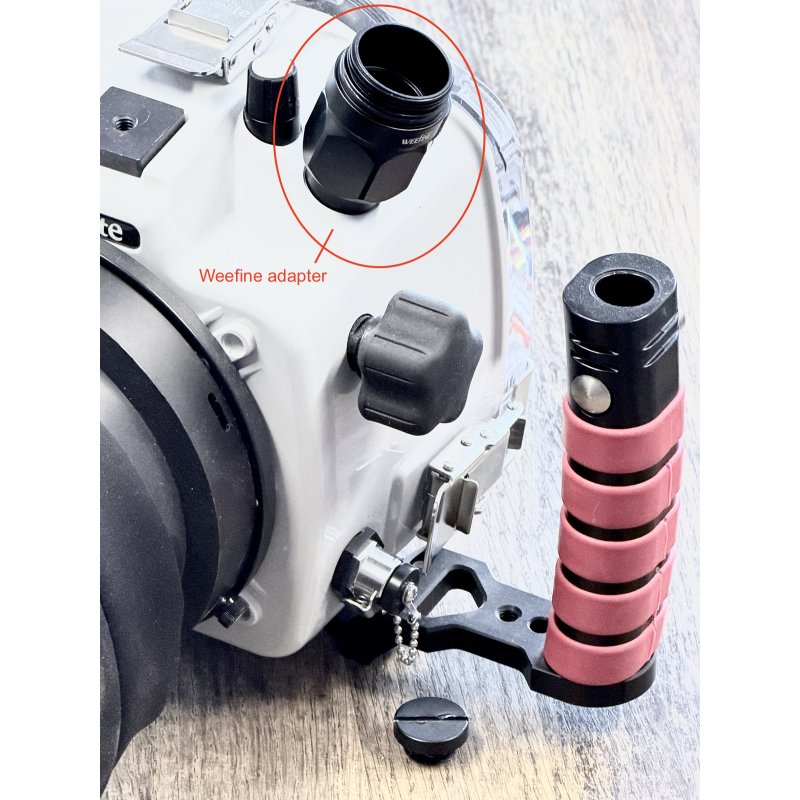

M16 Adapter for HDMI Cable – 1 pc
M24 Adapter for HDMI Cable – 1 pc
Adapter Cap – 1 pc
USB-C Charging Cable – 1 pc
WBL-12C Battery – 1 pc
HDMI-DD-C2 – 1 pc
HDMI-DC-B2 – 1 pc
HDMI-DA-C4 – 1 pc
Glass Cleaning Cloth – 1 pc
O-ring Grease – 1 pc
O-ring Picker – 1 pc
Hexagon Wrench – 1 pc
Spare O-rings – 4 types
