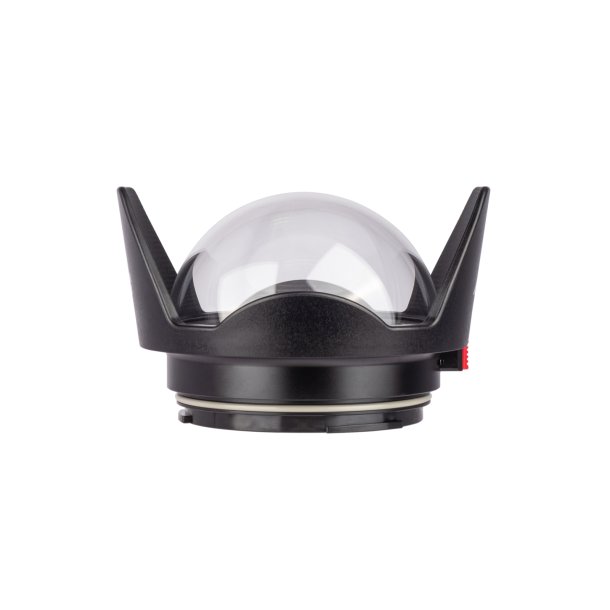

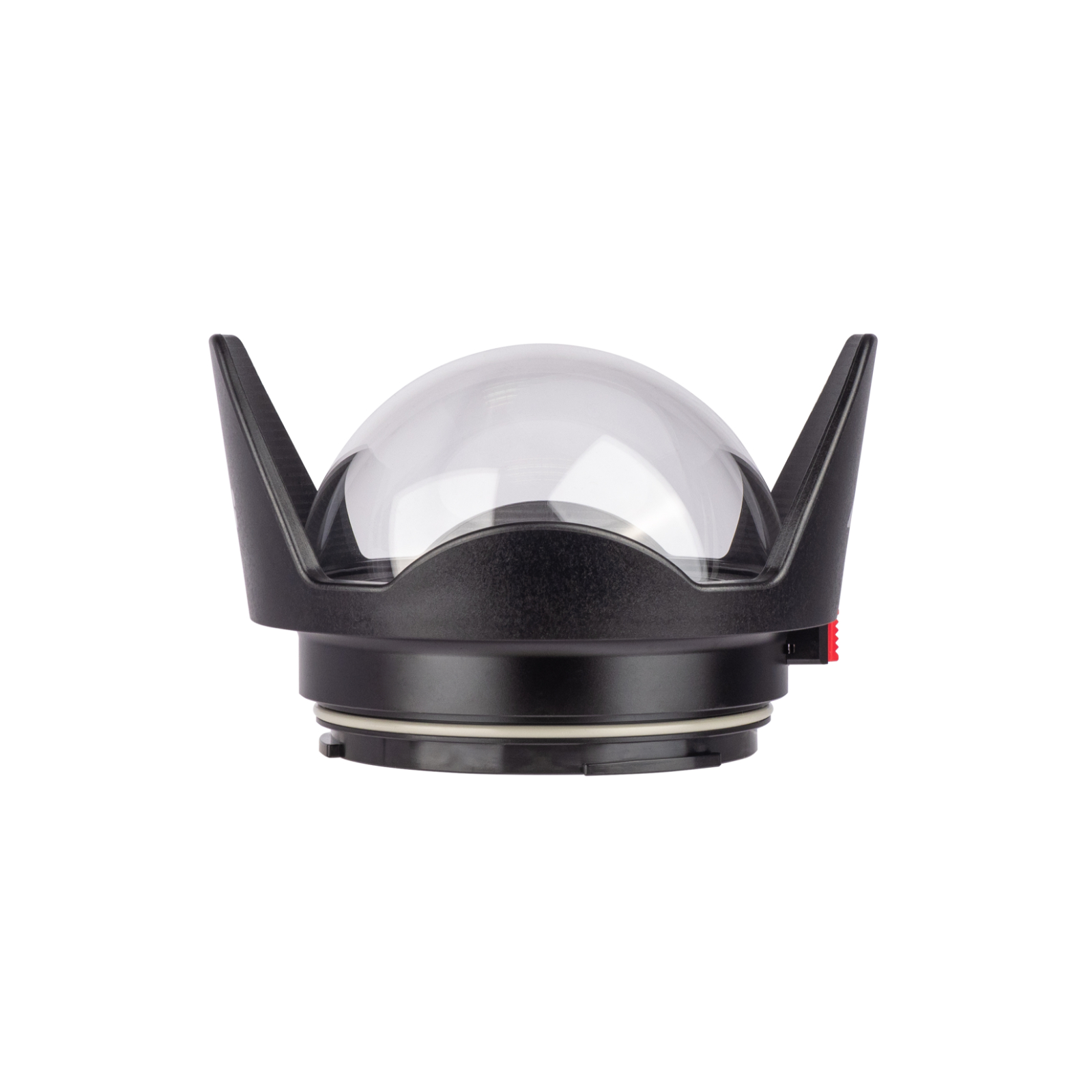

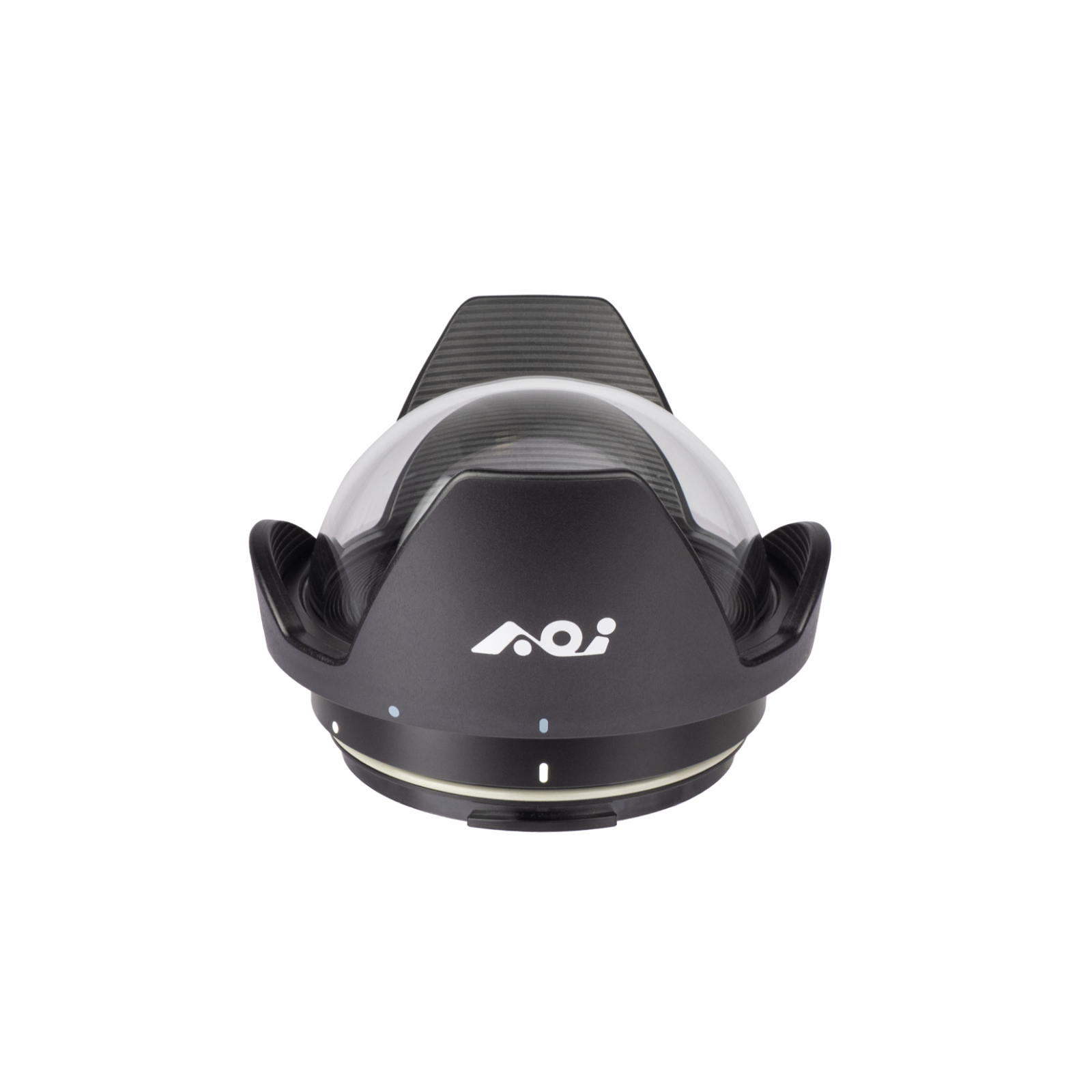

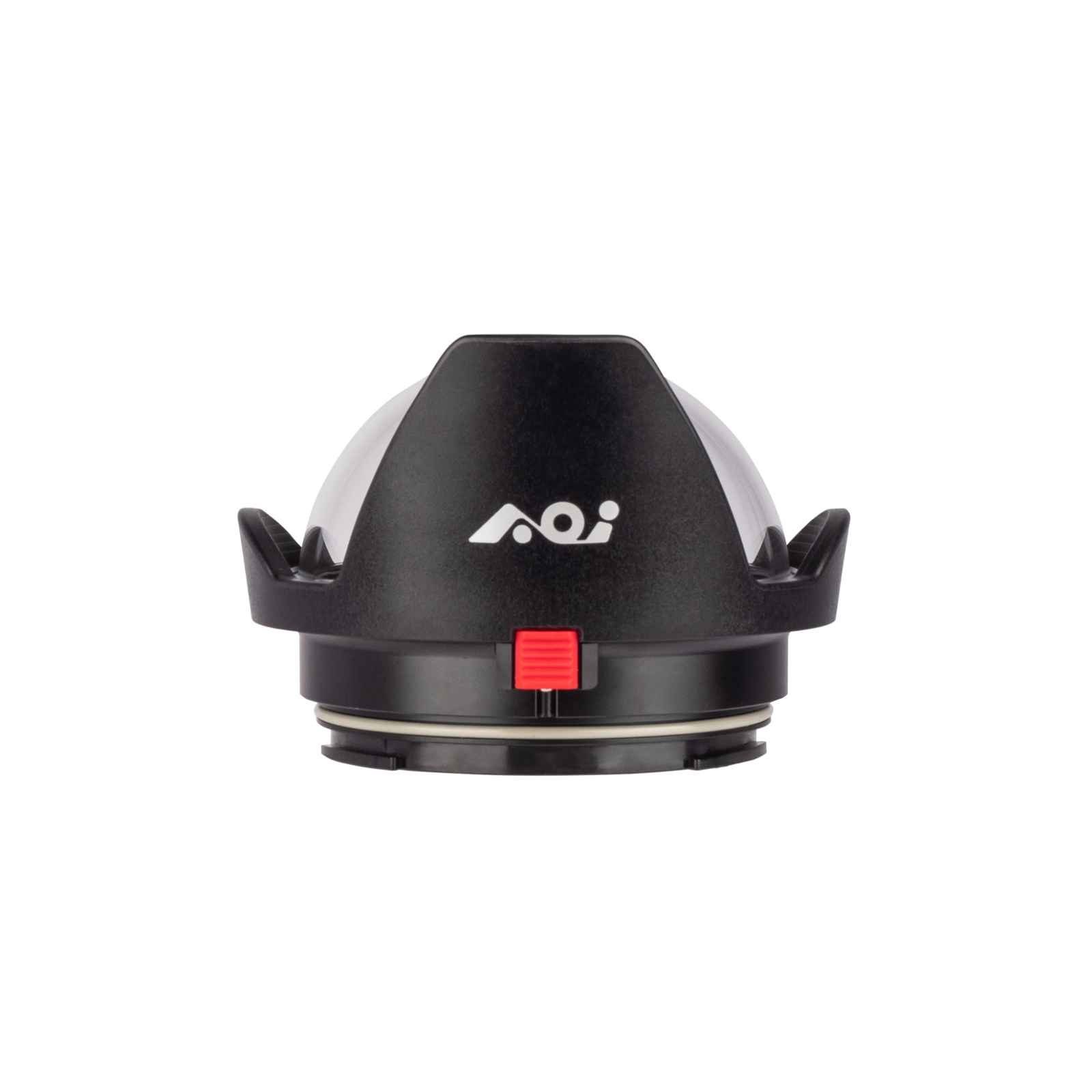

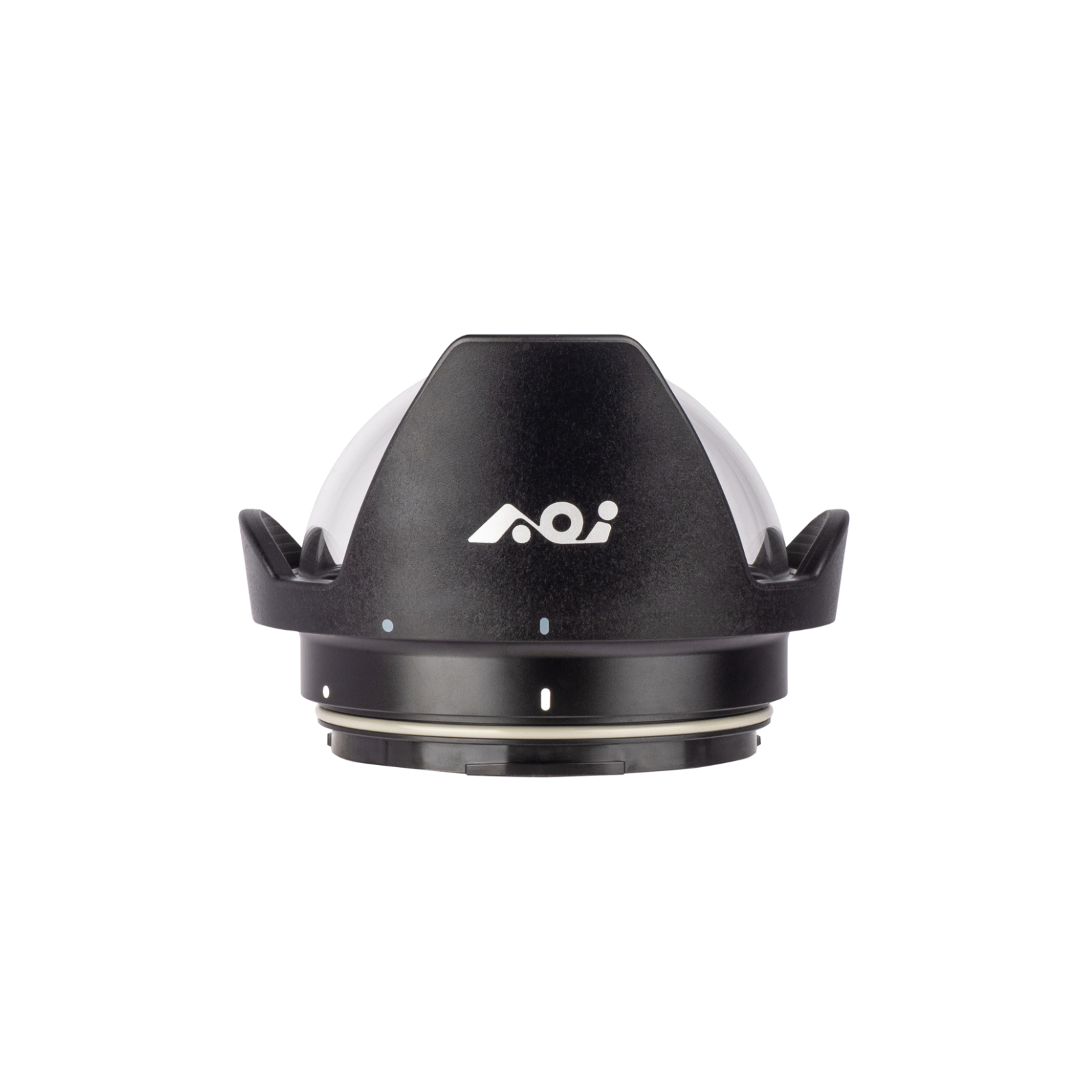

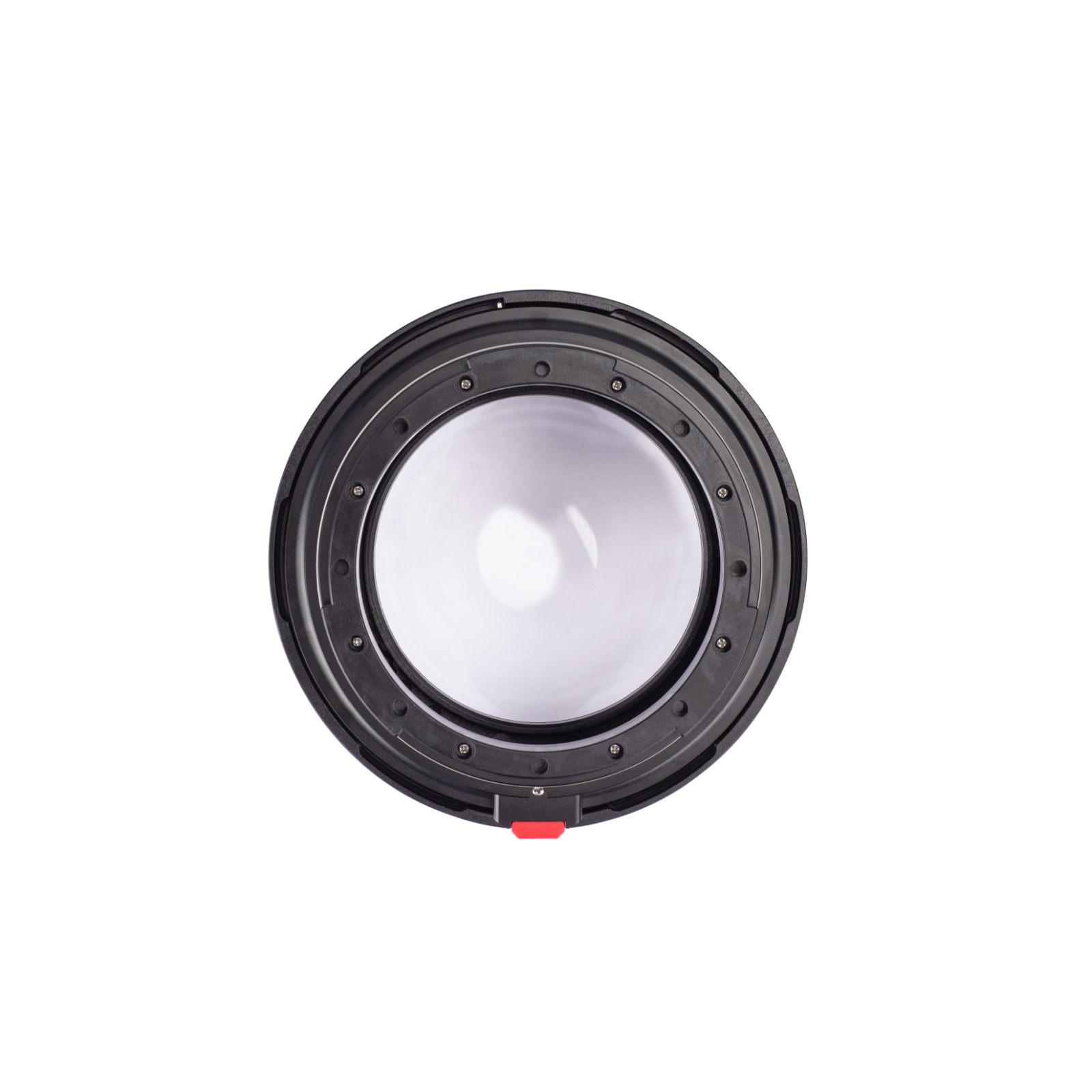

AOI DLP-112 Acrylic Dome Port

Take ultra-wide underwater photography to the next level with the AOI DLP-112 Acrylic Dome Port – 140, a precision-engineered dome port designed for AX Port Mount Housings and specifically developed to complement the Sony FE 8–14mm F3.5 Fisheye G lens. Its hemispherical optical-grade acrylic dome is engineered to manage underwater refraction, helping preserve the lens's expansive field of view while minimizing edge softness, corner blur, and field-curvature aberrations.

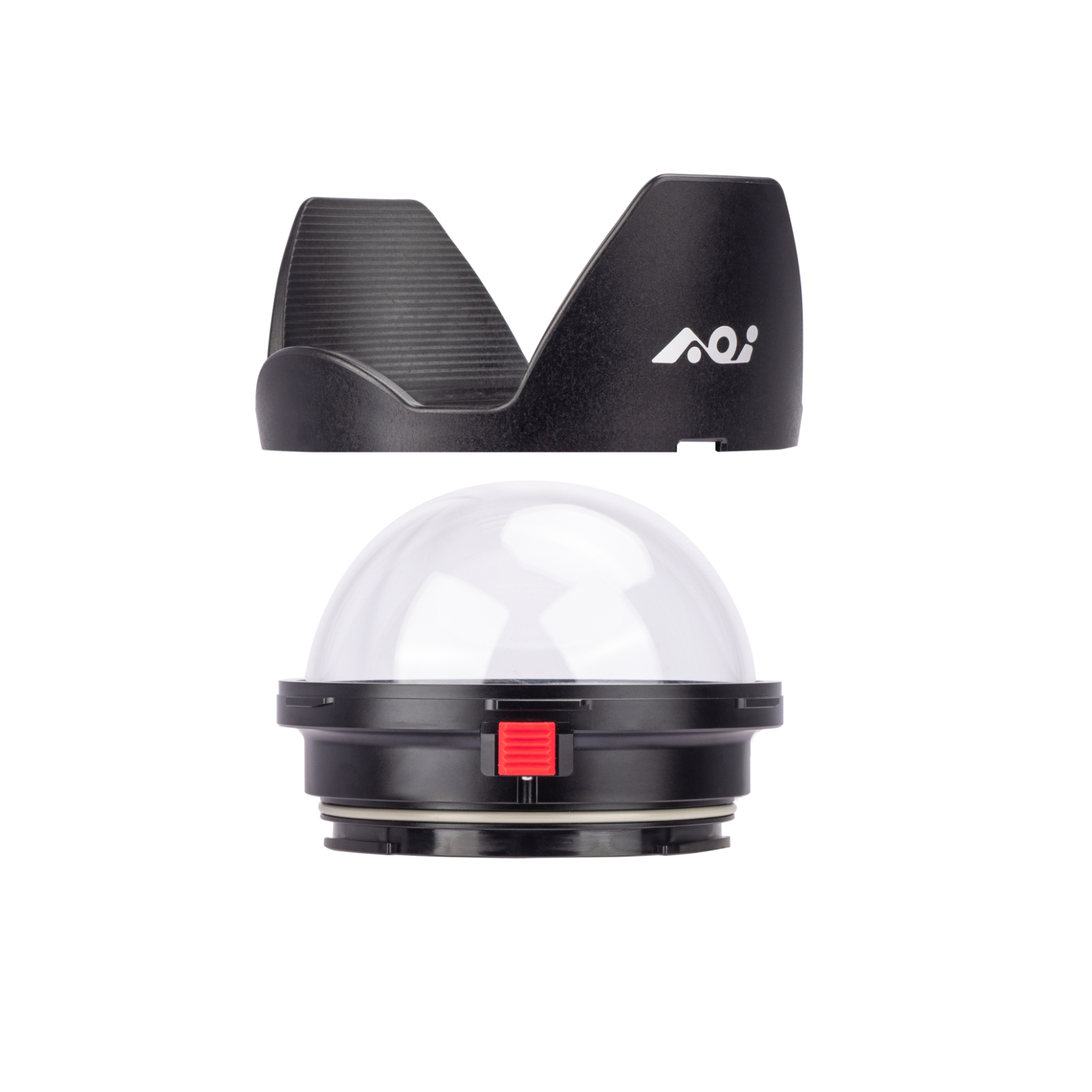

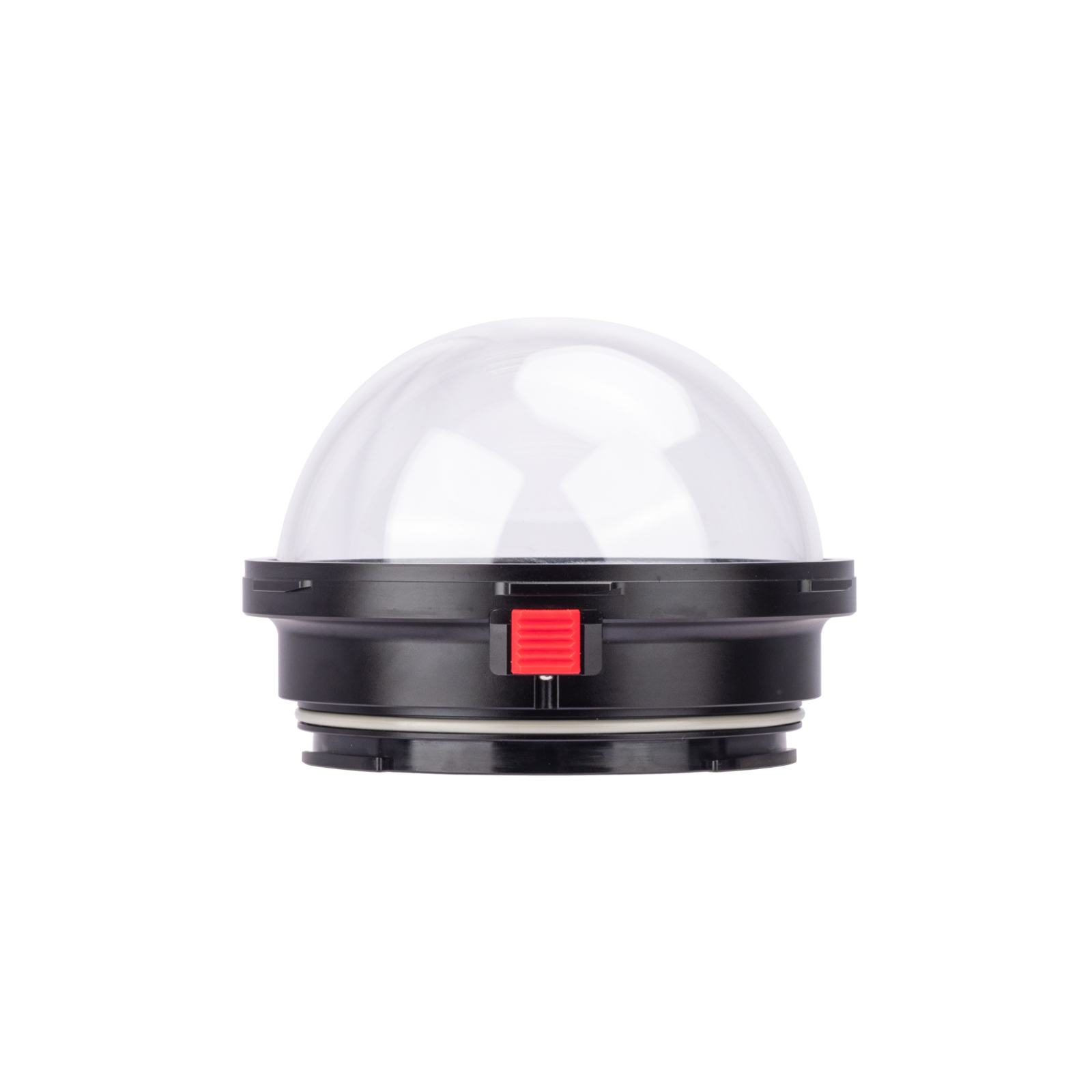

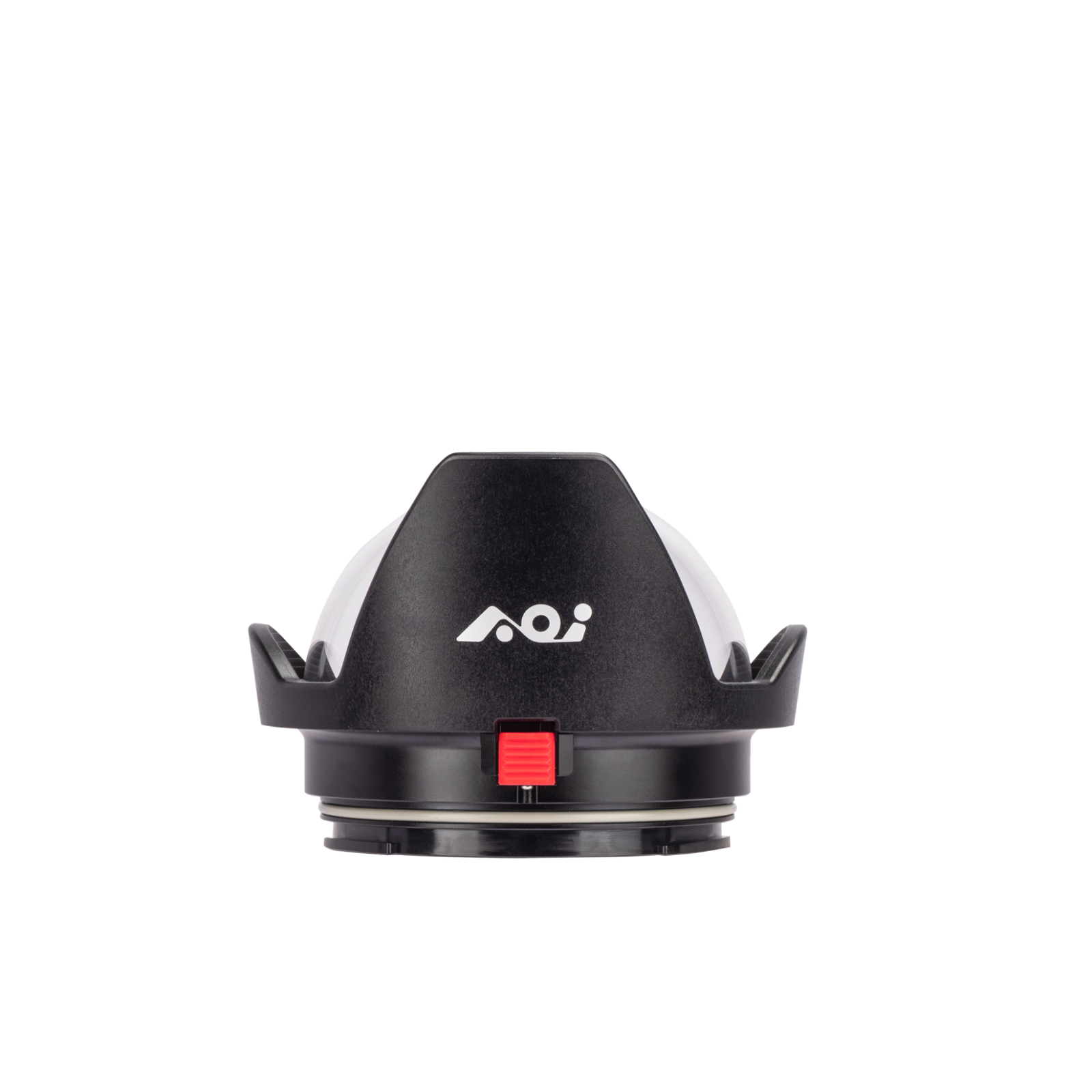

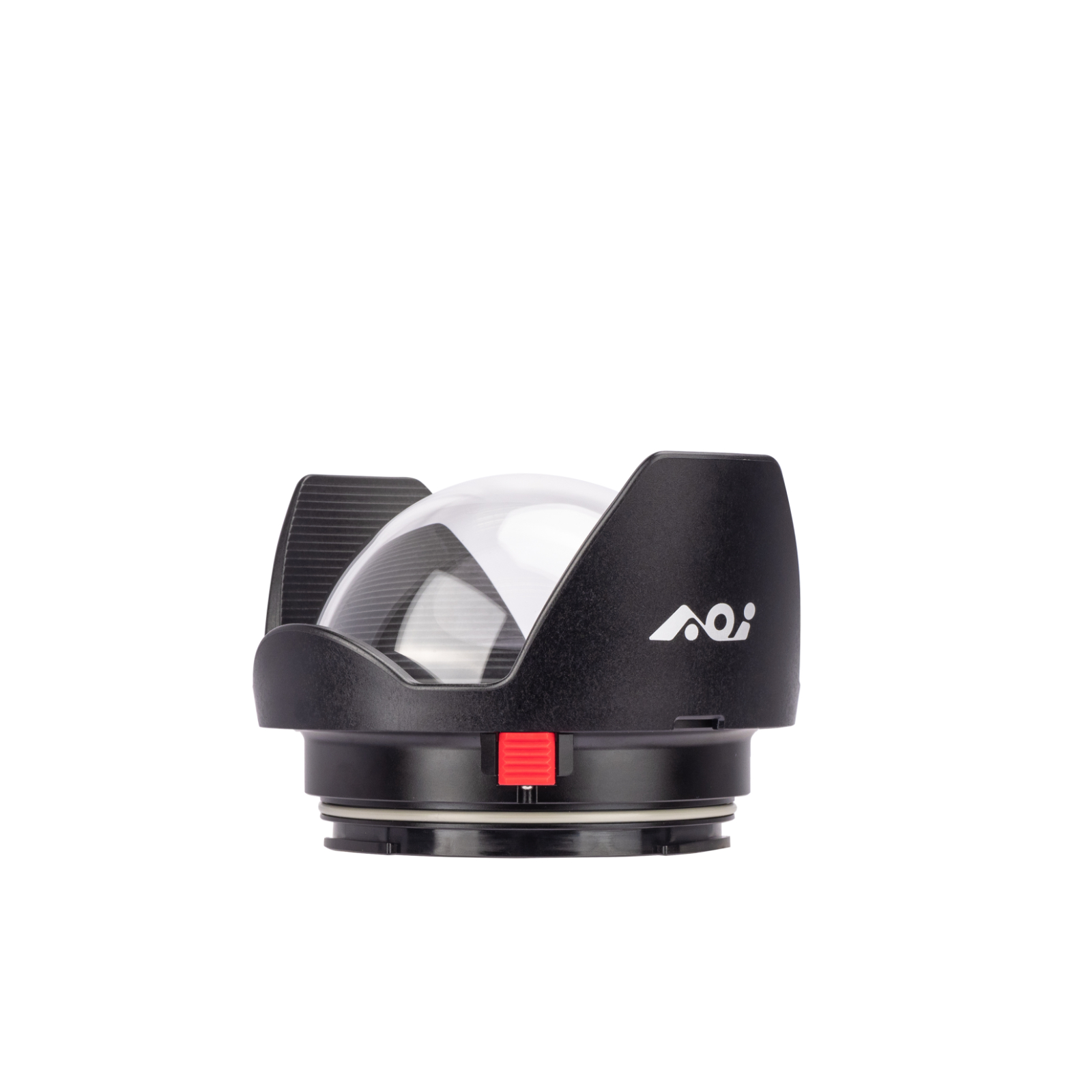

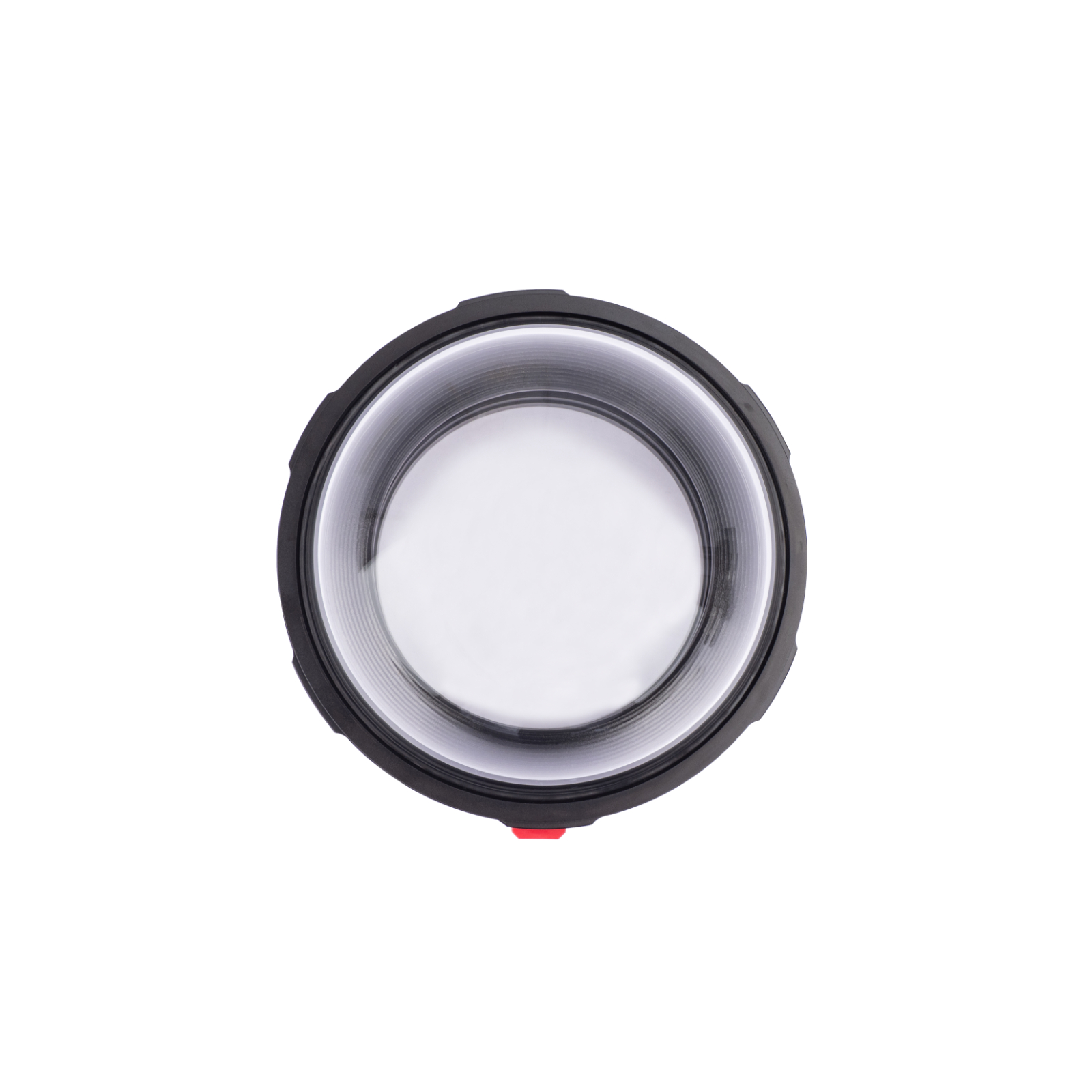

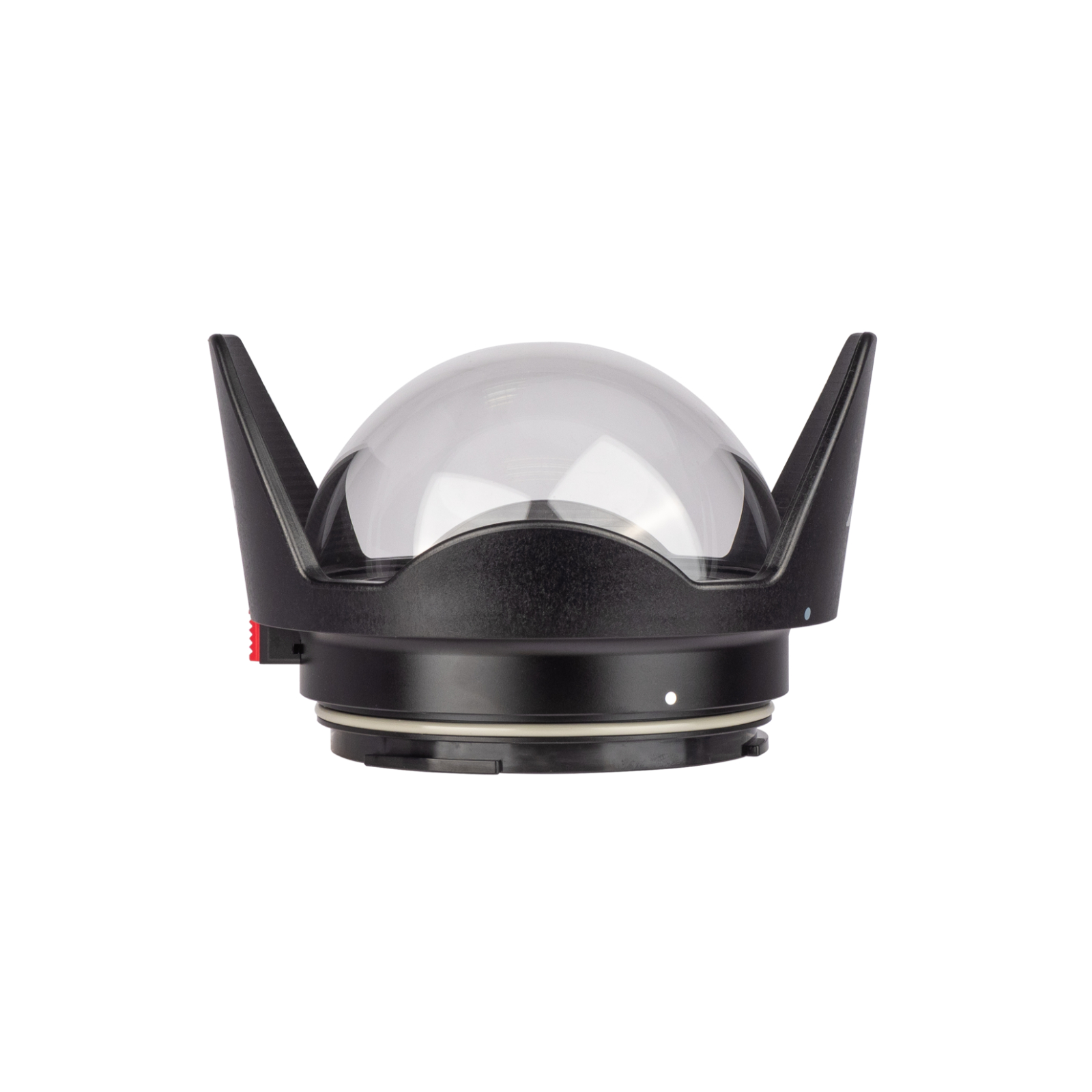

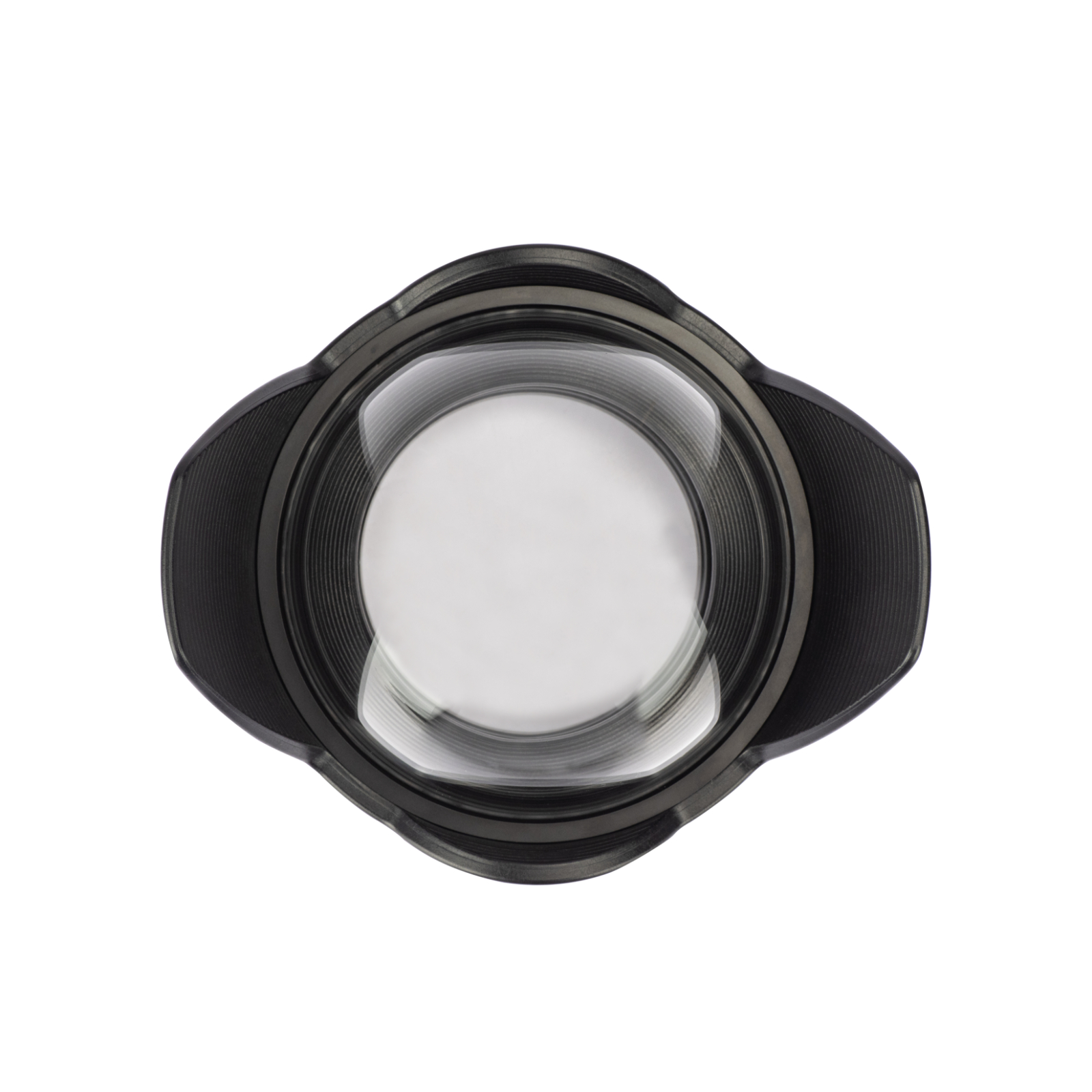

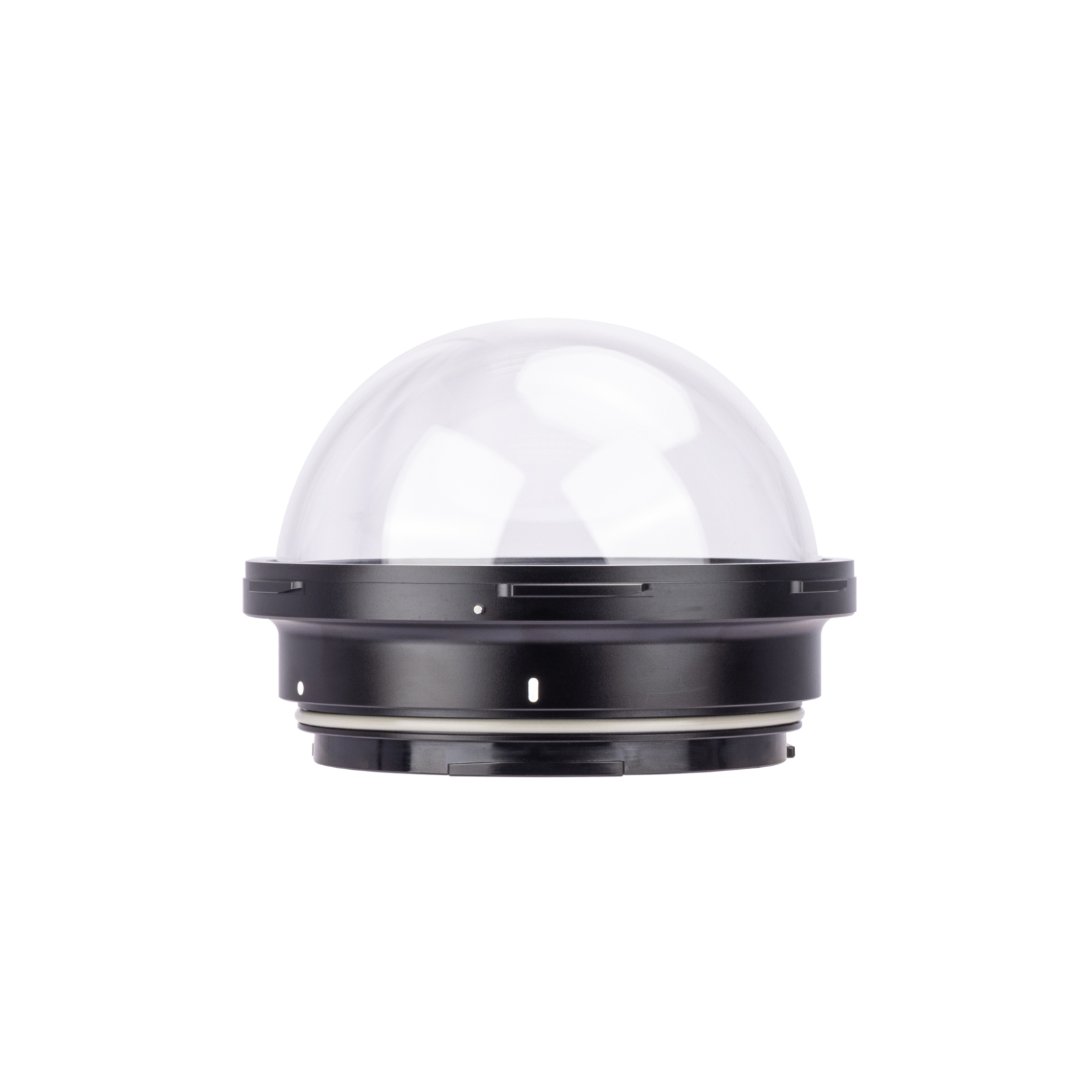

The standout feature is its removable and reattachable lens hood, which can be operated underwater. Remove the hood when shooting at the widest circular fisheye focal lengths to prevent mechanical vignetting and obstruction, then reattach it when returning to diagonal fisheye shooting to help protect the dome and control stray ambient light.

Built for demanding underwater environments, the DLP-112 combines a glass-fiber-reinforced polycarbonate body with a hard-anodized aluminum structure and is rated for depths of up to 60 meters. Its rigid marine-grade aluminum collar is engineered to maintain structural stability under hydrostatic pressure, helping protect critical optical alignment at depth.

Whether you're capturing dramatic circular fisheye perspectives, expansive reef scenes, or close encounters with marine life, the AOI DLP-112 provides a versatile platform for making the most of the Sony FE 8–14mm F3.5 Fisheye G underwater.

Key Features

• Designed for Sony FE 8–14mm F3.5 Fisheye G for ultra-wide underwater imaging.

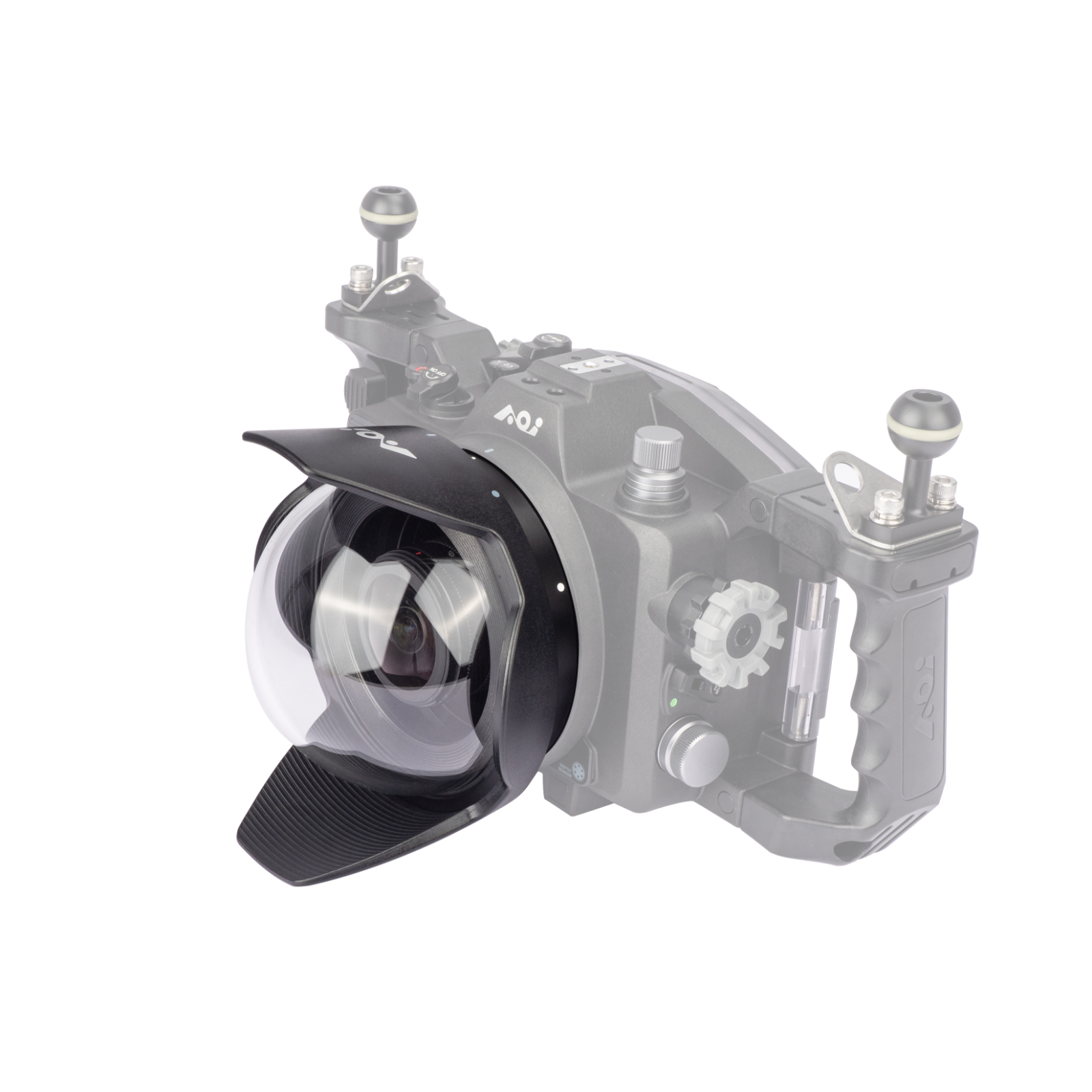

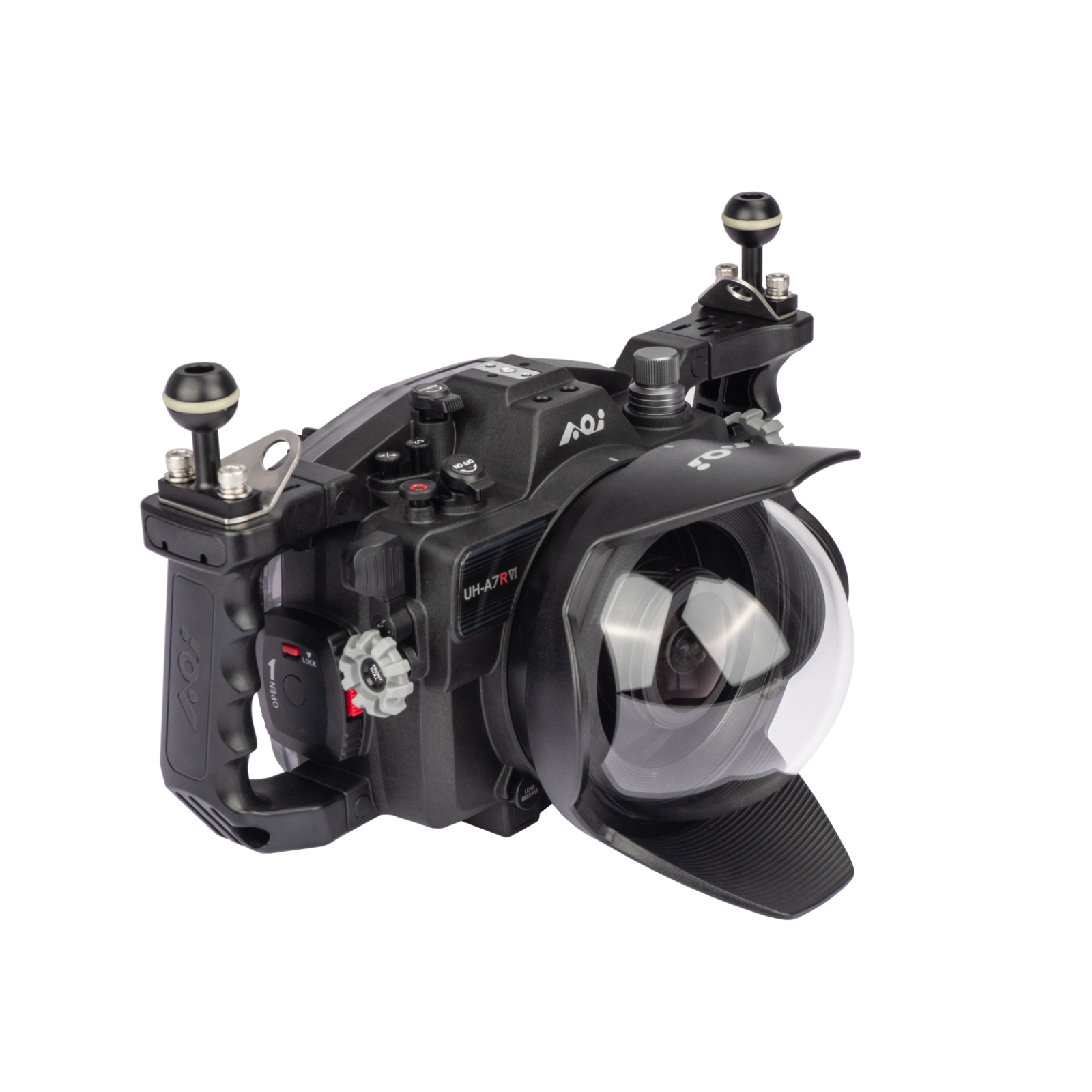

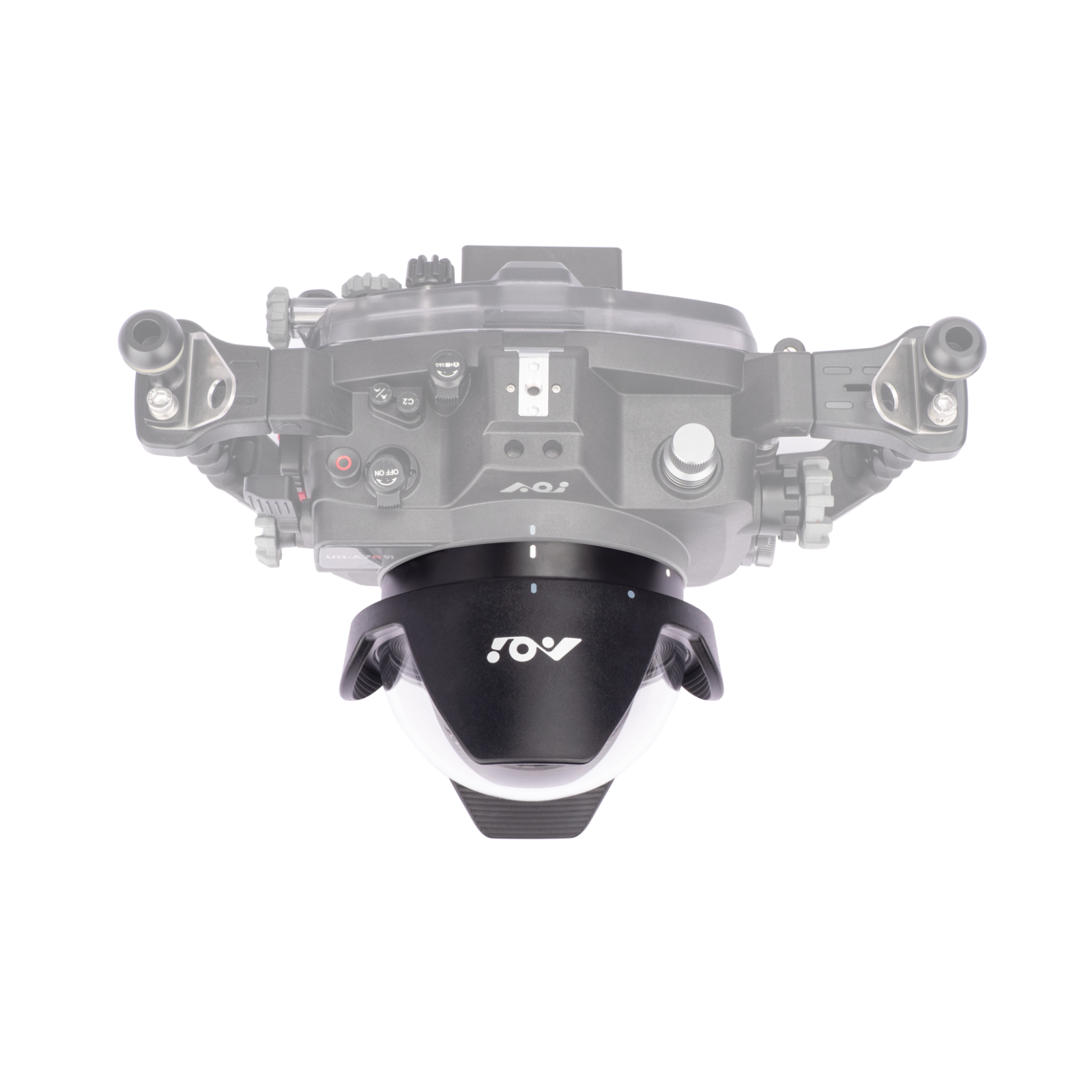

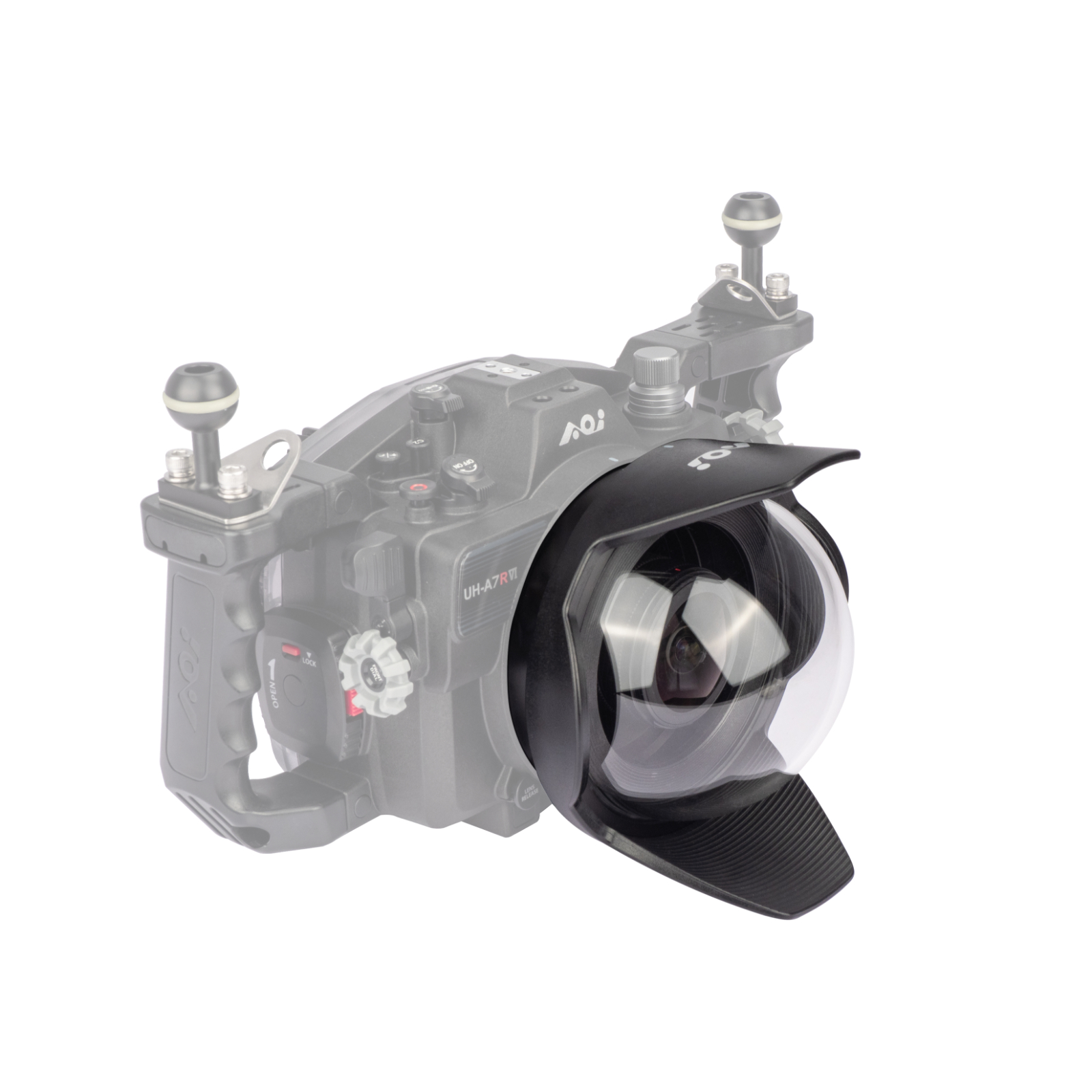

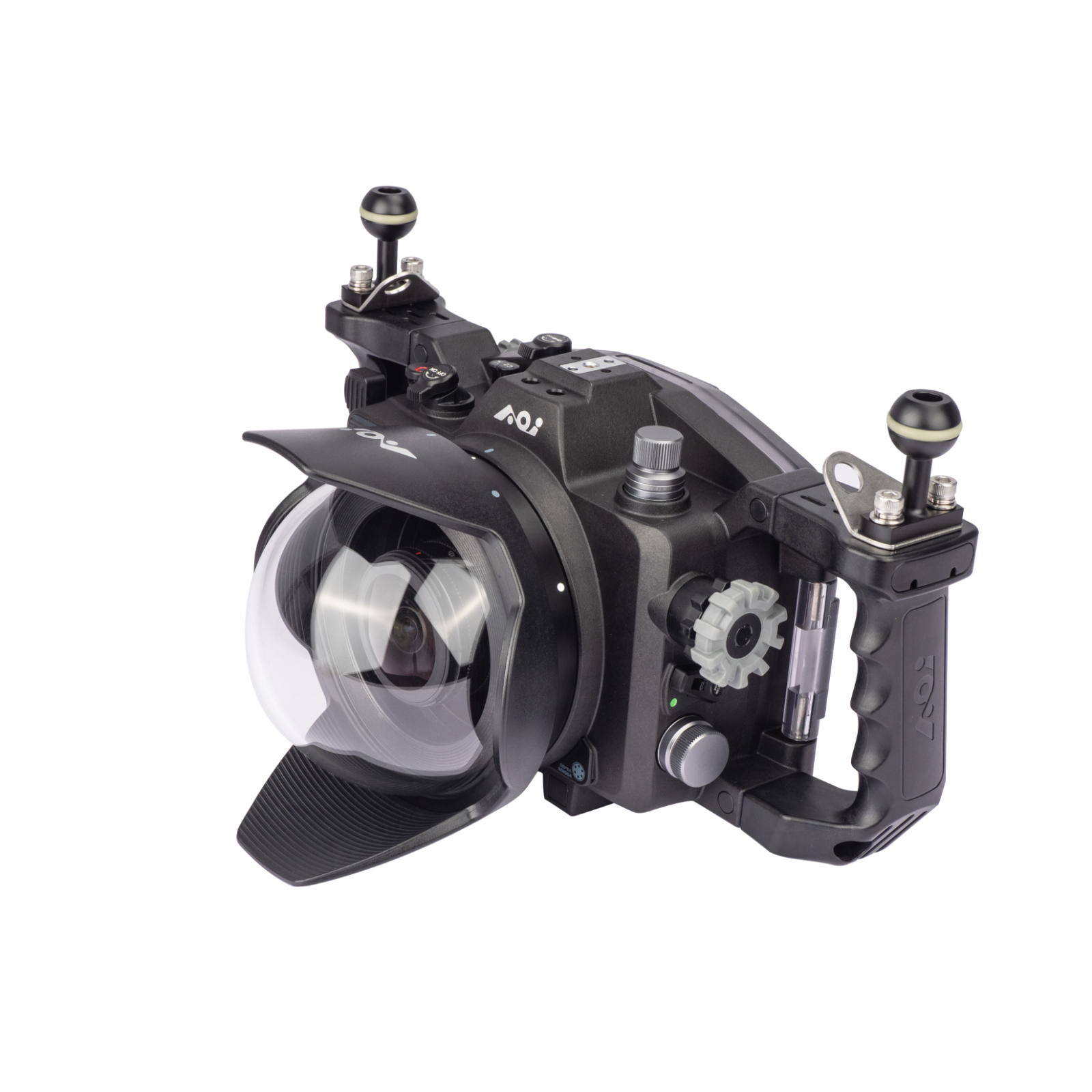

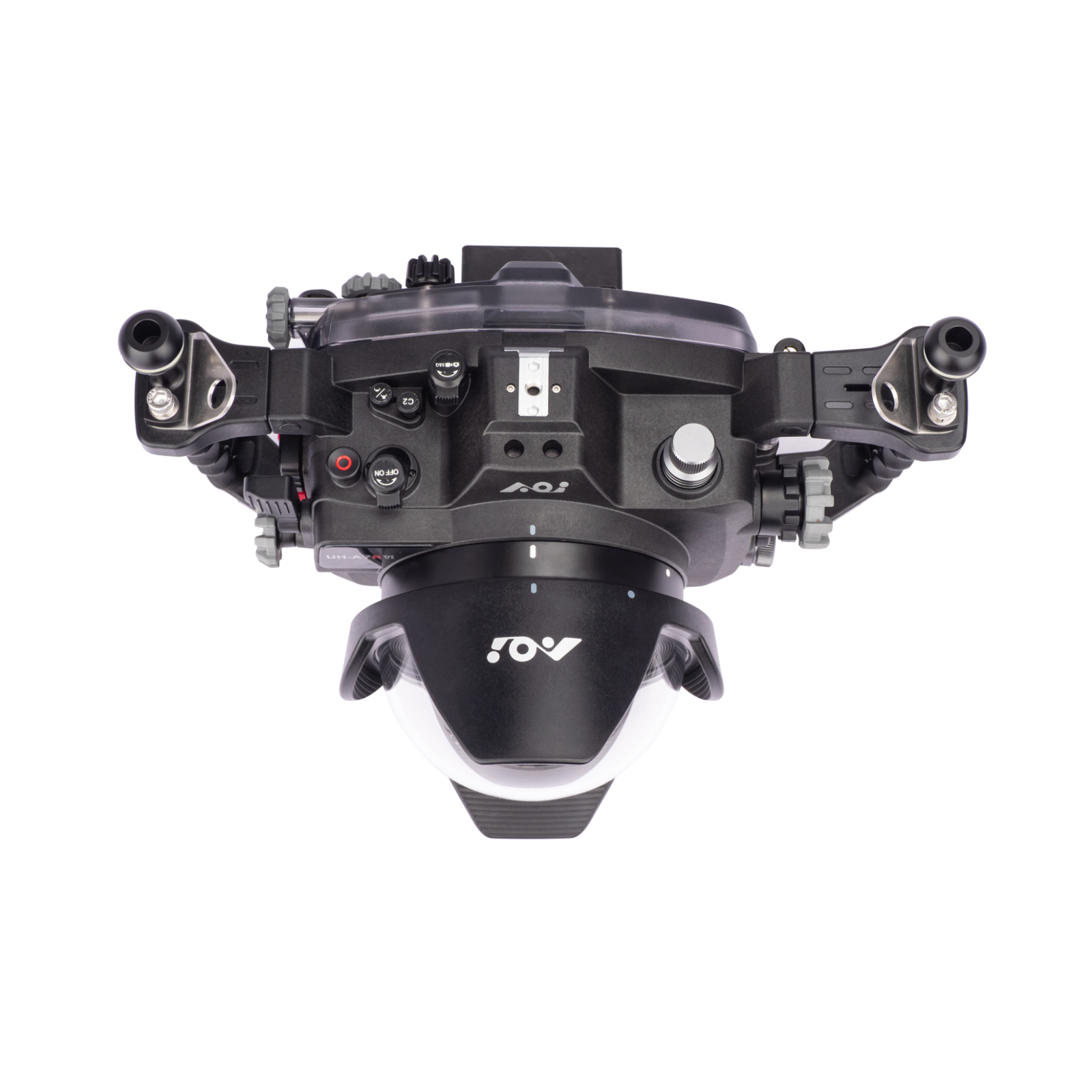

• For AX Port Mount Housings with a dedicated dome-port design.

• Optical-grade acrylic hemispherical dome engineered to manage underwater refraction.

• Removable underwater lens hood allows quick switching between circular and diagonal fisheye shooting.

• Helps eliminate mechanical vignetting and physical obstruction at the widest circular focal lengths.

• Dome geometry is designed to reduce edge softness, corner blur, and field-curvature aberrations when correctly aligned with the lens entrance pupil.

• Marine-grade anodized aluminum collar provides structural rigidity under hydrostatic pressure.

• 60 m waterproof rating for serious underwater photography and diving applications.

• Glass-fiber-reinforced polycarbonate and hard-anodized aluminum construction for durability.

• Compatible AOI LG-SEL-814-G zoom gear is available separately for precise focal-length control.

Specifications

• Model: AOI DLP-112
• Type: Acrylic Dome Port – 140
• Mount: AX Port Mount Housing
• Compatible Lens: Sony FE 8–14mm F3.5 Fisheye G
• Dome Material: Optical-grade acrylic
• Construction: Glass-fiber-reinforced polycarbonate; hard-anodized aluminum
• Waterproof Rating: 60 m
• Dimensions: 175 mm diameter × 109 mm height
• Weight on Land: 609 g*
• Weight Underwater: 537 g*
• Lens Hood: Detachable/removable
• Application: Ultra-wide underwater fisheye photography

In the Box

• AOI DLP-112 Acrylic Dome Port
• Dome Lens Neoprene Cover DNC-102
• Port Rear Cover PRC-101
• Silicone Grease AOI SIGR-2
