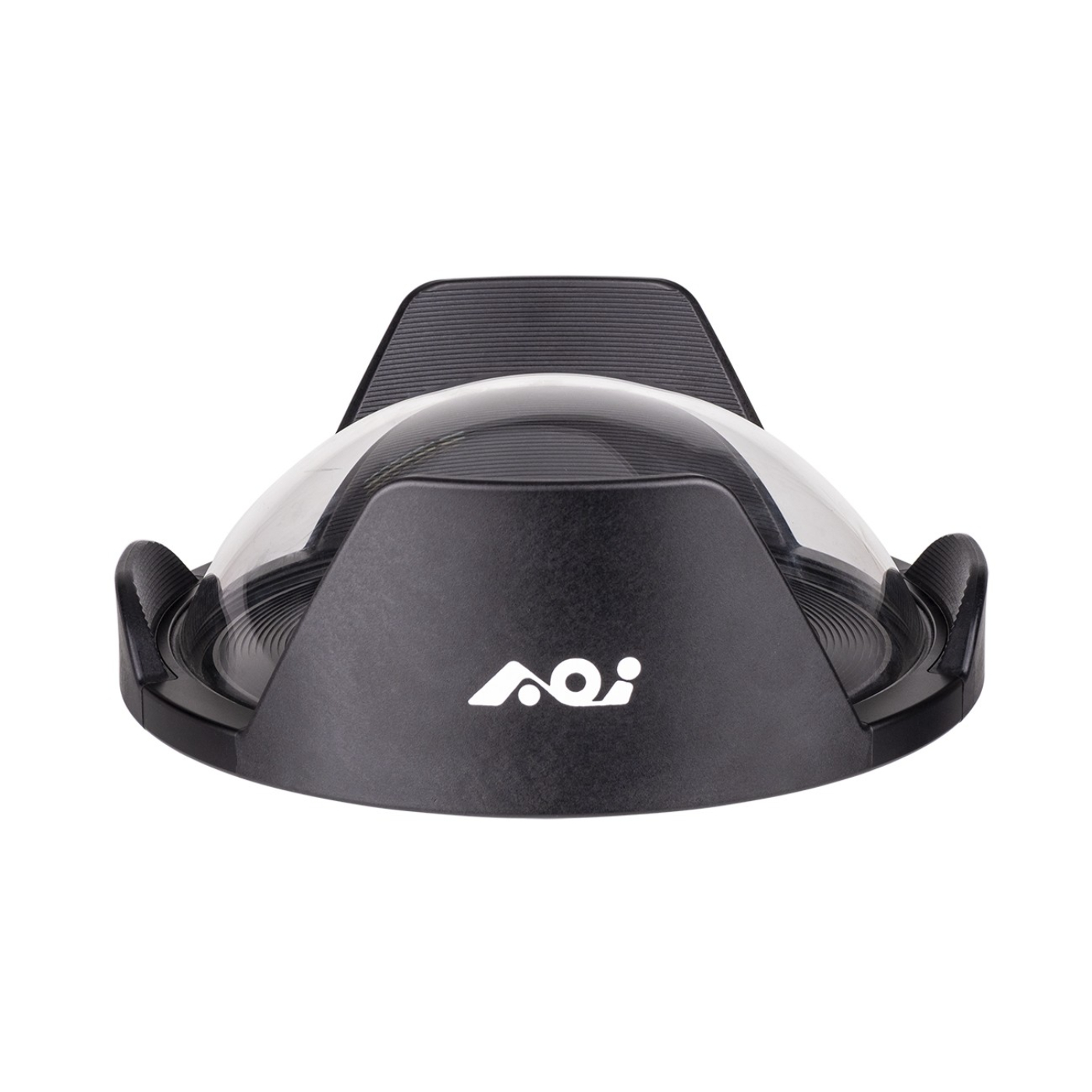

AOI DLP-101 220mm Glass Dome Port for AX Port Mount Housing

The AOI DLP-101 220 mm Glass Dome Port is a premium wide-angle underwater dome port engineered for use with AX Port Mount housings. Its large, optical-grade glass dome and robust anodized aluminum construction deliver superior clarity, minimal distortion, and reliable performance for underwater photography and videography. Designed for wide-angle lenses, this dome port captures expansive scenes, vibrant reefs, and dynamic marine life with impressive sharpness and depth.


Key Features

• 220 mm glass dome providing excellent wide-angle imaging and minimal optical distortion, ideal for underwater landscape and large subject photography
• Hard-anodized aluminum alloy barrel for durability and corrosion resistance in saltwater conditions
• Optical-grade glass dome with multi-layer anti-reflective coatings for enhanced contrast and reduced reflections
• Waterproof rating to 60 meters (≈200 ft), supporting deep dives and professional underwater projects
• Large dimensions (241 mm diameter × 103 mm height) suitable for full-frame wide-angle lenses
• Designed for AOI AX Port Mount housings for seamless integration with AX system setups
• Accessory compatible, including neoprene dome front cover and rear port cap for protection


Specifications

• Model: AOI DLP-101
• Description: 220 mm Glass Dome Port for AX Port Mount Housing
• Port Shape: Dome port
• Barrel Material: Hard-anodized aluminum alloy
• Dome Material: Optical-grade glass with multi-layer AR coatings
• Waterproof Depth: 60 meters
• Dimensions: 241 mm (diameter) × 103 mm (height)
• Weight On Land: 1992 g (without covers)
• Weight Underwater: -150 g (approximate lift underwater)
