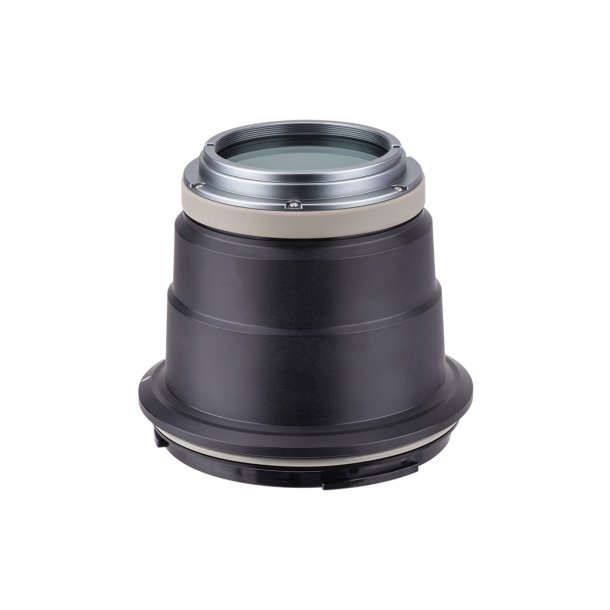

AOI FLP-101 Flat Port - 90 for AX Port Mount Housing

The AOI FLP‑101 Flat Port – 90 is a high-performance underwater flat port designed to work with AX Port Mount housings. It is engineered to deliver exceptional optical quality, offering sharp, distortion-free images for underwater macro photography. Recommended for use with the Sony FE 90mm F2.8 Macro G OSS lens, this flat port combines durable construction with premium optics to enhance your underwater imaging experience at depths up to 60 meters.


Key Features

• Designed for Macro Photography: Optimized for the Sony FE 90mm F2.8 Macro G OSS lens used in AX Port Mount systems for crisp, detailed underwater imagery.
• Premium Optical Glass: Features optical-grade flat glass with dual-sided water-repellent (WR) coating and multi-layer anti-reflective (AR) coating, reducing reflections and improving clarity.
• Durable Construction: The lens barrel is made from a strong blend of polycarbonate and glass fiber (PC + GF), ensuring resilience in demanding underwater environments.
• Waterproof Depth: Rated for use down to 60 meters, making it suitable for a wide range of recreational and professional dives.
• Accessory Mount: Equipped with an M67 threaded front mount for attaching additional accessories like macro wet lenses or filters.


Specifications

• Model: AOI FLP‑101
• Description: Flat Port – 90 for AX Port Mount Housing
• Recommended For: Sony FE 90mm F2.8 Macro G OSS lens
• Front Mount: M67 Thread
• Material: Lens barrel — PC + GF
• Glass: Optical grade flat glass with WR and AR coatings
• Waterproof: 60 meters
• Dimensions: 129.5 mm (diameter) × 115.3 mm (height)
• Weight: 362 g (without front and rear lens caps)


In the Box

• 1 × AOI FLP‑101 Flat Port – 90
• 1 × Lens Front Cap (AOI LFC‑01)
• 1 × Lens Port Rear Cap (AOI LRC‑101)
