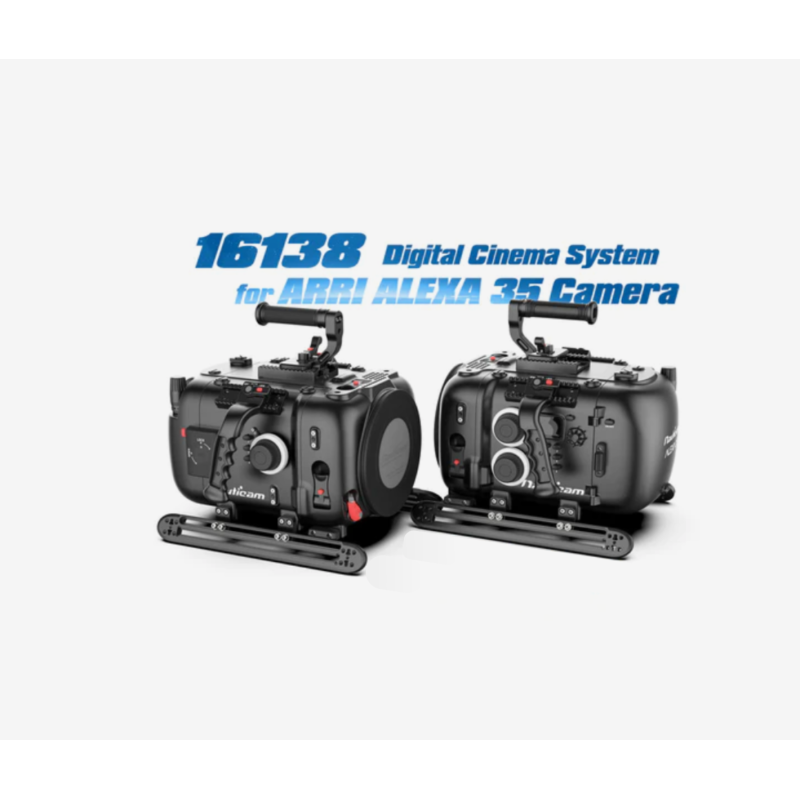

Nauticam ARRI ALEXA 35 Camera Housing (excl. port and extension)

TECHNICAL SPECIFICATIONS

• Depth Rating
  • Housing: 80m  250mm
• Weight in air      11.3kg
• Buoyancy in water    (incl. camera, lens, bebob B290 battery and 250mm dome)     6.0kg
• Dimensions    (W x H x D)    310mm x 246mm x 500mm
• Port System   N200

It has been developed with an easy setup. Counting one allen wrench and coin, the lens control and support are constructed on the base plate. This means the rig can be built on a table, in good light, with plenty of working space. Once the camera is assembled on its tray, the entire system slides into the housing and locks securely in place.

For simple zoom and focus, there are knurled knobs on the outside of the housing. Making it easy to handle with a single pair of hands. For more complex shoots the use of cforce Plus and cforce mini motors paired with the ARRI Hi-5 Hand Unit can supply you with remote operation and control.

The housing is designed around the use of the ARRI B-Mount Plate which mounts directly onto the camera.  Both the Bebob B290 (294Wh) and the SWIT HB-A290B have been tested, but ample space is available for a range of battery pack sizes to be used in the housing, providing long operation times. Surface-supplied power is also an option for tethered all-day shooting.

To make sure the housing is safe there is a vacuum check that provides constant updates on the water and safe-to-dive status. It uses a manual pump to secure the first pressure while getting more pressure after getting into the water. The LED color-coded security system based at the rear of the housing is easy to understand. The user would also get an audible notification if there has been leakage detected.


What's In The Box:

• 16139 Digital Cinema System for ARRI ALEXA 35 Camera
• 3 Lens Control Assemblies with stackable drive shafts and 15mm rods
• Vacuum Check & Leak Detection System, Dual Activation Vacuum Valve
• Quick release and adjustable top handle, left handle and right handle
• Housing Skids
• 1x Travel Hard Case
• Tool Kit & O-ring Kit

N200 Port Accessories: Check them out below

• 16401 N200 Macro Port 40 with M67 thread
• 16402 N200 Extension Ring 30
• 16403 N200 Extension Ring 40
• 16404 N200 Extension Ring 50
• 16405 N200 250mm optical glass wide angle port (Depth rating 45m)
• 16406 N200 8.5'' Acrylic Dome Port
• 16407 N200 180mm Optical-Glass Flat Port
• 16408 N200 250mm optical glass wide angle port ( (Deep version, depth rating 100m)

Surface Control Accessories: Check them out below

• 16223 LCS Surface Cable for Alexa Mini Housing (to use with WCU-4)
• 16249 LBUS Surface Cable for Hi-5 Hand Unit to use with Nauticam Alexa 35 Housing (30m)
• 16247 Replacement of Internal LBUS Cable (from the Camera to housing bulkhead)
• 16248 Converting Cable for 16223 to use with Hi-5 Hand Unit
• *1. 16247 Internal LBUS Cable is required for existing 16223 to use with WCU-4.
• *2. 16247 and 16248 are required for existing 16223 to use with HI-5 hand unit, or buy the new16249 instead.
• 16255 Nauticam Ethernet Cable for Surface Control of Alexa Mini Housing (incl. Lemo bulkhead with integrated Ethernet Cable and external Duracell cables）

Other Accessories: Check them out below

• 16232 0.25kg Trim Weights for 16227 (4pcs)
• 16233 0.5kg Trim Weights for 16227 (4pcs)
• 17959 Housing Mounting ball with 1/4'' screws
• 25221 M10 strobe mounting ball for housing
• 17961 Swivel and Tilt Adjustable Monitor Mount System (*new)
• 25058 M16 SDI Bulkhead
• 25059 SDI Cable Extension Adaptor
• 25060 SDI Cable in 0.3m Length (for connection from camera to SDI bulkhead)
• 25063 SDI Cable in 30m Length (for connection between SDI bulkheads)
• 25064 SDI Surface Monitor Cable in 15m Length
• 25065 SDI Surface Monitor Cable in 45m Length
