Product no.: VWS-02-M16

Vacuum Analyzer & Wet Detection System

184,00 EUR

(incl. VAT)

psc.

Stock status: In stock

Competitive international shipping

European product warranty

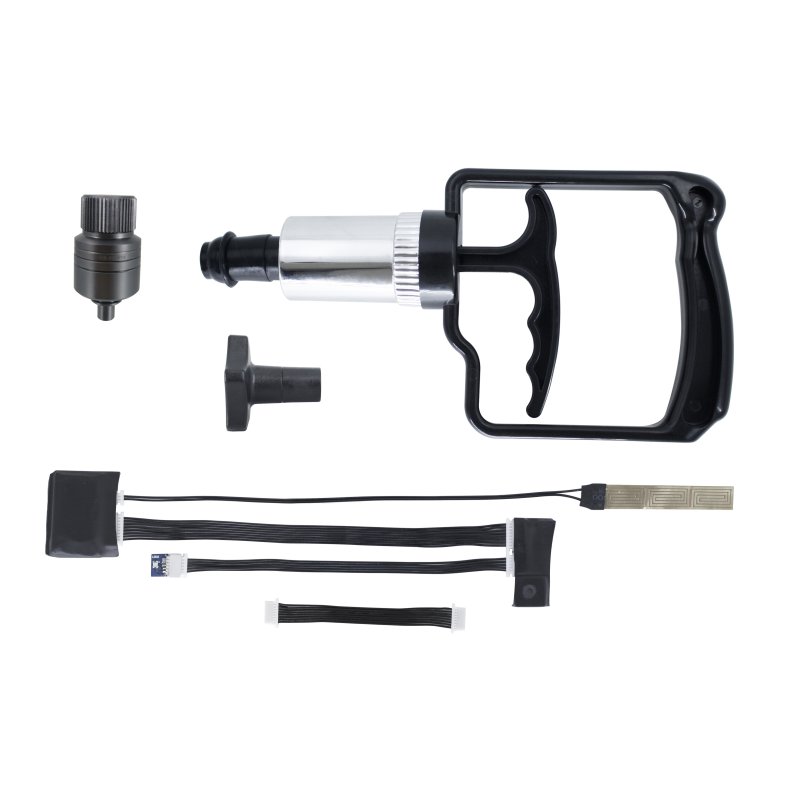

AOI Vacuum Analyzer & Wet Detection System

This Vacuum and Wet Safety System with M16 consists of a Vacuum tester and a leak detector. It is made to test the watertight seal with the Vacuum system pre-dive and monitoring the housing seal during dive by the leak detector.

*Will work for a lot of housings including AOI, Fantasea...

Recommended accessories

Complete your setup with compatible accessories.

Category: Accessories

Items

Price

Note

Quantity

Nauticam 67mm double lens holder fastens on arms

141,25 EUR

(incl. VAT)

In stock

psc.
67mm single Lens holder for fastening on arms

75,00 EUR

(incl. VAT)

In stock

psc.

Description

AOI Vacuum Analyzer & Wet Detection System

Model   VWS-02-M16
Description   Vacuum Analyzation & Wet Detection System Kit
Valve Fastening   M16
Valve Material   Black Anodized Aluminum Alloy
Depth Rated 100M / 330Ft
Charging Time   45 Minutes
Charging Port 5V, 0.3A Micro-USB charging Port
Power Switch Sliding ON / OFF Switch
Operation Time Per Full Charge   4 Days (Powered by 3.7V 110mAH Lithium Polymer Rechargeable Battery)
Vacuum Analyzing Time Approx. 4 Minutes
Wet Detection   All-time Operation
Indicator Signal Output Piezo Buzzer (Audio Signal)
Tri-color LED (Blue, Yellow, Red & Green Visual Signals)

Dimension

Vacuum Valve Φ 22 x 34 mm (H)
Main Unit 28mm(L) x 18mm (W) x 7 mm (H)
Signaling & Charging Unit 30 mm (L) x 14mm (W) x 7 mm (H)
Long Connection Cable 140 mm (L) x 5 mm (W)
Short Connection Cable 75 mm (L) x 5 mm (W)
Extension Visual Signal

Board Cable 120 mm (L) x 3 mm (W)

Weight

Vacuum Valve   16.5 g
Wet Detection   5.5 g
Power Source   2.8 g

Accessories

Vacuum Pump
Multi Purpose Key
