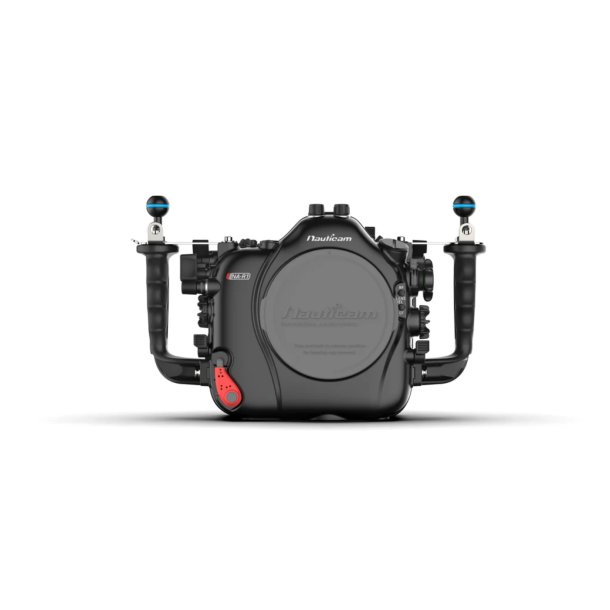

Nauticam NA-R1 Housing for Canon EOS R1 Camera

The Nauticam NA-R1 Housing is expertly designed for the Canon EOS R1 camera, offering professional photographers and videographers unmatched access to their camera's features in underwater environments. Constructed from robust, corrosion-resistant materials, this housing supports depths of up to 100 meters (330 feet), ensuring reliable performance even in the most challenging conditions.

Key Features:

• Multi-directional pad with two Piano keys to access Q and Set button.
• Magnify and Playback can be accessed by the left side double Pad, m
• AF-ON and Record can be accessed by the right side double Pad,
• Infor Button is routed to the right side of housing.
• TTL Flash Switch Lever on the top left, and Still/Movie Switch Lever on the top right.
• Fn1 and Fn2 Lever routed to front left and front right side.
• Plastic holder for Apple air-tag

Housing Specifications:

• Dimensions: 370mm(W)x 236mm(H) x 166mm(D)
• Weight in air: 3.94kg
• Buoyancy in water: 0.45kg (includes camera and battery)
• Depth Rating: 100m*
• Port mount: N120
• Accessory ports:
• Front: 1x M24, 1xM16, 1x M10 threaded hole and 4x 1/4’’-20 threaded holes.
• Rear: 1x M16
• Vacuum valve (optional): 25625 M16 vacuum valve II
• Handle and stabilizing brackets: Pre-installed
• HDMI support: HDMI 1.4/2.0
• Compatible cameras: Canon EOS R1 Camera

*The first batch(6pcs) is 80m, SN from A637182 to A637187.

Canon EOS 1 Camera Specifications:

• 24.2MP Stacked CMOS Dual Pixel sensor
• 100% AF coverage with cross-type sensors
• Up to 40fps blackout-free shooting (JPEG+Raw)
• Pre-capture for photo and video (1/2 sec. for photos, 3 or 5 sec for video)
• Eye-controlled AF with improved eye detection
• AI-trained Autofocus and post-shot processing modes
• 6K/60p internal Raw video capture
• DCI-4K capture up to 120fps
• Canon C-Log2 gamma profile
• Wi-Fi 6E and Ethernet connectivity

In the Box:

• NA- R1 Housing
• Housing Cap
• 2x Optical bulkhead caps
• 2x Handles with mounting balls and 2x handle brackets
• Panasonic CR-2450 Battery (pre-installed for moisture alarm)
• Spare main O-ring, O-ring remover and lubricant
• Set of Allen Keys
• Padded housing bag and shoulder strap
