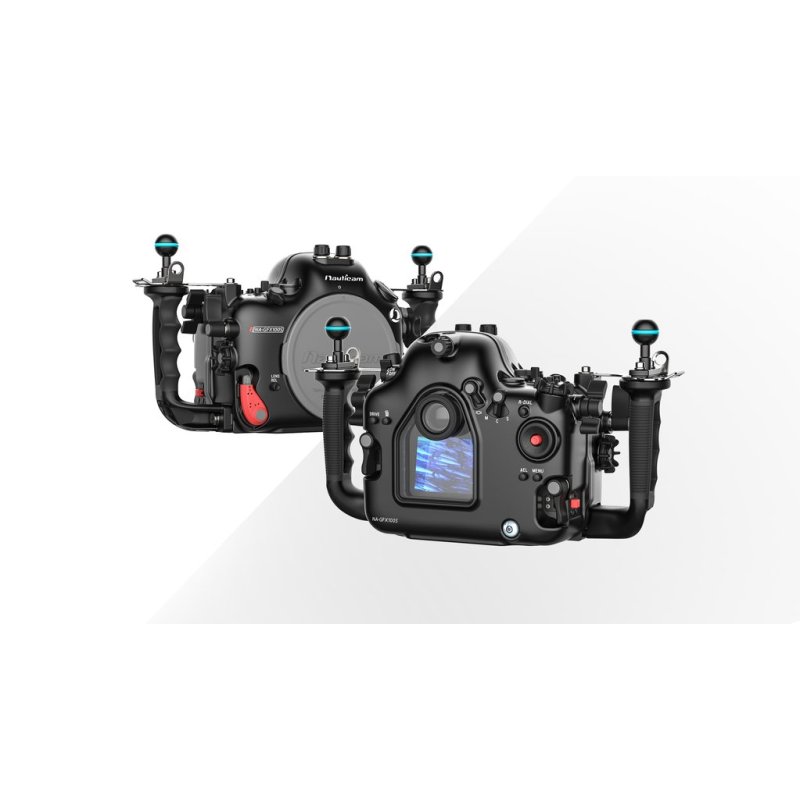

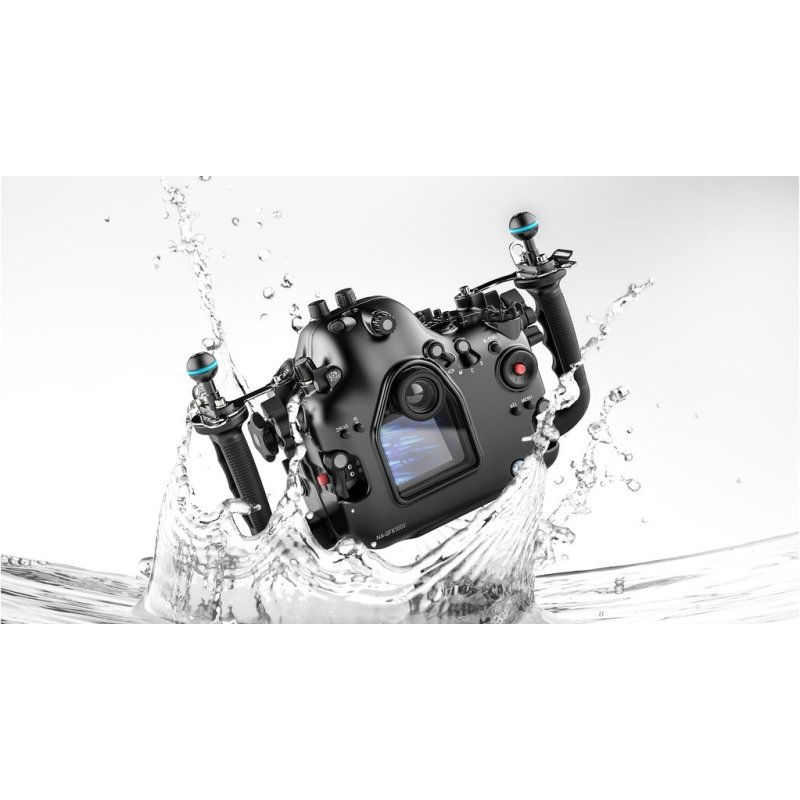

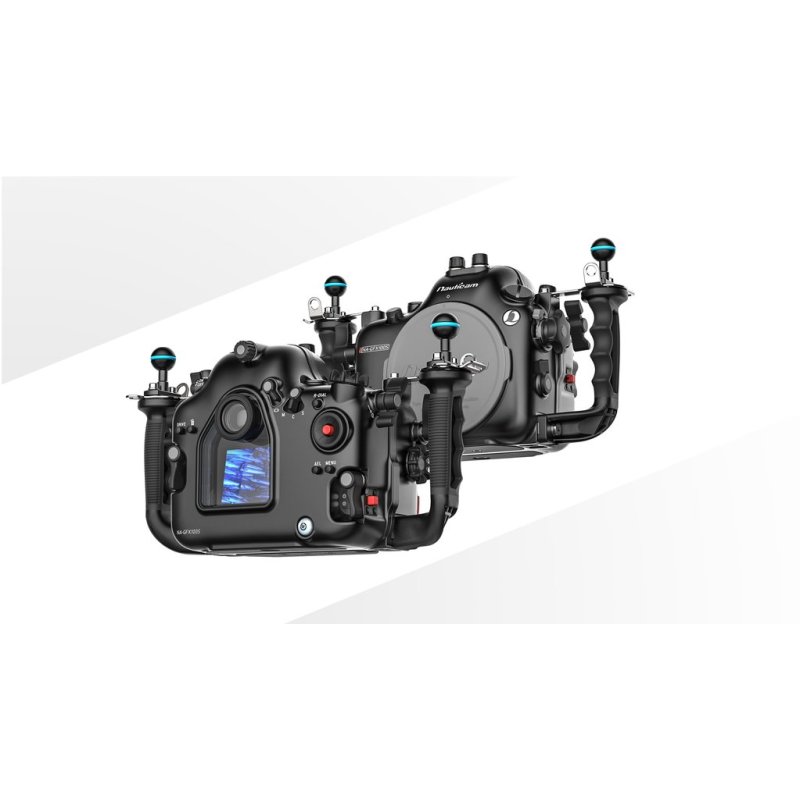

Nauticam NA-GFX100S Housing for Fujifilm GFX100S / SII Camera

Engineered for maximum performance underwater, the Nauticam NA-GFX100S Housing is precision-crafted for the Fujifilm GFX100S medium format camera. Built from durable machined aluminum and guided by Nauticam’s Mission Control design philosophy, this housing delivers an intuitive user experience, ergonomic handling, and full access to the camera’s powerful features—even at depths up to 100 meters.

Paired with the GFX100S’s 102MP resolution, this housing unlocks the full imaging potential of Fujifilm’s large-format sensor, making it the ideal choice for professional underwater photographers and filmmakers.

Key Features:

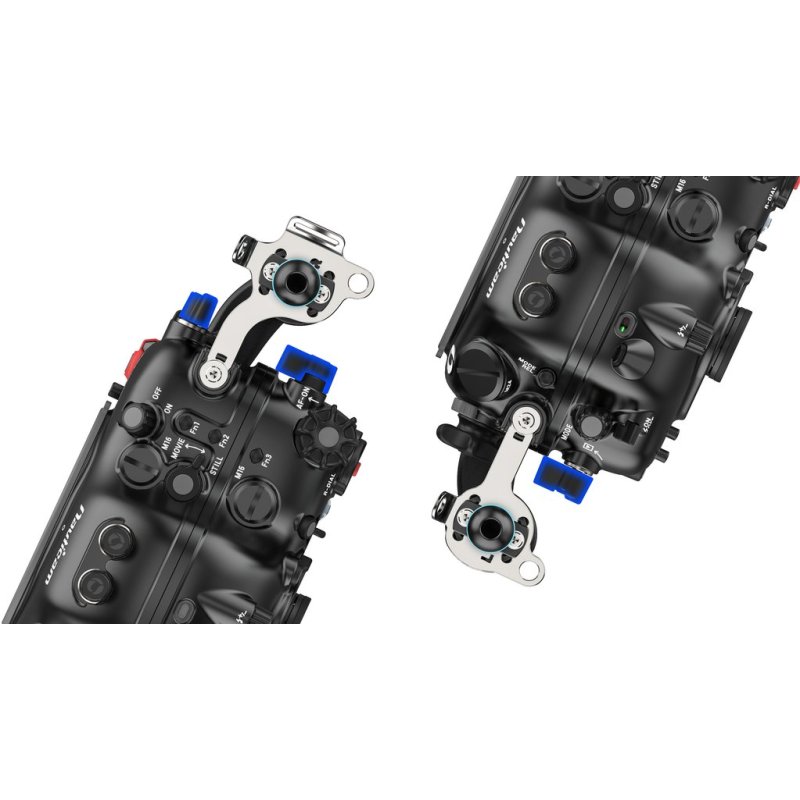

• Mission Control Ergonomics: Easily access critical controls like AF-ON, Q-menu, focus, view modes, playback, and display—all from sculpted handles with stainless steel reinforcement for stability, even with large strobes or video lights.

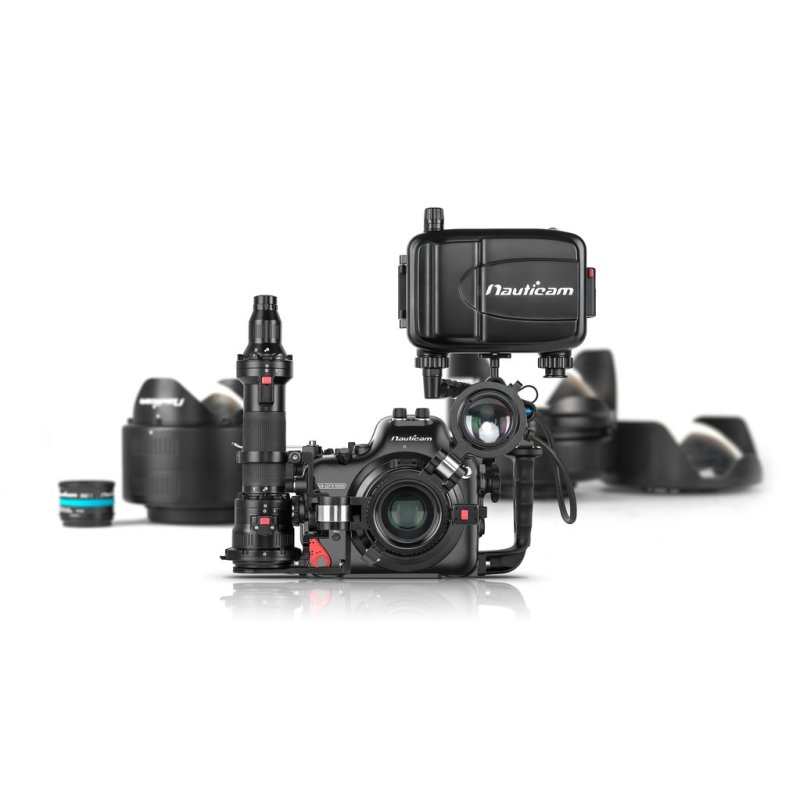

• Optimized for Premium Optics (N120 Port System): Compatible with a wide range of GF-mount lenses and supports Nauticam’s professional optics, including WACP-2, achieving up to 140° field of view with industry-leading sharpness and near-zero minimum focus distance.

• Reliable Flash Triggering Options: Supports fiber-optic flash triggering with the optional Fujifilm EF-X20 TTL flash, or electronic strobe connection via an M14 Nikonos bulkhead and universal hot shoe (TTL not supported in this configuration).

• 4K HDMI Video Output Support: Capture high-resolution underwater footage with uncompressed 4K HDMI output. Compatible with HDMI 2.0 via the front M24 bulkhead—ideal for pairing with external monitors and video recorders.

• Integrated Vacuum Check & Leak Detection System: Real-time, temperature-compensated monitoring with LED status indicator and audible alarm—ensuring your housing is sealed and dive-ready at all times.

• Built for Hybrid Creators: Switch between photo and video modes quickly using the dedicated top-mounted lever. Designed for seamless operation above and below the surface.

Technical Specifications:

• Dimensions: 355mm (W) x 190mm (H) x 142mm (D)
• Weight in Air: 3.23 kg
• Weight in Water: 0.05 kg (with camera & battery)
• Depth Rating: 100m
• Port Mount: N120
• TTL Flash Trigger: Compatible with Fujifilm EF-X20 TTL

In the Box:

• NA-GFX100S Housing
• Spare Main O-Ring, Removal Tool & Lubricant
• 2x Optical Bulkhead Caps
• Dual Handles with Mounting Balls & Handle Brackets
• Panasonic CR-2032 Battery (Moisture Alarm)
• Allen Key Set
• Instruction Card
• Padded Housing Bag with Shoulder Strap
