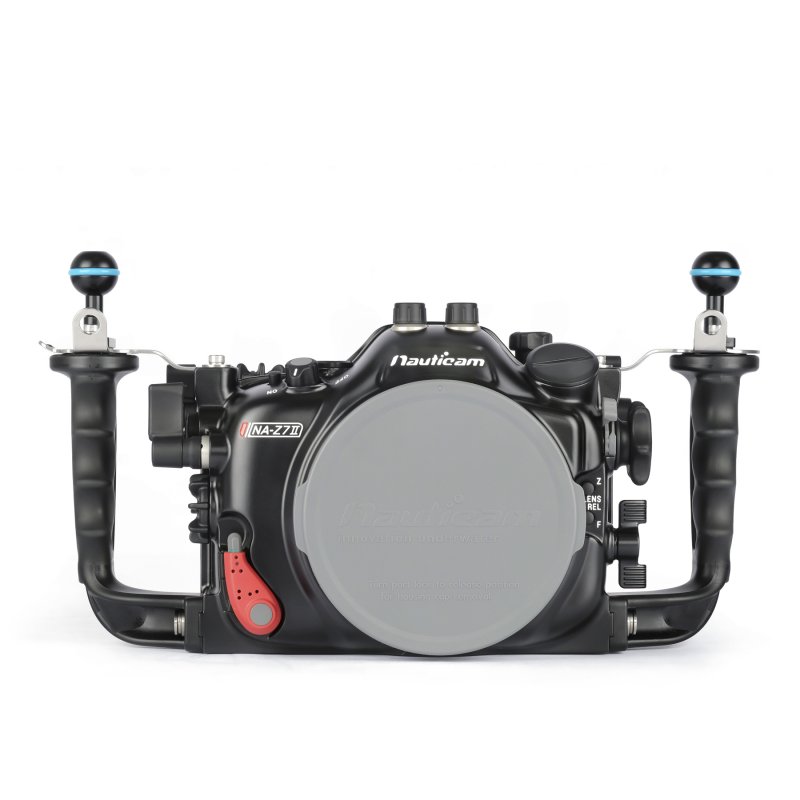

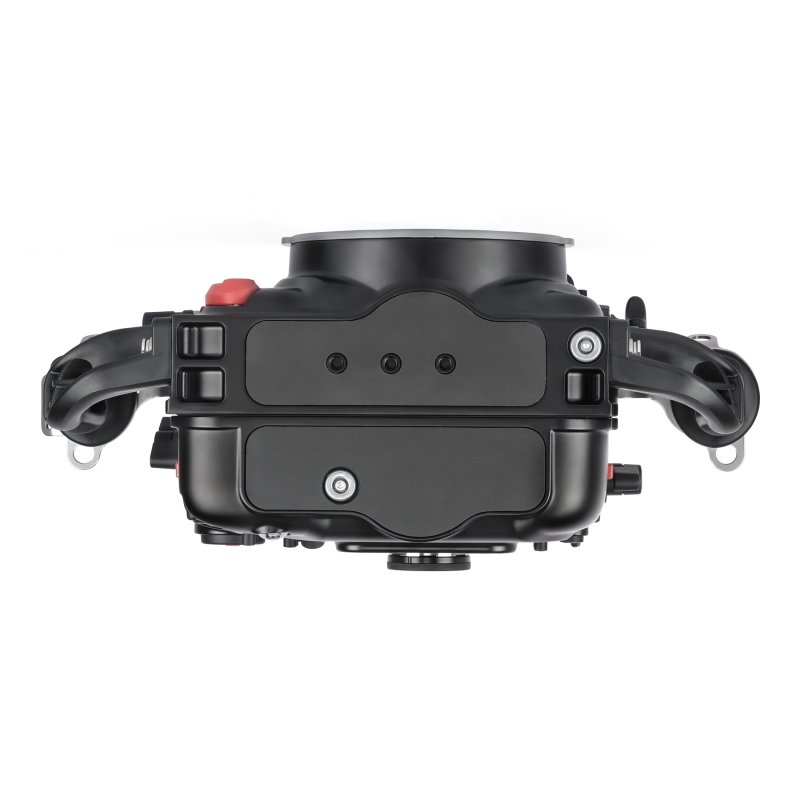

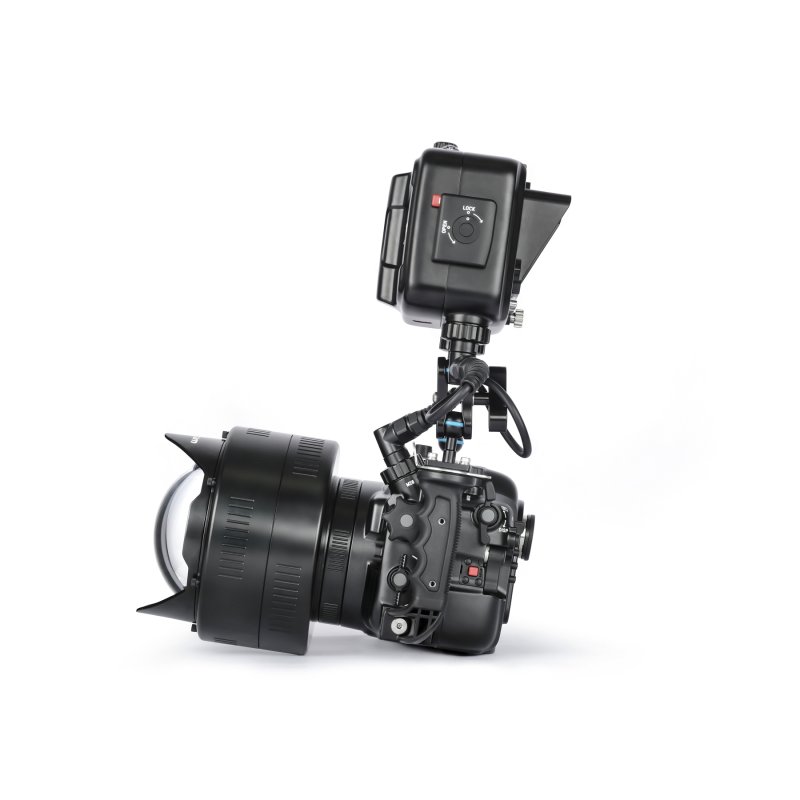

Nauticam NA-Z7II/Z6II Housing for Nikon Z7II/Z6II Camera

Built with precision and purpose, the Nauticam NA-Z7II housing delivers seamless functionality, rugged performance, and intelligent design for underwater photographers and videographers using the Nikon Z 6II or Z 7II. With full support for both Z Mount and F Mount lenses via the FTZ adapter, this housing is future-ready while maintaining backward compatibility with legacy optics.

The NA-Z7II uses the N120 port system, supporting a broad range of lenses and ports from Nikon SLR and mirrorless systems. Combined with Nauticam’s Water Contact Optics and integrated leak/vacuum detection, this housing is the perfect tool for pro-level underwater imaging.

Key Features:

• Dual Lens System Support: Compatible with both Z Mount and F Mount lenses using the FTZ adapter. Dedicated lens release buttons for each mount allow quick lens changes without removing the camera (except when switching mount types). Integrated with the N120 port system—future-proof and backward compatible.

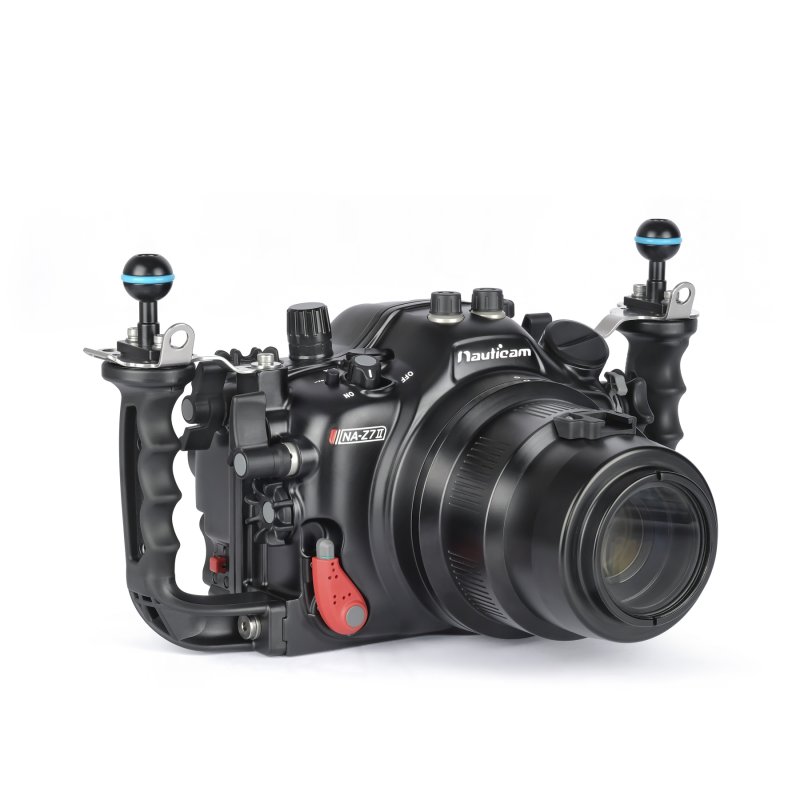

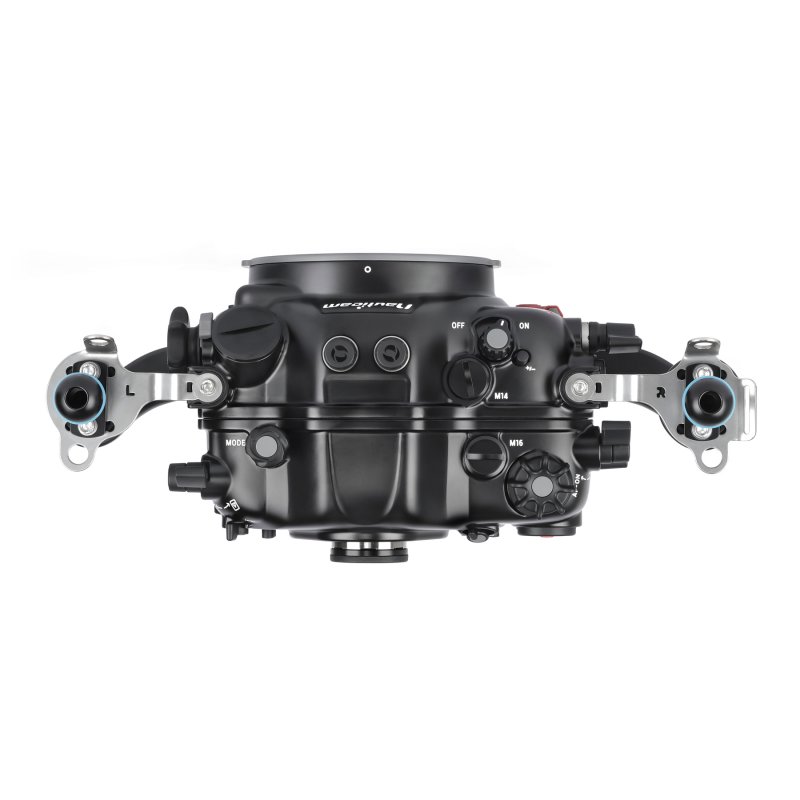

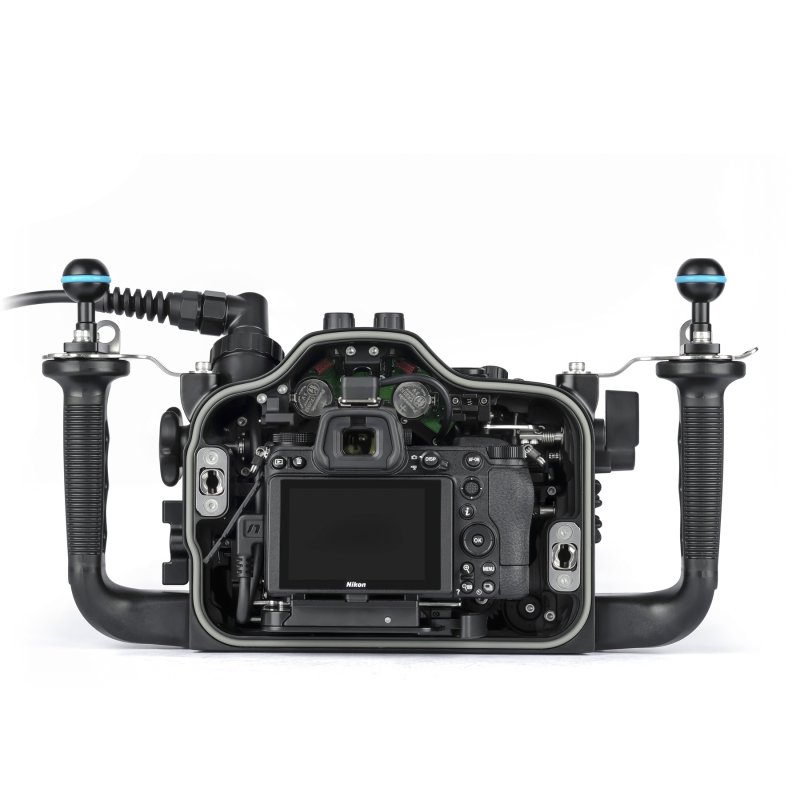

• Mission-Control Ergonomics: Essential camera functions—AF-ON, Record, ISO, DISP, Playback, Zoom In/Out—are relocated for intuitive underwater access. Large, textured front and rear control dials at your fingertips. Ergonomic rubberized handles with stainless steel stiffening brackets for stability when using heavy strobes or lights.

• Flash Triggering Included: Manual LED flash trigger (pre-installed) enables high-speed fiber optic strobe firing. Powered by coin cell batteries for thousands of flashes per charge. TTL upgrade available with optional PN 26308 TTL Converter for Nikon.

• Integrated Vacuum & Leak Detection System: Color-coded LED indicator with audible alarm. Monitors water-tight status in real time when paired with the optional M16 vacuum valve (PN 25625). Temperature-compensated to eliminate false alerts due to environmental changes or internal camera heat.

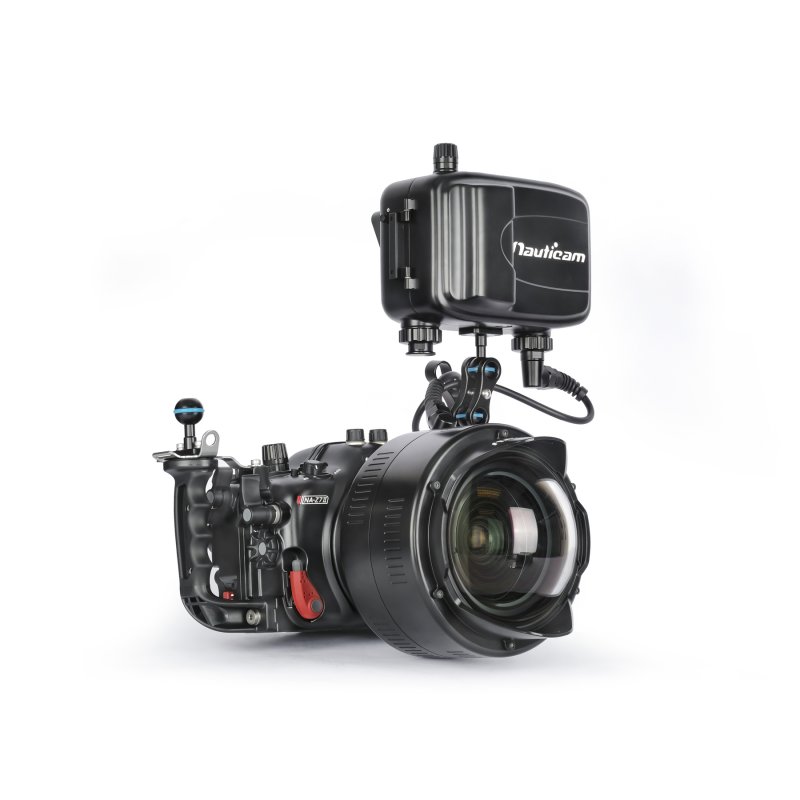

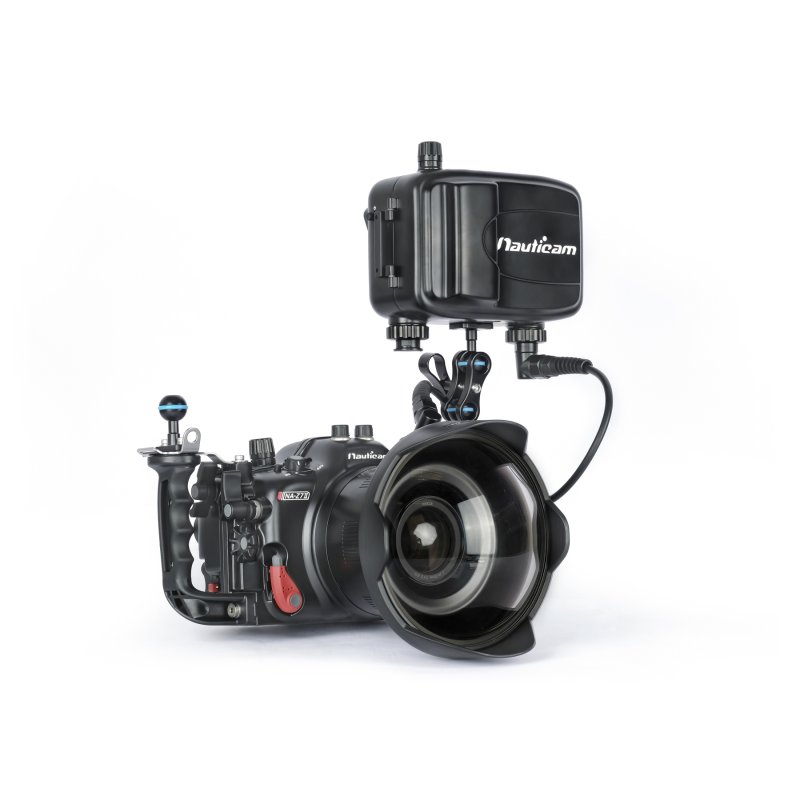

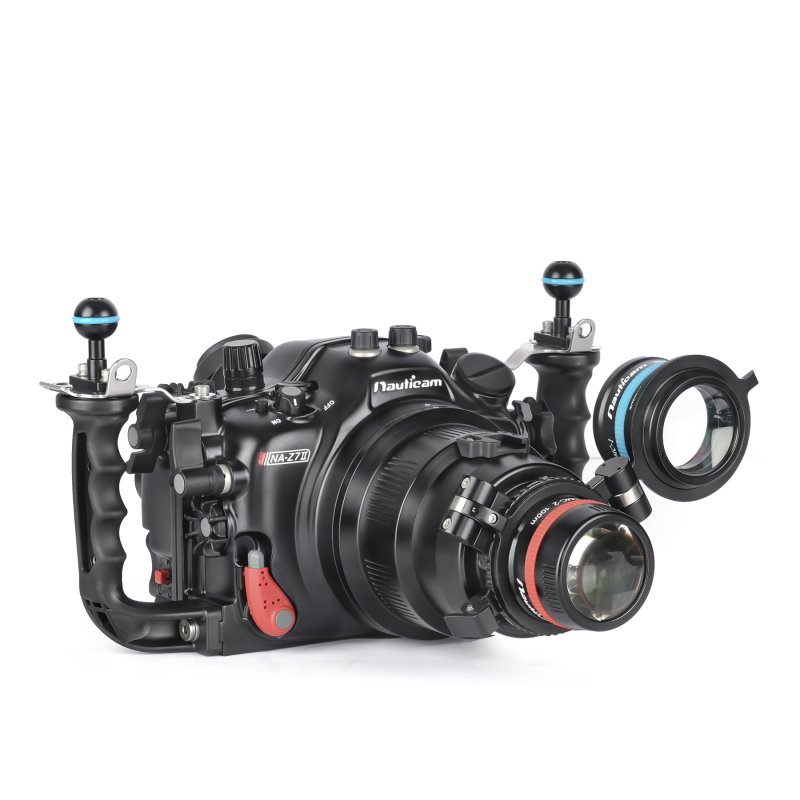

• Professional Optical Compatibility: Supports a wide range of flat and dome ports for both Z and F mount lenses. Fully compatible with Nauticam Water Contact Optics for best-in-class results:
  • WACP-1 & WACP-2: 130° ultra-wide view, ~0" minimum focus, corner-to-corner sharpness, zoom-through functionality.

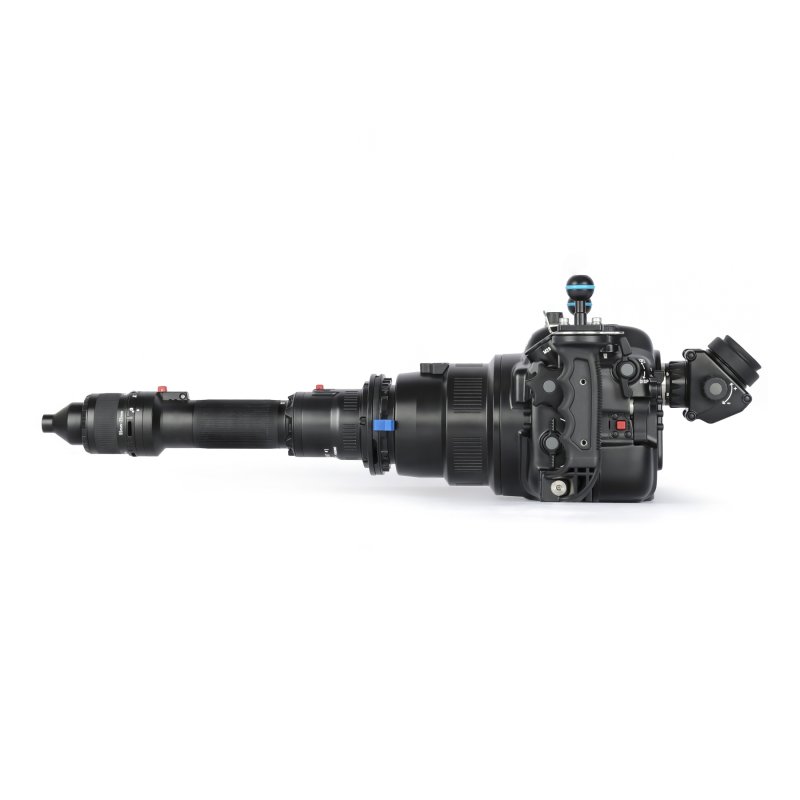

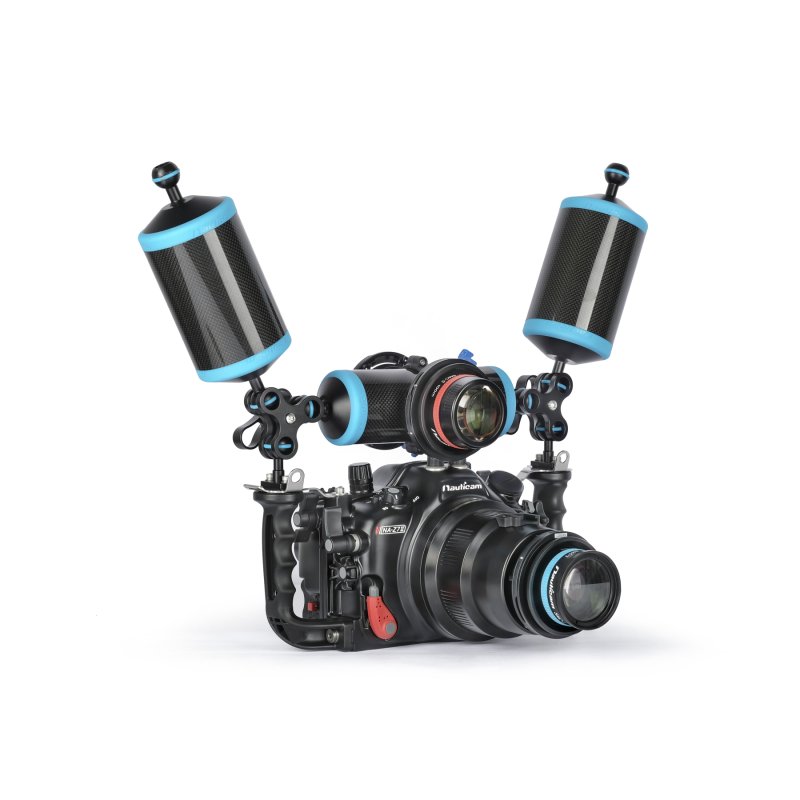

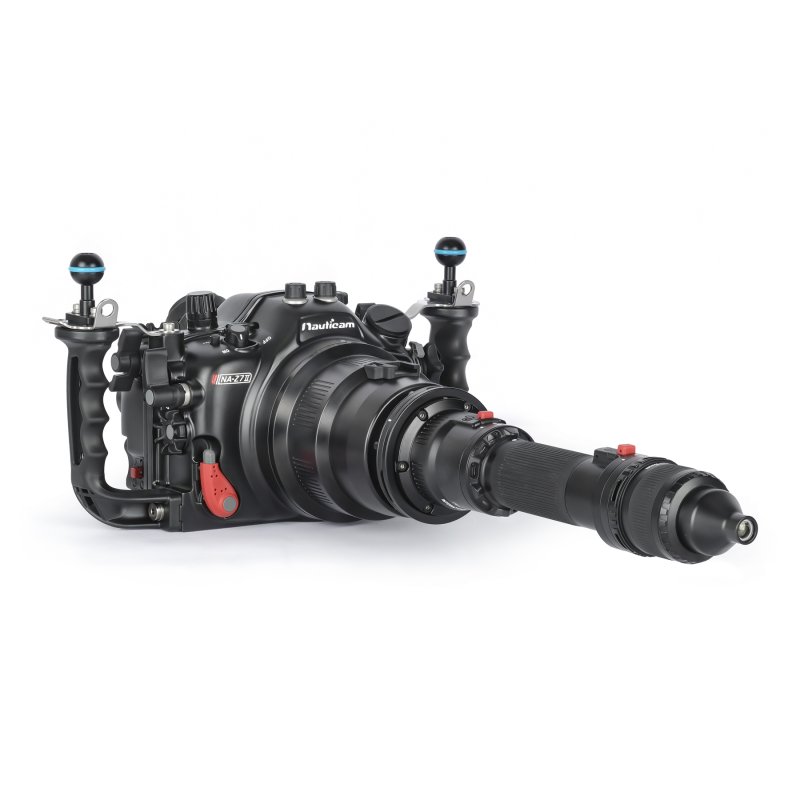

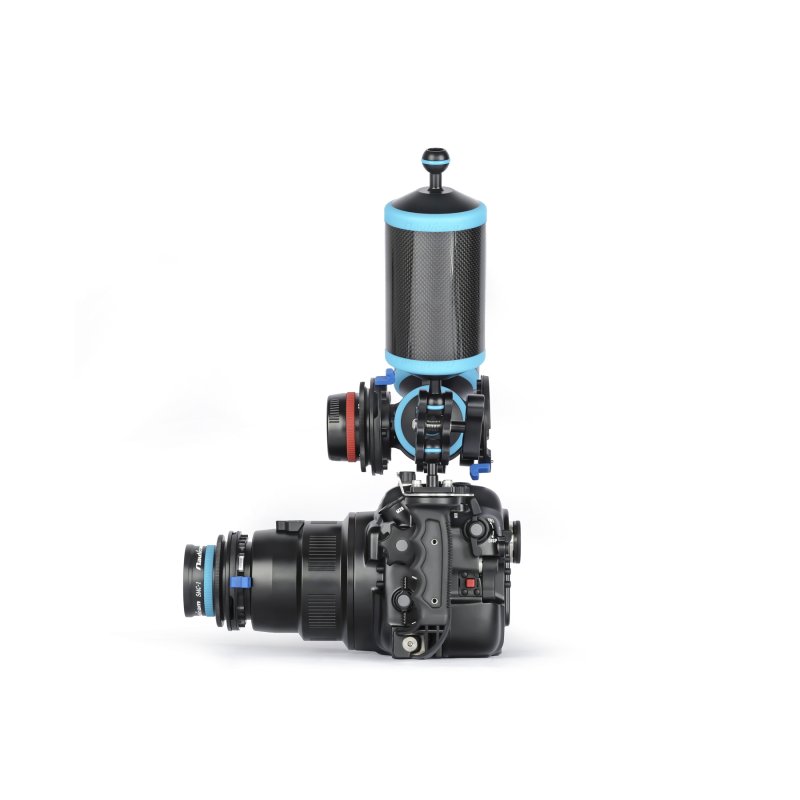

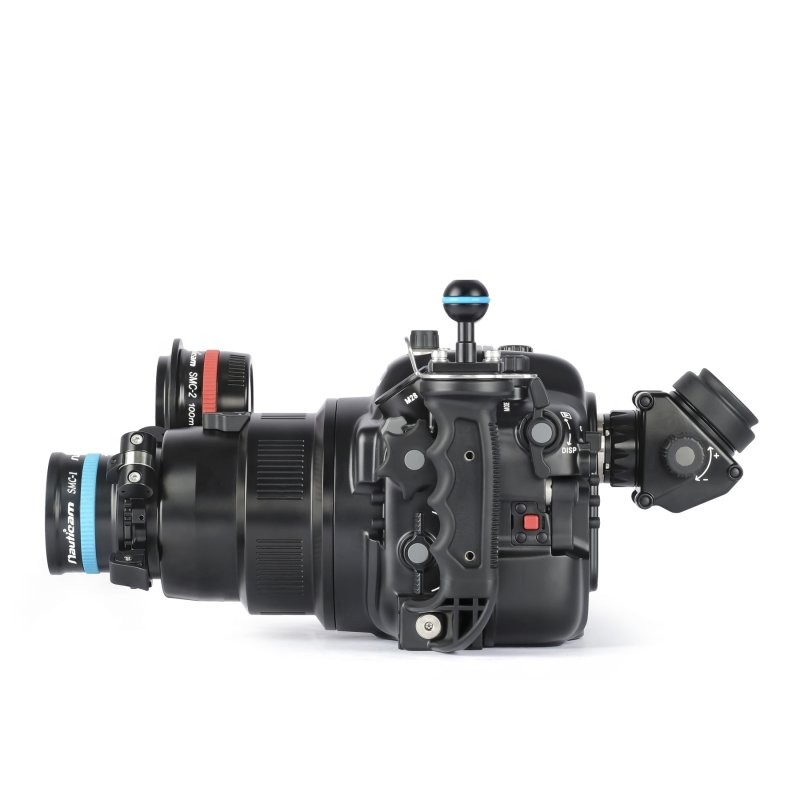

  • SMC-1 & SMC-2: Extreme macro performance with up to 4x magnification and increased contrast over the native 105mm macro lens.

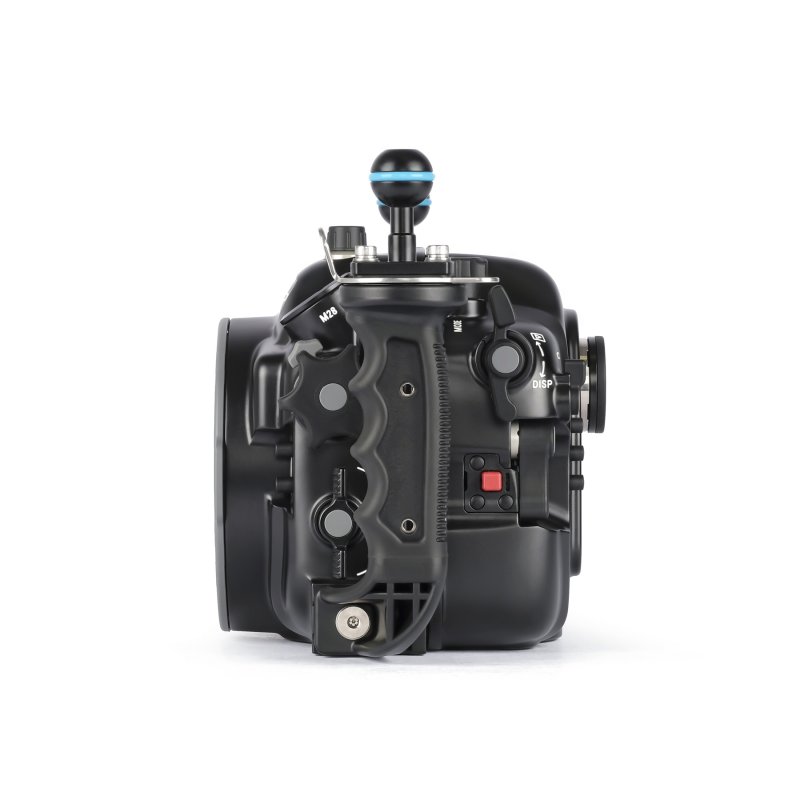

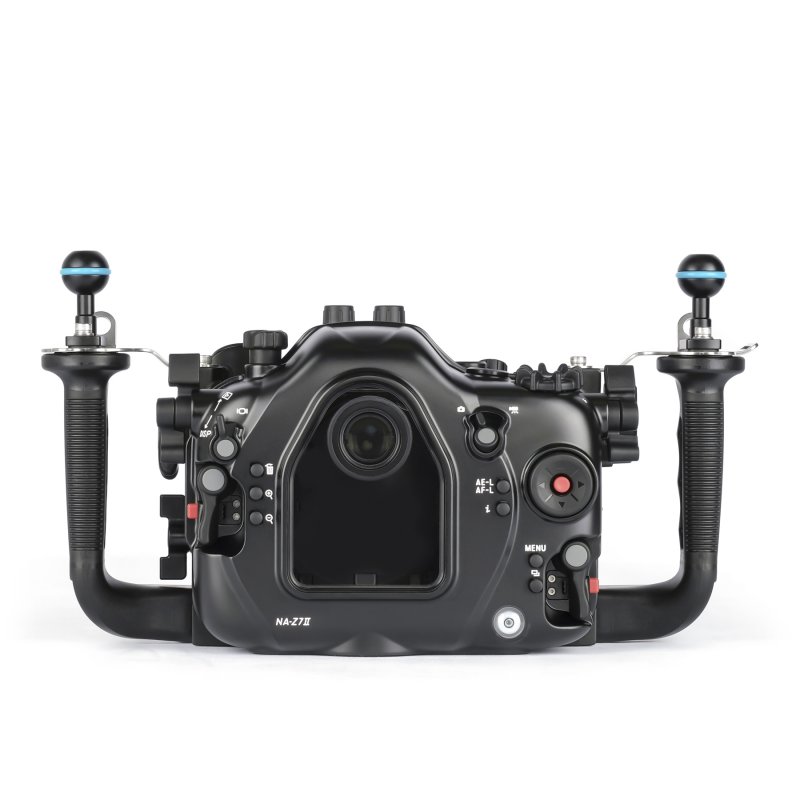

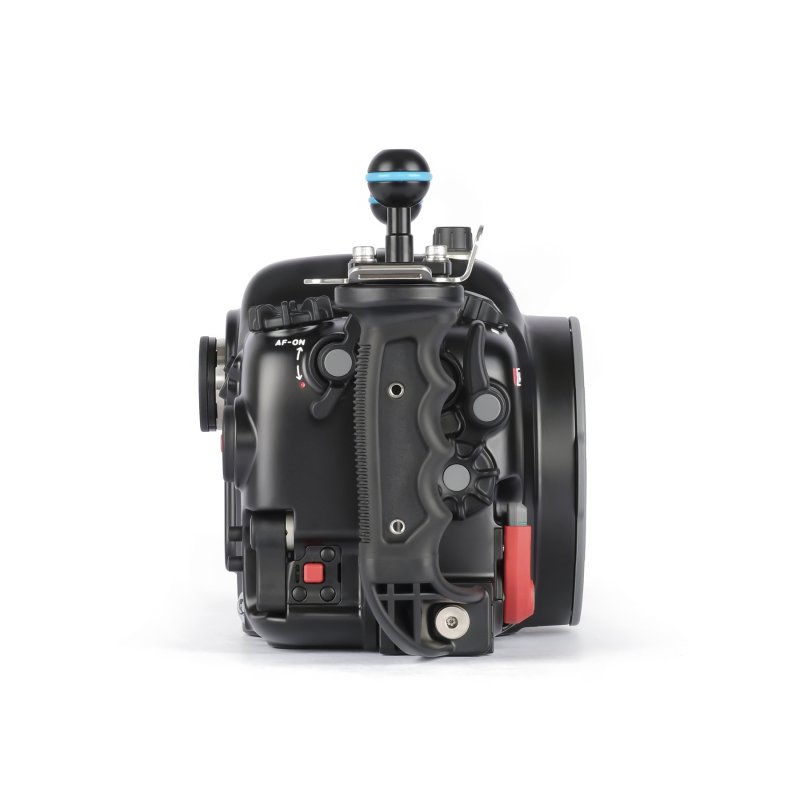

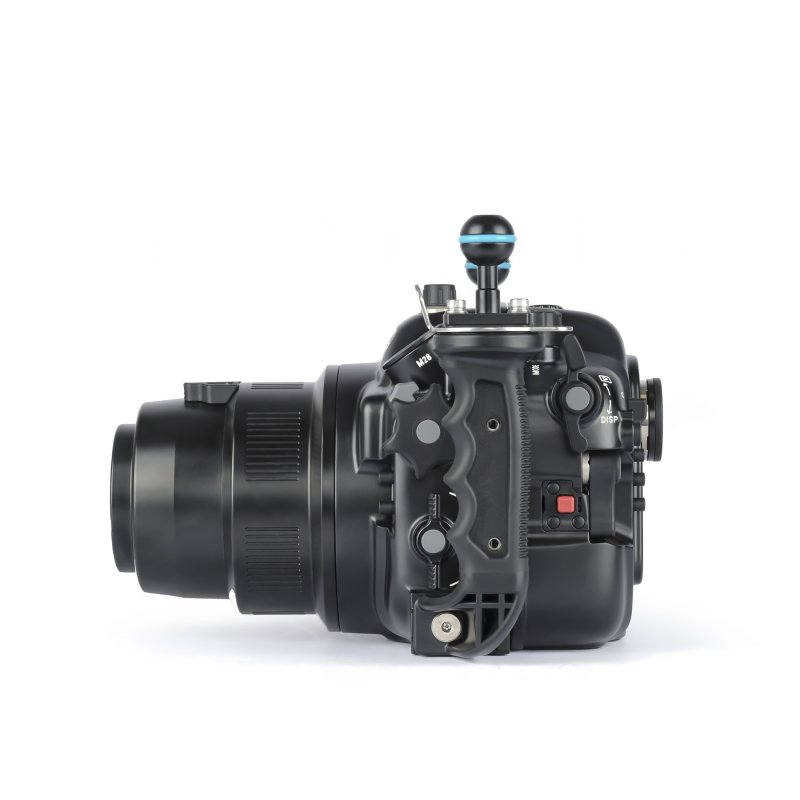

• User-Centered Control Layout: Right-side double thumb lever for AF-ON and Record. ISO lever between shutter and thumb lever for rapid sensitivity adjustment. Left-side double lever for DISP and Playback. Repositioned Zoom In/Out controls for familiarity and ease of use. Switch between EVF and LCD located within easy reach near the left handle. Easily accessible STILL/VIDEO mode switch on rear right side.

Technical Specifications:

Dimensions: 360mm(W) x 200mm(H) x 160mm(D)

Weight In Air: 3.1kg

Weight In Water: negative 0.07kg (with camera and battery)

Depth Rating: 100m

Port System: N120

In the Box:

• NA-Z7II Housing (N120 Mount)
• 90122 Housing O-ring, lubricant and removal tool
• CR2032 Battery (for vacuum system)
• Padded Travel Case
• Allen Wrench Set
