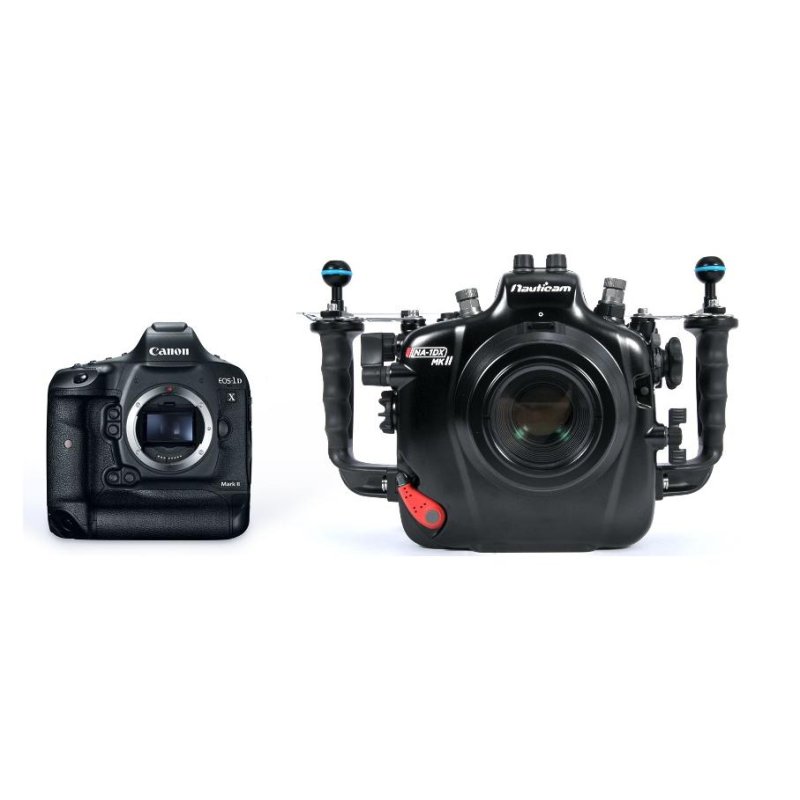

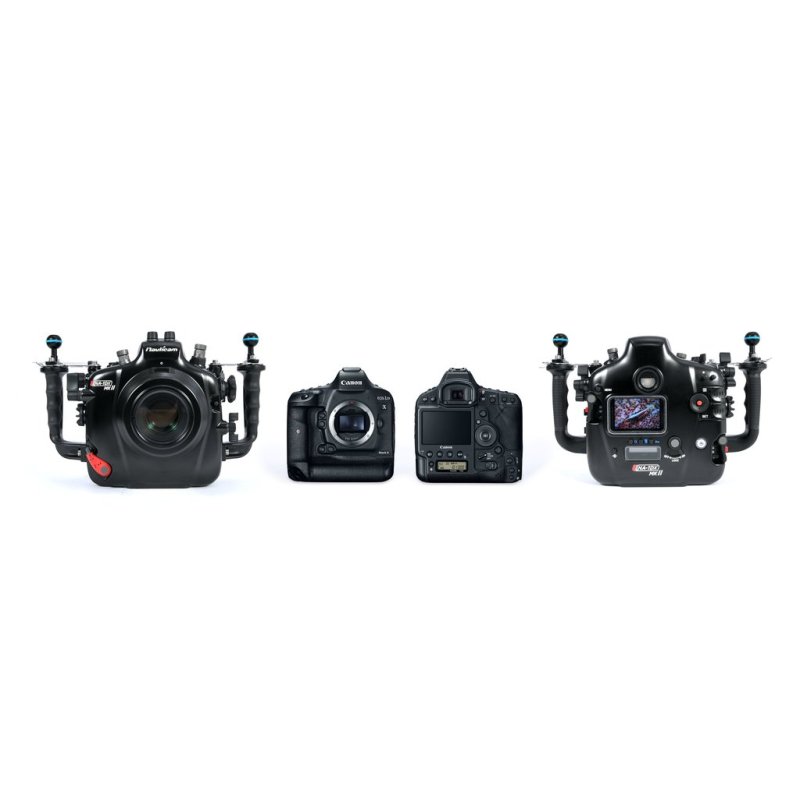

NA-1DXII housing for Canon Eos 1DX Mark II camera

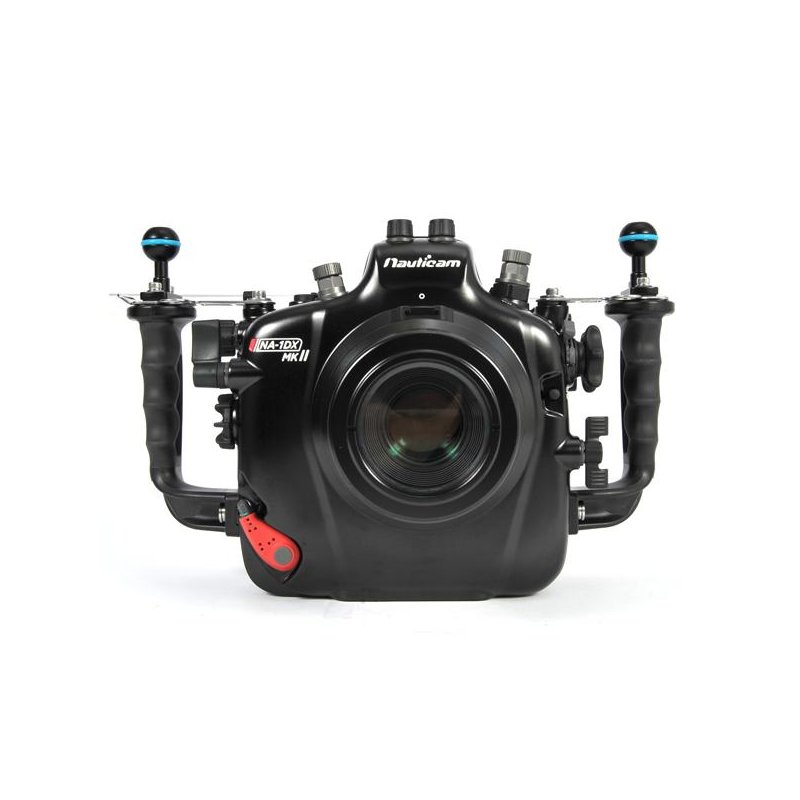

Nauticam NA-1DXII Housing

Nauticam housings are evolutionary marvels, with advancements from previous systems providing the foundation that new models are built on.  The new Nauticam NA-1DXII housing incorporates advances from the Nauticam housings that came before it but features enhanced ergonomics, more and better control access, and reduced size/weight thanks to cutting edge manufacturing processes.

There is clear continuity within the Nauticam DSLR lineup, and this consistency in control layout is something that professional image makers appreciate.  Whether using a 1DX Mark II, 5DSR, or 7D Mark II the control access is remarkably similar and instantly familiar. At first glance, it seems that Nauticam engineers have literally thought of everything.  The truth is, they just listen.  The thousands of Nauticam users, constantly in the field, have thought of everything.  The engineering team integrates this user feedback, and the product line gets better and better with every new model release.

VIEWFINDERS

The standard optical glass viewfinder is very good and travel-friendly, but many photographers prefer the ease of a magnified viewfinder with adjustable diopter. Nauticam produces a “straight” 180º enlarging viewfinder and a 45º angled enlarging viewfinder to enhance the ease of close quarters work often associated with macro shooting. Both viewfinders have high-quality optics and allow bright viewing of the entire image. A patented external dioptric adjustment allows personal adjustment to a sharp-as-a-tack standard underwater and viewfinder changes can be executed in less than 30 seconds without using tools. Exceptional composition and focus accuracy have never been more accessible.

PREMIUM PROFESSIONAL OPTICS

Experienced shooters know a camera is only as good as the lens in front of it, and the same is true when choosing optics for an underwater camera system.  Four optically coated glass dome ports (250mm, 230mm, 180mm, and 140mm diameters) and a series of acrylic ports support popular lenses from Canon, Sigma, and Tokina.  Port configurations are extensively tested at Nauticam to determine the ideal extension ring length for best performance.
For macro and super macro shooting, the Nauticam Super Macro Converter is a revolutionary accessory. This is an entirely in house design, optimized for use in water.  The water contact correction offers the highest overall sharpness, free from chromatic aberration and purple fringing, with reproduction ratios exceeding 2:1 when used with a EF 100mm f/2.8L IS USM Macro Lens.
.

Standard Features

• Patented Locking Port Release Lever
• Sensitive Two Stage Shutter Release Lever
• Optical Strobe Connectors
• Rubberized Ergonomic Grips
• 2 Customizable Accessory Ports (allowing use of optional Nikonos, S6, or Ikelite Strobe Connectors, Hydrophone, Video Out, or Remote Control Connectors)
• Embossed Control Function Labels
• Quick Release Camera Mounting Shoe
• Lens Release Button
• Four Strobe & Accessory Base Mounting Locations
• Complete Access to All Key Camera Controls
• Stainless Steel Support Brackets for Handles
• .66x Optical Pickup Finder (Enhanced 180 deg Viewfinder with External Diopter Adjustment
• Audible and Visual Leak Alarm

TECHNICAL SPECIFICATIONS

• Depth Rating    100m
• Weight              3.32kg
• Dimensions      366mm (W) × 247mm (H) × 153mm (D)
• Port Opening    N120

WHAT'S IN THE BOX?

• NA-1DX Housing
• Spare Main O-ring
• O-ring Remover
• CR-2450 Battery (for Moisture Alarm)
• Lubricant
• Set of Allen Keys
• Canon Hotshoe Plug to Dual Nikonos Connectors
