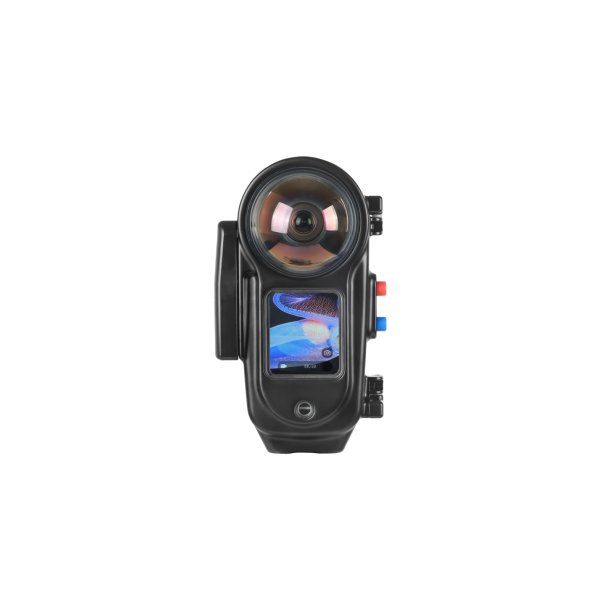

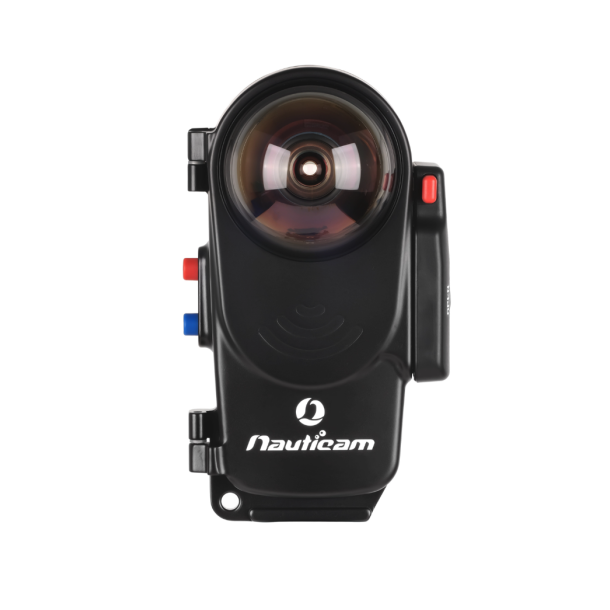

Nauticam Housing for Insta360 X5

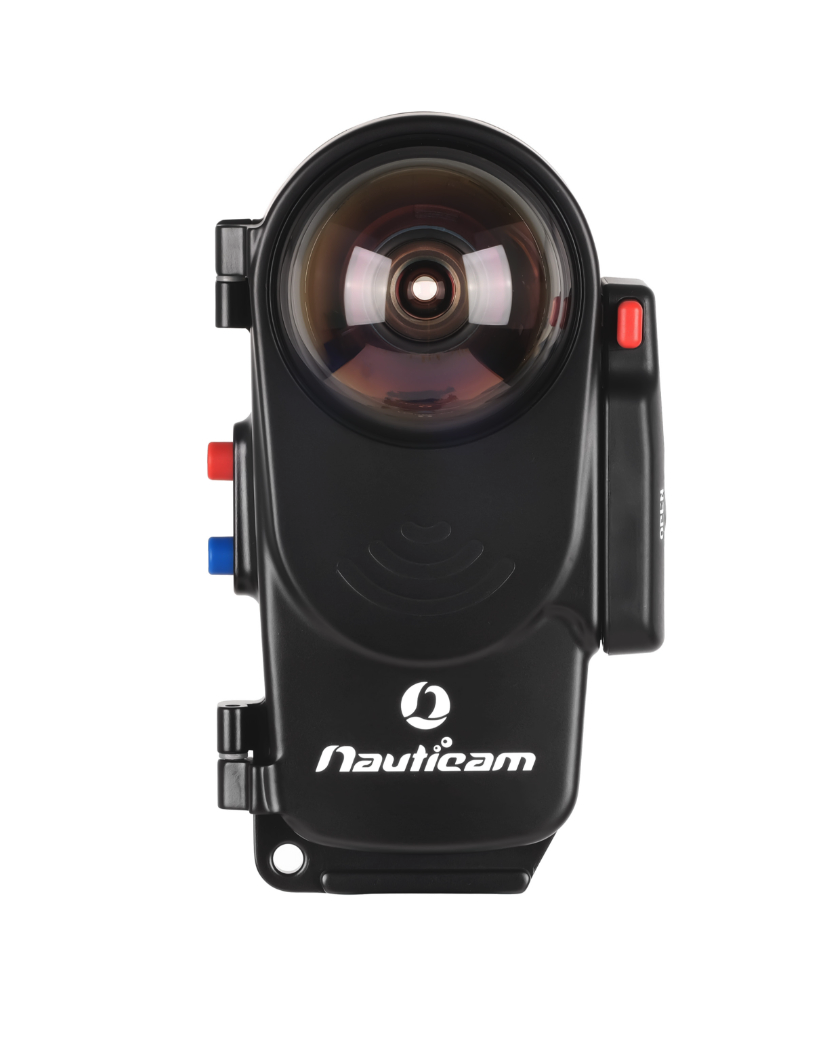

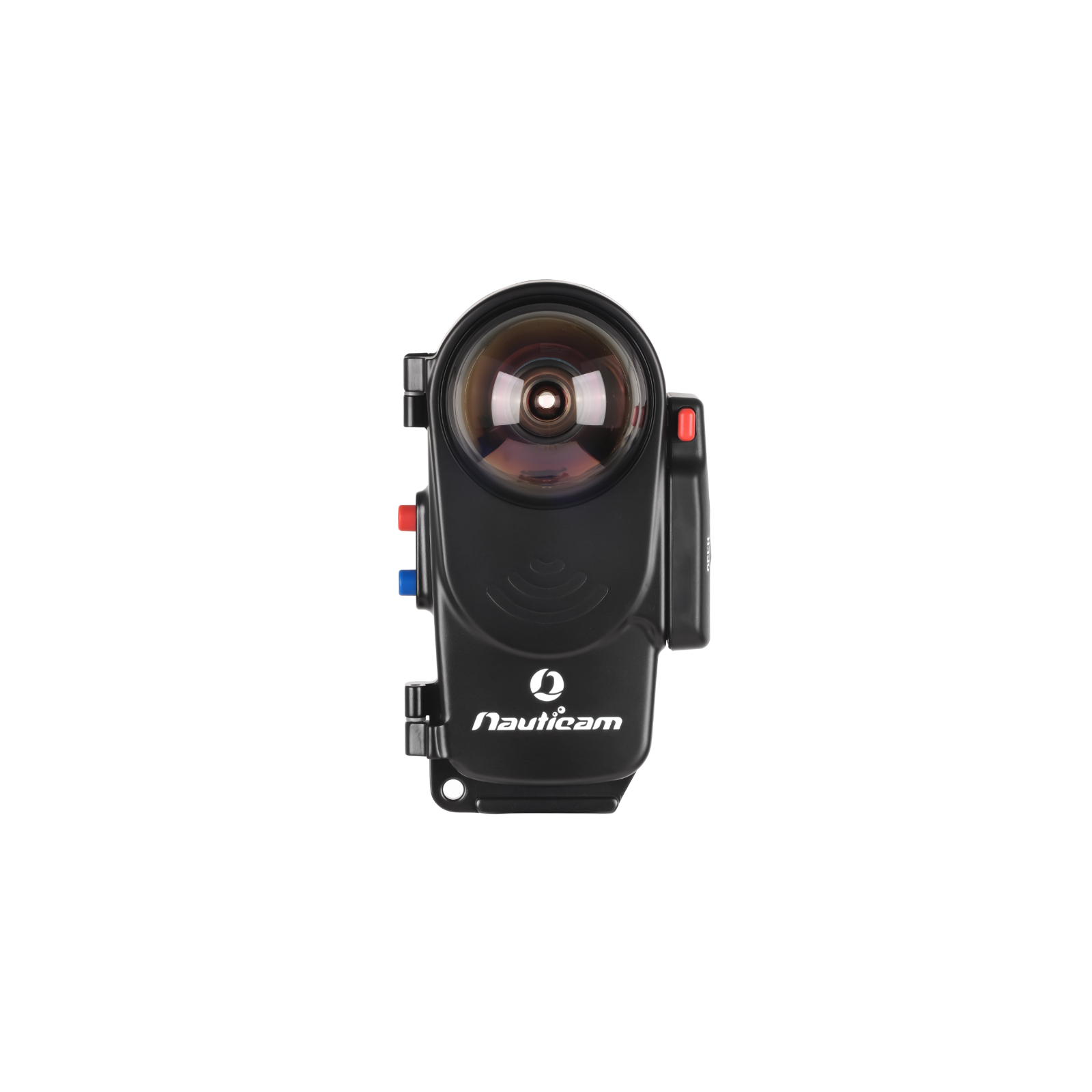

The Nauticam Housing for Insta360 X5 is a precision-engineered underwater housing designed specifically for the Insta360 X5 camera. Manufactured from hard-anodized aluminum alloy, it provides robust protection and reliable performance for underwater 360° capture at depths of up to 100 meters. The housing features dedicated optical lenses that replace the camera’s original outer lenses, ensuring optimal image quality underwater while maintaining the camera’s full panoramic capability. Ergonomic, color-coded controls allow intuitive operation, and the secure rotary locking system combined with a proven O-ring seal delivers confidence in demanding dive environments. Automatic Dive Mode is activated once the housing is closed, streamlining underwater setup and operation.


Key Features

• Hard-anodized aluminum alloy construction
• Depth rating up to 100 meters
• Designed exclusively for Insta360 X5
• Dedicated optical lenses for underwater use
• 190-degree angle of view per lens
• Anti-reflection coated optics
• Automatic Dive Mode activation when housing is closed

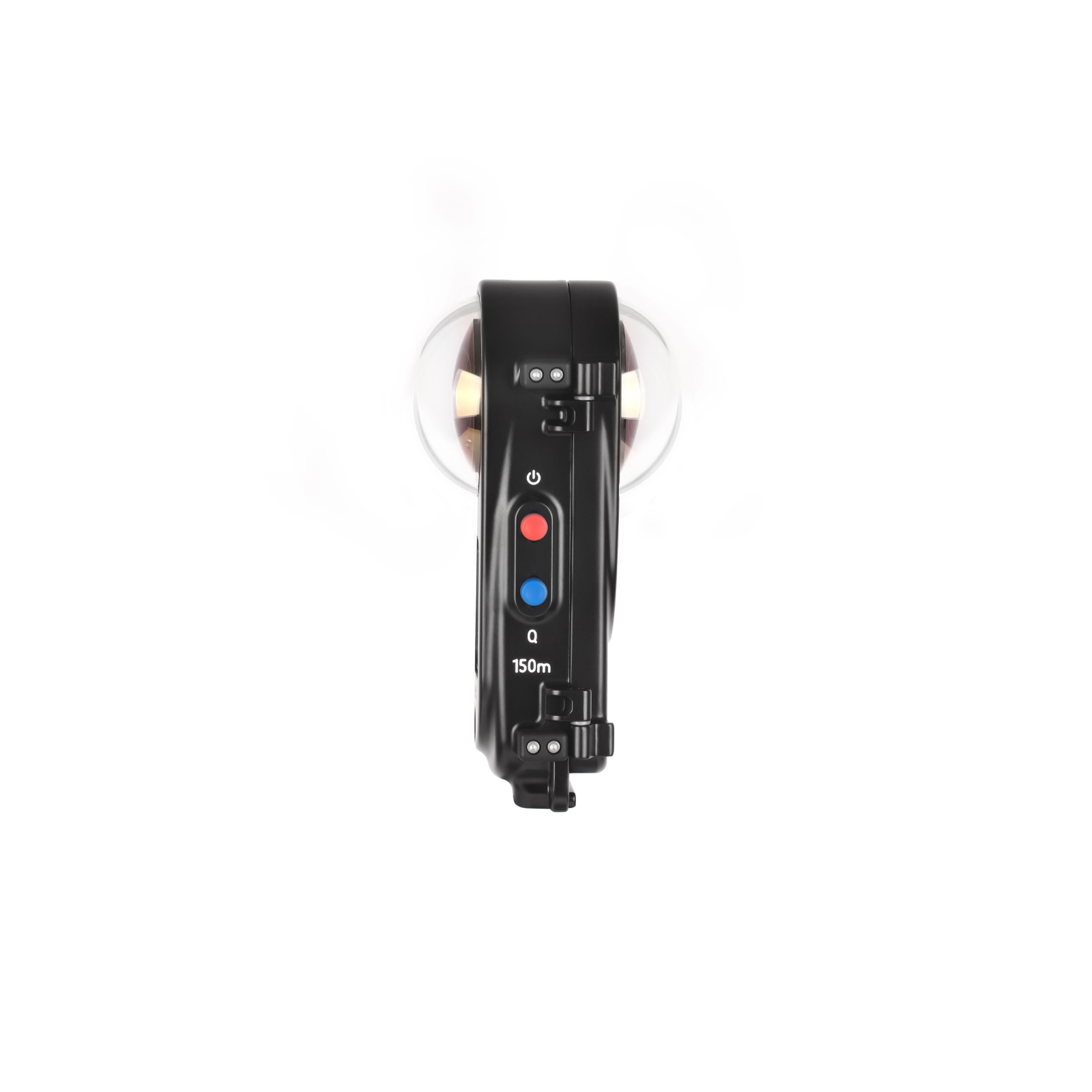

• Ergonomic, color-coded push-button controls

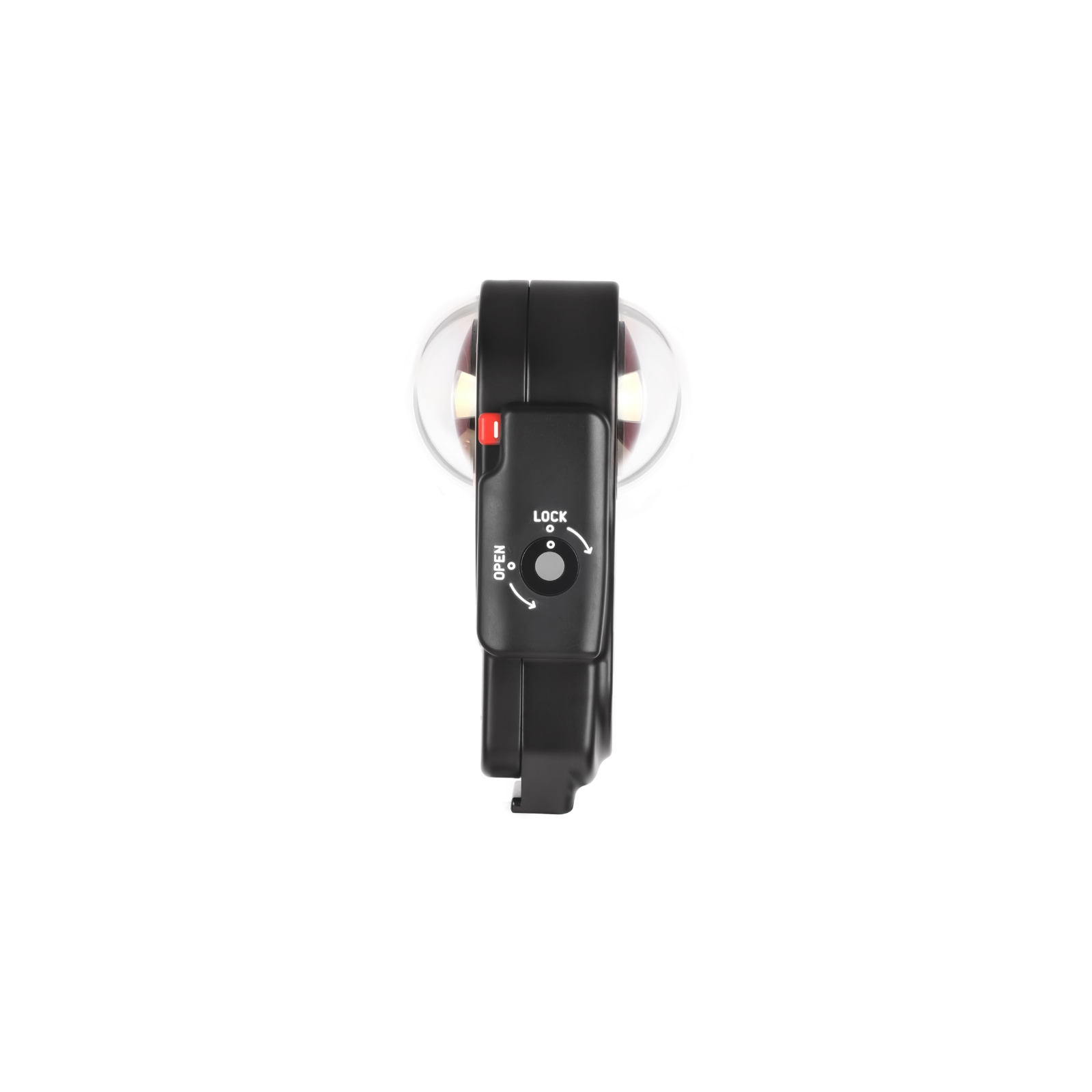

• Secure rotary housing locking system

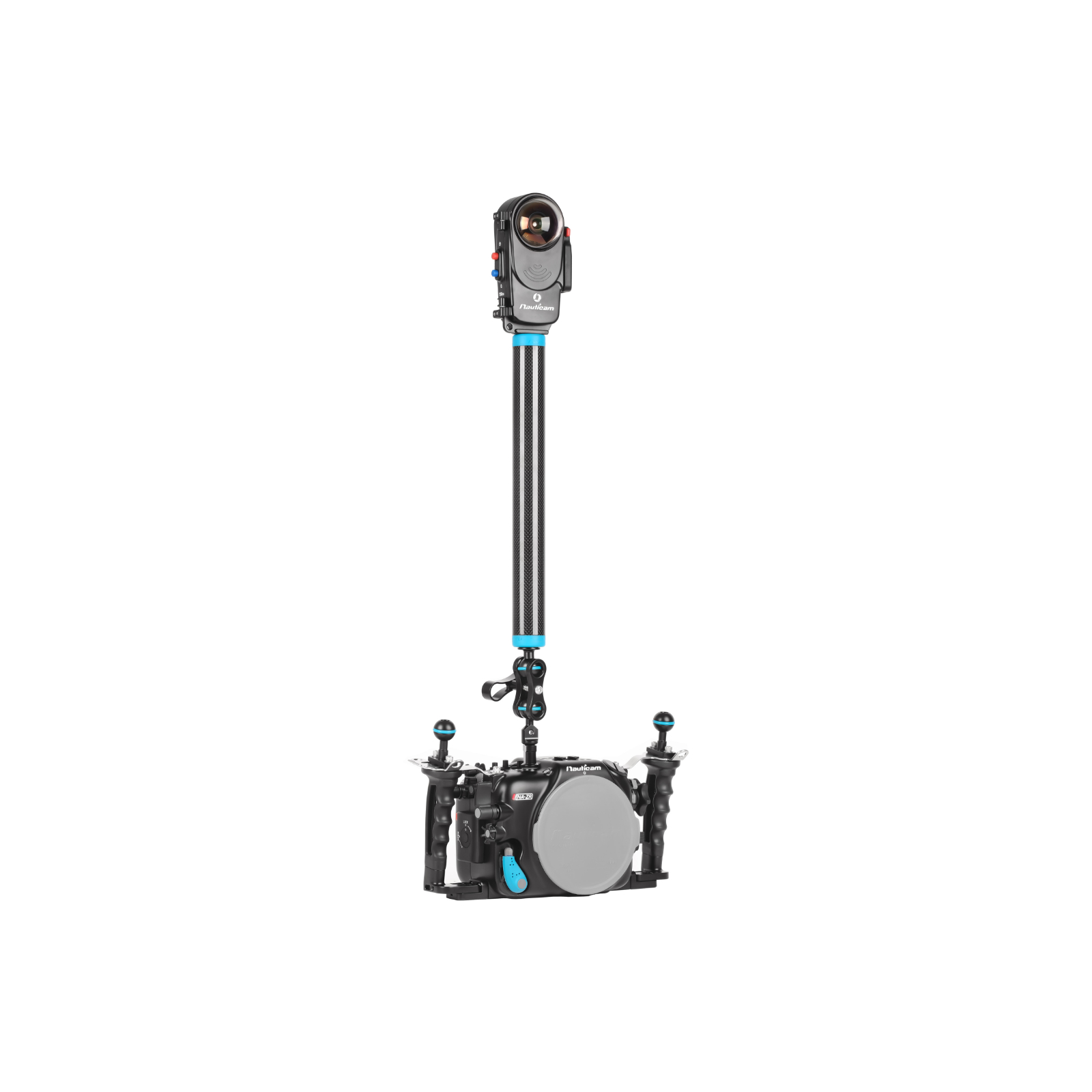

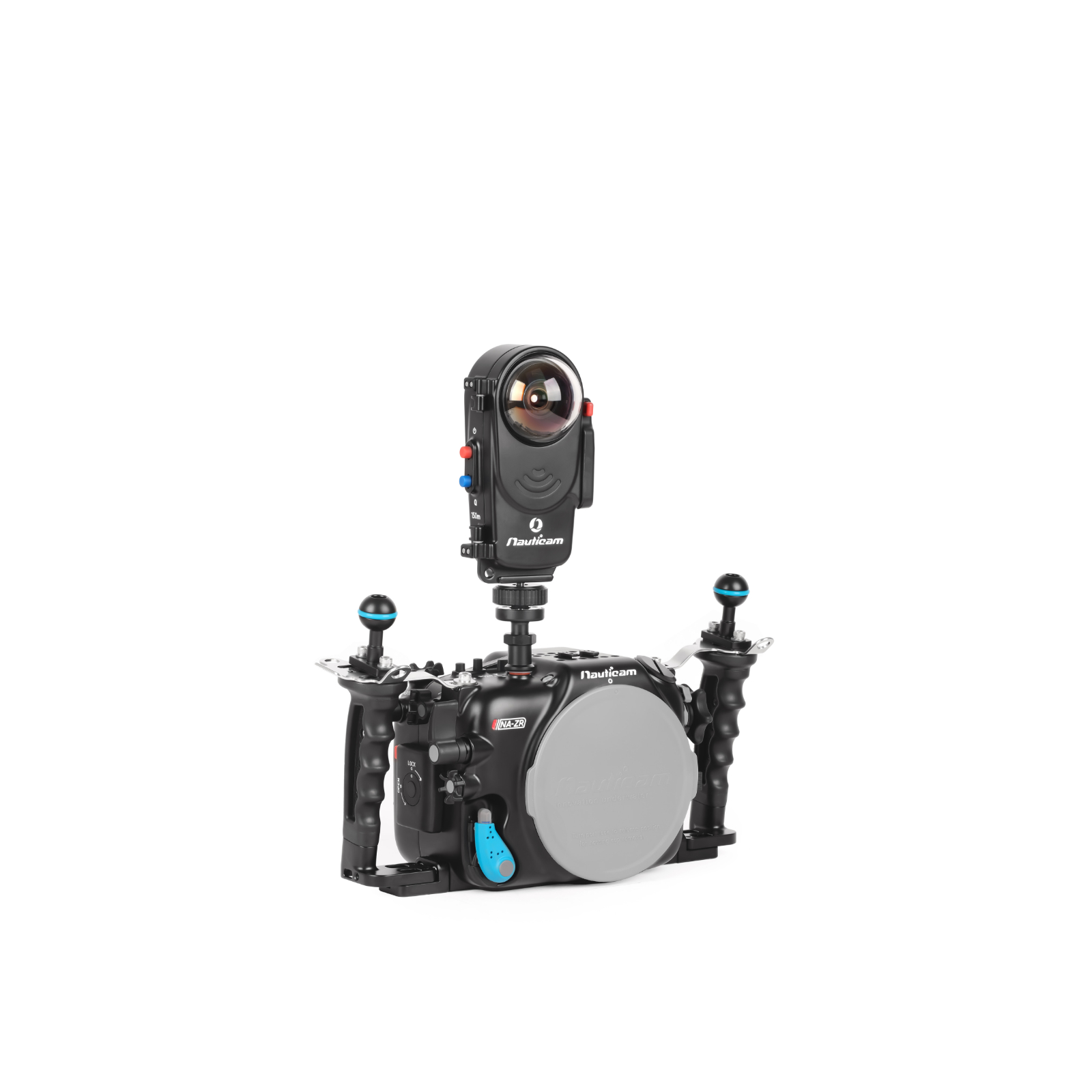

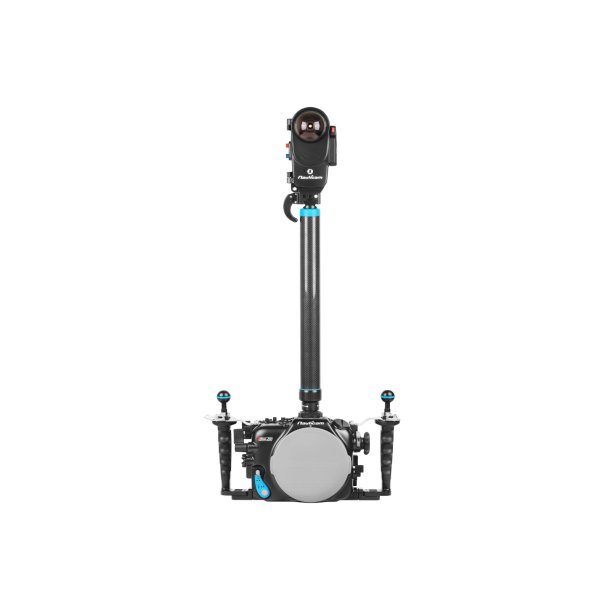

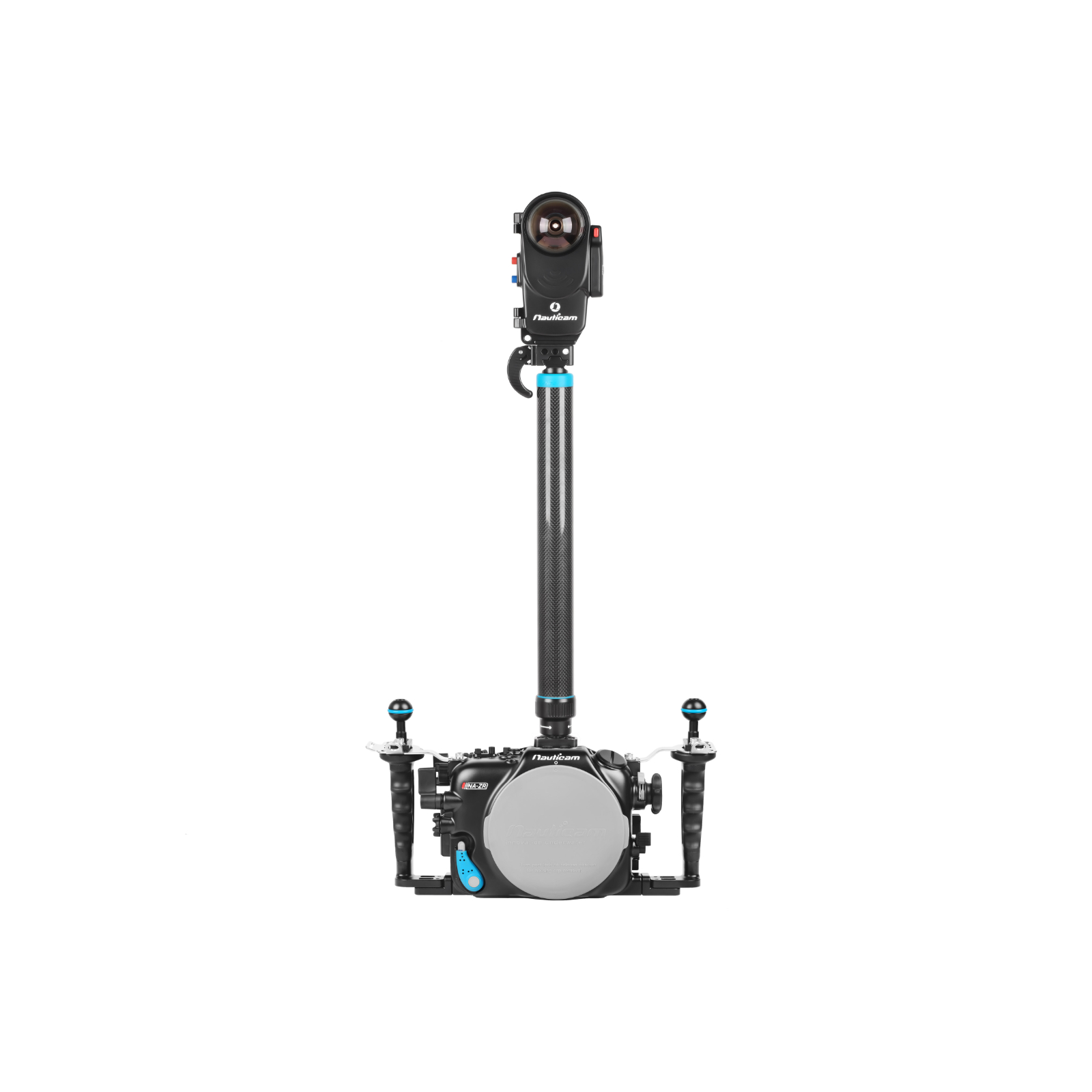

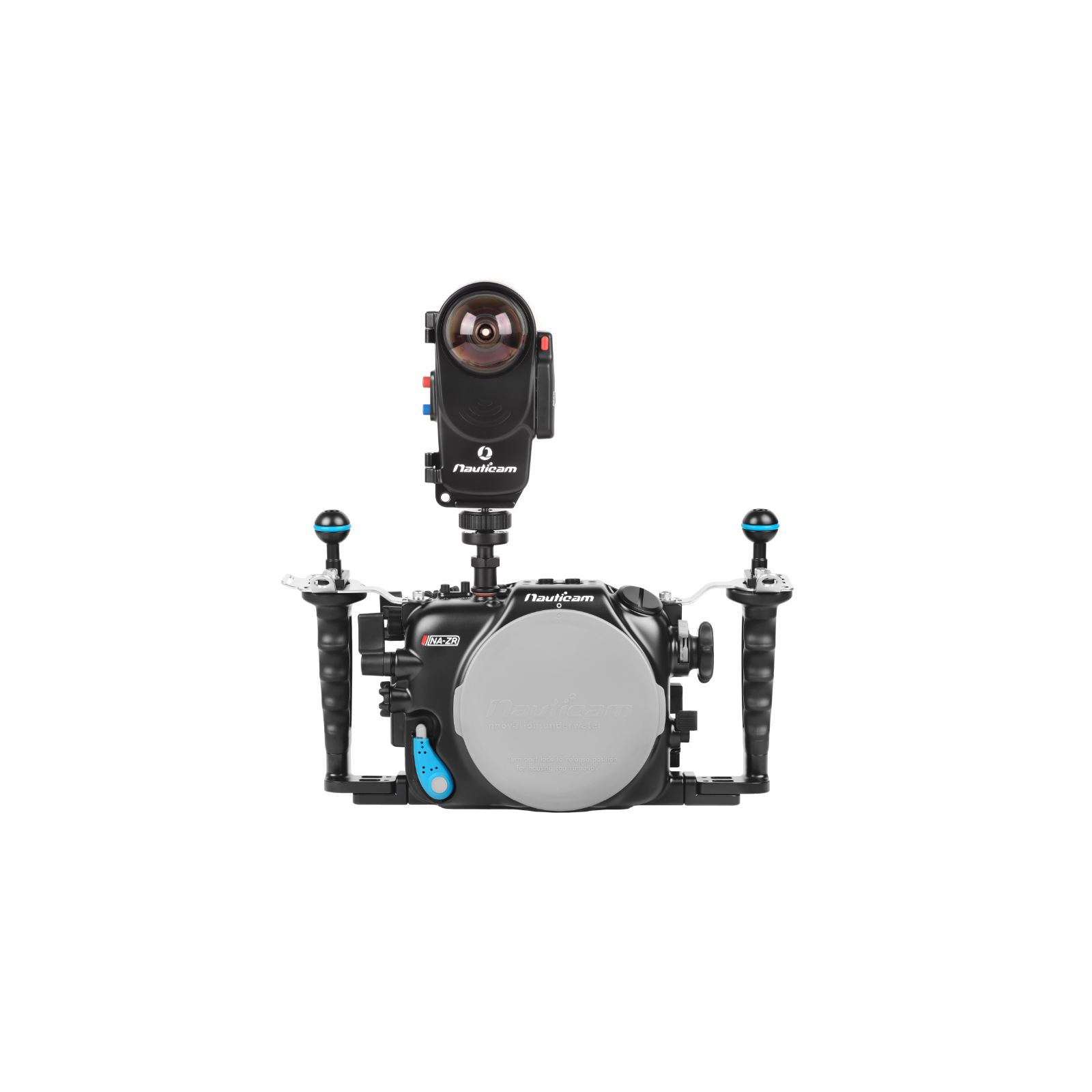

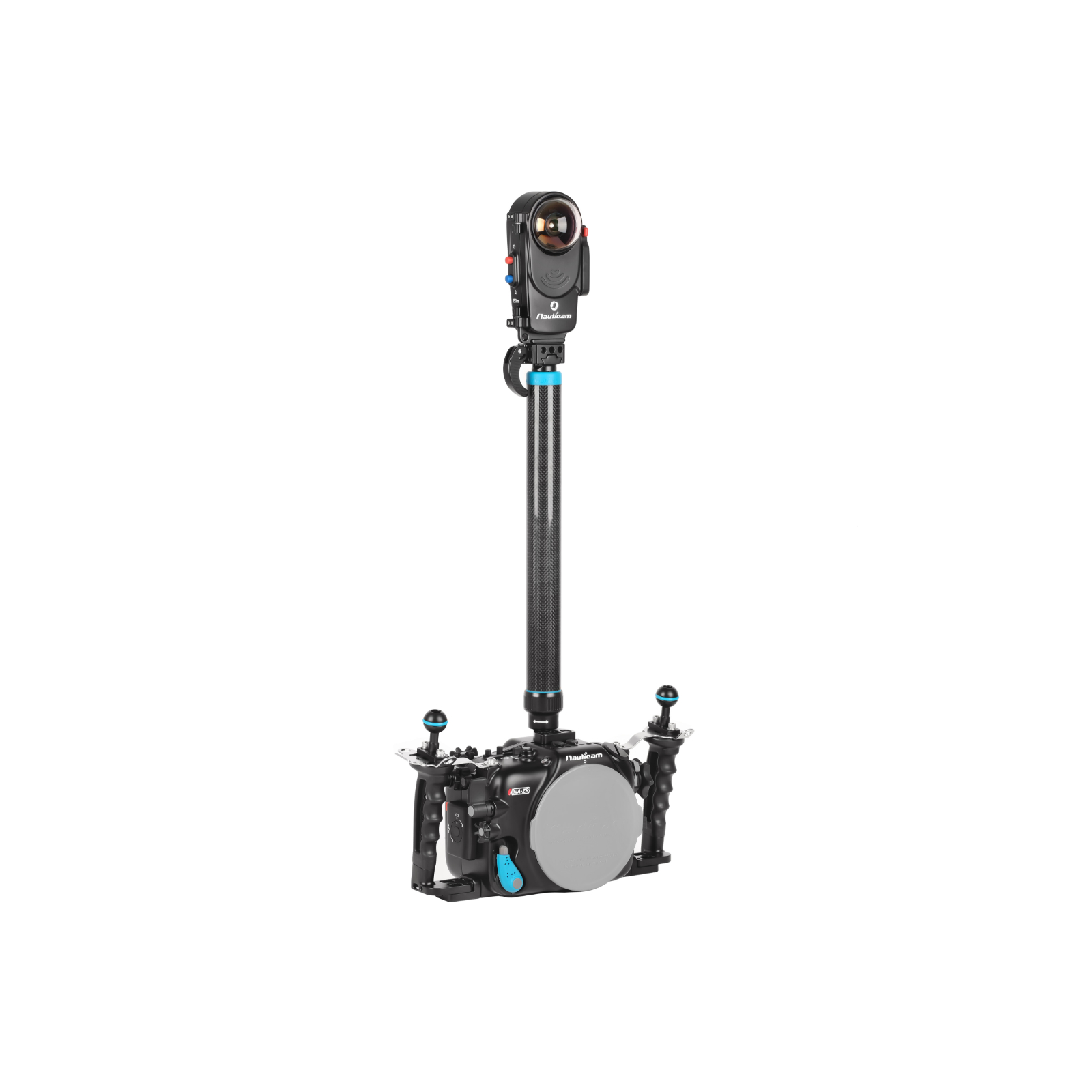

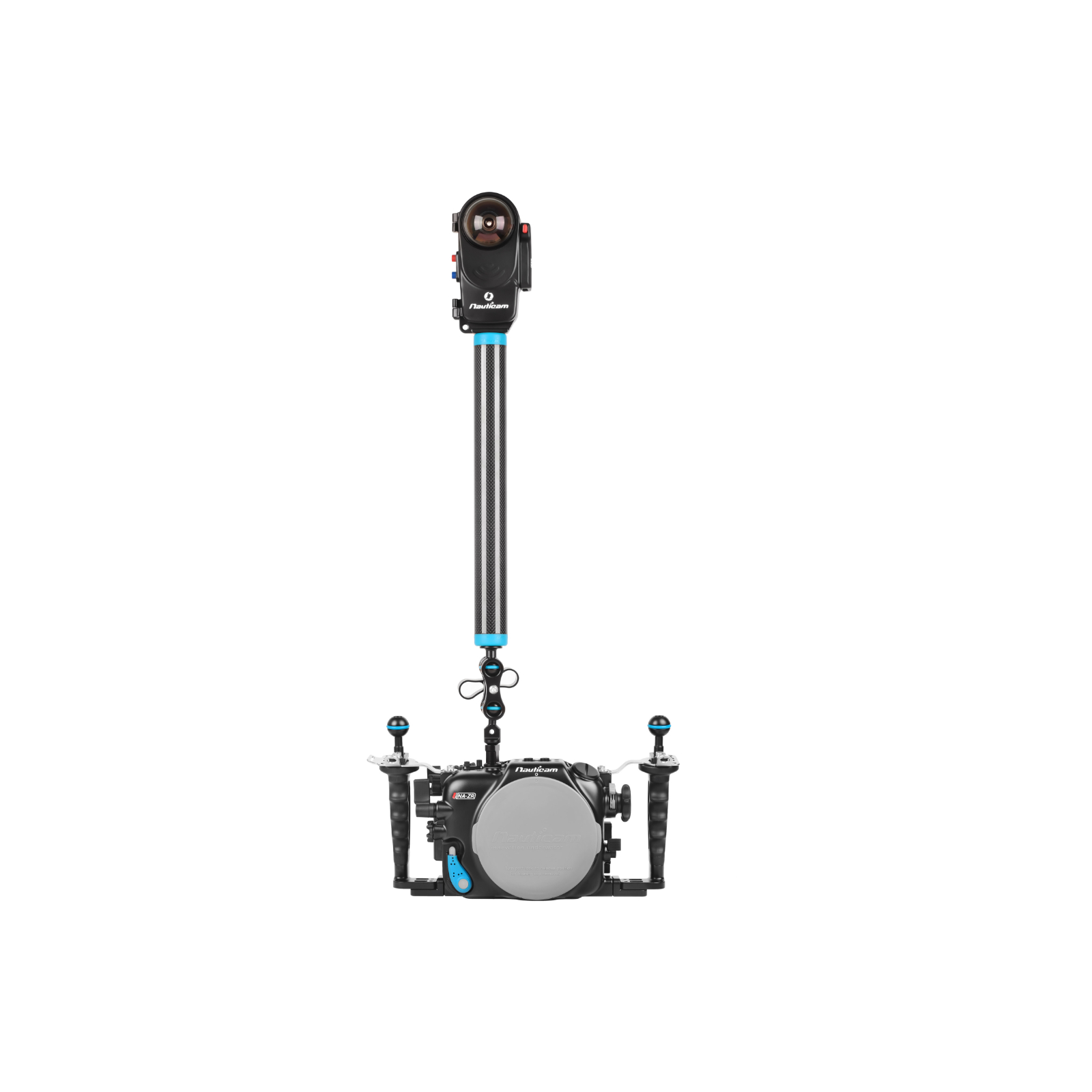

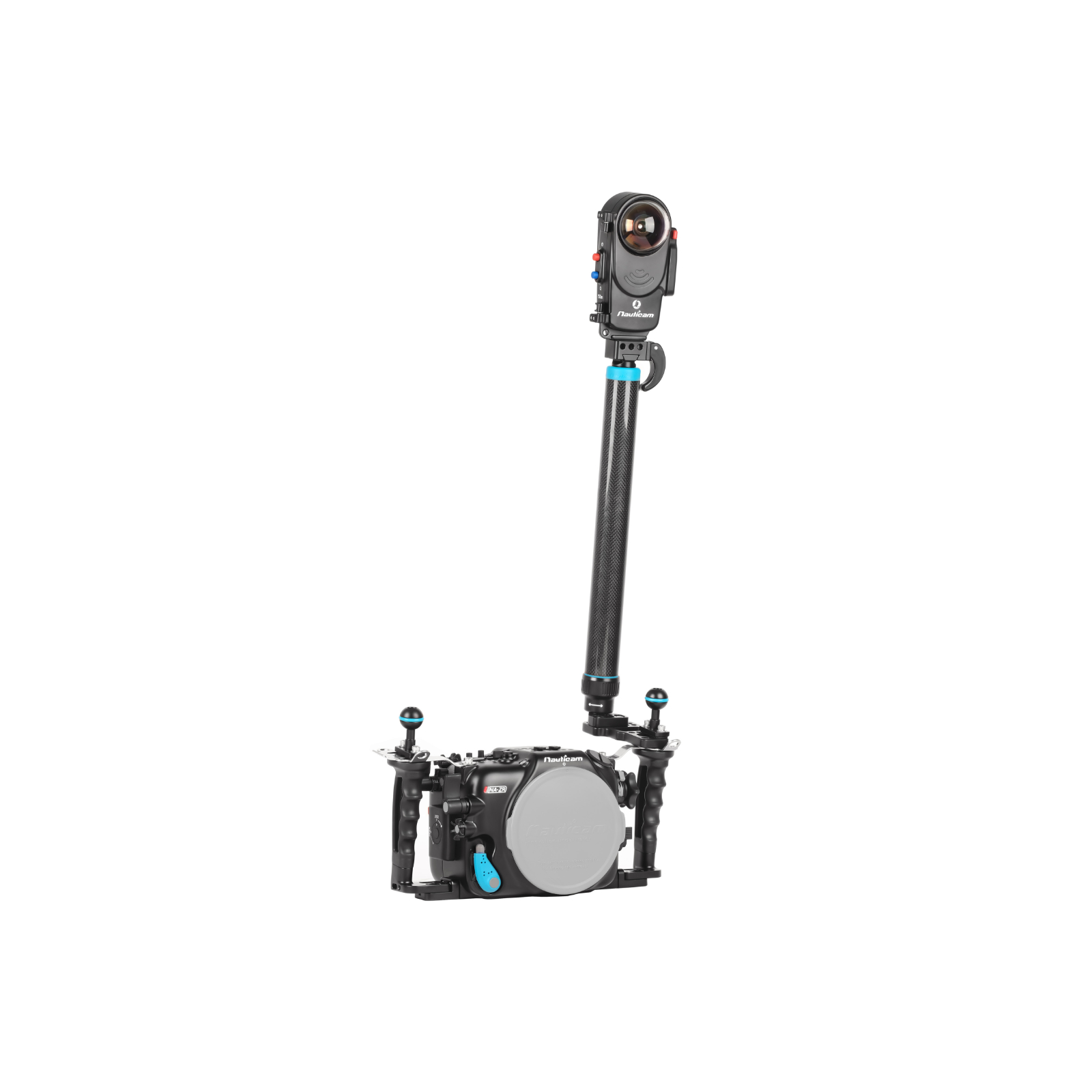

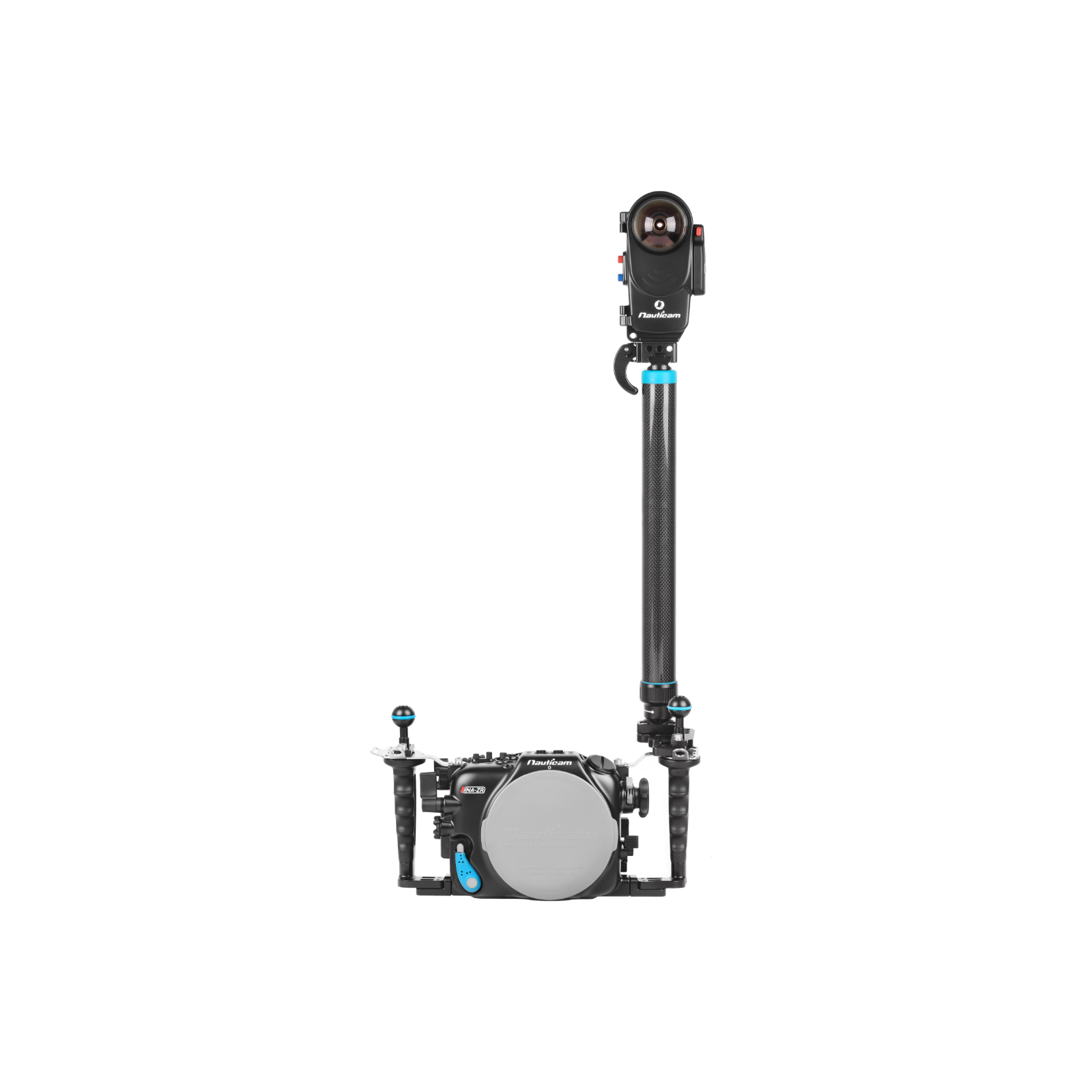

• Multiple threaded mounting points for accessories
• Professional O-ring sealing system with spare O-ring included

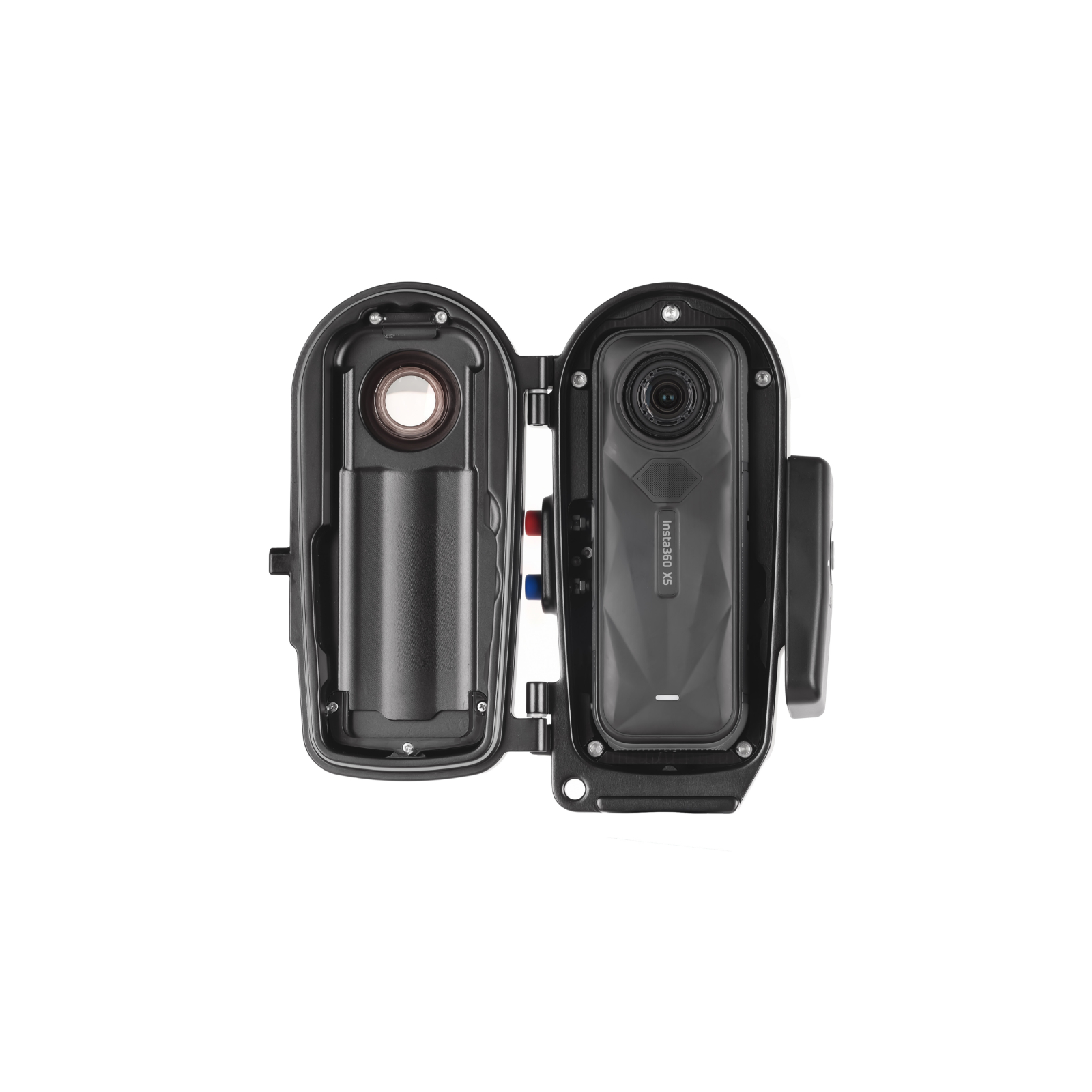

• Requires removal of the camera’s original outer lenses for use


Specifications

• Compatible camera: Insta360 X5
• Material: Hard-anodized aluminum alloy
• Depth rating: 100m
• Dimensions: 91.4 mm (W) x 156.7 mm (H) x 88.5 mm (D)
• Weight in air: 630 g
• Buoyancy in water: Negative 350 g (with camera and battery installed)
• Lens angle of view: 190 degrees per lens
• Lens construction: 3 elements in 2 groups
• Lens coating: Anti-reflection coating
• Working distance: 0 to infinity
• Mounting points: 1 x 1/4-20 threaded hole, 2 x M5 threaded holes
• Controls: Push buttons and rotary lock
• Dive mode: Automatically enabled upon door closure

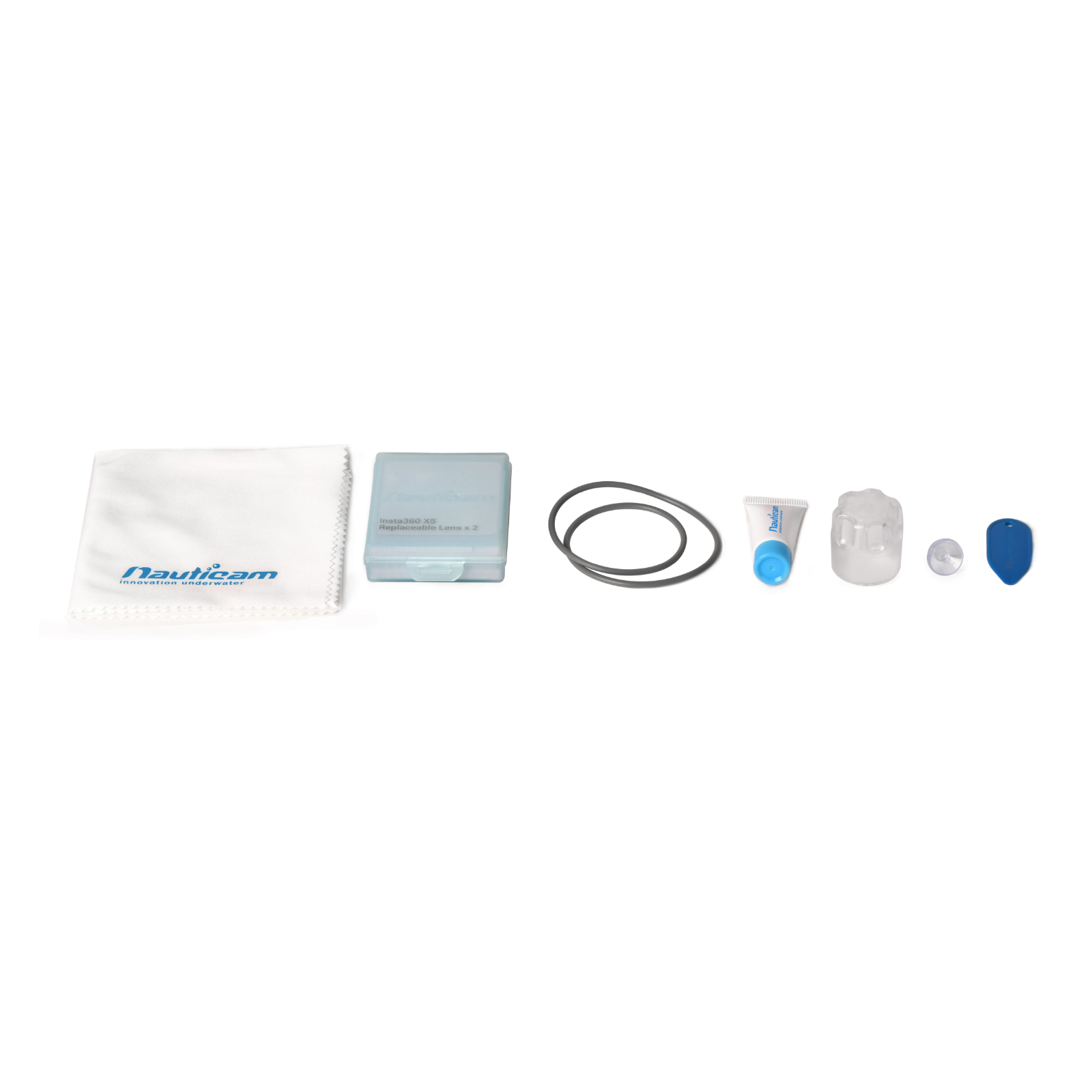

In the Box

• Nauticam Housing for Insta360 X5
• Spare main O-ring
• O-ring remover
• O-ring lubricant
• Lens removal tool
• Plastic suction cup
• Neoprene protective bag
• Cleaning cloth
