Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5-inch 4K Monitor with Atomos AtomX SDI Module

2.786,25 EUR

(incl. VAT)

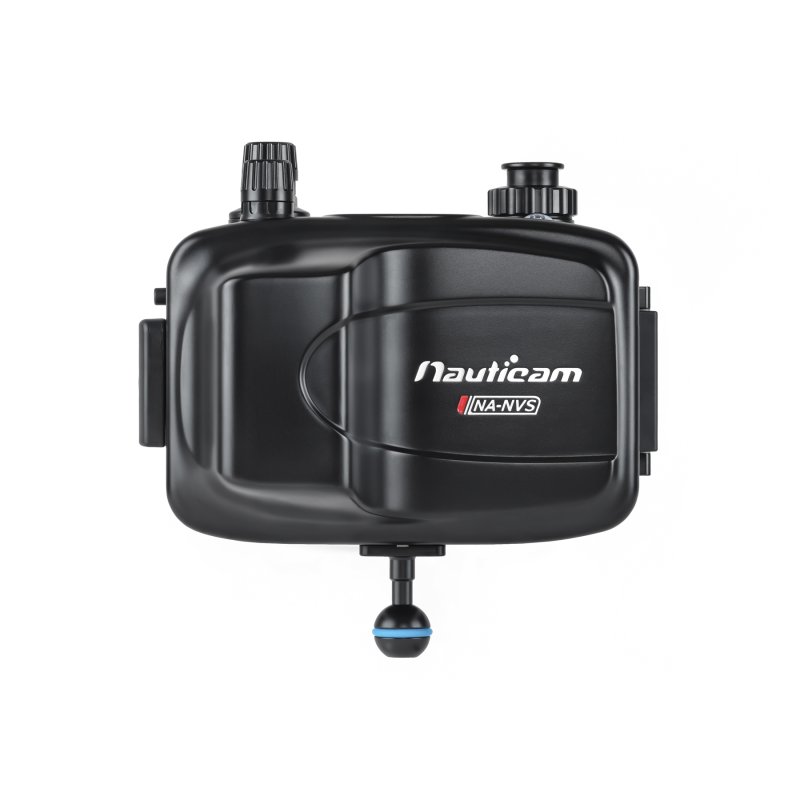

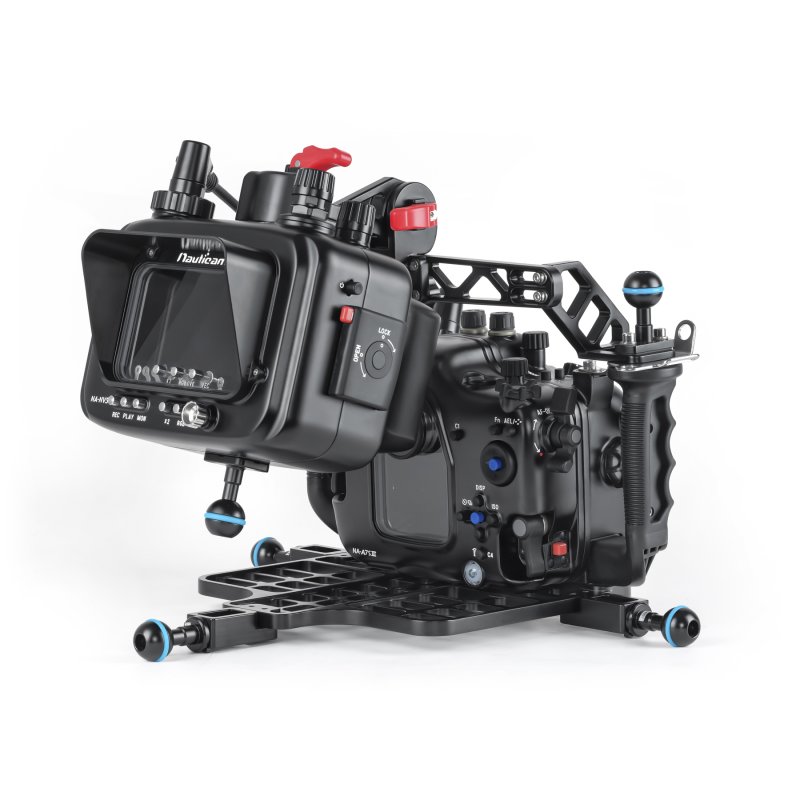

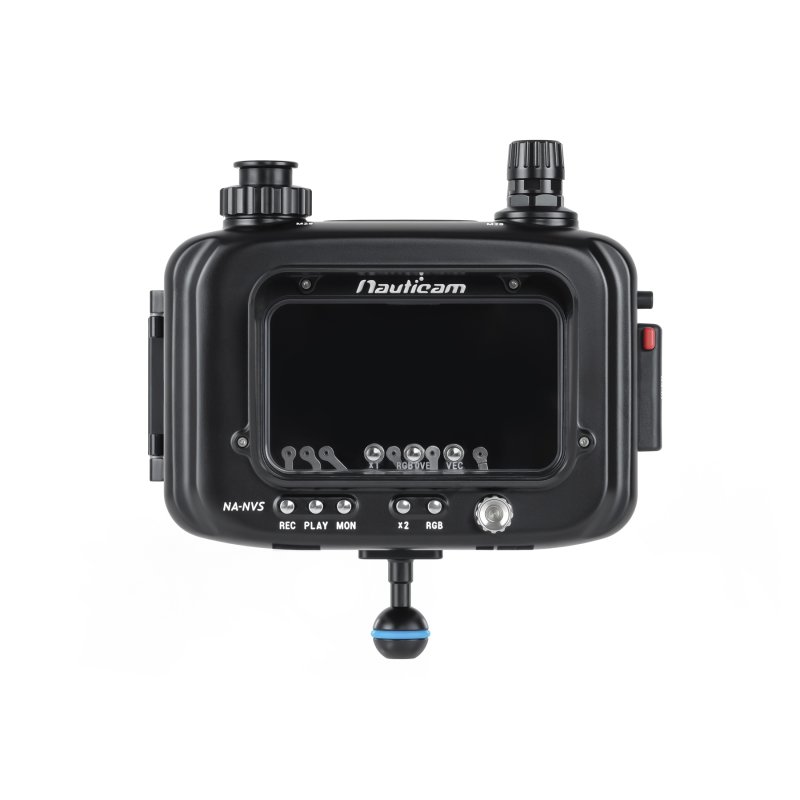

The Nauticam Atomos Ninja V-S underwater housing for Atomos Ninja V Monitor with Atomos AtomX SDI Module.

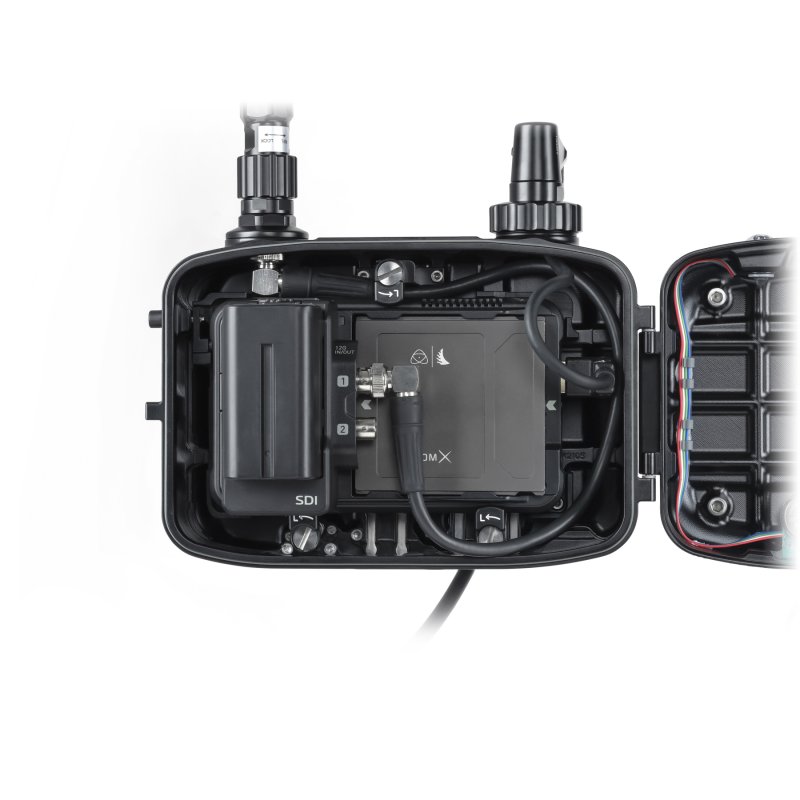

The Ninja V is easily mounted, dropping in without trays or other mounting accessories and is held in place by two rotating locking levers. The Ninja V allows for 4K display/recording at 60p.

Ninja V owners can now benefit from the ability to record RAW over SDI with compatible cameras. These new features bring even more versatility to the Ninja V, providing professional I/O options for a multitude of cameras – from entry level mirrorless cameras through to the latest compact cinema and high-end professional cameras.



Includes monitor hood, vacuum valve, SDI bulkhead and internal SDI cable.


(NOTE: HDMI cables for this housing are SOLD SEPARATELY)



Product no.: 17922S
Stock status: Assembled on order and shipped.
psc.

Low-Cost shipping Europe

UPS for insured priority shipping

GET EXPERT ADVISE

Get the right gear

EU Warranty

Official distributor & reseller

Nauticam NA-Ninja V-S Underwater Housing and Atomos Ninja V/V+

Enhance your underwater filming with the Nauticam NA-Ninja V-S, designed for the Atomos Ninja V and Ninja V+ monitors/recorders. This powerful combination delivers exceptional video quality and control for underwater professionals.

Atomos Ninja V and Ninja V+

The Ninja V offers a bright 5.2" 1000-nit HDR screen with 10-bit color depth and over 10 stops of dynamic range. It serves as both a monitor and a recorder, capturing 4K 60p in 10-bit 4:2:2 ProRes or DNxHR formats with compatible cameras. The Ninja V+ supports up to 8K 30p and 4K 120p ProRes RAW recording. With a 1TB SSD, record up to 150 minutes of 4K footage.

Advanced Exposure and Focus Tools

  • Exposure Guides: Features Waveform, RGB Parade, and Vector Scope for precise exposure and color balance, even in challenging lighting.
  • Focus Assist: Includes Focus Peaking (Color/Mono) and Assist Outline for pinpoint sharpness.

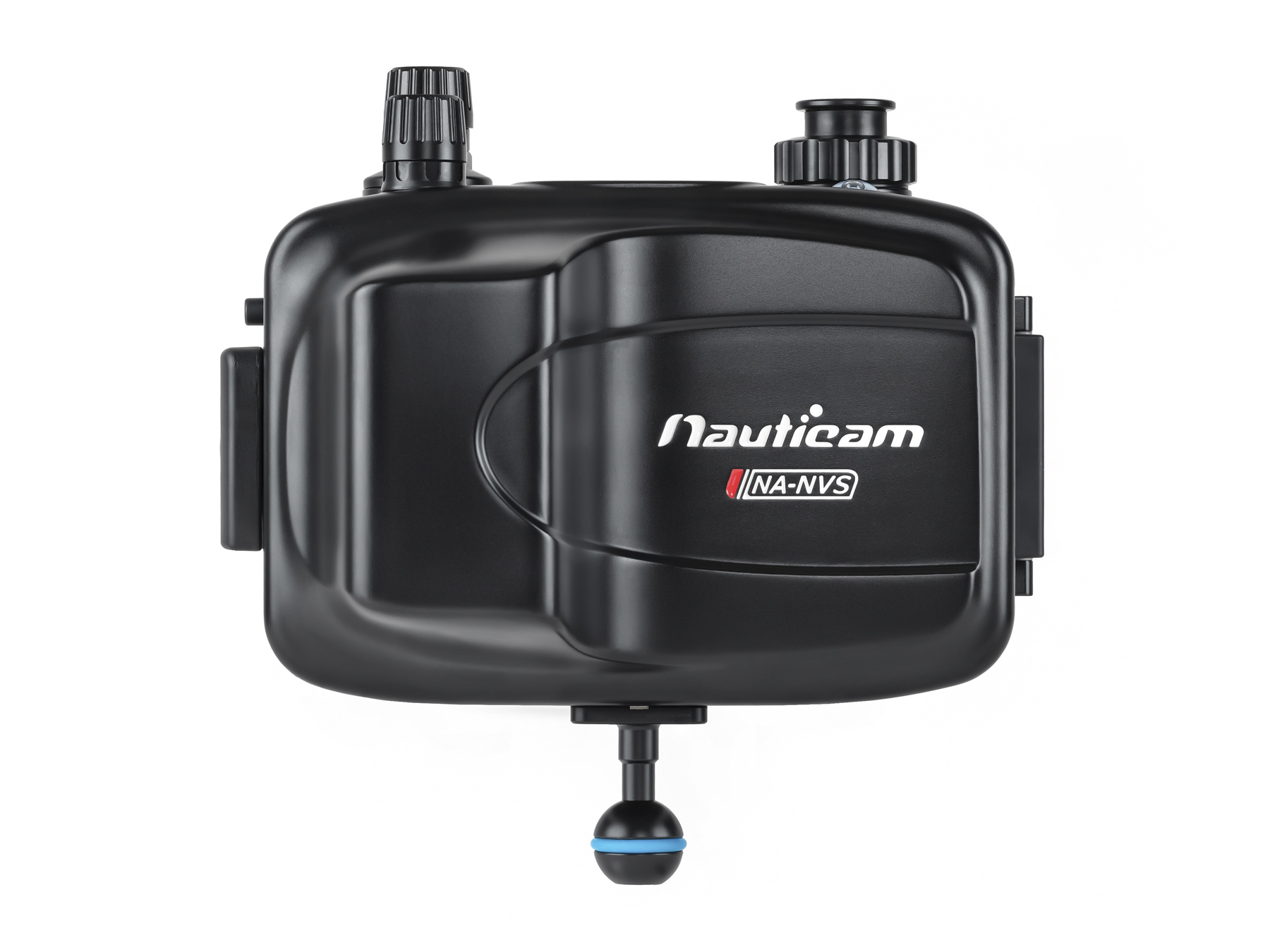

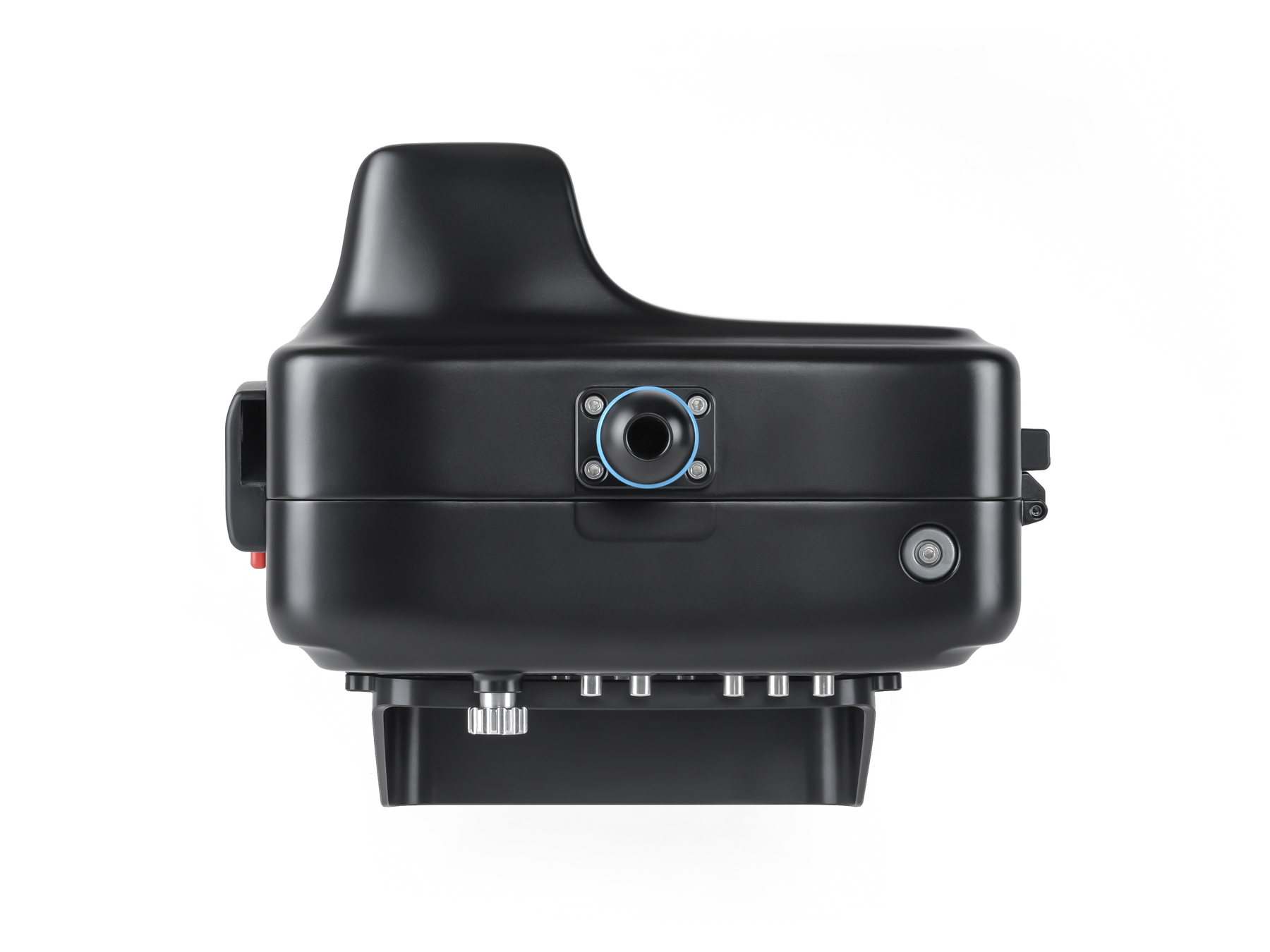

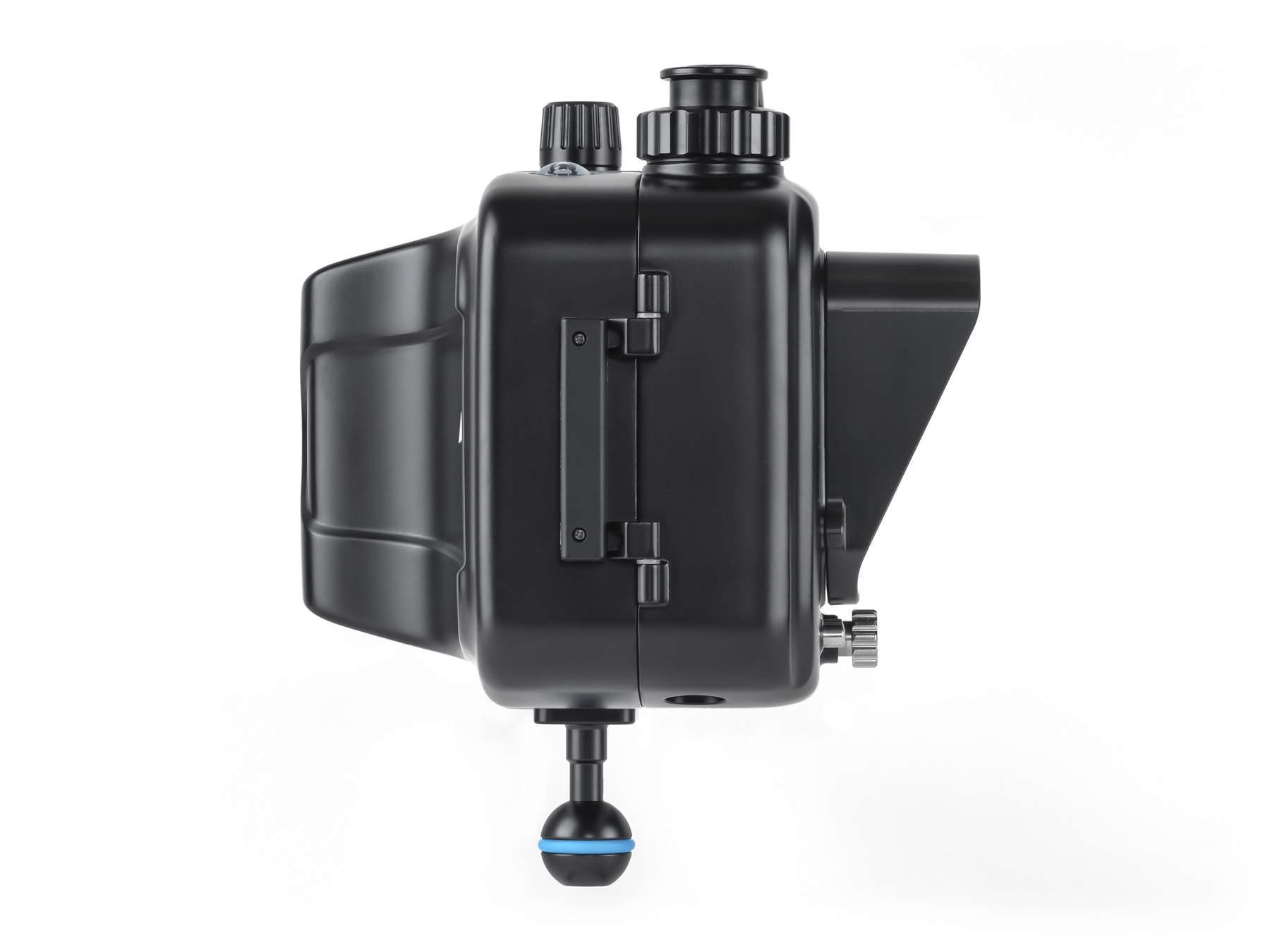

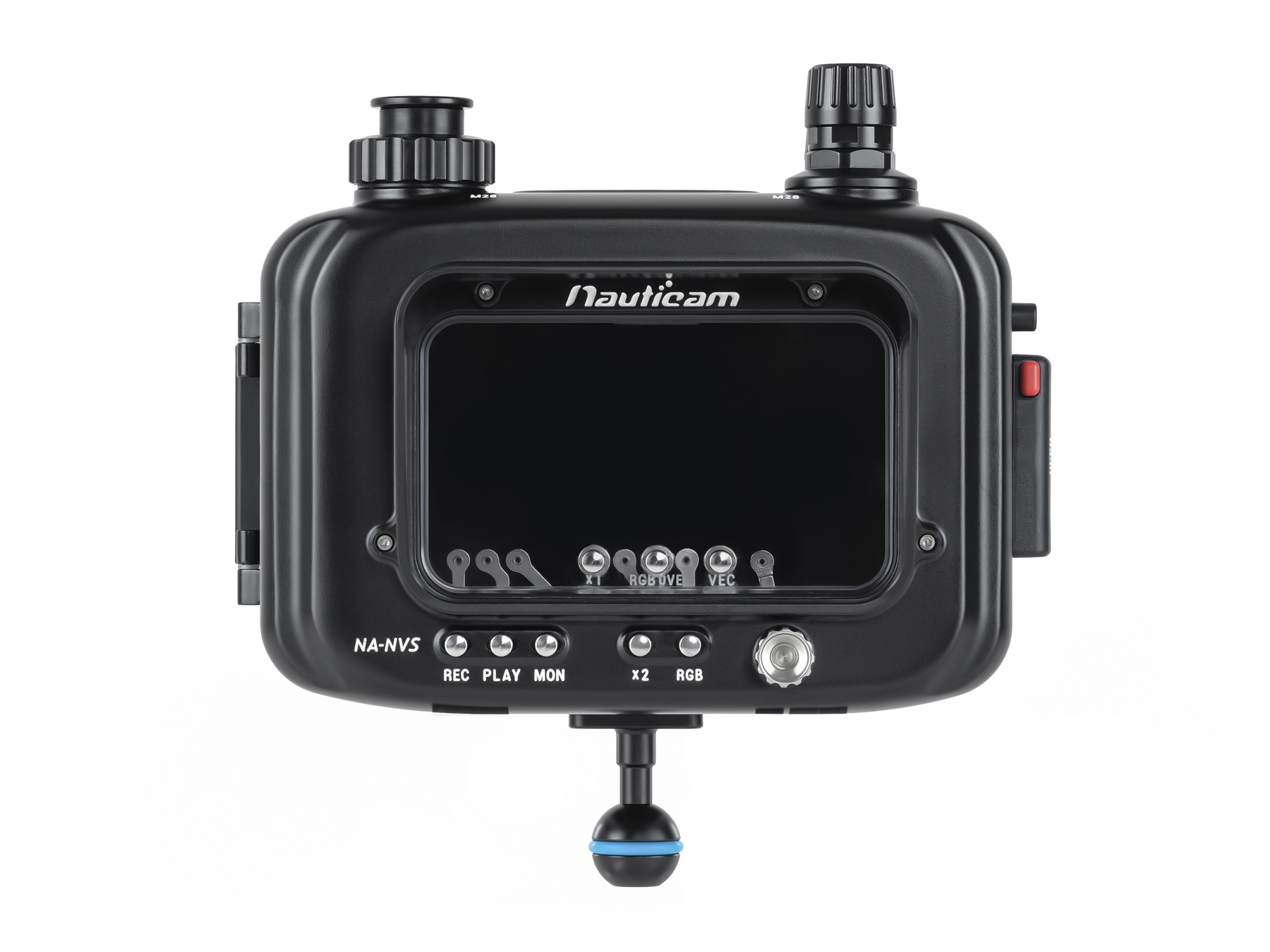

Nauticam NA-Ninja V-S Housing

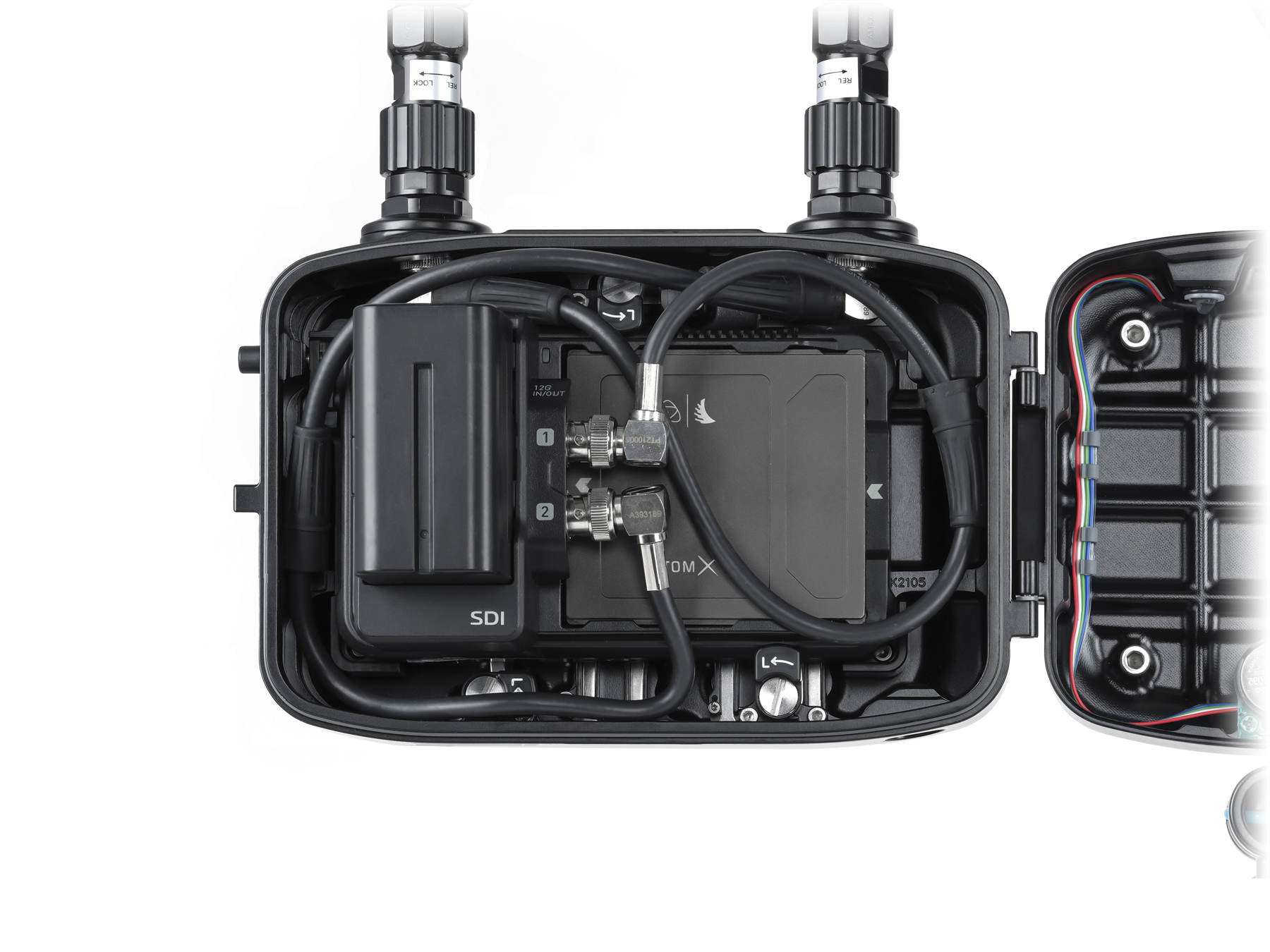

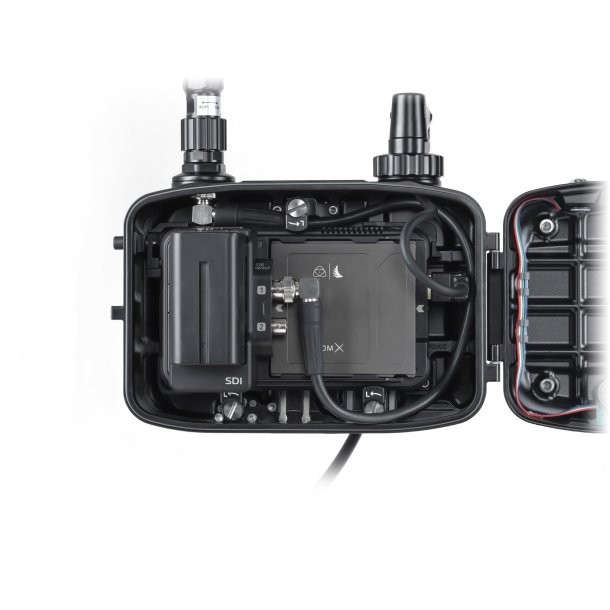

Built for demanding underwater filmmakers, this housing integrates seamlessly with the Ninja V and AtomX SDI Module.

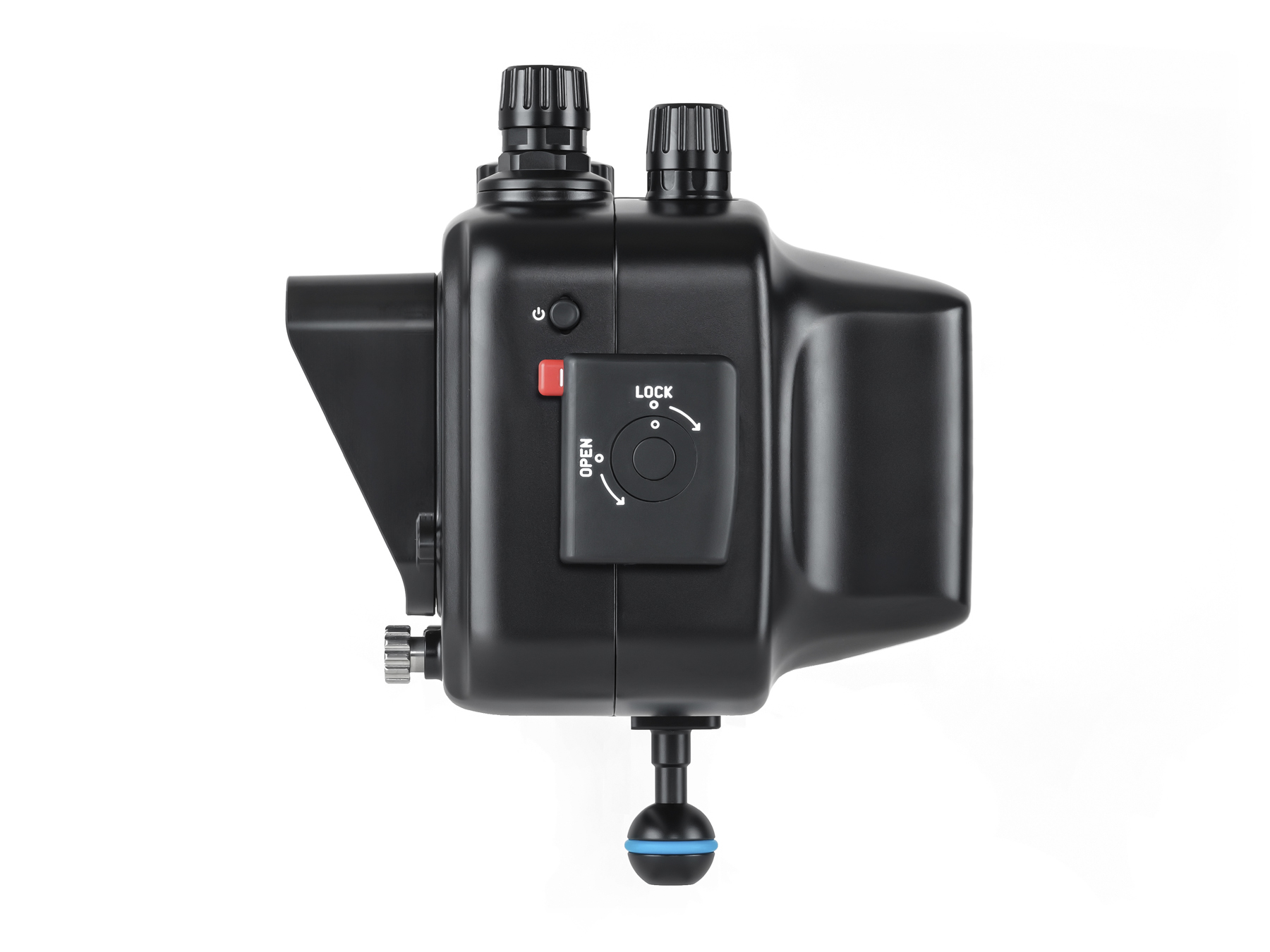

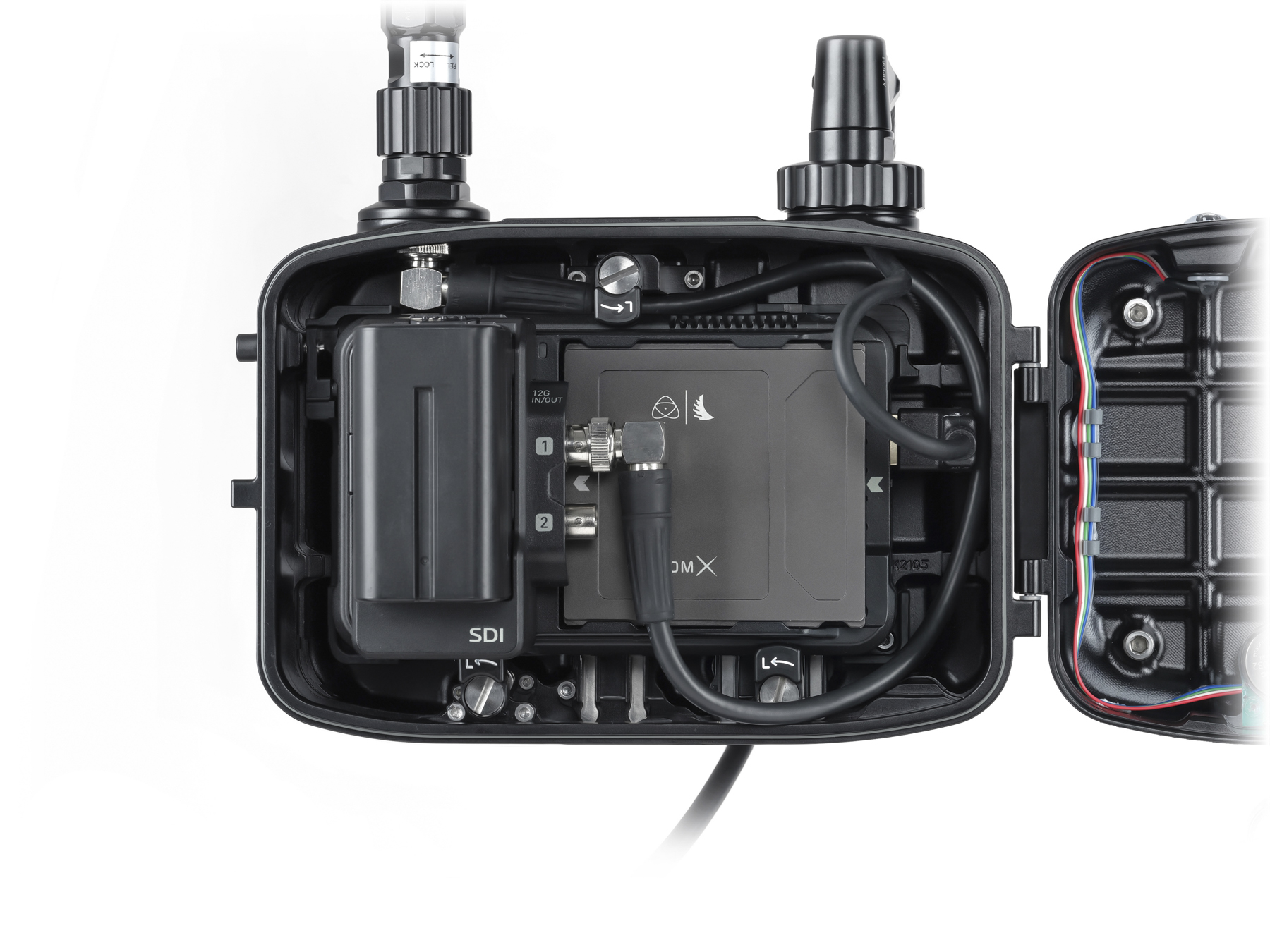

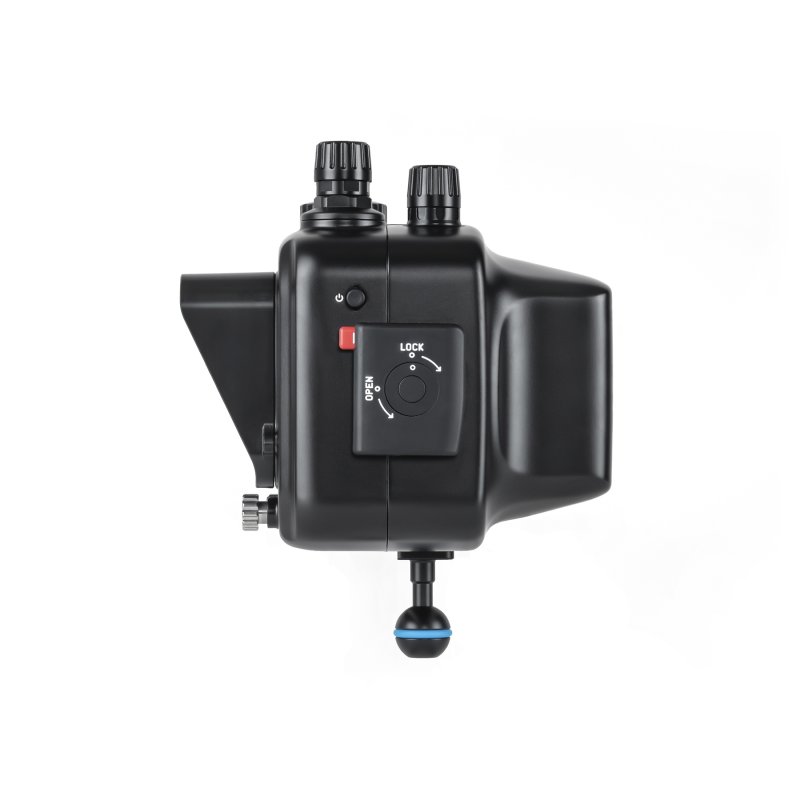

  • Effortless Setup: Quick installation with rotating locking levers—no trays needed.

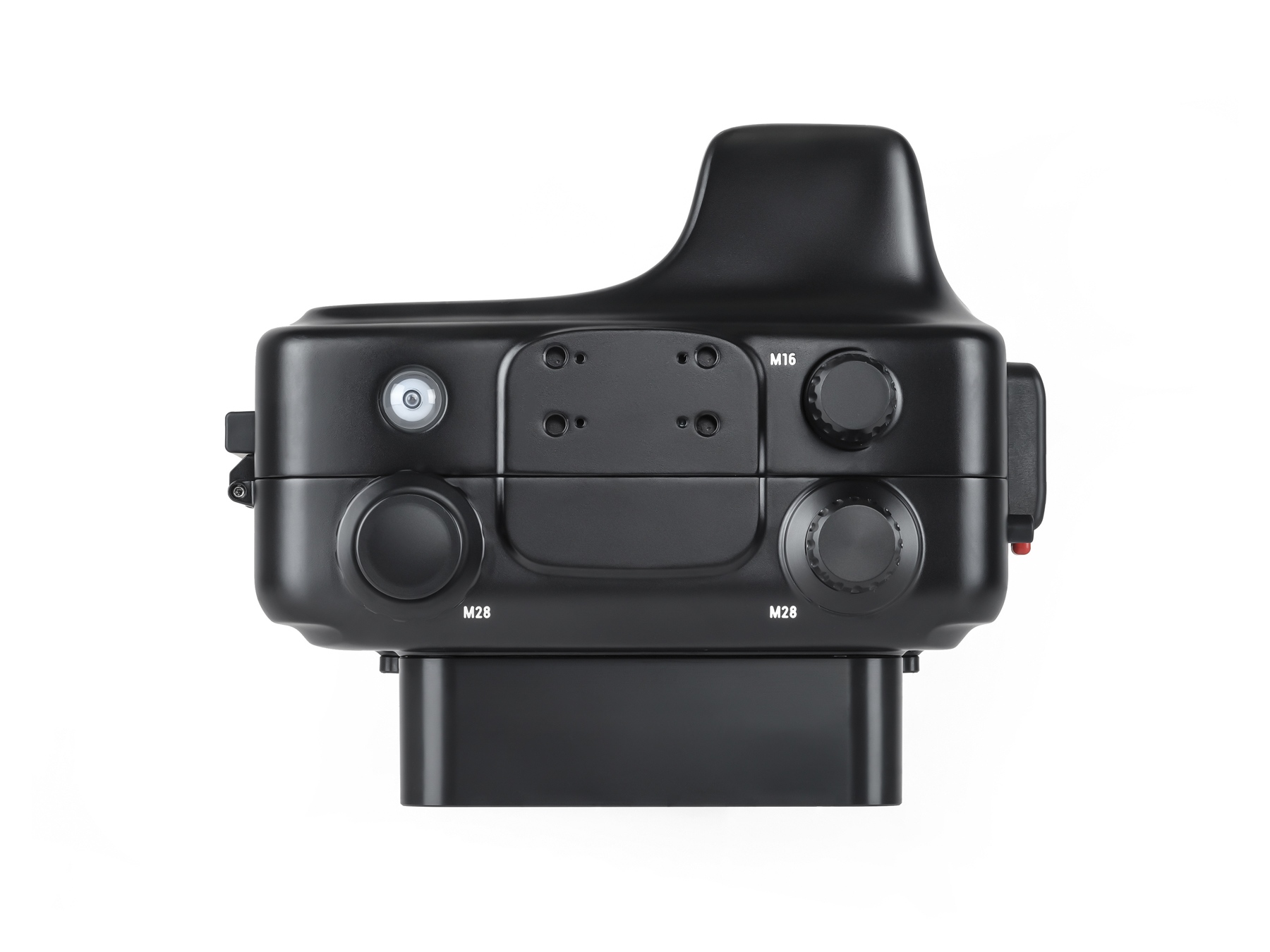

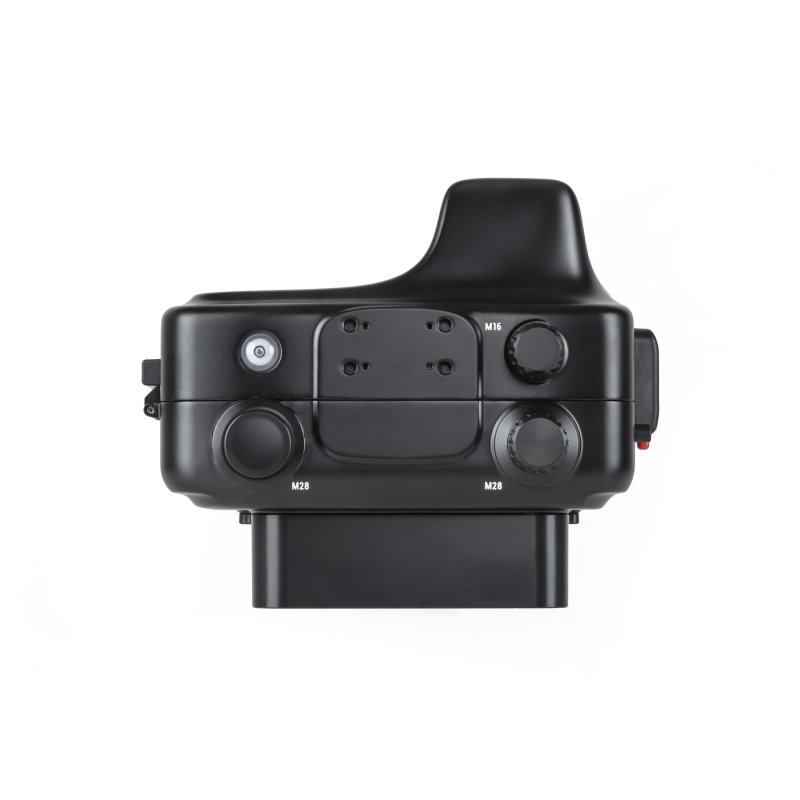

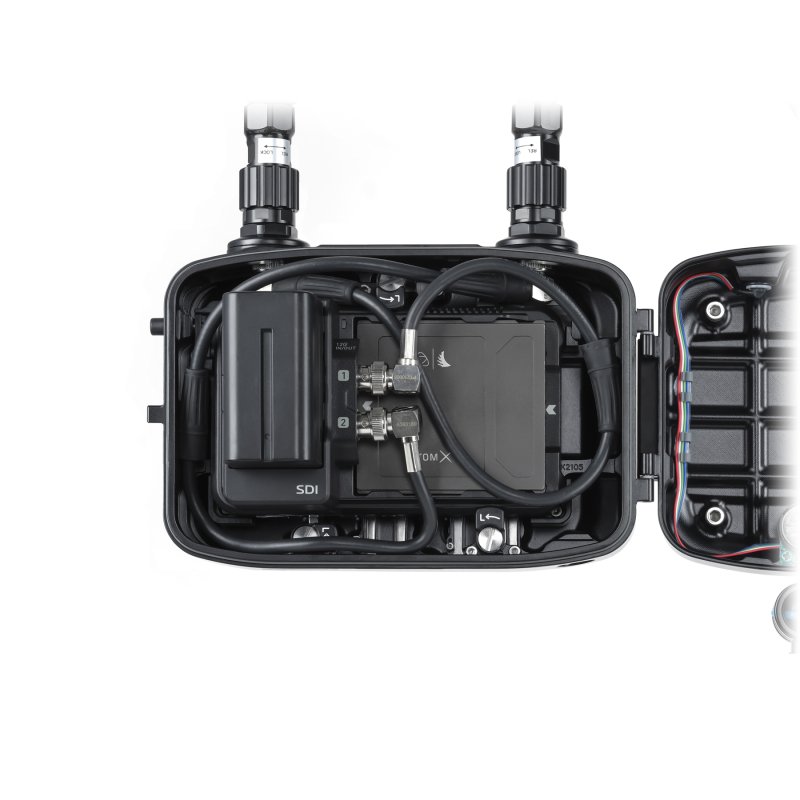

  • Dual Bulkheads: Supports HDMI 2.0, SDI input/output, and HDMI-SDI cross conversion. Dual M28 bulkheads enable signal routing to additional monitors.
  • Battery Support: Compatible with NP-F970 batteries for up to 130 minutes of runtime (105 minutes with SDI module).
  • Vacuum System: Includes a pre-installed vacuum valve with LED status for watertight integrity.

What's Included

  • NA-Ninja V-S Housing
  • Monitor Hood, Mounting Ball
  • Pre-installed Vacuum Valve, SDI Bulkhead, HDMI 2.0 Adapter
  • Spare O-ring, Lubricant, Tools, CR2032 Battery

Recommended Accessories

Recommended Accessories for HDMI:

  • 25077 HDMI 2.0 Cable for NA-XT3 Housing
  • 25078 HDMI 2.0 Cable for NA-BMPCCII/S1R Housing
  • 25079 HDMI 2.0 Cable for NA-GH5V Housing
  • 25082 HDMI 1.4 Cable for HDMI Bulkhead

 Recommended Accessories for SDI Input:

  • AtomX SDI Module require for SDI input and output
  • 25058 M16 SDI Bulkhead
  • 25060 SDI Cable in 0.4m Length
  • 25061 SDI Cable in 0.75m Length ~For Connection Between SDI Bulkheads

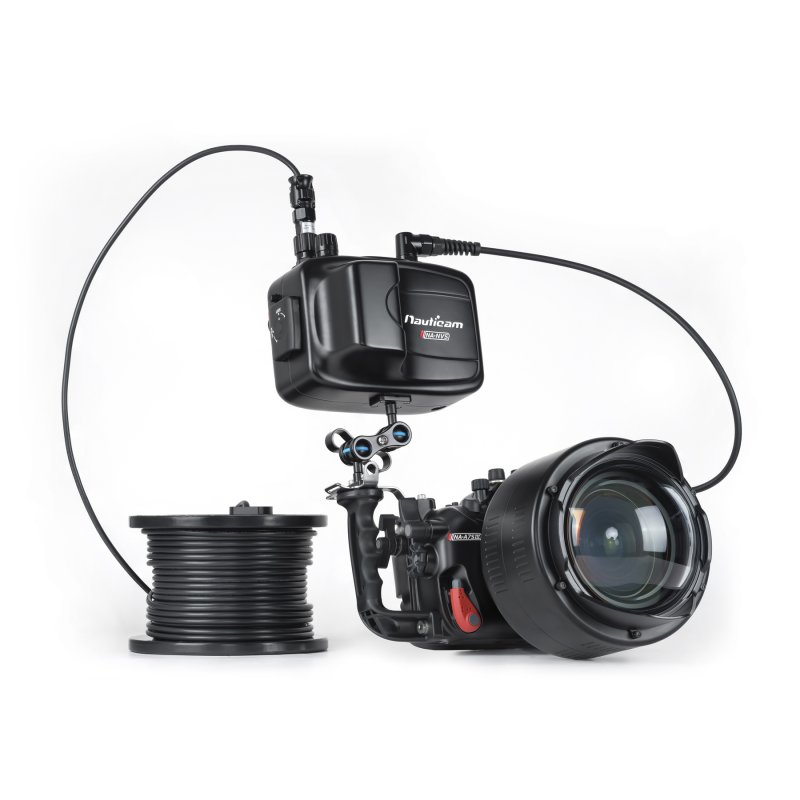

Recommended Accessories for SDI Output:

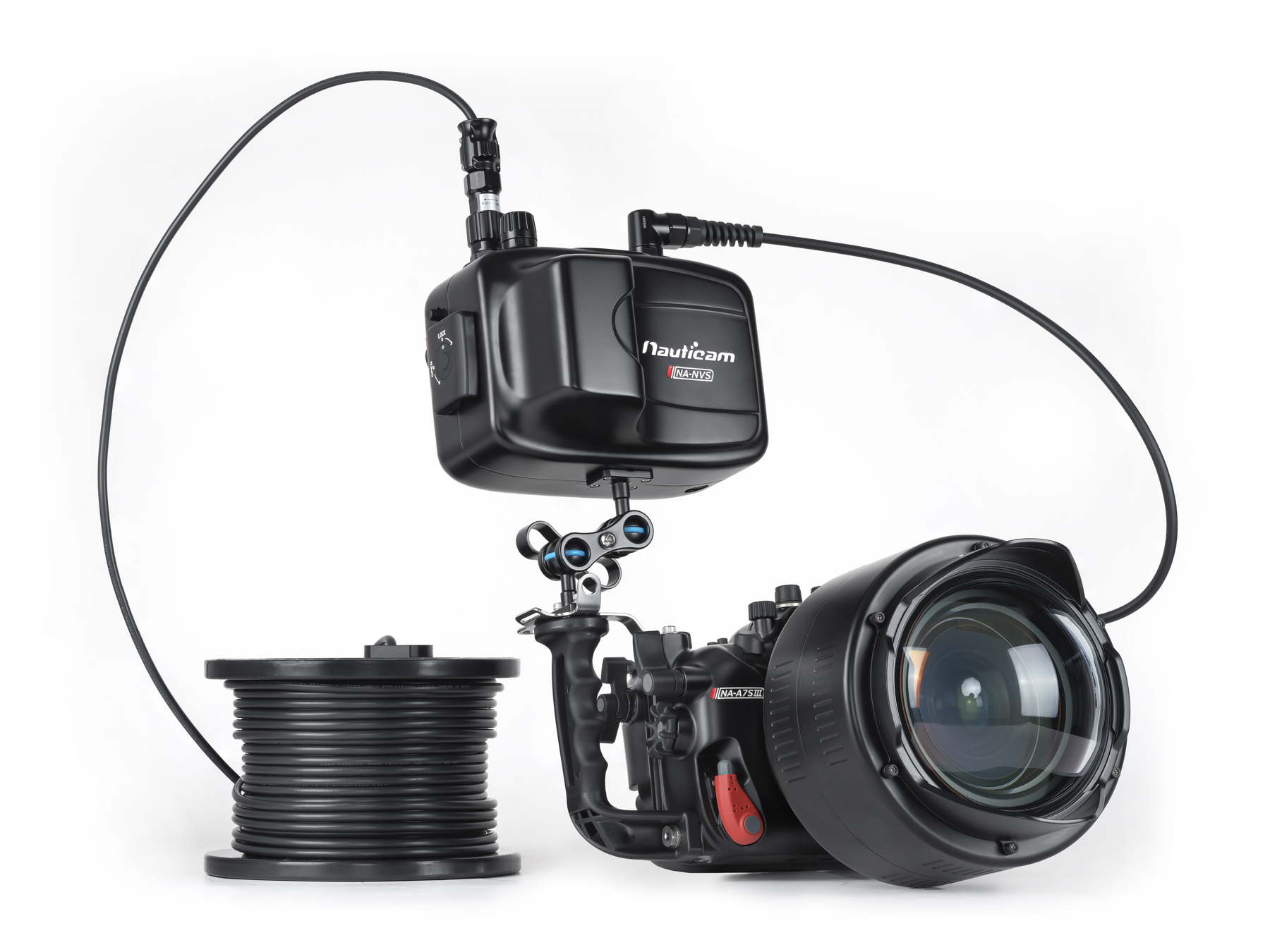

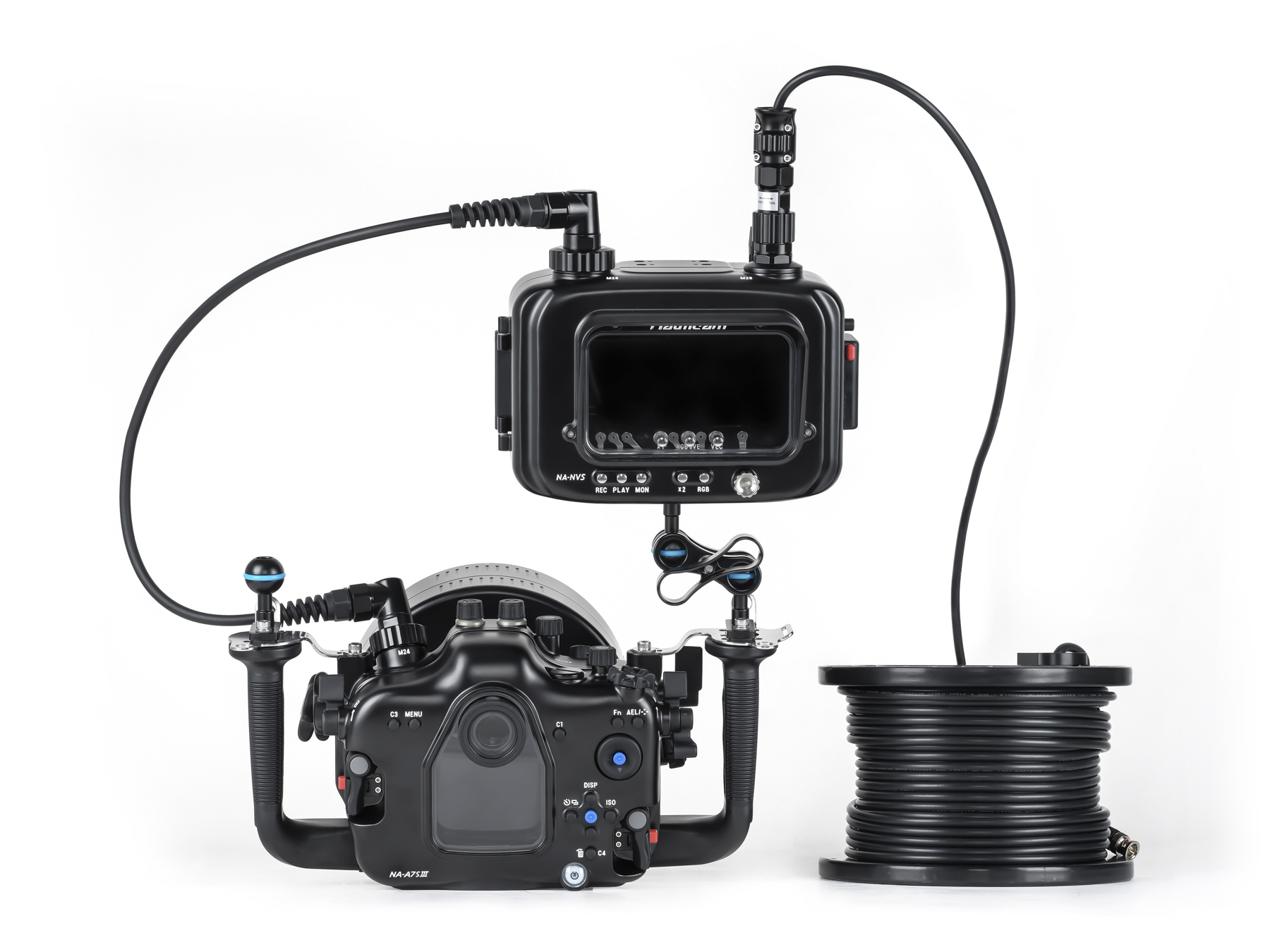

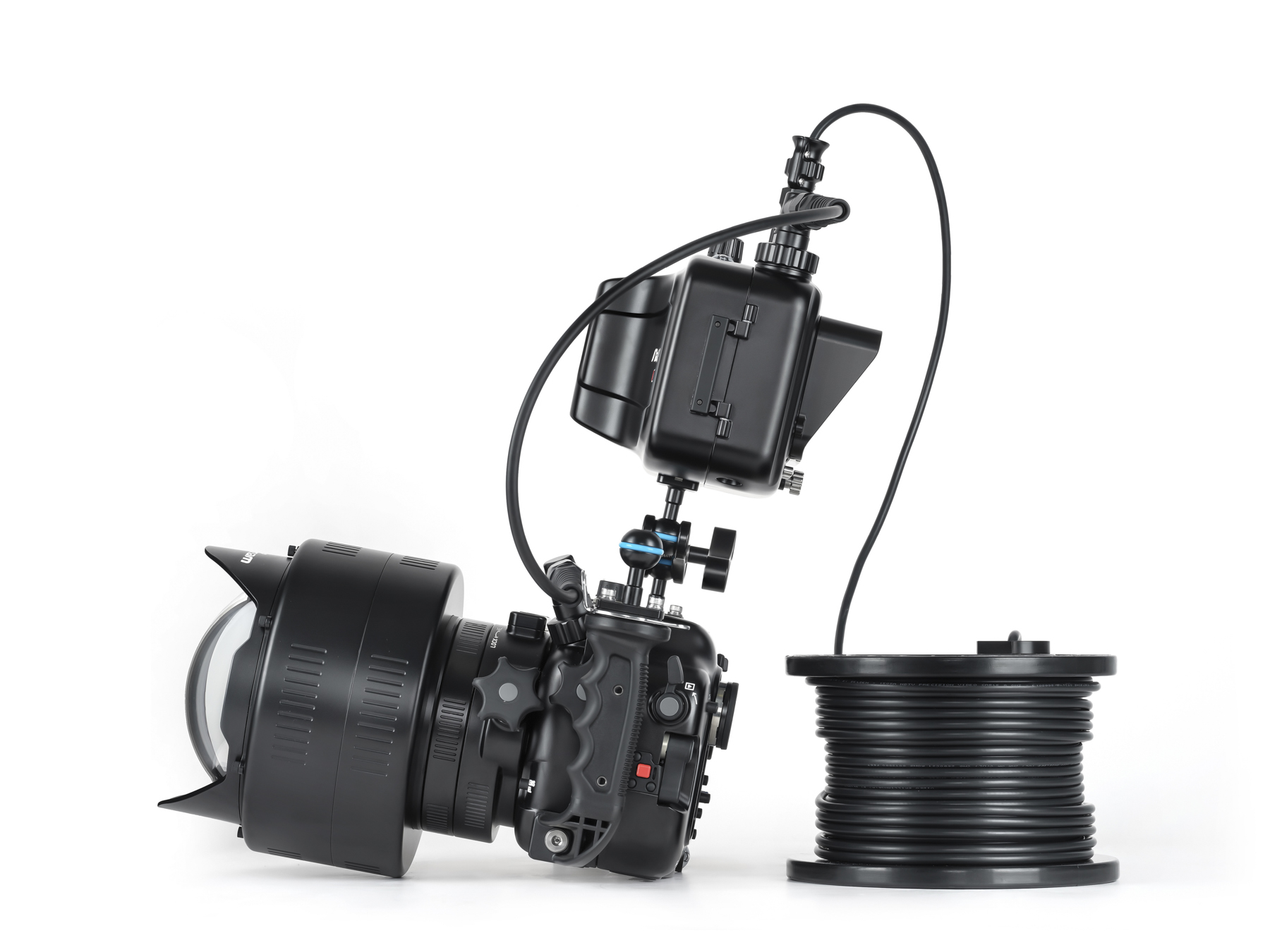

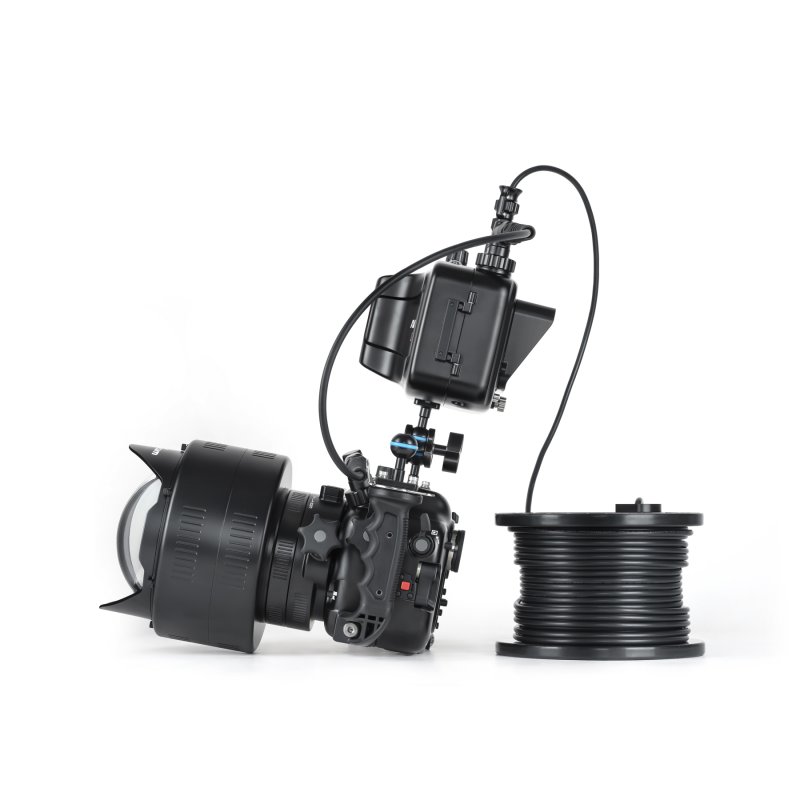

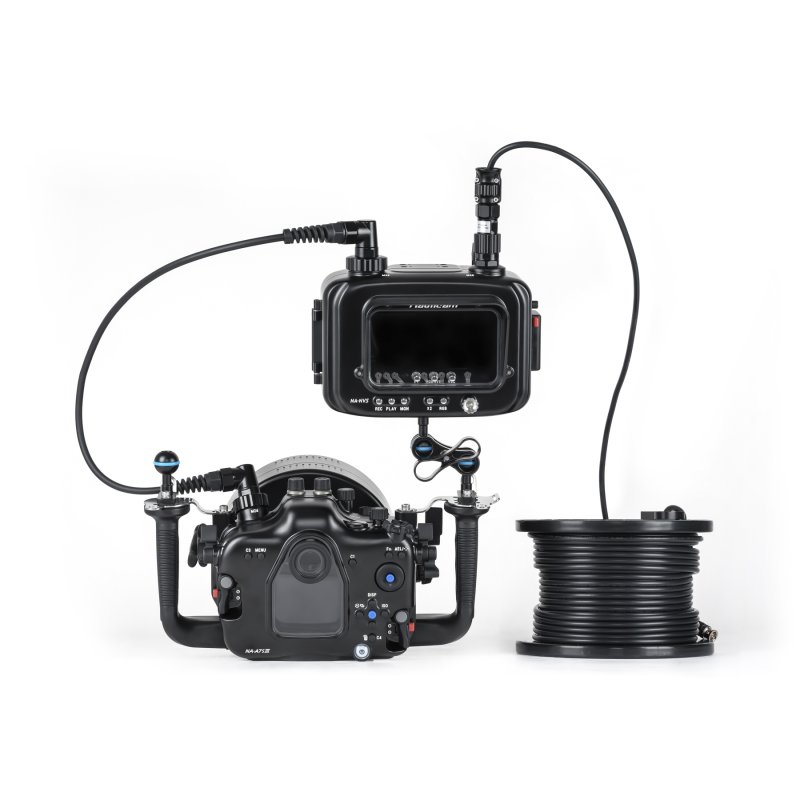

  • 25064 15m SDI Surface Cable
  • 25065 45m SDI Surface Cable



TECHNICAL SPECIFICATIONS

Dimensions: 223mm(W) x 169mm(H) x 143mm(D) excl. bulge at rear
Weight in Air: 1.67kg
Weight in Water: -0.31kg (incl. Ninja V, AtomX SDI and NP-F970 batt)
Depth Rating: 100m


NOTE: HDMI and SDI cables for this housing are SOLD SEPARATELY, you can find the appropriate one in the Recommended Accessories section below.

Only AtomX SSDmini drives are supported in the housing. Conventional SSD in the Atomos Master Caddy are not compatible.
