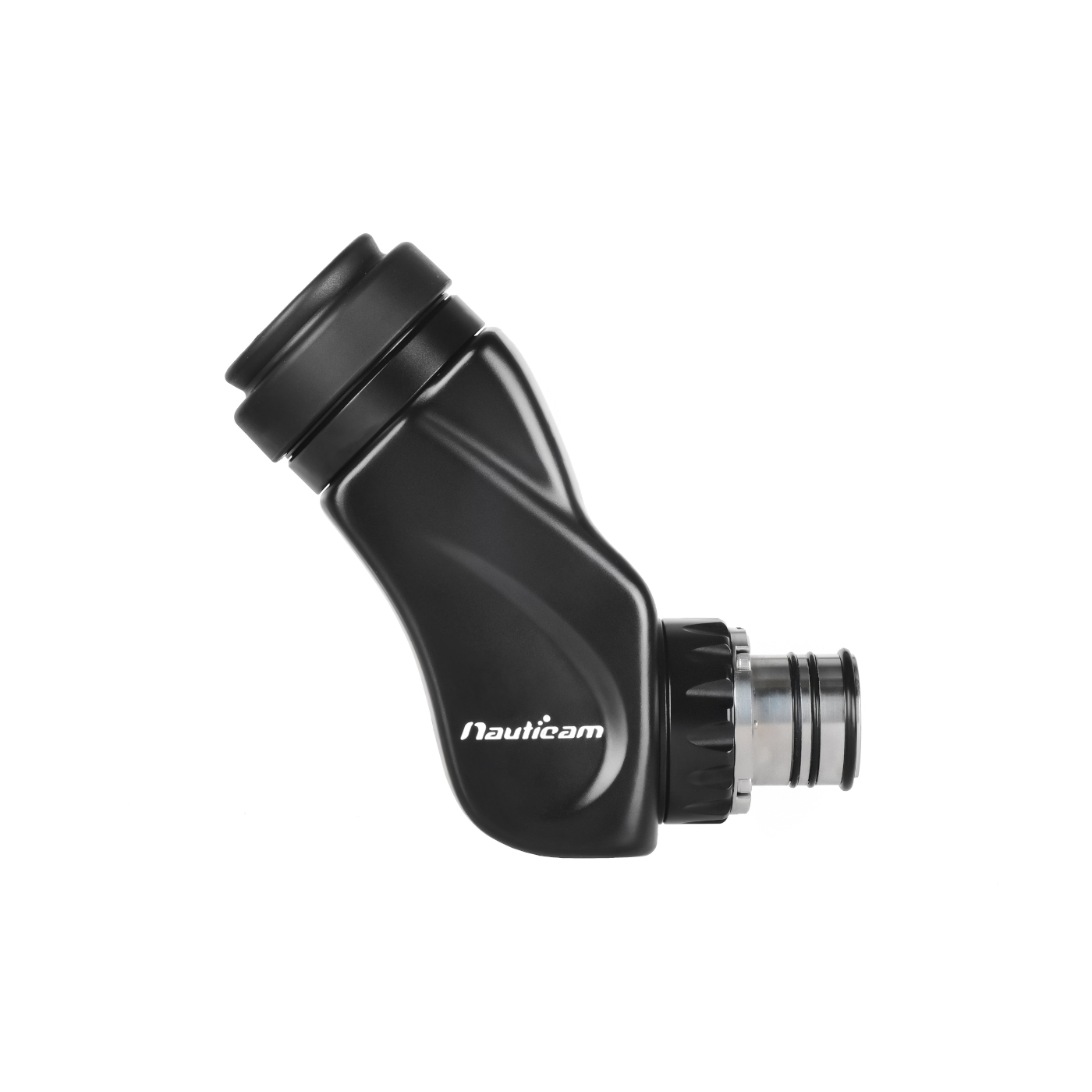

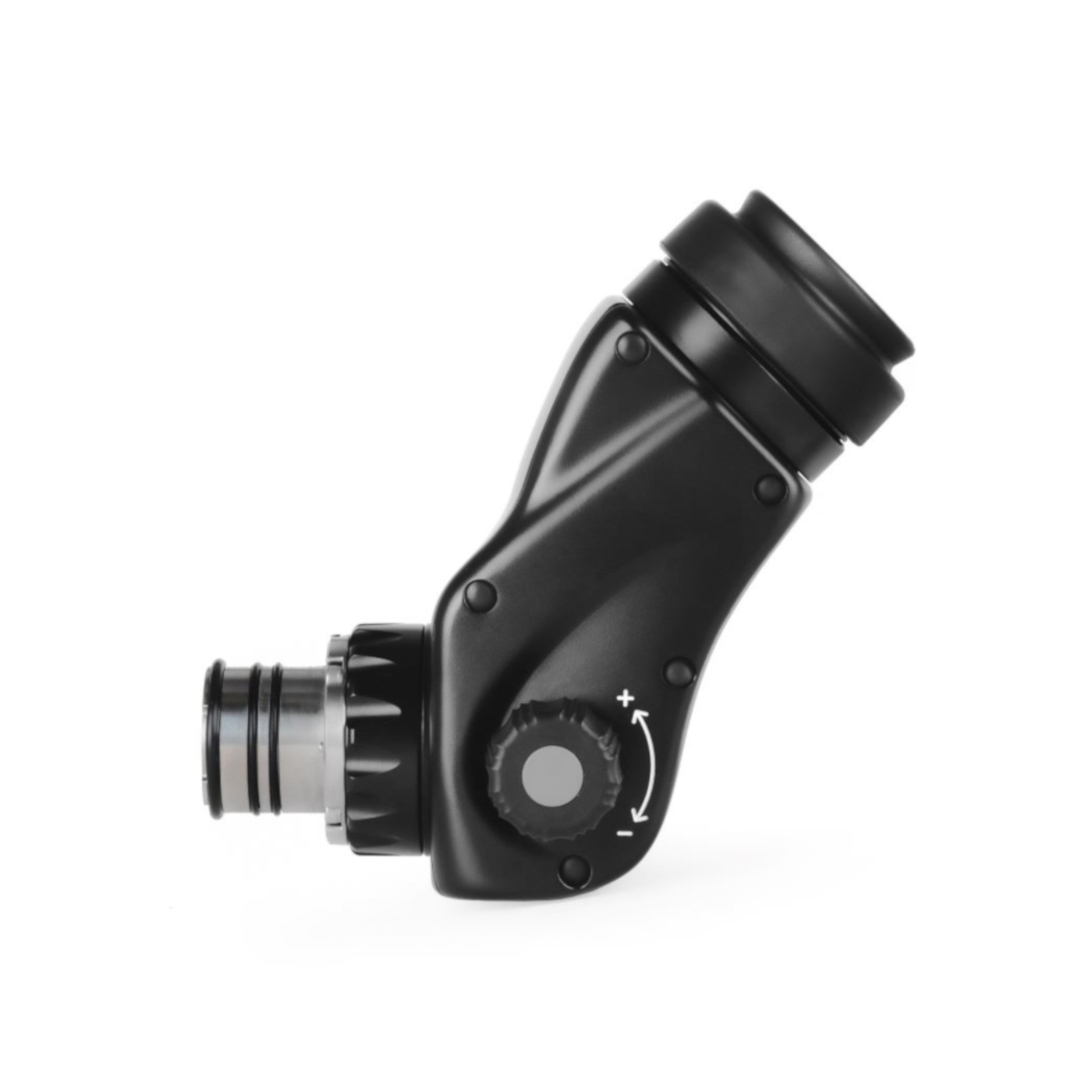

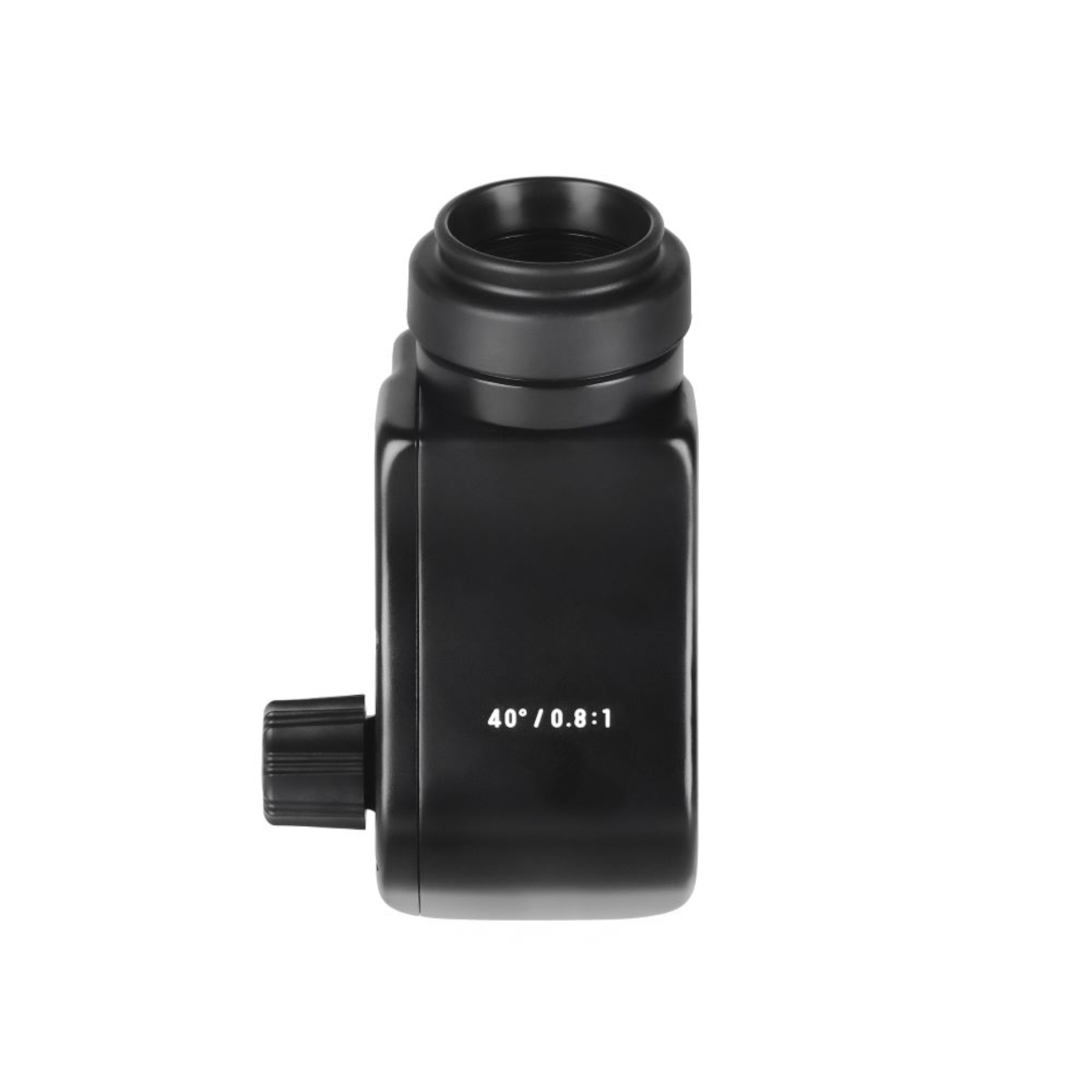

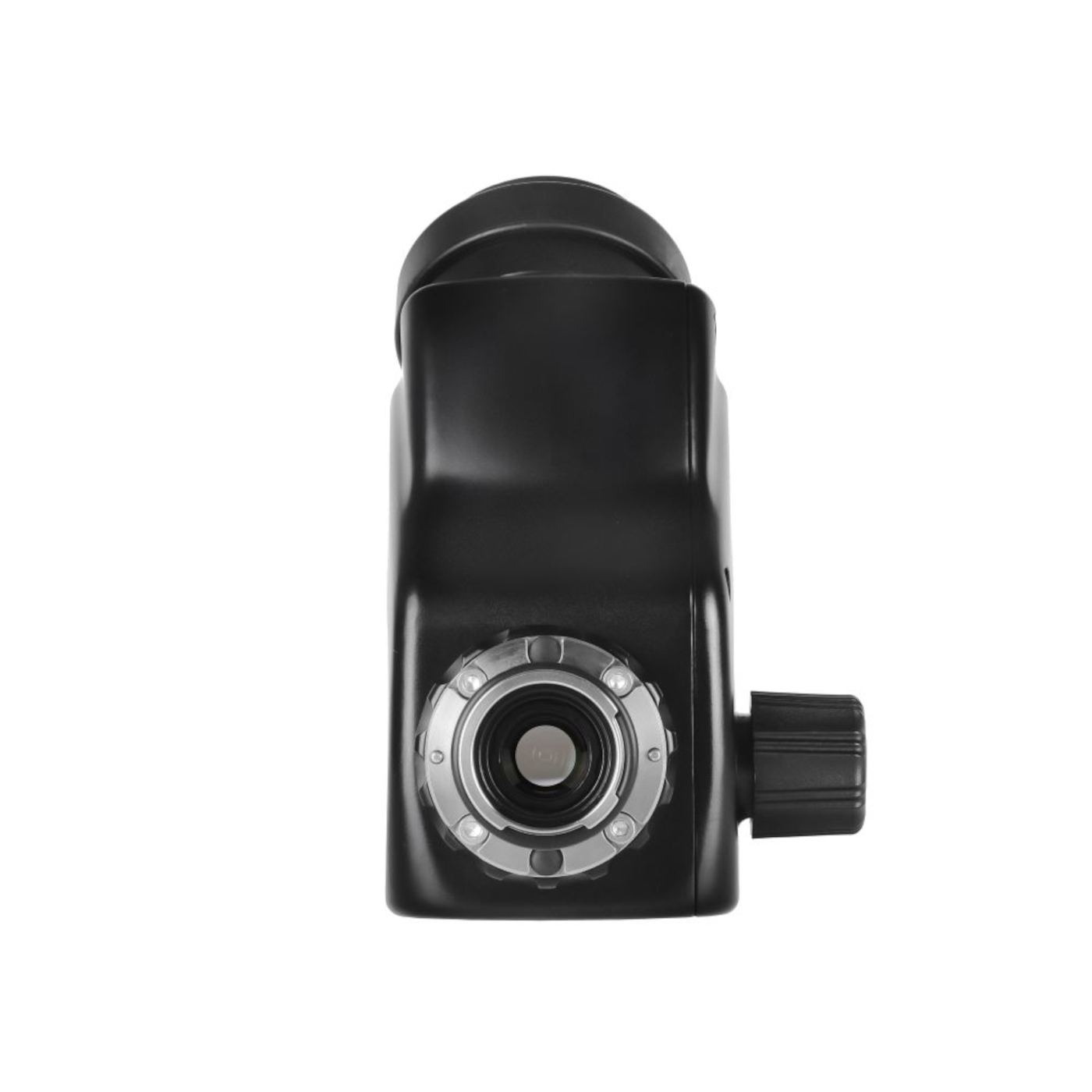

Nauticam Reverse angled viewfinder for EMWL (40°/ 0.8:1)

Introducing the Nauticam Reverse Angled Viewfinder for EMWL (40°/0.8:1). In this configuration, when the relay lens is absent, the image typically appears inverted in the viewfinder or electronic viewfinder (EVF). However, with this version, you can enjoy a properly oriented image, greatly enhancing your shooting experience.

Moreover, removing the relay lens makes operating your camera more convenient, especially in situations where shooting subjects at an extended distance is not necessary.

With a magnification ratio of 0.8:1, this viewfinder provides comprehensive corner-to-corner image visibility, perfectly complementing cameras like the Sony A7R V, A-1, and A7S III, which feature larger electronic viewfinders.

Compatibility is not an issue, as this viewfinder seamlessly integrates with all Full-frame DSLR and Full-frame Mirrorless housings, with the exception of the NA-A7C. For the NA-A7C housing, you will need the same adapter (#32215) as required for other mirrorless housings. Elevate your underwater photography with the Nauticam Reverse Angled Viewfinder for EMWL (40°/0.8:1), designed to enhance your shooting experience while maintaining compatibility across a wide range of housings.

What's In The Box

• Reverse angled viewfinder for EMWL (40°/ 0.8:1)
• Front and rear covers
• Neoprene bag
• Spare o-rings x 3
• Manual card

Optional Accessories

• 32215 Viewfinder Collar Adaptor for 87213/87214 to use with MIL Housings
• 90020 45/180˚ viewfinder O-ring set
• 90037 Rubber caps for EVF rear, front and eye cap (3 parts)

Compatible Housing Systems

• Digital Single Lens Reflex (DSLR) Camera Housings
• Full Frame Mirrorless Camera Housings (except NA-A7C)
• Mirrorless Interchangeable Lens (MIL) Camera Housings through using #32215 Viewfinder Collar Adaptor

Click Here for Manual
