NA-Ninja V housing for Atomos Ninja V - 5-inch 4K Monitor


2.391,00 EUR

Nauticam

The Nauticam NA-NINJA V underwater housing for Atomos Ninja V.

The Ninja V is easily mounted in the housing, dropping in without trays or other mounting accessories and is held in place by two rotating locking levers. It features both an HDMI 2.0 input as well as an output and the NA-Ninja V supports both as well. With dual M28 bulkheads, a second HDMI cable can be run to another monitor. The Ninja V allows for 4K display/recording at 60p.
(NOTE: HDMI cables for this housing are SOLD SEPARATELY)



Technical Specs

Dimensions                       224mm x 169mm x 113mm (W x H x D)

Weight in Air                     1.62kg

Weight in Water               -0.36kg (with monitor, Atom X SSD, NP-F970 batt)

Depth Rating                     100m

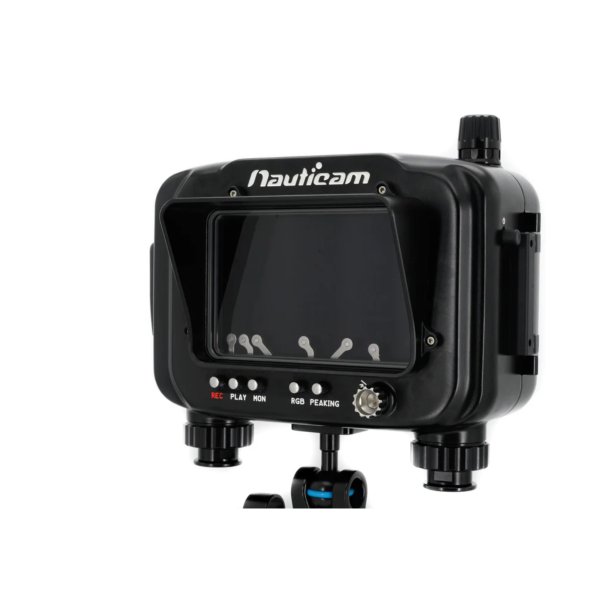

Product picture

Description


ATOMOS NINJA V

With more cameras offering high quality HDMI video output, the Atomos Ninja V steps in, not only as a stunning monitor but also as a recorder of 4K 60p 4:2:2 10-bit video to on-board SSD drives in edit-friendly ProRes or Avid formats. The Nauticam NA-Ninja V, connects over HDMI 2.0 (HDMI 1.4 also available) and provides easy control of the Ninja V monitor when diving.



THE ATOMOS NINJA V

The Atomos Ninja V is an exceptional monitor, featuring a bright 1000 nit 10-but HDR 5.2" screen that can display over 10 stops of dynamic range with compatible cameras.  The monitor includes a variety of exposure and focus assist tools to ensure your footage is properly exposed and in focus. In addition to being an extremely capeable monitor it also functions as a recorder. When used with HDMI 2.0 compatible cameras, the Ninja V can record up to 4K at 60p in 10bit 4:2:2 ProRes or DNxHR formats to the Atomos AtomX SSDmini solid state drive or other 2,5” SSD drives with included Master Caddy II. With a 1TB SSDmini drive, the Ninja V can record up to 150 minutes of 4k video.



EXPOSURE TOOLS

The Ninja V exposure guides include a Waveform for luminance, RGB Parade for color balance, and Vector Scope for hue and saturation.  These tools, especially useful for the underwater filmmaker, allow accurate and fast judging of exposure, even under the most uncooperative lighting scenarios. Also when recording Log or HDR footage, using Rec.709 or HLG monitoring displays the video on the screen adjusted to the levels of the chosen standard.



FOCUS TOOLS

Critical focus can be achieved using various peaking tools.  Focus Peaking Color displays the original color image with the sharpest areas outlined in a selectable color.  Focus Peaking Mono provides the same overlay but on a monochrome image.  Focus Assist Outline shows only the false color outline on a black background of the sharpest areas.



THE NAUTICAM NA-NINJA V

The Nauticam NA-Ninja V builds on the strong foundation Nauticam has built on with previous Atomos monitor/recorder housings but is built around the new M28 large-bore bulkhead that supports HDMI 2.0.

The Ninja V is easily mounted in the housing, dropping in without trays or other mounting accessories and is held in place by two rotating locking levers.  The Ninja V features both an HDMI 2.0 input as well as an output and the NA-Ninja V supports both as well.  With dual M28 bulkheads, a second HDMI cable can be run to another monitor.  The Ninja V allows for the application of cube format 3D LUTs to this output signal.

The NA-Ninja V supports up to the NP-F970 size battery which provides up to two hours of run time.  A CR-2032 battery powers the vacuum check and leak detection system.  When used with the included Vacuum Valve, the system gives real-time feedback about the watertight integrity of the housing through an easily visible multi-color LED on the top of the housing.

 Access to the touchscreen controls of the Ninja V are handled via a series of buttons and a selector knob beneath the screen of the housing including PLAY, REC, MON, RGB, PEAK and the Muti-Selector Lever.



What's In The Box:

•             NA-Ninja V Housing

•             Monitor Hood

•             M16 Vacuum Valve (pre-installed) PN 25625

•             Spare silicone rubber main o-ring PN 90137

•             O-ring removal tool and lubricant

•             CR2032 battery



TECHNICAL SPECIFICATIONS

Dimensions                      224mm x 169mm x 113mm (W x H x D)

Weight in Air                     1.62kg

Weight in Water               -0.36kg (with monitor, Atom X SSD, NP-F970 batt)

Depth Rating                     100m
